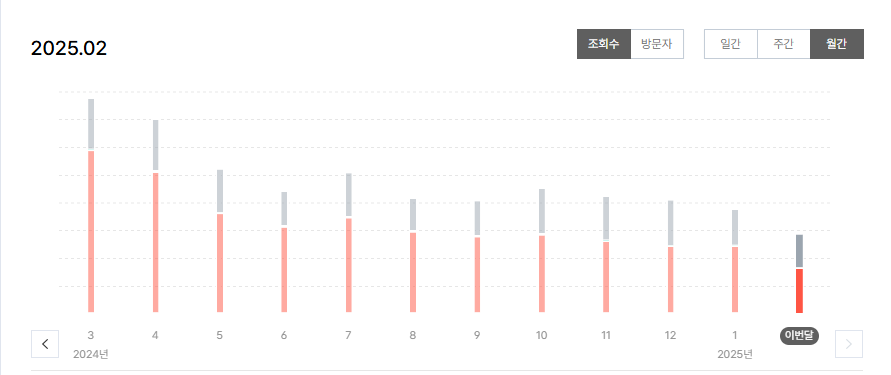

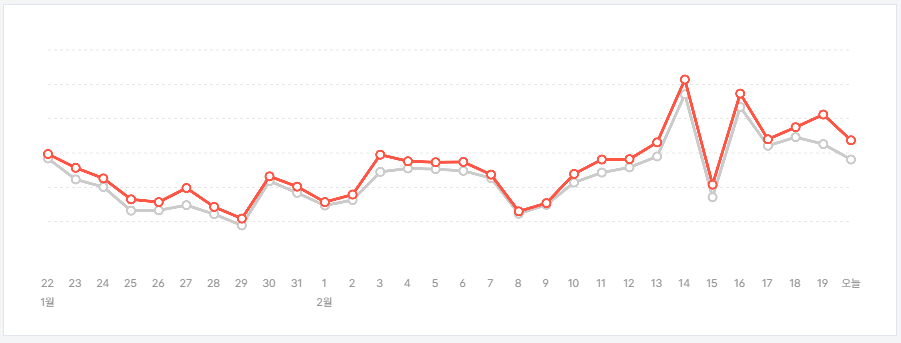

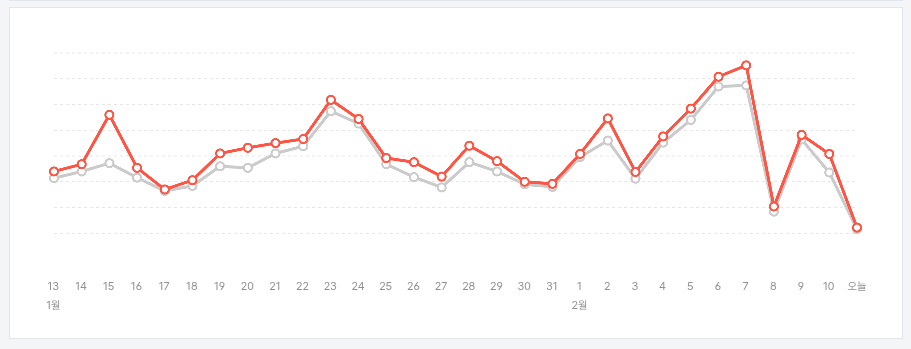

요 근래 조금은(?) 하락세에서 반등중
그런다고 해서 월별추세로 봐서 올라갈것 같지도 않은데, 검색엔진 유입이라도 생겼나?
'개소리 왈왈 > 블로그' 카테고리의 다른 글
| 공개 발행할 수 있는 글은 최대 30개 까지. (2) | 2025.02.22 |
|---|---|
| 엥 티스토리 글 번호 왜 이따구야? (0) | 2025.02.22 |
| 해피빈 기부 시즌 (0) | 2024.12.18 |
| 오블완 챌린지 완료 (2) | 2024.11.28 |
| 오블완 챌린지? (3) | 2024.11.07 |
'잡동사니'에 해당되는 글 13822건
- 2025.02.20 인기있을 블로그는 아닌데..
- 2025.02.20 10g 또 지름
- 2025.02.20 cpp std::to_string(int)
- 2025.02.19 npar(NIC Partitioning)
- 2025.02.19 ubuntu iperf3 10g 테스트 실패
- 2025.02.19 candump, cansend와 vcan
- 2025.02.18 NCSI (Network Controller Sideband Interface)
- 2025.02.18 "smart card resource manager is not running"
- 2025.02.18 linux can 테스트(가상 CAN IF)
- 2025.02.18 can-utils(cansend, candump)
개소리 왈왈/블로그2025. 2. 20. 22:39
개소리 왈왈/컴퓨터2025. 2. 20. 14:59
자꾸 link가 떨어지는데 랜 카드가 문제인지 케이블이 문제인지 몰라서
또 셋트로 지름!
이제 LP 2개, 표준형 2개! ㅋㅋ
걍 처음부터 2개씩 살걸..(원래 2배수 지르는 닝겐)
'개소리 왈왈 > 컴퓨터' 카테고리의 다른 글
| 10g NIC 도착 (0) | 2025.02.24 |
|---|---|
| mx4 4g 써멀 지름 (0) | 2025.02.24 |
| 줍줍 7세대? (0) | 2025.02.11 |
| 10g nic 지름 (0) | 2025.02.10 |
| 레노버 보증조회 그리고 fan error? (0) | 2025.02.09 |
Programming/C++ STL2025. 2. 20. 12:32
자동 형변환(?)은 지원안하는지
문자열 끝에 "blah blah : " + value 하니 에러가 발생해서 찾아보니
std::to_string() 이라는 착한 녀석이 존재함을 발견!
[링크 : https://en.cppreference.com/w/cpp/string/basic_string/to_string]
'Programming > C++ STL' 카테고리의 다른 글
| cpp 그래픽 라이브러리 (0) | 2025.04.22 |
|---|---|
| cpp 기본 인자 prototype (0) | 2025.03.28 |
| cpp string 끝에 한글자 지우기 (0) | 2025.02.06 |
| cpp stoi (atoi) (0) | 2025.02.06 |
| std::string:npos (0) | 2025.02.05 |
하드웨어/Network 장비2025. 2. 19. 22:22
듀얼 포트인데 한쪽에서 설정을 켜면 다른 한쪽도 같이 적용 되어버린다.
우분투에서 SF(single Function)으로는 enp1s0f0 / enp1s0f1 라고 떴는데
NPAR로 설정하고 콜드 리부팅하니 enp1s0f0~7 까지 생겨난다.
| 3: enp1s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether f4:e9:d4:8c:d6:60 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 46 maxmtu 9600 addrgenmode eui64 numtxqueues 46 numrxqueues 16 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536 portid f4e9d48cd660 parentbus pci parentdev 0000:01:00.0 4: enp1s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether f4:e9:d4:8c:d6:62 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 46 maxmtu 9600 addrgenmode eui64 numtxqueues 46 numrxqueues 16 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536 portid f4e9d48cd662 parentbus pci parentdev 0000:01:00.1 |
그나저나 우분투에서 8개 까지만 출력하게 하다 보니 2번은 가출(!!)
전체목록을 가야 보인다. 링크는 설정에서100% bandwidth로 되어 있어서 10G가 그대로 뜬다.
10%면 1G로 뜨나 확인을 해봐야겠다.
 |
 |
맥이 짝수로 점프하는데 그럼.. 홀수는 누가 쓰고 있을까?
이전글에서확인해보니 iSCSI에서 해당 홀수 mac을 쓰고 있다. 그러면.. FCoE는 Ethernet이니 별도의 MAC은 할당되어 있지 않는건가?
2025.02.11 - [하드웨어/Network 장비] - BCM957810A1008G boot oprom
| $ ifconfig enp1s0f0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.0.1 netmask 255.255.255.0 broadcast 192.168.0.255 ether f4:e9:d4:8c:d6:60 txqueuelen 1000 (Ethernet) RX packets 56 bytes 7322 (7.3 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 44 bytes 2776 (2.7 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 16 memory 0xe0000000-e07fffff enp1s0f1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.0.2 netmask 255.255.255.0 broadcast 192.168.0.255 ether f4:e9:d4:8c:d6:62 txqueuelen 1000 (Ethernet) RX packets 55 bytes 7521 (7.5 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 46 bytes 2890 (2.8 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 17 memory 0xe1000000-e17fffff enp1s0f2: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::10a0:6d46:dd8b:5874 prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:64 txqueuelen 1000 (Ethernet) RX packets 61 bytes 8164 (8.1 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 18 bytes 3024 (3.0 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 17 memory 0xe2000000-e27fffff enp1s0f3: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::56f0:e7ae:639d:4ac0 prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:66 txqueuelen 1000 (Ethernet) RX packets 57 bytes 7967 (7.9 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 16 bytes 2588 (2.5 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 18 memory 0xe3000000-e37fffff enp1s0f4: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::6455:3064:bef9:3b30 prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:68 txqueuelen 1000 (Ethernet) RX packets 57 bytes 7785 (7.7 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 18 bytes 2859 (2.8 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 18 memory 0xe4000000-e47fffff enp1s0f5: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::4d88:313b:1a0f:af85 prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:6a txqueuelen 1000 (Ethernet) RX packets 59 bytes 8362 (8.3 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 18 bytes 2859 (2.8 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 19 memory 0xe5000000-e57fffff enp1s0f6: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::7a24:ce1e:ab69:f11b prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:6c txqueuelen 1000 (Ethernet) RX packets 61 bytes 8164 (8.1 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 21 bytes 3400 (3.4 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 19 memory 0xe6000000-e67fffff enp1s0f7: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::b1ad:7263:6c7e:7aa4 prefixlen 64 scopeid 0x20<link> ether f4:e9:d4:8c:d6:6e txqueuelen 1000 (Ethernet) RX packets 57 bytes 7967 (7.9 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 17 bytes 2654 (2.6 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device interrupt 16 memory 0xe7000000-e77fffff enp3s0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.219.111 netmask 255.255.255.0 broadcast 192.168.219.255 inet6 fe80::6245:cbff:fe9d:3a12 prefixlen 64 scopeid 0x20<link> ether 60:45:cb:9d:3a:12 txqueuelen 1000 (Ethernet) RX packets 55 bytes 17755 (17.7 KB) RX errors 0 dropped 7 overruns 0 frame 0 TX packets 99 bytes 12054 (12.0 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 558 bytes 50639 (50.6 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 558 bytes 50639 (50.6 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 |
'하드웨어 > Network 장비' 카테고리의 다른 글
| ubtuntu 24.04 랜 이름이 왜이래? (0) | 2025.02.22 |
|---|---|
| NPAR와 SR-IOV? (0) | 2025.02.20 |
| BCM957810A1008G 메뉴얼 (0) | 2025.02.11 |
| BCM957810A1008G boot oprom (0) | 2025.02.11 |
| SFP(Small Form-factor Pluggable) (0) | 2025.02.10 |
하드웨어/FC_SAN_10G2025. 2. 19. 21:55
G4560 / 4GB / 128GB SATA SSD 에서 테스트 했는데
SSD도 문제가 있나.. 아니면 리눅스도 이제 4GB로는 무리인가.. 부팅도 오래걸리고, 설치도 엄청 오래 걸렸다.
최대 설정가능한 MTU는 ip 명령을 통해 확인이 가능하고
| $ ip -d link list 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 promiscuity 0 allmulti 0 minmtu 0 maxmtu 0 addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 65536 gso_max_segs 65535 tso_max_size 524280 tso_max_segs 65535 gro_max_size 65536 2: enp3s0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000 link/ether 60:45:cb:9d:3a:12 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 68 maxmtu 9194 addrgenmode eui64 numtxqueues 1 numrxqueues 1 gso_max_size 64000 gso_max_segs 64 tso_max_size 64000 tso_max_segs 64 gro_max_size 65536 parentbus pci parentdev 0000:03:00.0 3: enp1s0f0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether f4:e9:d4:8c:d6:60 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 46 maxmtu 9600 addrgenmode eui64 numtxqueues 46 numrxqueues 16 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536 portid f4e9d48cd660 parentbus pci parentdev 0000:01:00.0 4: enp1s0f1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP mode DEFAULT group default qlen 1000 link/ether f4:e9:d4:8c:d6:62 brd ff:ff:ff:ff:ff:ff promiscuity 0 allmulti 0 minmtu 46 maxmtu 9600 addrgenmode eui64 numtxqueues 46 numrxqueues 16 gso_max_size 65536 gso_max_segs 65535 tso_max_size 65536 tso_max_segs 65535 gro_max_size 65536 portid f4e9d48cd662 parentbus pci parentdev 0000:01:00.1 $ sudo ifconfig enp1s0f1 mtu 9600 |
[링크: https://unix.stackexchange.com/questions/552107/how-to-get-maximum-supported-mtu-size-for-interface]
위는 MTU 1500
아래는 MTU 9600 로 설정하고 테스트 했는데
커널 내부 전송이었는지 10G NIC 인데 40G가 나오고 난리.. -_-
아무튼 MTU가 커지니 좀 안정적으로 40G 이상 나오는 것 정도로 정리되는데
| $ iperf3 -s ----------------------------------------------------------- Server listening on 5201 (test #1) ----------------------------------------------------------- Accepted connection from 192.168.0.1, port 46302 [ 5] local 192.168.0.1 port 5201 connected to 192.168.0.1 port 46304 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 5.09 GBytes 43.7 Gbits/sec [ 5] 1.00-2.00 sec 4.58 GBytes 39.4 Gbits/sec [ 5] 2.00-3.00 sec 3.87 GBytes 33.2 Gbits/sec [ 5] 3.00-4.00 sec 4.58 GBytes 39.4 Gbits/sec [ 5] 4.00-5.00 sec 4.47 GBytes 38.4 Gbits/sec [ 5] 5.00-6.00 sec 4.80 GBytes 41.3 Gbits/sec [ 5] 6.00-7.00 sec 4.78 GBytes 41.0 Gbits/sec [ 5] 7.00-8.00 sec 3.46 GBytes 29.8 Gbits/sec [ 5] 8.00-9.00 sec 2.80 GBytes 24.1 Gbits/sec [ 5] 9.00-10.00 sec 3.33 GBytes 28.6 Gbits/sec [ 5] 10.00-10.00 sec 768 KBytes 23.8 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 41.8 GBytes 35.9 Gbits/sec receiver |
$ iperf3 -c 192.168.0.1 Connecting to host 192.168.0.1, port 5201 [ 5] local 192.168.0.1 port 46304 connected to 192.168.0.1 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 5.09 GBytes 43.7 Gbits/sec 0 1.62 MBytes [ 5] 1.00-2.00 sec 3.34 GBytes 28.7 Gbits/sec 3 3.31 MBytes [ 5] 2.00-3.00 sec 3.86 GBytes 33.2 Gbits/sec 0 4.12 MBytes [ 5] 3.00-4.00 sec 4.58 GBytes 39.3 Gbits/sec 0 4.12 MBytes [ 5] 4.00-5.00 sec 4.47 GBytes 38.4 Gbits/sec 0 4.12 MBytes [ 5] 5.00-6.00 sec 4.80 GBytes 41.3 Gbits/sec 0 4.12 MBytes [ 5] 6.00-7.00 sec 4.75 GBytes 40.8 Gbits/sec 0 4.12 MBytes [ 5] 7.00-8.00 sec 3.45 GBytes 29.6 Gbits/sec 0 4.12 MBytes [ 5] 8.00-9.00 sec 2.79 GBytes 23.9 Gbits/sec 0 4.12 MBytes [ 5] 9.00-10.00 sec 3.32 GBytes 28.6 Gbits/sec 2 4.12 MBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 41.8 GBytes 35.9 Gbits/sec 5 sender [ 5] 0.00-10.00 sec 41.8 GBytes 35.9 Gbits/sec receiver iperf Done. |
| ----------------------------------------------------------- Server listening on 5201 (test #4) ----------------------------------------------------------- Accepted connection from 192.168.0.1, port 39920 [ 5] local 192.168.0.1 port 5201 connected to 192.168.0.1 port 39926 [ ID] Interval Transfer Bitrate [ 5] 0.00-1.00 sec 4.99 GBytes 42.8 Gbits/sec [ 5] 1.00-2.00 sec 5.43 GBytes 46.6 Gbits/sec [ 5] 2.00-3.00 sec 5.30 GBytes 45.5 Gbits/sec [ 5] 3.00-4.00 sec 5.39 GBytes 46.3 Gbits/sec [ 5] 4.00-5.00 sec 5.31 GBytes 45.6 Gbits/sec [ 5] 5.00-6.00 sec 5.21 GBytes 44.7 Gbits/sec [ 5] 6.00-7.00 sec 5.39 GBytes 46.3 Gbits/sec [ 5] 7.00-8.00 sec 5.35 GBytes 46.0 Gbits/sec [ 5] 8.00-9.00 sec 5.37 GBytes 46.1 Gbits/sec [ 5] 9.00-10.00 sec 5.61 GBytes 48.2 Gbits/sec [ 5] 10.00-10.00 sec 512 KBytes 17.4 Gbits/sec - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate [ 5] 0.00-10.00 sec 53.4 GBytes 45.8 Gbits/sec receiver |
$ iperf3 -c 192.168.0.1 Connecting to host 192.168.0.1, port 5201 [ 5] local 192.168.0.1 port 39926 connected to 192.168.0.1 port 5201 [ ID] Interval Transfer Bitrate Retr Cwnd [ 5] 0.00-1.00 sec 4.99 GBytes 42.8 Gbits/sec 0 1.12 MBytes [ 5] 1.00-2.00 sec 5.41 GBytes 46.4 Gbits/sec 0 1.19 MBytes [ 5] 2.00-3.00 sec 5.30 GBytes 45.5 Gbits/sec 0 1.37 MBytes [ 5] 3.00-4.00 sec 3.92 GBytes 33.7 Gbits/sec 0 1.37 MBytes [ 5] 4.00-5.00 sec 4.99 GBytes 42.9 Gbits/sec 0 1.37 MBytes [ 5] 5.00-6.00 sec 5.21 GBytes 44.7 Gbits/sec 0 3.18 MBytes [ 5] 6.00-7.00 sec 5.39 GBytes 46.3 Gbits/sec 0 3.18 MBytes [ 5] 7.00-8.00 sec 5.35 GBytes 46.0 Gbits/sec 0 3.18 MBytes [ 5] 8.00-9.00 sec 5.35 GBytes 46.0 Gbits/sec 0 3.18 MBytes [ 5] 9.00-10.00 sec 5.62 GBytes 48.2 Gbits/sec 0 3.18 MBytes - - - - - - - - - - - - - - - - - - - - - - - - - [ ID] Interval Transfer Bitrate Retr [ 5] 0.00-10.00 sec 53.4 GBytes 45.8 Gbits/sec 0 sender [ 5] 0.00-10.00 sec 53.4 GBytes 45.8 Gbits/sec receiver iperf Done. |
-P 1 혹은 옵션 없이 하면 50% 정도 먹고
-P 4로 4 프로세스 사용하도록 하면 100%은 찍는데
물리 cpu가 2개에 HT 4개인 녀석이라, 40GBps 를 초과하진 못한다.
[링크: https://www.reddit.com/r/homelab/comments/11v94kz/new_10g_network_iperf_3_maxing_out_at_6_gbitssec/]
'하드웨어 > FC_SAN_10G' 카테고리의 다른 글
| BCM957810A1008G 10g linux 로그 (0) | 2025.02.23 |
|---|---|
| 10g with cat 8 S-FTP 케이블 (0) | 2025.02.23 |
| 10g nic 테스트, link unstable (0) | 2025.02.22 |
| BCM957810A1008G 10G nic 도착 (0) | 2025.02.11 |
| 10G FCoE CEE? (0) | 2025.02.03 |
모종의 음모/CAN2025. 2. 19. 16:35
| $ modprobe vcan modprobe: ERROR: could not insert 'vcan': Operation not permitted $ sudo modprobe vcan $ sudo ip link add dev vcan0 type vcan $ ifconfig br-638c83b169eb: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.18.0.1 netmask 255.255.0.0 broadcast 172.18.255.255 ether 02:42:d5:e6:f1:21 txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255 ether 02:42:40:63:97:cb txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 enxf8e43b9b776b: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.108 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::81f4:65ad:f7cc:2f2c prefixlen 64 scopeid 0x20<link> ether f8:e4:3b:9b:77:6b txqueuelen 1000 (Ethernet) RX packets 3619726 bytes 2156366501 (2.1 GB) RX errors 0 dropped 106170 overruns 0 frame 0 TX packets 1452518 bytes 317915291 (317.9 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 160829 bytes 14028478 (14.0 MB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 160829 bytes 14028478 (14.0 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 wlo1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.107 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::104b:d69c:878f:cfaa prefixlen 64 scopeid 0x20<link> ether 8c:55:4a:28:25:bc txqueuelen 1000 (Ethernet) RX packets 809871 bytes 90255020 (90.2 MB) RX errors 0 dropped 99865 overruns 0 frame 0 TX packets 53067 bytes 6125665 (6.1 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 $ ifconfig -a br-638c83b169eb: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.18.0.1 netmask 255.255.0.0 broadcast 172.18.255.255 ether 02:42:d5:e6:f1:21 txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255 ether 02:42:40:63:97:cb txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 enxf8e43b9b776b: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.108 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::81f4:65ad:f7cc:2f2c prefixlen 64 scopeid 0x20<link> ether f8:e4:3b:9b:77:6b txqueuelen 1000 (Ethernet) RX packets 3620125 bytes 2156544266 (2.1 GB) RX errors 0 dropped 106183 overruns 0 frame 0 TX packets 1452676 bytes 317938700 (317.9 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 160841 bytes 14030154 (14.0 MB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 160841 bytes 14030154 (14.0 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vcan0: flags=128<NOARP> mtu 72 unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 1000 (UNSPEC) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 wlo1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.107 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::104b:d69c:878f:cfaa prefixlen 64 scopeid 0x20<link> ether 8c:55:4a:28:25:bc txqueuelen 1000 (Ethernet) RX packets 809990 bytes 90270371 (90.2 MB) RX errors 0 dropped 99877 overruns 0 frame 0 TX packets 53074 bytes 6126348 (6.1 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 $ sudo ifconfig vcan0 up $ ifconfig br-638c83b169eb: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.18.0.1 netmask 255.255.0.0 broadcast 172.18.255.255 ether 02:42:d5:e6:f1:21 txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 docker0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255 ether 02:42:40:63:97:cb txqueuelen 0 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 enxf8e43b9b776b: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.108 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::81f4:65ad:f7cc:2f2c prefixlen 64 scopeid 0x20<link> ether f8:e4:3b:9b:77:6b txqueuelen 1000 (Ethernet) RX packets 3620430 bytes 2156573250 (2.1 GB) RX errors 0 dropped 106197 overruns 0 frame 0 TX packets 1452764 bytes 317953427 (317.9 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 160841 bytes 14030154 (14.0 MB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 160841 bytes 14030154 (14.0 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vcan0: flags=193<UP,RUNNING,NOARP> mtu 72 unspec 00-00-00-00-00-00-00-00-00-00-00-00-00-00-00-00 txqueuelen 1000 (UNSPEC) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 wlo1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 192.168.220.107 netmask 255.255.0.0 broadcast 192.168.255.255 inet6 fe80::104b:d69c:878f:cfaa prefixlen 64 scopeid 0x20<link> ether 8c:55:4a:28:25:bc txqueuelen 1000 (Ethernet) RX packets 810099 bytes 90278671 (90.2 MB) RX errors 0 dropped 99889 overruns 0 frame 0 TX packets 53074 bytes 6126348 (6.1 MB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 |
[링크 : https://ola-page.tistory.com/66]
| $ candump candump - dump CAN bus traffic. Usage: candump [options] <CAN interface>+ (use CTRL-C to terminate candump) Options: -t <type> (timestamp: (a)bsolute/(d)elta/(z)ero/(A)bsolute w date) -H (read hardware timestamps instead of system timestamps) -c (increment color mode level) -i (binary output - may exceed 80 chars/line) -a (enable additional ASCII output) -S (swap byte order in printed CAN data[] - marked with '`' ) -s <level> (silent mode - 0: off (default) 1: animation 2: silent) -l (log CAN-frames into file. Sets '-s 2' by default) -L (use log file format on stdout) -n <count> (terminate after reception of <count> CAN frames) -r <size> (set socket receive buffer to <size>) -D (Don't exit if a "detected" can device goes down. -d (monitor dropped CAN frames) -e (dump CAN error frames in human-readable format) -x (print extra message infos, rx/tx brs esi) -T <msecs> (terminate after <msecs> without any reception) Up to 16 CAN interfaces with optional filter sets can be specified on the commandline in the form: <ifname>[,filter]* Filters: Comma separated filters can be specified for each given CAN interface: <can_id>:<can_mask> (matches when <received_can_id> & mask == can_id & mask) <can_id>~<can_mask> (matches when <received_can_id> & mask != can_id & mask) #<error_mask> (set error frame filter, see include/linux/can/error.h) [j|J] (join the given CAN filters - logical AND semantic) CAN IDs, masks and data content are given and expected in hexadecimal values. When the can_id is 8 digits long the CAN_EFF_FLAG is set for 29 bit EFF format. Without any given filter all data frames are received ('0:0' default filter). Use interface name 'any' to receive from all CAN interfaces. Examples: candump -c -c -ta can0,123:7FF,400:700,#000000FF can2,400~7F0 can3 can8 candump -l any,0~0,#FFFFFFFF (log only error frames but no(!) data frames) candump -l any,0:0,#FFFFFFFF (log error frames and also all data frames) candump vcan2,12345678:DFFFFFFF (match only for extended CAN ID 12345678) candump vcan2,123:7FF (matches CAN ID 123 - including EFF and RTR frames) candump vcan2,123:C00007FF (matches CAN ID 123 - only SFF and non-RTR frames) |
| $ cansend vcan0 cansend - send CAN-frames via CAN_RAW sockets. Usage: cansend <device> <can_frame>. <can_frame>: <can_id>#{data} for 'classic' CAN 2.0 data frames <can_id>#R{len} for 'classic' CAN 2.0 data frames <can_id>##<flags>{data} for CAN FD frames <can_id>: 3 (SFF) or 8 (EFF) hex chars {data}: 0..8 (0..64 CAN FD) ASCII hex-values (optionally separated by '.') {len}: an optional 0..8 value as RTR frames can contain a valid dlc field <flags>: a single ASCII Hex value (0 .. F) which defines canfd_frame.flags Examples: 5A1#11.2233.44556677.88 / 123#DEADBEEF / 5AA# / 123##1 / 213##311223344 / 1F334455#1122334455667788 / 123#R / 00000123#R3 |
아래는 데이터 출력 포맷 확인용
인터페이스 / CAN id / 길이 / 데이터(페이로드 길이)
| receive | send |
| $ candump vcan0 vcan0 111 [5] 01 02 03 04 05 |
$ cansend vcan0 111#010203.04.05 |
| vcan0 112 [5] 01 02 03 04 05 | $ cansend vcan0 112#010203.04.05 |
| vcan0 112 [0] | $ cansend vcan0 112# |
| vcan0 112 [00] | $ cansend vcan0 112##1 |
| vcan0 112 [01] 23 | $ cansend vcan0 112##123 |
| vcan0 112 [0] remote request | $ cansend vcan0 112#R |
| vcan0 112 [3] remote request | $ cansend vcan0 112#R3 |
받는 쪽에서 CAN id 제한할 경우, 112를 받도록 설정했기에 113은 무시된다.
| $ candump vcan0,112:FF | $ cansend vcan0 111#R3 |
| vcan0 112 [3] remote request | $ cansend vcan0 112#R3 |
| $ cansend vcan0 113#R3 | |
| vcan0 112 [5] 01 02 03 04 05 | $ cansend vcan0 112#010203.04.05 |
| vcan0 112 [6] 01 02 03 04 05 06 | $ cansend vcan0 112#010203.04.0506 |
| vcan0 112 [7] 01 02 03 04 05 06 07 | $ cansend vcan0 112#010203.04.0506.07 |
| vcan0 112 [0] remote request | $ cansend vcan0 112#R $ cansend vcan0 112#R10 $ cansend vcan0 112#R100 |
| vcan0 112 [1] remote request | $ cansend vcan0 112#R1 |
| vcan0 112 [2] remote request | $ cansend vcan0 112#R2 |
| vcan0 112 [8] remote request | $ cansend vcan0 112#R8 |
그나저나 mask 라는데 이해가 안되네..
123 = 0x7B & 0x7F0 하면 0x7B가 되어야 하니 16개에 대해서 받아들여야 할 거 같은데 왜 119에서 130 까지 12개 받아들여 질까?
| $ candump vcan0,123:7F0 vcan0 120 [0] remote request vcan0 121 [0] remote request vcan0 122 [0] remote request vcan0 123 [0] remote request vcan0 124 [0] remote request vcan0 125 [0] remote request vcan0 126 [0] remote request vcan0 127 [0] remote request vcan0 128 [0] remote request vcan0 129 [0] remote request |
$ cansend vcan0 119#R $ cansend vcan0 120#R $ cansend vcan0 121#R $ cansend vcan0 122#R $ cansend vcan0 123#R $ cansend vcan0 124#R $ cansend vcan0 125#R $ cansend vcan0 126#R $ cansend vcan0 127#R $ cansend vcan0 128#R $ cansend vcan0 129#R $ cansend vcan0 130#R |
'모종의 음모 > CAN' 카테고리의 다른 글
| DeviceNet CAN (0) | 2025.04.01 |
|---|---|
| linux can 테스트(가상 CAN IF) (0) | 2025.02.18 |
| can-utils(cansend, candump) (0) | 2025.02.18 |
| can invader (0) | 2024.01.09 |
| CAN(controller area network) (0) | 2023.10.31 |
하드웨어/Server Case & board2025. 2. 18. 18:58
서버 메인보드에서 NCSI 라는 명칭이 나오길래 찾아보는 중
서버 보드에 관리용 포트로 보이는게 두개 있는데
하나는 IPMI 라고 bios에서 써있고
다른 하나는 NCSI 라고 써있다.
'하드웨어 > Server Case & board' 카테고리의 다른 글
| xeon phi (0) | 2025.01.03 |
|---|---|
| 보드에 ECC/reg 장착하기 (0) | 2024.04.09 |
| 구형 시스템 메모리 클럭 제한 (0) | 2024.04.05 |
| supermicro 구형 IPMI iKVM 접속 (0) | 2024.04.01 |
| xeon에 non-ecc가 가능한가? (0) | 2024.03.31 |
하드웨어/rfid_nfc_smartcard2025. 2. 18. 17:51
윈도우에서 USB 카드리더를 통해서 읽으려는데 이런 에러가 발생한다.
| "smart card resource manager is not running" |
보안 정책을 바꾸어주고
| Local: Computer Configuration > Windows Settings > Security Settings > Local Policies > Security Options / Interactive logon: Smart card removal behvior (select any option other than "no action") |
[링크 : https://github.com/actions/runner-images/discussions/9893]
smart card service / smart card remove 등을 기동하도록 해주면 된다는데
| Press the Windows + R keys on your keyboard to open the Run window. Type services. msc and hit Enter. In the services find the Smart Card service > right-click then click start. |
일단 해결은 안됨.
'하드웨어 > rfid_nfc_smartcard' 카테고리의 다른 글
| libpcsclite 빌드 + 주의사항 (0) | 2025.02.25 |
|---|---|
| 우분투용 스마트 카드 리더 유틸리티 (0) | 2025.02.25 |
| acr1252u 스마트 카드 리더 (0) | 2025.02.18 |
| 아내 몰래(?) 회사 몰래 지르기 (0) | 2025.02.14 |
| libpcsclite 라이브러리 (0) | 2025.02.14 |
모종의 음모/CAN2025. 2. 18. 16:44
실 장비가 있으면 좋겠지만 없어도
가상 can(virtual can) 장치를 추가해서 테스트 할 수 있다.
| $ sudo ip link add dev vcan0 type vcan $ sudo ifconfig vcan0 up |
[링크 : https://ola-page.tistory.com/66] socket can
[링크 : https://hn-log.tistory.com/168] CANable
'모종의 음모 > CAN' 카테고리의 다른 글
| DeviceNet CAN (0) | 2025.04.01 |
|---|---|
| candump, cansend와 vcan (0) | 2025.02.19 |
| can-utils(cansend, candump) (0) | 2025.02.18 |
| can invader (0) | 2024.01.09 |
| CAN(controller area network) (0) | 2023.10.31 |
모종의 음모/CAN2025. 2. 18. 16:43
cansend는 보내고
candump는 받는 녀석이다.
$ cansend can0 canid#userdata
로 하면 특정 canid로 보낼 수 있고
| $ cansend --help cansend - send CAN-frames via CAN_RAW sockets. Usage: cansend <device> <can_frame>. <can_frame>: <can_id>#{data} for 'classic' CAN 2.0 data frames <can_id>#R{len} for 'classic' CAN 2.0 data frames <can_id>##<flags>{data} for CAN FD frames <can_id>: 3 (SFF) or 8 (EFF) hex chars {data}: 0..8 (0..64 CAN FD) ASCII hex-values (optionally separated by '.') {len}: an optional 0..8 value as RTR frames can contain a valid dlc field <flags>: a single ASCII Hex value (0 .. F) which defines canfd_frame.flags Examples: 5A1#11.2233.44556677.88 / 123#DEADBEEF / 5AA# / 123##1 / 213##311223344 / 1F334455#1122334455667788 / 123#R / 00000123#R3 |
candump 에서는 아래와 같이 하면 특정 id로만 확인할 수 있다.
$ candump can0,canid
| $ candump --help candump: invalid option -- '-' candump - dump CAN bus traffic. Usage: candump [options] <CAN interface>+ (use CTRL-C to terminate candump) Options: -t <type> (timestamp: (a)bsolute/(d)elta/(z)ero/(A)bsolute w date) -H (read hardware timestamps instead of system timestamps) -c (increment color mode level) -i (binary output - may exceed 80 chars/line) -a (enable additional ASCII output) -S (swap byte order in printed CAN data[] - marked with '`' ) -s <level> (silent mode - 0: off (default) 1: animation 2: silent) -l (log CAN-frames into file. Sets '-s 2' by default) -L (use log file format on stdout) -n <count> (terminate after reception of <count> CAN frames) -r <size> (set socket receive buffer to <size>) -D (Don't exit if a "detected" can device goes down. -d (monitor dropped CAN frames) -e (dump CAN error frames in human-readable format) -x (print extra message infos, rx/tx brs esi) -T <msecs> (terminate after <msecs> without any reception) Up to 16 CAN interfaces with optional filter sets can be specified on the commandline in the form: <ifname>[,filter]* Filters: Comma separated filters can be specified for each given CAN interface: <can_id>:<can_mask> (matches when <received_can_id> & mask == can_id & mask) <can_id>~<can_mask> (matches when <received_can_id> & mask != can_id & mask) #<error_mask> (set error frame filter, see include/linux/can/error.h) [j|J] (join the given CAN filters - logical AND semantic) CAN IDs, masks and data content are given and expected in hexadecimal values. When the can_id is 8 digits long the CAN_EFF_FLAG is set for 29 bit EFF format. Without any given filter all data frames are received ('0:0' default filter). Use interface name 'any' to receive from all CAN interfaces. Examples: candump -c -c -ta can0,123:7FF,400:700,#000000FF can2,400~7F0 can3 can8 candump -l any,0~0,#FFFFFFFF (log only error frames but no(!) data frames) candump -l any,0:0,#FFFFFFFF (log error frames and also all data frames) candump vcan2,12345678:DFFFFFFF (match only for extended CAN ID 12345678) candump vcan2,123:7FF (matches CAN ID 123 - including EFF and RTR frames) candump vcan2,123:C00007FF (matches CAN ID 123 - only SFF and non-RTR frames) |
