SPI 사기 전에는 일단 이걸로 테스트 해봐야겠군..
[링크 : https://stemwith.github.io/2021/09/26/ESP32-OLED/]
[링크 : https://randomnerdtutorials.com/esp32-ssd1306-oled-display-arduino-ide/]
| esp8266 wifi AT 명령어 예제 (0) | 2023.12.12 |
|---|---|
| esp32-s2 adc (0) | 2023.12.11 |
| esp32-cam lcd 달기 2 (0) | 2023.11.30 |
| esp32cam / esp wroom 32 - pinout (0) | 2023.11.30 |
| esp32 bt hid (0) | 2023.11.30 |
minicom이나 리눅스용 putty로 쇼를 해도 안되서
결국에는 arduino 설치하고 시리얼 터미널로 테스트하니 응답한다
Both NL & CR로 해주어야 응답한다. (망할!)
[링크 : https://techposts.org/flash-nodemcu-v3-stock-firmware/]
[링크 : https://github.com/sleemanj/ESP8266_Simple/blob/master/firmware/README.md]
| v1.1.1 ai-thinker-v1.1.1.bin the default baud rate is 115200 Important Note: The AT command must be end with "\r\n". For Arduino, must type the AT command like this Serial1.print("AT+GMR\r\n"); Not like this: Serial1.println("AT+GMR"); So the hardwareSerialMonitor sketch will not work now. v0.9.5.2 ai-thinker-0.9.5.2-9600.bin The default baud rate is 9600 ai-thinker-0.9.5.2.bin The default baud rate is 115200 AT+GMR AT version:0.21.0.0 SDK version:0.9.5 v0.9.5 beta ai-thinker-0.9.5.bin AT+GMR 00200.9.5(b1) compiled @ Dec 25 2014 21:40:28 AI-THINKER Dec4 |
[링크 : https://wiki.aprbrother.com/en/Firmware_For_ESP8266.html]
어디서 받아야하나?
[링크 : https://www.espressif.com/en/support/download/at]
+
AT 명령어
[링크 : https://blog.naver.com/ssshin22/220868021464]
[링크 : https://www.espressif.com/sites/default/files/4a-esp8266_at_instruction_set_en_v1.5.4_0.pdf]
| esp8266 sdio wifi (0) | 2024.09.12 |
|---|---|
| esp8266 wifi at 명령어 (0) | 2023.12.12 |
| esp8266 esptool.py (0) | 2023.12.11 |
| esp8266 microUSB 연결 2 (0) | 2023.12.11 |
| esp8266 arduino (0) | 2023.12.09 |
ubuntu 22.04에서 brltty를 삭제하고 하라고 한다.
[링크 : https://stackoverflow.com/questions/70123431/why-would-ch341-uart-is-disconnected-from-ttyusb]
패키지 설치는 아래의 명령어를 사용하면 끝!
| $ sudo apt remove brltty $ git clone https://github.com/espressif/esptool.git $ pip install intelhex $ pip install pyserial $ cd esptool |
아따.. 읽어 보기도 힘드네 -_-
| $ ./esptool.py --port /dev/ttyUSB0 read_flash_status esptool.py v4.6.2 Serial port /dev/ttyUSB0 Connecting.... Detecting chip type... Unsupported detection protocol, switching and trying again... Connecting.... Detecting chip type... ESP8266 Chip is ESP8266EX Features: WiFi Crystal is 26MHz MAC: bc:ff:4d:f8:18:35 Uploading stub... Running stub... Stub running... Status value: 0x0000 Hard resetting via RTS pin... |
| $ ./esptool.py --port /dev/ttyUSB0 flash_id esptool.py v4.6.2 Serial port /dev/ttyUSB0 Connecting.... Detecting chip type... Unsupported detection protocol, switching and trying again... Connecting.... Detecting chip type... ESP8266 Chip is ESP8266EX Features: WiFi Crystal is 26MHz MAC: bc:ff:4d:f8:18:35 Uploading stub... Running stub... Stub running... Manufacturer: d8 Device: 4016 Detected flash size: 4MB Hard resetting via RTS pin... |
| $ ./esptool.py --port /dev/ttyUSB0 chip_id esptool.py v4.6.2 Serial port /dev/ttyUSB0 Connecting.... Detecting chip type... Unsupported detection protocol, switching and trying again... Connecting.... Detecting chip type... ESP8266 Chip is ESP8266EX Features: WiFi Crystal is 26MHz MAC: bc:ff:4d:f8:18:35 Uploading stub... Running stub... Stub running... Chip ID: 0x00f81835 Hard resetting via RTS pin... |
| $ ./esptool.py -h usage: esptool [-h] [--chip {auto,esp8266,esp32,esp32s2,esp32s3beta2,esp32s3,esp32c3,esp32c6beta,esp32h2beta1,esp32h2beta2,esp32c2,esp32c6,esp32h2,esp32p4}] [--port PORT] [--baud BAUD] [--before {default_reset,usb_reset,no_reset,no_reset_no_sync}] [--after {hard_reset,soft_reset,no_reset,no_reset_stub}] [--no-stub] [--trace] [--override-vddsdio [{1.8V,1.9V,OFF}]] [--connect-attempts CONNECT_ATTEMPTS] {load_ram,dump_mem,read_mem,write_mem,write_flash,run,image_info,make_image,elf2image,read_mac,chip_id,flash_id,read_flash_status,write_flash_status,read_flash,verify_flash,erase_flash,erase_region,merge_bin,get_security_info,version} ... esptool.py v4.6.2 - Espressif chips ROM Bootloader Utility positional arguments: {load_ram,dump_mem,read_mem,write_mem,write_flash,run,image_info,make_image,elf2image,read_mac,chip_id,flash_id,read_flash_status,write_flash_status,read_flash,verify_flash,erase_flash,erase_region,merge_bin,get_security_info,version} Run esptool.py {command} -h for additional help load_ram Download an image to RAM and execute dump_mem Dump arbitrary memory to disk read_mem Read arbitrary memory location write_mem Read-modify-write to arbitrary memory location write_flash Write a binary blob to flash run Run application code in flash image_info Dump headers from a binary file (bootloader or application) make_image Create an application image from binary files elf2image Create an application image from ELF file read_mac Read MAC address from OTP ROM chip_id Read Chip ID from OTP ROM flash_id Read SPI flash manufacturer and device ID read_flash_status Read SPI flash status register write_flash_status Write SPI flash status register read_flash Read SPI flash content verify_flash Verify a binary blob against flash erase_flash Perform Chip Erase on SPI flash erase_region Erase a region of the flash merge_bin Merge multiple raw binary files into a single file for later flashing get_security_info Get some security-related data version Print esptool version options: -h, --help show this help message and exit --chip {auto,esp8266,esp32,esp32s2,esp32s3beta2,esp32s3,esp32c3,esp32c6beta,esp32h2beta1,esp32h2beta2,esp32c2,esp32c6,esp32h2,esp32p4}, -c {auto,esp8266,esp32,esp32s2,esp32s3beta2,esp32s3,esp32c3,esp32c6beta,esp32h2beta1,esp32h2beta2,esp32c2,esp32c6,esp32h2,esp32p4} Target chip type --port PORT, -p PORT Serial port device --baud BAUD, -b BAUD Serial port baud rate used when flashing/reading --before {default_reset,usb_reset,no_reset,no_reset_no_sync} What to do before connecting to the chip --after {hard_reset,soft_reset,no_reset,no_reset_stub}, -a {hard_reset,soft_reset,no_reset,no_reset_stub} What to do after esptool.py is finished --no-stub Disable launching the flasher stub, only talk to ROM bootloader. Some features will not be available. --trace, -t Enable trace-level output of esptool.py interactions. --override-vddsdio [{1.8V,1.9V,OFF}] Override ESP32 VDDSDIO internal voltage regulator (use with care) --connect-attempts CONNECT_ATTEMPTS Number of attempts to connect, negative or 0 for infinite. Default: 7. |
| esp8266 wifi at 명령어 (0) | 2023.12.12 |
|---|---|
| esp8266 nodemcu v3 기본 펌웨어 (0) | 2023.12.11 |
| esp8266 microUSB 연결 2 (0) | 2023.12.11 |
| esp8266 arduino (0) | 2023.12.09 |
| esp8266 SDK (0) | 2023.12.04 |
115200bps 로 설정해서 reset 누르니 아래와 같이 먼가 나오긴 한데..
pcb 뒷편에는 CH340G 드라이버 설치하고 9600bps로 연결하라고 하는데 머가 맞는걸까?
봉투에서 뜯은녀석이라 다른 프로그램이 들어있는건 아닐텐데..
| �brlrl ready |
dmseg로 확인하면 아래와 같이 인식된다. CH341? CH340G 라고 한거 같은디..
| normal boot |
| [ 528.742541] usb 2-1.1: new full-speed USB device number 11 using ehci-pci [ 528.851812] usb 2-1.1: New USB device found, idVendor=1a86, idProduct=7523, bcdDevice= 2.54 [ 528.851831] usb 2-1.1: New USB device strings: Mfr=0, Product=2, SerialNumber=0 [ 528.851838] usb 2-1.1: Product: USB2.0-Ser! [ 528.852466] ch341 2-1.1:1.0: ch341-uart converter detected [ 528.854364] ch341-uart ttyUSB0: break control not supported, using simulated break [ 528.854604] usb 2-1.1: ch341-uart converter now attached to ttyUSB0 |
flash 버튼 누르고 부팅하면 아래와 같이 조금더 나온다.
그런데 BRLTTY가 머하는걸까? USB 플래시 처럼인식은 안되나보네
| flash 버튼 누르고 boot 메시지 |
| [ 455.103387] usb 2-1.1: new full-speed USB device number 10 using ehci-pci [ 455.213032] usb 2-1.1: New USB device found, idVendor=1a86, idProduct=7523, bcdDevice= 2.54 [ 455.213052] usb 2-1.1: New USB device strings: Mfr=0, Product=2, SerialNumber=0 [ 455.213059] usb 2-1.1: Product: USB2.0-Ser! [ 455.213892] ch341 2-1.1:1.0: ch341-uart converter detected [ 455.214821] ch341-uart ttyUSB0: break control not supported, using simulated break [ 455.215109] usb 2-1.1: ch341-uart converter now attached to ttyUSB0 [ 455.792404] input: BRLTTY 6.4 Linux Screen Driver Keyboard as /devices/virtual/input/input27 [ 455.880634] usb 2-1.1: usbfs: interface 0 claimed by ch341 while 'brltty' sets config #1 [ 455.881356] ch341-uart ttyUSB0: ch341-uart converter now disconnected from ttyUSB0 [ 455.881387] ch341 2-1.1:1.0: device disconnected |
| 일반 권한 |
| $ brltty BRLTTY 6.4 rev BRLTTY-6.4 [https://brltty.app/] brltty: can't isolate namespaces brltty: executing as the invoking user: falinux brltty: can't set supplementary groups brltty: group not joined: 0(root) brltty: group not joined: 5(tty) brltty: group not joined: 29(audio) brltty: group not joined: 107(input) brltty: group not joined: 133(pulse-access) brltty: required capability not granted: cap_sys_admin (for injecting input characters typed on a braille device) brltty: required capability not granted: cap_sys_tty_config (for playing alert tunes via the built-in PC speaker) brltty: required capability not granted: cap_mknod (for creating needed but missing special device files) |
| root 권한 |
| $ sudo brltty BRLTTY 6.4 rev BRLTTY-6.4 [https://brltty.app/] brltty: executing as the invoking user: root |
두번 실행하니 먼가 5초에 한번 주기적으로 뜬다. 멀까?
(그냥 프롬프트가 뜨길래 먼가했는데 백그라운드로 brltty가 실행되고 있어서 뜨는 메시지 였음)
| [450328.072373] input: BRLTTY 6.4 Linux Screen Driver Keyboard as /devices/virtual/input/input36 [450351.379981] input: BRLTTY 6.4 Linux Screen Driver Keyboard as /devices/virtual/input/input37 [450351.389760] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450356.391459] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450361.393130] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450366.397596] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450371.400305] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450376.389840] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450381.395540] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450386.401519] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450391.397008] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450396.389537] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450401.402252] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 [450406.395525] usb 1-2.4.2: usbfs: interface 0 claimed by usbfs while 'brltty' sets config #1 |
| esp8266 nodemcu v3 기본 펌웨어 (0) | 2023.12.11 |
|---|---|
| esp8266 esptool.py (0) | 2023.12.11 |
| esp8266 arduino (0) | 2023.12.09 |
| esp8266 SDK (0) | 2023.12.04 |
| esp8266 microUSB 연결 (0) | 2023.12.04 |

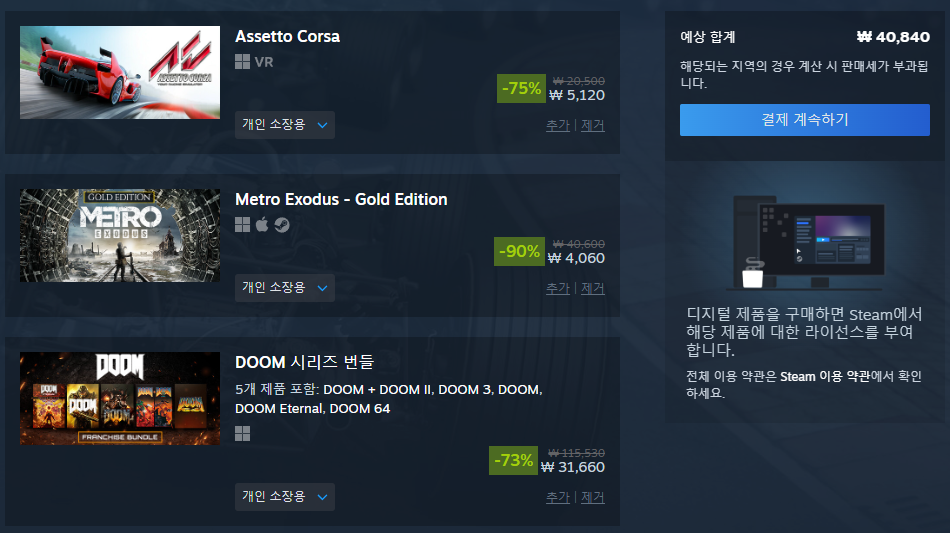

어우 돈이 훅훅 나가는구만 ㅠㅠ
| 약빨인가.. (0) | 2023.12.23 |
|---|---|
| 피곤하다!!! (0) | 2023.12.17 |
| 연차인데 병원 투어 (0) | 2023.12.05 |
| 똥개 중성화수술 (0) | 2023.12.01 |
| 치후 360 S7 로봇 청소기 배터리 분해 (0) | 2023.11.29 |
알리에서도 124,124원 하는 고가의 키보드
일단 usb 선이 잘린놈이라 고쳐야 하는데, 고치는 김에 겸사겸사 트랙볼 키보드(세진)도 같이 손을 봐야겠다.
특이하게도 키보드 높이가 2단계로 조절이 가능할 것으로 보이고, 하단에 말아서 대충 넣을 곳도 보인다.
 |
 |
[링크 : https://ko.aliexpress.com/item/4000833845776.html]
드라이버 설치글
[링크 : https://www.clien.net/service/board/cm_keyboard/15304796]
[링크 : https://m.blog.naver.com/wreg/221940558957]
+
HP껀 꺼봐도 레노버나 thinkpad를 잘 써본게 아니라 못 본것 같은데
빨콩쪽 중앙 버튼이 스크롤용이고, 이게 scrolling standard라는 이름으로 불리는 듯.
| lenovo m710q 재설치 (0) | 2023.12.18 |
|---|---|
| ibm ultranav (sk-8845rc) (2) | 2023.12.12 |
| 쿨러교체.. 망했군 (0) | 2023.12.06 |
| lenovo M710q HDMI 출력 단자 (0) | 2023.12.06 |
| thinkcentre M710q bios 들어가기 (0) | 2023.12.04 |
| https://arduino.esp8266.com/stable/package_esp8266com_index.json https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_dev_index.json |
[링크 : https://github.com/esp8266/Arduino/blob/master/package/package_esp8266com_index.template.json]
[링크 : https://github.com/esp8266/Arduino]
[링크 : https://m.blog.naver.com/elepartsblog/221453102971]
| esp8266 esptool.py (0) | 2023.12.11 |
|---|---|
| esp8266 microUSB 연결 2 (0) | 2023.12.11 |
| esp8266 SDK (0) | 2023.12.04 |
| esp8266 microUSB 연결 (0) | 2023.12.04 |
| esp8266 (0) | 2023.12.03 |
도대체 머지 -ㅁ-?
일단 설정 하나 빼니까 edge에서는 된다.
외부 엑세스 - 고급 - 호스트 이름을 삭제함.
로그인 포털 - DSM - 도메인
사용자 지정된 도메인 을 지정하고 HSTS를 하면
이렇게 나오는데 도대체 머가 문제일까...
| DS213j DSM 7로 업데이트 (0) | 2023.11.25 |
|---|---|
| intel SSD DC S3500 시리즈 (0) | 2022.04.25 |
| lsi cachecade (0) | 2022.02.18 |
| webbios raid 설정. (0) | 2022.02.17 |
| lsi raid sbr? (0) | 2022.02.17 |
esp32는 arduino ide를이용해서 하는데
대충 esp32 설치하고 나서 예시를 찾아보는데 기본 예시에서는 freertos가 없는 것 같다.
esp-idf(IoT Development Framework)을 나중에 설치해봐야 할 것 같은데..?
[링크 : https://docs.espressif.com/projects/esp-idf/en/latest/esp32/get-started/]
[링크 : https://www.vompressor.com/windows-clion-esp_idf/#google_vignette]
[링크 : https://github.com/DiegoPaezA/ESP32-freeRTOS]
[링크 : https://slowbootkernelhacks.blogspot.com/2020/12/esp32-freertos.html]
[링크 : https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/system/freertos.html]
[링크 : https://docs.espressif.com/projects/esp-idf/en/latest/esp32/api-reference/system/freertos_idf.html]
[링크 : https://blog.naver.com/serimo/221560776476]
| stm32 freertos (0) | 2023.12.08 |
|---|---|
| freeRTOS stack & heap 메모리 사용량 예측 (0) | 2015.12.16 |
| lm3s811 freeRTOS ADC... (0) | 2015.11.16 |
| freertos 자료 (0) | 2015.11.12 |
| freeRTOS 패키지? (0) | 2015.11.11 |
stm32의 cube ide에 freertos를 통합해서 제공하는 듯
[링크 : https://eteo.tistory.com/165]
[링크 : https://eteo.tistory.com/166]
[링크 : https://jeonhj.tistory.com/72]
[링크 : https://m.blog.naver.com/oh930418/221152205204]
lwip
[링크 : https://blog.naver.com/eziya76/221867311729] echo server
[링크 : https://m.blog.naver.com/eziya76/221871231508] client
