stm32를 찾아봐야 하나..
gdb 문법은 아닌듯 한데 stm32 전용 구문들이려나?
| # custom.cfg source [find interface/stlink-v2-1.cfg] transport select "hla_swd" source [find stm32f4x.cfg] reset_config none |
| stm32 adc 읽기(1개로 여러 개 채널) (0) | 2024.10.30 |
|---|---|
| stm32 tim output compare(OC) mode (0) | 2024.07.12 |
| STM32H/STM32G 시리즈 시리얼 포트 데이터 order (0) | 2022.08.29 |
| stm32 wdg 최대 설정시간 (0) | 2021.08.09 |
| stm32 RST pull-up reset fail (0) | 2021.08.02 |
target remote를 이용하여 접속을 할때 사용하는 명령인데
target remote 이후에 포트를 적어주면 된다.
| (gdb) help target Connect to a target machine or process. The first argument is the type or protocol of the target machine. Remaining arguments are interpreted by the target protocol. For more information on the arguments for a particular protocol, type `help target ' followed by the protocol name. List of target subcommands: target core -- Use a core file as a target. target ctf -- (Use a CTF directory as a target. target exec -- Use an executable file as a target. target extended-remote -- Use a remote computer via a serial line, using a gdb-specific protocol. target native -- Native process (started by the "run" command). target record-btrace -- Collect control-flow trace and provide the execution history. target record-core -- Log program while executing and replay execution from log. target record-full -- Log program while executing and replay execution from log. target remote -- Use a remote computer via a serial line, using a gdb-specific protocol. target tfile -- Use a trace file as a target. Type "help target" followed by target subcommand name for full documentation. Type "apropos word" to search for commands related to "word". Type "apropos -v word" for full documentation of commands related to "word". Command name abbreviations are allowed if unambiguous. (gdb) help target remote Use a remote computer via a serial line, using a gdb-specific protocol. Specify the serial device it is connected to (e.g. /dev/ttyS0, /dev/ttya, COM1, etc.). (gdb) help monitor Send a command to the remote monitor (remote targets only). |
monitor는 remote로 붙었을때만 보내는 명령인데 reset은 검색되진 않는다.
(gdb) file C:/temp/Blinky.elf
Reading symbols from C:/temp/Blinky.elf...done.
(gdb) target remote localhost:2331
Remote debugging using localhost:2331
0x00000000 in ?? ()
(gdb) monitor reset
Resetting target
(gdb) load| gdb conditional break (0) | 2023.07.19 |
|---|---|
| gdb 디버깅 타겟을 인자와 함께 실행하기 (0) | 2022.10.17 |
| gdb break (0) | 2021.04.09 |
| gdb/insight target window (0) | 2010.05.19 |
| insight/gdb 우분투에서 컴파일하기 실패 - insight/gdb compiling on ubuntu failed (2) | 2010.05.18 |
conditional break 하위에
hit count나 expression으로 존재한다.
[링크 : https://code.visualstudio.com/docs/editor/debugging#_conditional-breakpoints]
[링크 : https://stackoverflow.com/questions/43311058/vscode-debugger-conditional-breakpoints]
+
vscode 1.80.0 버전에서 확인해보니
아래와 같이 3가지가 나온다.
Add Conditional Breakpoint를 누르면, Expression / Hit Count / Log Message가 나온다.
| vscode outline 패널 (2) | 2024.07.11 |
|---|---|
| vscode 주석처리 안될 경우 + 한컴 한글 (0) | 2022.11.04 |
| waiting for server log - vscode (0) | 2021.06.11 |
| vscoode / node.js 메모리 용량 제한 상향하기 (0) | 2020.01.28 |
| git 로컬 저장소를 remote 저장소에 연동하기(vscode) (2) | 2020.01.27 |
Fundamentals of Real-Time Spectrum Analysis
[링크 : https://download.tek.com/document/37W_17249_5_HR_Letter.pdf]
Understanding FFT Overlap Processing Fundamentals
[링크 : https://download.tek.com/document/37W_18839_1.pdf]
FFT 오버랩 프로세싱의 이해
[링크 : https://download.tek.com/document/37K_18839_0.pdf]
| fft 결과에 N(입력 샘플 갯수)로 나누는 이유 (0) | 2023.09.21 |
|---|---|
| FFT RBW (0) | 2023.09.19 |
| sfft (0) | 2023.07.12 |
| fft window type과 진폭 보정계수 (0) | 2023.07.04 |
| fft window 함수 (0) | 2023.07.03 |
| Set a breakpoint The first step in setting a conditional breakpoint is to set a breakpoint as you normally would. I.e. (gdb) break <file_name> : <line_number> (gdb) break <function_name> This will set a breakpoint and output the breakpoint number Check breakpoints If you forget which breakpoints you can add a condition to, you can list the breakpoints using: (gdb) info breakpoints Set a condition for a breakpoint Set an existing breakpoint to only break if a certain condition is true: (gdb) condition <breakpoint_number> condition The condition is written in syntax similar to c using operators such as == != and <. |
break 줄여서 br
| $ gdb factorial Reading symbols from factorial...done. (gdb) br 28 Breakpoint 1 at 0x11bf: file factorial.c, line 28. (gdb) condition 1 i > 5 |
아래 소스에서 28라인 i++ 에 break를 걸고, 해당 라인에서 i > 5 인 조건에서 잡히게 한다.
반복문의 경우 확실히 디버깅 할 때 편할 듯.
| //This program calculates and prints out the factorials of 5 and 17 #include <stdio.h> #include <stdlib.h> int factorial(int n); int main(void) { int n = 5; int f = factorial(n); printf("The factorial of %d is %d.\n", n, f); n = 17; f = factorial(n); printf("The factorial of %d is %d.\n", n, f); return 0; } //A factorial is calculated by n! = n * (n - 1) * (n - 2) * ... * 1 //E.g. 5! = 5 * 4 * 3 * 2 * 1 = 120 int factorial(int n) { int f = 1; int i = 1; while (i <= n) { f = f * i; i++; // 28 line } return f; } |
[링크 : https://www.cse.unsw.edu.au/~learn/debugging/modules/gdb_conditional_breakpoints/]
| gdbserver taget (0) | 2023.07.19 |
|---|---|
| gdb 디버깅 타겟을 인자와 함께 실행하기 (0) | 2022.10.17 |
| gdb break (0) | 2021.04.09 |
| gdb/insight target window (0) | 2010.05.19 |
| insight/gdb 우분투에서 컴파일하기 실패 - insight/gdb compiling on ubuntu failed (2) | 2010.05.18 |
컴백해서

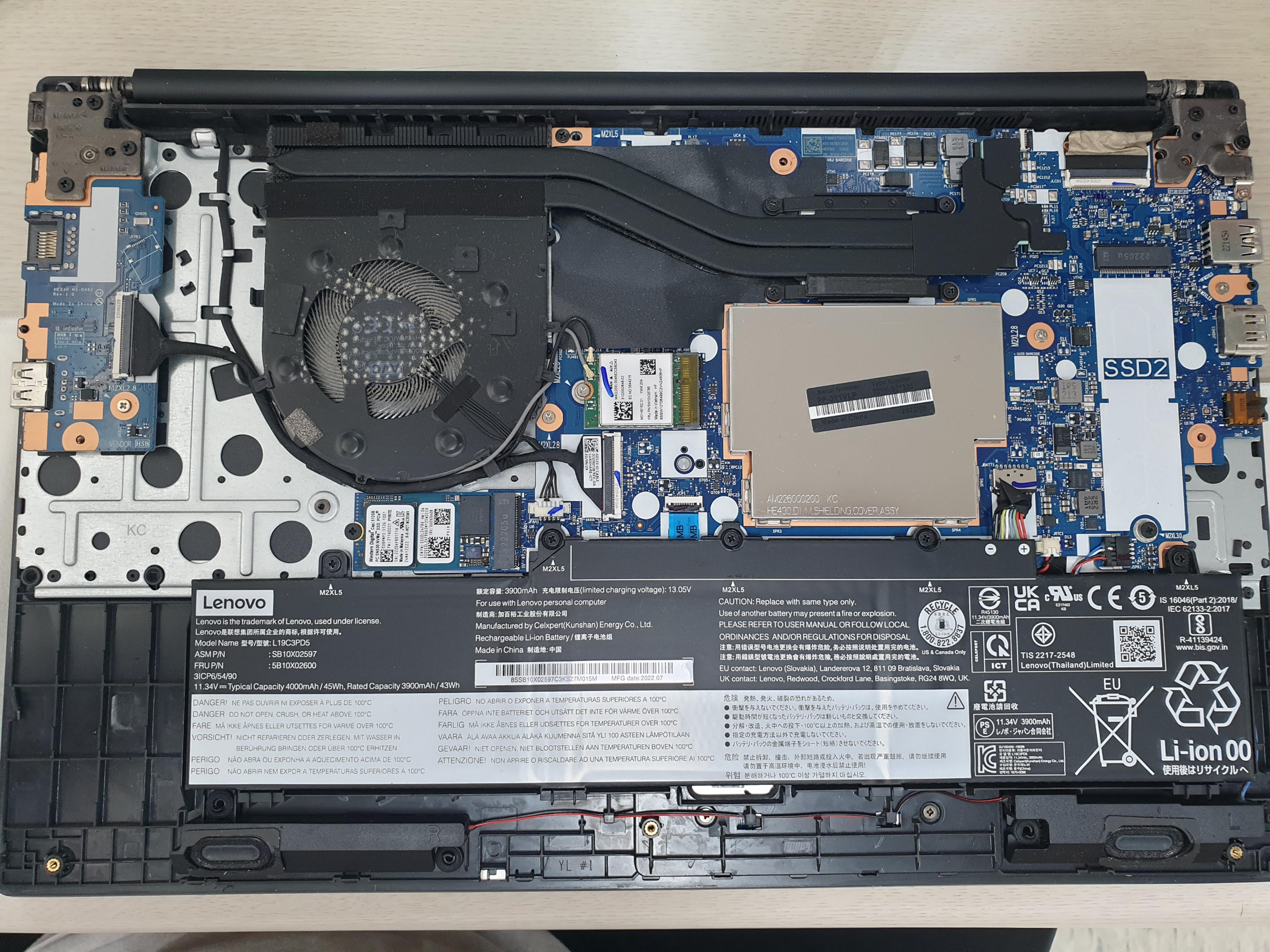

노트북 써멀 바르러 AS 센터 방문하고
감자도 배달하고 끝
