embeded/jetson2022. 4. 13. 15:39

netron 웹 버전에서 받아서 보는 중



받아볼 녀석은 아래의 링크이고..

[링크 : http://download.tensorflow.org/models/object_detection/ssd_inception_v2_coco_2017_11_17.tar.gz]

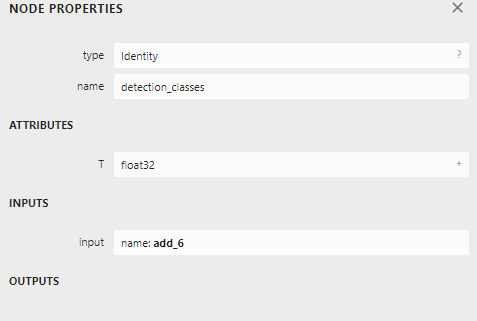

어떤 이름의 레이어에서 출력을 내주는지 한번 찾아보는 중

크게 4개인 것 같고 명칭은 아래와 같은데..

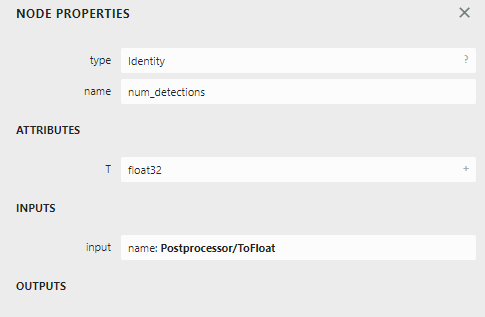

detection_boxes, detection_scores, detection_classes, num_detections

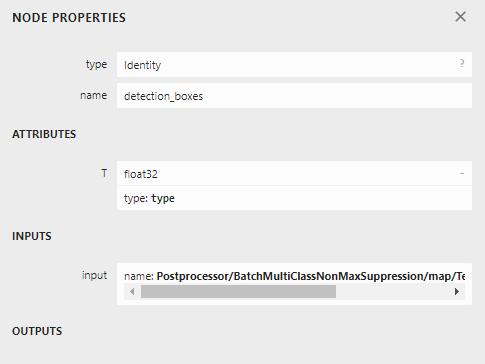

detection_boxes의 경우 4개 좌표로 나와있을줄 알았는데 단순히 float32라고만 되어있어서 멘붕..



















'embeded > jetson' 카테고리의 다른 글

deepstream SSD  (0) 2022.04.15
deepstream  (0) 2022.04.15
nvidia jetson deepstream objectDetector_SSD 플러그인 분석  (0) 2022.04.13
nvidia jetson deepstream objectDetector_SSD 실행 스크립트 분석  (0) 2022.04.13
jetson / armv8 EL  (0) 2022.04.07
Posted by 구차니
embeded/jetson2022. 4. 13. 11:48

코드 기본 구조만 남기고 상세 코드는 분석을 위해 삭제

$ cat nvdsiplugin_ssd.cpp
#include "NvInferPlugin.h"
#include <vector>
#include "cuda_runtime_api.h"
#include <cassert>
#include <cublas_v2.h>
#include <functional>
#include <numeric>
#include <algorithm>
#include <iostream>

using namespace nvinfer1;

class FlattenConcat : public IPluginV2
{
public:
    FlattenConcat(int concatAxis, bool ignoreBatch)
        : mIgnoreBatch(ignoreBatch)
        , mConcatAxisID(concatAxis)
    {
        assert(mConcatAxisID == 1 || mConcatAxisID == 2 || mConcatAxisID == 3);
    }
    //clone constructor
    FlattenConcat(int concatAxis, bool ignoreBatch, int numInputs, int outputConcatAxis, int* inputConcatAxis)
        : mIgnoreBatch(ignoreBatch)
        , mConcatAxisID(concatAxis)
        , mOutputConcatAxis(outputConcatAxis)
        , mNumInputs(numInputs)
    {
        CHECK(cudaMallocHost((void**) &mInputConcatAxis, mNumInputs * sizeof(int)));
        for (int i = 0; i < mNumInputs; ++i)
            mInputConcatAxis[i] = inputConcatAxis[i];
    }

    FlattenConcat(const void* data, size_t length)     {    }
    ~FlattenConcat()    {    }
    int getNbOutputs() const noexcept override { return 1; }
    Dims getOutputDimensions(int index, const Dims* inputs, int nbInputDims) noexcept override    {    }
    int initialize() noexcept override    {    }
    void terminate() noexcept override    {    }
    size_t getWorkspaceSize(int) const noexcept override { return 0; }
    int enqueue(int batchSize, void const* const* inputs, void* const* outputs, void*, cudaStream_t stream) noexcept override    {    }
    size_t getSerializationSize() const noexcept override   {    }
    void serialize(void* buffer) const noexcept override    {   }
    void configureWithFormat(const Dims* inputs, int nbInputs, const Dims* outputDims, int nbOutputs, nvinfer1::DataType type, nvinfer1::PluginFormat format, int maxBatchSize) noexcept override   {    }
    bool supportsFormat(DataType type, PluginFormat format) const noexcept override    {    }
    const char* getPluginType() const noexcept override { return "FlattenConcat_TRT"; }
    const char* getPluginVersion() const noexcept override { return "1"; }
    void destroy() noexcept override { delete this; }
    IPluginV2* clone() const noexcept override    {    }
    void setPluginNamespace(const char* libNamespace) noexcept override { mNamespace = libNamespace; }
    const char* getPluginNamespace() const noexcept override { return mNamespace.c_str(); }

private:
    template <typename T>    void write(char*& buffer, const T& val) const    {    }
    template <typename T>    T read(const char*& buffer)    {    }
    size_t* mCopySize = nullptr;
    bool mIgnoreBatch{false};
    int mConcatAxisID{0}, mOutputConcatAxis{0}, mNumInputs{0};
    int* mInputConcatAxis = nullptr;
    nvinfer1::Dims mCHW;
    cublasHandle_t mCublas;
    std::string mNamespace;
};

namespace
{
const char* FLATTENCONCAT_PLUGIN_VERSION{"1"};
const char* FLATTENCONCAT_PLUGIN_NAME{"FlattenConcat_TRT"};
} // namespace

class FlattenConcatPluginCreator : public IPluginCreator
{
public:
    FlattenConcatPluginCreator()
    {
        mPluginAttributes.emplace_back(PluginField("axis", nullptr, PluginFieldType::kINT32, 1));
        mPluginAttributes.emplace_back(PluginField("ignoreBatch", nullptr, PluginFieldType::kINT32, 1));
        mFC.nbFields = mPluginAttributes.size();
        mFC.fields = mPluginAttributes.data();
    }

    ~FlattenConcatPluginCreator() {}
    const char* getPluginName() const noexcept override { return FLATTENCONCAT_PLUGIN_NAME; }
    const char* getPluginVersion() const noexcept override { return FLATTENCONCAT_PLUGIN_VERSION; }
    const PluginFieldCollection* getFieldNames() noexcept override { return &mFC; }
    IPluginV2* createPlugin(const char* name, const PluginFieldCollection* fc) noexcept override    {    }
    IPluginV2* deserializePlugin(const char* name, const void* serialData, size_t serialLength) noexcept override    {        return new FlattenConcat(serialData, serialLength);    }
    void setPluginNamespace(const char* libNamespace) noexcept override { mNamespace = libNamespace; }
    const char* getPluginNamespace() const noexcept override { return mNamespace.c_str(); }

private:
    static PluginFieldCollection mFC;
    bool mIgnoreBatch{false};
    int mConcatAxisID;
    static std::vector<PluginField> mPluginAttributes;
    std::string mNamespace = "";
};

PluginFieldCollection FlattenConcatPluginCreator::mFC{};
std::vector<PluginField> FlattenConcatPluginCreator::mPluginAttributes;

REGISTER_TENSORRT_PLUGIN(FlattenConcatPluginCreator);



$ cat nvdsparsebbox_ssd.cpp
#include <cstring>
#include <iostream>
#include "nvdsinfer_custom_impl.h"

#define MIN(a,b) ((a) < (b) ? (a) : (b))
#define MAX(a,b) ((a) > (b) ? (a) : (b))
#define CLIP(a,min,max) (MAX(MIN(a, max), min))

/* This is a sample bounding box parsing function for the sample SSD UFF
 * detector model provided with the TensorRT samples. */

extern "C"
bool NvDsInferParseCustomSSD (std::vector<NvDsInferLayerInfo> const &outputLayersInfo,
        NvDsInferNetworkInfo  const &networkInfo,
        NvDsInferParseDetectionParams const &detectionParams,
        std::vector<NvDsInferObjectDetectionInfo> &objectList);

/* C-linkage to prevent name-mangling */
extern "C"
bool NvDsInferParseCustomSSD (std::vector<NvDsInferLayerInfo> const &outputLayersInfo,
        NvDsInferNetworkInfo  const &networkInfo,
        NvDsInferParseDetectionParams const &detectionParams,
        std::vector<NvDsInferObjectDetectionInfo> &objectList)
{
  for (int i = 0; i < keepCount; ++i)
  {
    NvDsInferObjectDetectionInfo object;
        object.classId = classId;
        object.detectionConfidence = det[2];
        object.left = CLIP(rectx1, 0, networkInfo.width - 1);
        object.top = CLIP(recty1, 0, networkInfo.height - 1);
        object.width = CLIP(rectx2, 0, networkInfo.width - 1) - object.left + 1;
        object.height = CLIP(recty2, 0, networkInfo.height - 1) - object.top + 1;
        objectList.push_back(object);
  }

  return true;
}

/* Check that the custom function has been defined correctly */
CHECK_CUSTOM_PARSE_FUNC_PROTOTYPE(NvDsInferParseCustomSSD);





+ ?

[링크 : https://github.com/AastaNV/eLinux_data/blob/main/deepstream/ssd-jetson_inference/ssd-jetson_inference.patch]



+

NvDsInferDataType  dataType
union {
   NvDsInferDims   inferDims
};
int  bindingIndex
const char *  layerName
void *  buffer
int  isInput

[링크 : https://docs.nvidia.com/metropolis/deepstream/5.0DP/dev-guide/DeepStream_Development_Guide/baggage/structNvDsInferLayerInfo.html]

'embeded > jetson' 카테고리의 다른 글

deepstream  (0) 2022.04.15
ssd_inception_v2_coco_2017_11_17.tar.gz  (0) 2022.04.13
nvidia jetson deepstream objectDetector_SSD 실행 스크립트 분석  (0) 2022.04.13
jetson / armv8 EL  (0) 2022.04.07
nvidia jetson partition table  (0) 2022.04.06
Posted by 구차니
embeded/jetson2022. 4. 13. 11:32



- With gst-launch-1.0
  For Jetson:
  $ gst-launch-1.0 filesrc location=../../samples/streams/sample_1080p_h264.mp4 ! \
        decodebin ! m.sink_0 nvstreammux name=m batch-size=1 width=1280 height=720 ! \
        nvinfer config-file-path= config_infer_primary_ssd.txt ! \
        nvvideoconvert ! nvdsosd ! nvegltransform ! nveglglessink

- With deepstream-app
  $ deepstream-app -c deepstream_app_config_ssd.txt



$ cat deepstream_app_config_ssd.txt
[application]
enable-perf-measurement=1
perf-measurement-interval-sec=1
gie-kitti-output-dir=streamscl

[tiled-display]
enable=0
rows=1
columns=1
width=1280
height=720
gpu-id=0
nvbuf-memory-type=0

[source0]
enable=1
#Type - 1=CameraV4L2 2=URI 3=MultiURI
type=3
num-sources=1
uri=file://../../samples/streams/sample_1080p_h264.mp4
gpu-id=0
cudadec-memtype=0

[streammux]
gpu-id=0
batch-size=1
batched-push-timeout=-1
## Set muxer output width and height
width=1920
height=1080
nvbuf-memory-type=0

[sink0]
enable=1
#Type - 1=FakeSink 2=EglSink 3=File
type=2
sync=1
source-id=0
gpu-id=0

[osd]
enable=1
gpu-id=0
border-width=3
text-size=15
text-color=1;1;1;1;
text-bg-color=0.3;0.3;0.3;1
font=Serif
show-clock=0
clock-x-offset=800
clock-y-offset=820
clock-text-size=12
clock-color=1;0;0;0
nvbuf-memory-type=0

[primary-gie]
enable=1
gpu-id=0
batch-size=1
gie-unique-id=1
interval=0

labelfile-path=/home/nvidia/tmp_onnx/labels.txt
#labelfile-path=ssd_coco_labels.txt

model-engine-file=sample_ssd_relu6.uff_b1_gpu0_fp32.engine
config-file=config_infer_primary_ssd.txt
nvbuf-memory-type=0



$ cat config_infer_primary_ssd.txt
[property]
gpu-id=0
net-scale-factor=0.0078431372
offsets=127.5;127.5;127.5
model-color-format=0

# yw
onnx-file=/home/nvidia/tmp_onnx/model.onnx
labelfile=/home/nvidia/tmp_onnx/labels.txt

model-engine-file=sample_ssd_relu6.uff_b1_gpu0_fp32.engine
labelfile-path=ssd_coco_labels.txt
uff-file=sample_ssd_relu6.uff
infer-dims=3;300;300
uff-input-order=0
uff-input-blob-name=Input
batch-size=1
## 0=FP32, 1=INT8, 2=FP16 mode
network-mode=2
num-detected-classes=91
interval=0
gie-unique-id=1
is-classifier=0
output-blob-names=MarkOutput_0
parse-bbox-func-name=NvDsInferParseCustomSSD
custom-lib-path=nvdsinfer_custom_impl_ssd/libnvdsinfer_custom_impl_ssd.so
#scaling-filter=0
#scaling-compute-hw=0

[class-attrs-all]
threshold=0.5
roi-top-offset=0
roi-bottom-offset=0
detected-min-w=0
detected-min-h=0
detected-max-w=0
detected-max-h=0

## Per class configuration
#[class-attrs-2]
#threshold=0.6
#roi-top-offset=20
#roi-bottom-offset=10
#detected-min-w=40
#detected-min-h=40
#detected-max-w=400
#detected-max-h=800

'embeded > jetson' 카테고리의 다른 글

ssd_inception_v2_coco_2017_11_17.tar.gz  (0) 2022.04.13
nvidia jetson deepstream objectDetector_SSD 플러그인 분석  (0) 2022.04.13
jetson / armv8 EL  (0) 2022.04.07
nvidia jetson partition table  (0) 2022.04.06
jetson nano 부팅이 안됨  (0) 2022.04.06
Posted by 구차니

디지털 트윈은.. 테슬라 자율주행의 컨셉이라고 하면 쉽게 이해가 되려나?

현실을 스캔해서 가상현실로 끌어오고

그걸 이용해 다양하게 분석, 시뮬레이션 하여 최적의 운전을 하는 것

그 대상이 빌딩일 수도 있고, 땅일수도 있고 특정 물건일 수도 있다.



[링크 : https://matterport.com/ko/what-digital-twin]

[링크 : https://redshift.autodesk.co.kr/what-is-a-digital-twin/]



디지털 트윈은 물리적 객체, 프로세스, 관계, 행동을 포함하는 실세계의 가상 표현입니다. GIS는 자연 및 인공 환경의 디지털 트윈을 생성하며 다양한 유형의 디지털 모델을 고유하게 통합합니다.

[링크 : https://www.esri.com/ko-kr/digital-twin/overview]



‘디지털 트윈(Digital-Twin)’이란?
실제 장비나 공간을 가상 세계에 쌍둥이처럼 똑같이 구현하는 기술이에요.

[링크 : https://www.korea.kr/news/visualNewsView.do?newsId=148876722]

'이론 관련 > 컴퓨터 관련' 카테고리의 다른 글

DR - Disaster Recovery Plan  (0) 2022.10.17
SLP - Superword Level Parallelism  (0) 2022.06.02
current loop to rs232  (0) 2021.10.22
usb dwc  (0) 2021.09.23
fp16  (0) 2021.05.10
Posted by 구차니
Programming/golang2022. 4. 13. 10:11

C언어 처럼 단순(?)한게 아니라 자바의 패키지 처럼

모듈로 만들어야 끌어올 수 있다고 한다.



[링크 : https://tutorialedge.net/golang/go-modules-tutorial/]

[링크 : https://www.digitalocean.com/community/tutorials/how-to-use-go-modules]



[링크 : https://velog.io/@comdori-web/Go-package와-module]

'Programming > golang' 카테고리의 다른 글

golang websocket package  (0) 2022.07.15
go run ./  (2) 2022.04.18
golang 구조체  (0) 2022.04.11
golang defer와 if  (0) 2022.04.11
golang a tour of go offline  (0) 2022.04.07
Posted by 구차니

필요한 건 openCV로 받아 PIL로 변환하는거라 아래것만 테스트 해봄

import cv2
from PIL

opencv_image=cv2.imread(".\\learning_python.png")
color_coverted = cv2.cvtColor(opencv_image, cv2.COLOR_BGR2RGB)
pil_image=PIL.Image.fromarray(color_coverted)

[링크 : https://www.zinnunkebi.com/python-opencv-pil-convert/]

'Programming > python(파이썬)' 카테고리의 다른 글

pyplot  (0) 2023.10.04
python matplotlib 설치  (0) 2023.03.08
파이썬 딕셔너리 변수 생성과 리턴 enumerate, zip  (0) 2022.04.12
python3 opencv2 checker board  (0) 2022.03.14
pdb  (0) 2022.03.14
Posted by 구차니

발견하게 된 생소한 문법은 아래와 같은데..

enumerate() 함수를 이용해 이름 목록을 열거하고 인덱스와 함께

name(키) 와 outputs 라는 구조를 쌍으로 묶어 딕셔너리로 돌려준다.

return {name: outputs[i] for i, name in enumerate(self.output_names)}



def create_dict():
    ''' Function to return dict '''
    return {i:str(i) for i in range(10)}
numbers = create_dict()
print(numbers)
# {0: '0', 1: '1', 2: '2', 3: '3', 4: '4', 5: '5', 6: '6', 7: '7', 8: '8', 9: '9'}

[링크 : https://blog.finxter.com/python-return-dictionary-from-function/]



enumerate() 는 내용과 인덱스를 같이 돌려주고 start 키워드를 이용해 시작 인덱스를 0이 아닌 것으로 설정이 가능하다.

>>> for entry in enumerate(['A', 'B', 'C']):
...     print(entry)
...
(0, 'A')
(1, 'B')
(2, 'C')

[링크 : https://www.daleseo.com/python-enumerate/]



enumerate()와 유사하게 두개의 배열을 하나의 쌍으로 묶어주는 함수

>>> numbers = [1, 2, 3]
>>> letters = ["A", "B", "C"]
>>> for pair in zip(numbers, letters):
...     print(pair)
...
(1, 'A')
(2, 'B')
(3, 'C')

[링크 : https://www.daleseo.com/python-zip/]

'Programming > python(파이썬)' 카테고리의 다른 글

python matplotlib 설치  (0) 2023.03.08
python openCV / PIL 포맷 변경  (0) 2022.04.12
python3 opencv2 checker board  (0) 2022.03.14
pdb  (0) 2022.03.14
python debug (pdb)  (0) 2022.03.04
Posted by 구차니
Programming/golang2022. 4. 11. 16:27

변수타입이 뒤로 가는 걸 제외하면 문법은 그대로~



package main

import "fmt"

type Vertex struct {
X int
Y int
}

func main() {
v := Vertex{1, 2}
v.X = 4
fmt.Println(v.X)
}

[링크 : https://go-tour-ko.appspot.com/moretypes/3]

'Programming > golang' 카테고리의 다른 글

go run ./  (2) 2022.04.18
golang module  (0) 2022.04.13
golang defer와 if  (0) 2022.04.11
golang a tour of go offline  (0) 2022.04.07
golang struct  (0) 2022.04.07
Posted by 구차니
Programming/golang2022. 4. 11. 16:14

go는 c 처럼 if (조건문)로 쓸수도 있고 if 조건문 으로 괄호 생략하고 쓸 수 도 있다

다만 { } 는 if와 동일한 라인

} else { 는 무조건 동일 라인으로 해주어야 한다.



파이썬이 싫은 이유가  golang에도 동일하게 존재하게 되다니 ㅠㅠ



package main

import "fmt"

func main() {
fmt.Println("counting")

for i := 0; i < 10; i++ {
if (i % 2 == 0) {
defer fmt.Println(i)
} else {
fmt.Println(i)
}
}

fmt.Println("done")
}



defer는 연기된 함수 호출이 쌓였다가 실행되는데 stack 이라 선입후출이다.

그런데 수정해서 아래와 같은 결과를 얻었는데.. 어떤 scope까지 쌓이다가 실행 되는걸까?

counting
1
3
5
7
9
done
8
6
4
2
0



[링크 : https://go-tour-ko.appspot.com/flowcontrol/13]

[링크 : https://www.callicoder.com/golang-control-flow/]



+

흐음.. 함수 단위에서 써야지 메인문에서 쓰긴 애매한 기능이군.

c와는 달리 garbage collector가 들어있어서 malloc-free 쌍은 필요 없을듯 하지만

그런식의 초기화, 삭제가 필요한 구조가 한 함수에 존재한다면(1회성)

초기화 하면서 삭제 함수를 defer 해두면 좀 편해질 것 같다.

특정 함수가 현재 함수가 끝나기 직전 실행하는 기능이다.

[링크 : https://deep-dive-dev.tistory.com/22]

'Programming > golang' 카테고리의 다른 글

golang module  (0) 2022.04.13
golang 구조체  (0) 2022.04.11
golang a tour of go offline  (0) 2022.04.07
golang struct  (0) 2022.04.07
golang pointer  (0) 2022.04.07
Posted by 구차니
