embeded/i.mx 8m plus2025. 9. 16. 12:11

eiq 모델 정리

오디오와 비디오로 크게 나뉘고

비디오에서는 classification / obejct detection / segmentation 정도가 현재 관심사

sementic segmentation과 instance-segmentation 차이는 멀까?

List of domains
Audio
anomaly detection
command recognition
speech recognition
Vision
classification
face recognition
object detection
pose estimation
semantic segmentation
super resolution
instance-segmentation
low-light enhancement

[링크 : https://github.com/NXP/eiq-model-zoo]

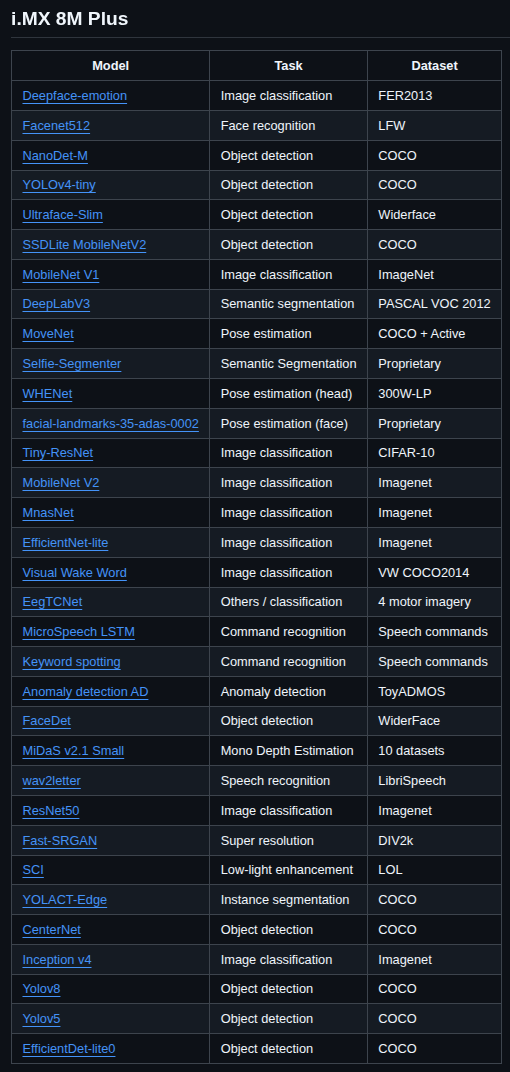

텍스트로 넣으니 css 때문에 깨져서 이미지로 복사 -_-

selfie-segmenter는 proprietary dataset이었군..

[링크 : https://github.com/NXP/eiq-model-zoo/tree/main/products]

저작자표시 (새창열림)

'embeded > i.mx 8m plus' 카테고리의 다른 글

eiq 데이터 구조  (0) 2025.09.05
ubuntu 22.04 + cuda + cudnn 설치  (0) 2025.09.04
import tensorflow illegal instruction  (0) 2025.09.04
eiq on windows with nvidia  (0) 2025.09.03
vainfo  (0) 2025.09.03
Posted by 구차니
게임/컨트롤러2025. 9. 15. 23:32

조이스틱 수리 실패

조이트론 EX M AIR를 오랫만에 꺼냈더니

아날로그 조이스틱 쪽이 끈끈해져서 떼고, 전에 구매해놨던 아날로그 조이스틱 부품으로 바꾸려고 했으나

구멍 크기가 달라서 실패 -_-



삭아가고 책상에 문지르면 연필처럼 검은 줄이 생겨난다 -_-



나사 풀고 드니 우수수 떨어져서 당황 -_-

배터리도 커넥터 없이 그냥 납땜되어있고 모터쪽도 완전히 잡히면 잡소리 나니까

그냥 공중부양.. 우워.. 굉장하네



내가 가진거 보다 확실히 먼가 좋은 부품이라는 느낌



내꺼랑 비교하면 구멍이 확실히 작다.



낑낑대면서 겨우겨우 다시 조립 ㅠㅠ 헉헉



저작자표시 (새창열림)

'게임 > 컨트롤러' 카테고리의 다른 글

Logitech(saitek) X-56 stick 키맵  (0) 2025.03.03
logitech x-56 플라이트 스틱  (0) 2025.02.22
잘가 조이스틱  (0) 2025.01.10
pxn2119pro 중고구매  (0) 2025.01.06
ex m air 펌웨어 (안드로이드 갤럭시 S10)  (0) 2023.01.25
Posted by 구차니
프로그램 사용/yolo_tensorflow2025. 9. 15. 17:11

mobilenet 학습시키기 with keras, tensorflow

대충 버전이 맞았는지 돌아는 간다.


Epoch 1/25
 52/755 [=>............................] - ETA: 1:04:39 - loss: 0.3203 - accuracy: 0.8534



주요 설치 패키지 버전은 아래와 같고

keras                        2.14.0
mobilenet-v3                 0.1.2
numpy                        1.24.4
tensorflow                   2.14.0



수정된 소스는 다음과 같다.

그런데 voc 디렉토리를 통채로 넣었는데 어찌 돌아는 가는데.. 어떤 파일로 학습을 하는거냐.. -_-

from keras.applications import MobileNet
from keras.models import Sequential,Model
from keras.layers import Dense,Dropout,Activation,Flatten,GlobalAveragePooling2D
from keras.layers import Conv2D,MaxPooling2D,ZeroPadding2D
from keras.layers.normalization import BatchNormalization
from tensorflow.keras.preprocessing.image import ImageDataGenerator

# MobileNet is designed to work with images of dim 224,224
img_rows,img_cols = 224,224

MobileNet = MobileNet(weights='imagenet',include_top=False,input_shape=(img_rows,img_cols,3))

# Here we freeze the last 4 layers
# Layers are set to trainable as True by default

for layer in MobileNet.layers:
    layer.trainable = True

# Let's print our layers
for (i,layer) in enumerate(MobileNet.layers):
    print(str(i),layer.__class__.__name__,layer.trainable)

def addTopModelMobileNet(bottom_model, num_classes):
    """creates the top or head of the model that will be
    placed ontop of the bottom layers"""
    top_model = bottom_model.output
    top_model = GlobalAveragePooling2D()(top_model)
    top_model = Dense(1024,activation='relu')(top_model)
    top_model = Dense(1024,activation='relu')(top_model)
    top_model = Dense(512,activation='relu')(top_model)
    top_model = Dense(num_classes,activation='softmax')(top_model)
    return top_model

num_classes = 5  # ['Angry','Happy','Neutral','Sad','Surprise']

FC_Head = addTopModelMobileNet(MobileNet, num_classes)

model = Model(inputs = MobileNet.input, outputs = FC_Head)

print(model.summary())

train_data_dir = 'VOC2012_train_val/VOC2012_train_val'
validation_data_dir = 'VOC2012_test/VOC2012_test'

train_datagen = ImageDataGenerator(
                    rescale=1./255,
                    rotation_range=30,
                    width_shift_range=0.3,
                    height_shift_range=0.3,
                    horizontal_flip=True,
                    fill_mode='nearest'
                                   )

validation_datagen = ImageDataGenerator(rescale=1./255)

batch_size = 32

train_generator = train_datagen.flow_from_directory(
                        train_data_dir,
                        target_size = (img_rows,img_cols),
                        batch_size = batch_size,
                        class_mode = 'categorical'
                        )

validation_generator = validation_datagen.flow_from_directory(
                            validation_data_dir,
                            target_size=(img_rows,img_cols),
                            batch_size=batch_size,
                            class_mode='categorical')

from keras.optimizers import RMSprop,Adam
from keras.callbacks import ModelCheckpoint,EarlyStopping,ReduceLROnPlateau

checkpoint = ModelCheckpoint(
                             'emotion_face_mobilNet.h5',
                             monitor='val_loss',
                             mode='min',
                             save_best_only=True,
                             verbose=1)

earlystop = EarlyStopping(
                          monitor='val_loss',
                          min_delta=0,
                          patience=10,
                          verbose=1,restore_best_weights=True)

learning_rate_reduction = ReduceLROnPlateau(monitor='val_acc',
                                            patience=5,
                                            verbose=1,
                                            factor=0.2,
                                            min_lr=0.0001)

callbacks = [earlystop,checkpoint,learning_rate_reduction]

model.compile(loss='categorical_crossentropy',
              optimizer=Adam(learning_rate=0.001),
              metrics=['accuracy']
              )

nb_train_samples = 24176
nb_validation_samples = 3006

epochs = 25

history = model.fit(
            train_generator,
            steps_per_epoch=nb_train_samples//batch_size,
            epochs=epochs,
            callbacks=callbacks,
            validation_data=validation_generator,
            validation_steps=nb_validation_samples//batch_size)




전체 pip 패키지들 버전 정보는 아래와 같다.

$ pip list
Package                      Version
---------------------------- ----------------
absl-py                      2.3.1
appdirs                      1.4.4
apturl                       0.5.2
astunparse                   1.6.3
attrs                        21.2.0
bcrypt                       3.2.0
beautifulsoup4               4.10.0
beniget                      0.4.1
blinker                      1.4
Brlapi                       0.8.3
Brotli                       1.0.9
cachetools                   5.5.2
certifi                      2020.6.20
chardet                      4.0.0
click                        8.0.3
colorama                     0.4.4
command-not-found            0.3
cryptography                 3.4.8
cupshelpers                  1.0
cycler                       0.11.0
dbus-python                  1.2.18
decorator                    4.4.2
defer                        1.0.6
distro                       1.7.0
distro-info                  1.1+ubuntu0.2
duplicity                    0.8.21
fasteners                    0.14.1
flatbuffers                  25.2.10
fonttools                    4.29.1
fs                           2.4.12
future                       0.18.2
gast                         0.6.0
google-auth                  2.40.3
google-auth-oauthlib         1.0.0
google-pasta                 0.2.0
grpcio                       1.74.0
h5py                         3.14.0
html5lib                     1.1
httplib2                     0.20.2
idna                         3.3
importlib-metadata           4.6.4
jeepney                      0.7.1
keras                        2.14.0
keyring                      23.5.0
kiwisolver                   1.3.2
language-selector            0.1
launchpadlib                 1.10.16
lazr.restfulclient           0.14.4
lazr.uri                     1.0.6
libclang                     18.1.1
lockfile                     0.12.2
louis                        3.20.0
lxml                         4.8.0
lz4                          3.1.3+dfsg
macaroonbakery               1.3.1
Mako                         1.1.3
Markdown                     3.9
markdown-it-py               4.0.0
MarkupSafe                   3.0.2
matplotlib                   3.5.1
mdurl                        0.1.2
meld                         3.20.4
ml-dtypes                    0.2.0
mobilenet-v3                 0.1.2
monotonic                    1.6
more-itertools               8.10.0
mpmath                       0.0.0
namex                        0.1.0
netifaces                    0.11.0
numpy                        1.24.4
oauthlib                     3.2.0
olefile                      0.46
opt_einsum                   3.4.0
optree                       0.17.0
packaging                    21.3
paramiko                     2.9.3
pexpect                      4.8.0
Pillow                       9.0.1
pip                          22.0.2
Pivy                         0.6.5
ply                          3.11
protobuf                     4.25.8
ptyprocess                   0.7.0
pyasn1                       0.6.1
pyasn1_modules               0.4.2
pycairo                      1.20.1
pycups                       2.0.1
Pygments                     2.19.2
PyGObject                    3.42.1
PyJWT                        2.3.0
pymacaroons                  0.13.0
PyNaCl                       1.5.0
pyparsing                    2.4.7
pyRFC3339                    1.1
python-apt                   2.4.0+ubuntu4
python-dateutil              2.8.1
python-debian                0.1.43+ubuntu1.1
pythran                      0.10.0
pytz                         2022.1
pyxdg                        0.27
PyYAML                       5.4.1
reportlab                    3.6.8
requests                     2.25.1
requests-oauthlib            2.0.0
rich                         14.1.0
rsa                          4.9.1
scipy                        1.15.3
scour                        0.38.2
SecretStorage                3.3.1
setuptools                   59.6.0
six                          1.16.0
soupsieve                    2.3.1
ssh-import-id                5.11
sympy                        1.9
systemd-python               234
tensorboard                  2.14.1
tensorboard-data-server      0.7.2
tensorflow                   2.14.0
tensorflow-estimator         2.14.0
tensorflow-io-gcs-filesystem 0.37.1
termcolor                    3.1.0
typing_extensions            4.15.0
ubuntu-drivers-common        0.0.0
ubuntu-pro-client            8001
ufoLib2                      0.13.1
ufw                          0.36.1
unattended-upgrades          0.1
unicodedata2                 14.0.0
urllib3                      1.26.5
usb-creator                  0.3.7
wadllib                      1.3.6
webencodings                 0.5.1
Werkzeug                     3.1.3
wheel                        0.37.1
wrapt                        1.14.2
xdg                          5
xkit                         0.0.0
zipp                         1.0.0



-------- 아래는 참고 안하는게 속 편할지도...?

2020년 3월의 문서를 keras와 tensorflow로 2025년에 다시 시도해봄



일단은 아래처럼 설치하니 어찌 되는 느낌

$ pip install mobilenet-v3
$ pip install tensorflow
$ pip install numpy==1.26.4



상세로그

$ pip install mobilenet-v3
Defaulting to user installation because normal site-packages is not writeable
Collecting mobilenet-v3
  Downloading mobilenet_v3-0.1.4-py3-none-any.whl (18 kB)
Installing collected packages: mobilenet-v3
Successfully installed mobilenet-v3-0.1.4

$ pip install tensorflow
Defaulting to user installation because normal site-packages is not writeable
Collecting tensorflow
  Downloading tensorflow-2.20.0-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (620.4 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 620.4/620.4 MB 2.5 MB/s eta 0:00:00
Collecting google_pasta>=0.1.1
  Downloading google_pasta-0.2.0-py3-none-any.whl (57 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 57.5/57.5 KB 9.6 MB/s eta 0:00:00
Collecting absl-py>=1.0.0
  Downloading absl_py-2.3.1-py3-none-any.whl (135 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 135.8/135.8 KB 12.8 MB/s eta 0:00:00
Collecting libclang>=13.0.0
  Downloading libclang-18.1.1-py2.py3-none-manylinux2010_x86_64.whl (24.5 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 24.5/24.5 MB 9.6 MB/s eta 0:00:00
Collecting gast!=0.5.0,!=0.5.1,!=0.5.2,>=0.2.1
  Downloading gast-0.6.0-py3-none-any.whl (21 kB)
Collecting protobuf>=5.28.0
  Downloading protobuf-6.32.1-cp39-abi3-manylinux2014_x86_64.whl (322 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 322.0/322.0 KB 11.5 MB/s eta 0:00:00
Collecting ml_dtypes<1.0.0,>=0.5.1
  Downloading ml_dtypes-0.5.3-cp310-cp310-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl (4.9 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4.9/4.9 MB 9.9 MB/s eta 0:00:00
Collecting numpy>=1.26.0
  Downloading numpy-2.2.6-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (16.8 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 16.8/16.8 MB 9.9 MB/s eta 0:00:00
Requirement already satisfied: packaging in /usr/lib/python3/dist-packages (from tensorflow) (21.3)
Requirement already satisfied: six>=1.12.0 in /usr/lib/python3/dist-packages (from tensorflow) (1.16.0)
Collecting termcolor>=1.1.0
  Downloading termcolor-3.1.0-py3-none-any.whl (7.7 kB)
Collecting typing_extensions>=3.6.6
  Downloading typing_extensions-4.15.0-py3-none-any.whl (44 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 44.6/44.6 KB 8.2 MB/s eta 0:00:00
Collecting tensorboard~=2.20.0
  Downloading tensorboard-2.20.0-py3-none-any.whl (5.5 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 5.5/5.5 MB 10.9 MB/s eta 0:00:00
Collecting astunparse>=1.6.0
  Downloading astunparse-1.6.3-py2.py3-none-any.whl (12 kB)
Collecting opt_einsum>=2.3.2
  Downloading opt_einsum-3.4.0-py3-none-any.whl (71 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 71.9/71.9 KB 8.4 MB/s eta 0:00:00
Collecting h5py>=3.11.0
  Downloading h5py-3.14.0-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (4.6 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 4.6/4.6 MB 9.4 MB/s eta 0:00:00
Collecting flatbuffers>=24.3.25
  Downloading flatbuffers-25.2.10-py2.py3-none-any.whl (30 kB)
Collecting keras>=3.10.0
  Downloading keras-3.11.3-py3-none-any.whl (1.4 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.4/1.4 MB 8.0 MB/s eta 0:00:00
Requirement already satisfied: setuptools in /usr/lib/python3/dist-packages (from tensorflow) (59.6.0)
Requirement already satisfied: requests<3,>=2.21.0 in /usr/lib/python3/dist-packages (from tensorflow) (2.25.1)
Collecting wrapt>=1.11.0
  Downloading wrapt-1.17.3-cp310-cp310-manylinux1_x86_64.manylinux_2_28_x86_64.manylinux_2_5_x86_64.whl (81 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 82.0/82.0 KB 7.3 MB/s eta 0:00:00
Collecting grpcio<2.0,>=1.24.3
  Downloading grpcio-1.74.0-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (6.2 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6.2/6.2 MB 12.3 MB/s eta 0:00:00
Requirement already satisfied: wheel<1.0,>=0.23.0 in /usr/lib/python3/dist-packages (from astunparse>=1.6.0->tensorflow) (0.37.1)
Collecting optree
  Downloading optree-0.17.0-cp310-cp310-manylinux_2_27_x86_64.manylinux_2_28_x86_64.whl (387 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 388.0/388.0 KB 11.8 MB/s eta 0:00:00
Collecting rich
  Downloading rich-14.1.0-py3-none-any.whl (243 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 243.4/243.4 KB 10.4 MB/s eta 0:00:00
Collecting namex
  Downloading namex-0.1.0-py3-none-any.whl (5.9 kB)
Requirement already satisfied: pillow in /usr/lib/python3/dist-packages (from tensorboard~=2.20.0->tensorflow) (9.0.1)
Collecting werkzeug>=1.0.1
  Downloading werkzeug-3.1.3-py3-none-any.whl (224 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 224.5/224.5 KB 7.7 MB/s eta 0:00:00
Collecting markdown>=2.6.8
  Downloading markdown-3.9-py3-none-any.whl (107 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 107.4/107.4 KB 7.1 MB/s eta 0:00:00
Collecting tensorboard-data-server<0.8.0,>=0.7.0
  Downloading tensorboard_data_server-0.7.2-py3-none-manylinux_2_31_x86_64.whl (6.6 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 6.6/6.6 MB 9.9 MB/s eta 0:00:00
Collecting MarkupSafe>=2.1.1
  Downloading MarkupSafe-3.0.2-cp310-cp310-manylinux_2_17_x86_64.manylinux2014_x86_64.whl (20 kB)
Collecting markdown-it-py>=2.2.0
  Downloading markdown_it_py-4.0.0-py3-none-any.whl (87 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 87.3/87.3 KB 8.2 MB/s eta 0:00:00
Collecting pygments<3.0.0,>=2.13.0
  Downloading pygments-2.19.2-py3-none-any.whl (1.2 MB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 1.2/1.2 MB 13.2 MB/s eta 0:00:00
Collecting mdurl~=0.1
  Downloading mdurl-0.1.2-py3-none-any.whl (10.0 kB)
Installing collected packages: namex, libclang, flatbuffers, wrapt, typing_extensions, termcolor, tensorboard-data-server, pygments, protobuf, opt_einsum, numpy, mdurl, MarkupSafe, markdown, grpcio, google_pasta, gast, astunparse, absl-py, werkzeug, optree, ml_dtypes, markdown-it-py, h5py, tensorboard, rich, keras, tensorflow
  WARNING: The script pygmentize is installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
  WARNING: The scripts f2py and numpy-config are installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
  WARNING: The script markdown_py is installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
  WARNING: The script markdown-it is installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
  WARNING: The script tensorboard is installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
  WARNING: The scripts import_pb_to_tensorboard, saved_model_cli, tensorboard, tf_upgrade_v2, tflite_convert and toco are installed in '/home/minimonk/.local/bin' which is not on PATH.
  Consider adding this directory to PATH or, if you prefer to suppress this warning, use --no-warn-script-location.
Successfully installed MarkupSafe-3.0.2 absl-py-2.3.1 astunparse-1.6.3 flatbuffers-25.2.10 gast-0.6.0 google_pasta-0.2.0 grpcio-1.74.0 h5py-3.14.0 keras-3.11.3 libclang-18.1.1 markdown-3.9 markdown-it-py-4.0.0 mdurl-0.1.2 ml_dtypes-0.5.3 namex-0.1.0 numpy-2.2.6 opt_einsum-3.4.0 optree-0.17.0 protobuf-6.32.1 pygments-2.19.2 rich-14.1.0 tensorboard-2.20.0 tensorboard-data-server-0.7.2 tensorflow-2.20.0 termcolor-3.1.0 typing_extensions-4.15.0 werkzeug-3.1.3 wrapt-1.17.3
minimonk@minimonk-HP-EliteBook-2760p:~$ pip install keras
Defaulting to user installation because normal site-packages is not writeable
Requirement already satisfied: keras in ./.local/lib/python3.10/site-packages (3.11.3)
Requirement already satisfied: absl-py in ./.local/lib/python3.10/site-packages (from keras) (2.3.1)
Requirement already satisfied: numpy in ./.local/lib/python3.10/site-packages (from keras) (2.2.6)
Requirement already satisfied: rich in ./.local/lib/python3.10/site-packages (from keras) (14.1.0)
Requirement already satisfied: ml-dtypes in ./.local/lib/python3.10/site-packages (from keras) (0.5.3)
Requirement already satisfied: namex in ./.local/lib/python3.10/site-packages (from keras) (0.1.0)
Requirement already satisfied: optree in ./.local/lib/python3.10/site-packages (from keras) (0.17.0)
Requirement already satisfied: h5py in ./.local/lib/python3.10/site-packages (from keras) (3.14.0)
Requirement already satisfied: packaging in /usr/lib/python3/dist-packages (from keras) (21.3)
Requirement already satisfied: typing-extensions>=4.6.0 in ./.local/lib/python3.10/site-packages (from optree->keras) (4.15.0)
Requirement already satisfied: markdown-it-py>=2.2.0 in ./.local/lib/python3.10/site-packages (from rich->keras) (4.0.0)
Requirement already satisfied: pygments<3.0.0,>=2.13.0 in ./.local/lib/python3.10/site-packages (from rich->keras) (2.19.2)
Requirement already satisfied: mdurl~=0.1 in ./.local/lib/python3.10/site-packages (from markdown-it-py>=2.2.0->rich->keras) (0.1.2)

$ pip install numpy==1.26.4



numpy 1.26.4를 깔게 된 에러메시지

$ python3
Python 3.10.12 (main, Aug 15 2025, 14:32:43) [GCC 11.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import tensorflow as tf
2025-09-15 15:28:06.544207: I external/local_xla/xla/tsl/cuda/cudart_stub.cc:31] Could not find cuda drivers on your machine, GPU will not be used.
/usr/lib/python3/dist-packages/scipy/__init__.py:146: UserWarning: A NumPy version >=1.17.3 and <1.25.0 is required for this version of SciPy (detected version 2.2.6
  warnings.warn(f"A NumPy version >={np_minversion} and <{np_maxversion}"

A module that was compiled using NumPy 1.x cannot be run in
NumPy 2.2.6 as it may crash. To support both 1.x and 2.x
versions of NumPy, modules must be compiled with NumPy 2.0.
Some module may need to rebuild instead e.g. with 'pybind11>=2.12'.

If you are a user of the module, the easiest solution will be to
downgrade to 'numpy<2' or try to upgrade the affected module.
We expect that some modules will need time to support NumPy 2.

Traceback (most recent call last):  File "<stdin>", line 1, in <module>
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/__init__.py", line 49, in <module>
    from tensorflow._api.v2 import __internal__
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/_api/v2/__internal__/__init__.py", line 13, in <module>
    from tensorflow._api.v2.__internal__ import feature_column
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/_api/v2/__internal__/feature_column/__init__.py", line 8, in <module>
    from tensorflow.python.feature_column.feature_column_v2 import DenseColumn # line: 1777
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/feature_column/feature_column_v2.py", line 38, in <module>
    from tensorflow.python.feature_column import feature_column as fc_old
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/feature_column/feature_column.py", line 41, in <module>
    from tensorflow.python.layers import base
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/layers/base.py", line 16, in <module>
    from tensorflow.python.keras.legacy_tf_layers import base
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/keras/__init__.py", line 25, in <module>
    from tensorflow.python.keras import models
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/keras/models.py", line 25, in <module>
    from tensorflow.python.keras.engine import training_v1
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/keras/engine/training_v1.py", line 46, in <module>
    from tensorflow.python.keras.engine import training_arrays_v1
  File "/home/minimonk/.local/lib/python3.10/site-packages/tensorflow/python/keras/engine/training_arrays_v1.py", line 37, in <module>
    from scipy.sparse import issparse  # pylint: disable=g-import-not-at-top
  File "/usr/lib/python3/dist-packages/scipy/sparse/__init__.py", line 267, in <module>
    from ._csr import *
  File "/usr/lib/python3/dist-packages/scipy/sparse/_csr.py", line 10, in <module>
    from ._sparsetools import (csr_tocsc, csr_tobsr, csr_count_blocks,
AttributeError: _ARRAY_API not found

[링크 : https://mhui123.tistory.com/143]



그런데 mobilenet이 ssd가 없으면 classification만 되는 놈이었나?

from keras.applications import MobileNet
from keras.layers import Dense,Dropout,Activation, Flatten, GlobalAveragePooling2D
from keras.layers import Conv2D, MaxPooling2D, ZeroPadding2D
from tensorflow.keras.preprocessing.image import ImageDataGenerator
from keras.optimizers import RMSprop, Adam
from keras.callbacks import ModelCheckpoint, EarlyStopping, ReduceLROnPlateau

img_rows,img_cols = 224,224
MobileNet = MobileNet(weights='imagenet', include_top=False, input_shape=(img_rows, img_cols, 3))
2025-09-15 16:00:19.852870: E external/local_xla/xla/stream_executor/cuda/cuda_platform.cc:51] failed call to cuInit: INTERNAL: CUDA error: Failed call to cuInit: UNKNOWN ERROR (303)
Downloading data from https://storage.googleapis.com/tensorflow/keras-applications/mobilenet/mobilenet_1_0_224_tf_no_top.h5
17225924/17225924 ━━━━━━━━━━━━━━━━━━━━ 1s 0us/step

>>> for layer in MobileNet.layers:
...   layer.trainable = True
...
>>> for (i, layer) in enumerate(MobileNet.layers):
...   print(str(i), layer.__class__.__name__, layer.trainable)
...
0 InputLayer True
1 Conv2D True
2 BatchNormalization True
3 ReLU True
4 DepthwiseConv2D True
5 BatchNormalization True
6 ReLU True
7 Conv2D True
8 BatchNormalization True
9 ReLU True
10 ZeroPadding2D True
11 DepthwiseConv2D True
12 BatchNormalization True
13 ReLU True
14 Conv2D True
15 BatchNormalization True
16 ReLU True
17 DepthwiseConv2D True
18 BatchNormalization True
19 ReLU True
20 Conv2D True
21 BatchNormalization True
22 ReLU True
23 ZeroPadding2D True
24 DepthwiseConv2D True
25 BatchNormalization True
26 ReLU True
27 Conv2D True
28 BatchNormalization True
29 ReLU True
30 DepthwiseConv2D True
31 BatchNormalization True
32 ReLU True
33 Conv2D True
34 BatchNormalization True
35 ReLU True
36 ZeroPadding2D True
37 DepthwiseConv2D True
38 BatchNormalization True
39 ReLU True
40 Conv2D True
41 BatchNormalization True
42 ReLU True
43 DepthwiseConv2D True
44 BatchNormalization True
45 ReLU True
46 Conv2D True
47 BatchNormalization True
48 ReLU True
49 DepthwiseConv2D True
50 BatchNormalization True
51 ReLU True
52 Conv2D True
53 BatchNormalization True
54 ReLU True
55 DepthwiseConv2D True
56 BatchNormalization True
57 ReLU True
58 Conv2D True
59 BatchNormalization True
60 ReLU True
61 DepthwiseConv2D True
62 BatchNormalization True
63 ReLU True
64 Conv2D True
65 BatchNormalization True
66 ReLU True
67 DepthwiseConv2D True
68 BatchNormalization True
69 ReLU True
70 Conv2D True
71 BatchNormalization True
72 ReLU True
73 ZeroPadding2D True
74 DepthwiseConv2D True
75 BatchNormalization True
76 ReLU True
77 Conv2D True
78 BatchNormalization True
79 ReLU True
80 DepthwiseConv2D True
81 BatchNormalization True
82 ReLU True
83 Conv2D True
84 BatchNormalization True
85 ReLU True

>>> MobileNet.output
<KerasTensor shape=(None, 7, 7, 1024), dtype=float32, sparse=False, ragged=False, name=keras_tensor_85>
>>> MobileNet.input
<KerasTensor shape=(None, 224, 224, 3), dtype=float32, sparse=False, ragged=False, name=keras_tensor>
>>> MobileNet.summary()
Model: "mobilenet_1.00_224"
┏--------------------------------------┳-----------------------------┳-----------------┓
┃ Layer (type)                         ┃ Output Shape                ┃         Param # ┃
┡--------------------------------------╇-----------------------------╇-----------------┩
│ input_layer (InputLayer)             │ (None, 224, 224, 3)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv1 (Conv2D)                       │ (None, 112, 112, 32)        │             864 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv1_bn (BatchNormalization)        │ (None, 112, 112, 32)        │             128 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv1_relu (ReLU)                    │ (None, 112, 112, 32)        │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_1 (DepthwiseConv2D)          │ (None, 112, 112, 32)        │             288 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_1_bn (BatchNormalization)    │ (None, 112, 112, 32)        │             128 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_1_relu (ReLU)                │ (None, 112, 112, 32)        │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_1 (Conv2D)                   │ (None, 112, 112, 64)        │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_1_bn (BatchNormalization)    │ (None, 112, 112, 64)        │             256 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_1_relu (ReLU)                │ (None, 112, 112, 64)        │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pad_2 (ZeroPadding2D)           │ (None, 113, 113, 64)        │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_2 (DepthwiseConv2D)          │ (None, 56, 56, 64)          │             576 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_2_bn (BatchNormalization)    │ (None, 56, 56, 64)          │             256 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_2_relu (ReLU)                │ (None, 56, 56, 64)          │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_2 (Conv2D)                   │ (None, 56, 56, 128)         │           8,192 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_2_bn (BatchNormalization)    │ (None, 56, 56, 128)         │             512 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_2_relu (ReLU)                │ (None, 56, 56, 128)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_3 (DepthwiseConv2D)          │ (None, 56, 56, 128)         │           1,152 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_3_bn (BatchNormalization)    │ (None, 56, 56, 128)         │             512 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_3_relu (ReLU)                │ (None, 56, 56, 128)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_3 (Conv2D)                   │ (None, 56, 56, 128)         │          16,384 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_3_bn (BatchNormalization)    │ (None, 56, 56, 128)         │             512 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_3_relu (ReLU)                │ (None, 56, 56, 128)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pad_4 (ZeroPadding2D)           │ (None, 57, 57, 128)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_4 (DepthwiseConv2D)          │ (None, 28, 28, 128)         │           1,152 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_4_bn (BatchNormalization)    │ (None, 28, 28, 128)         │             512 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_4_relu (ReLU)                │ (None, 28, 28, 128)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_4 (Conv2D)                   │ (None, 28, 28, 256)         │          32,768 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_4_bn (BatchNormalization)    │ (None, 28, 28, 256)         │           1,024 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_4_relu (ReLU)                │ (None, 28, 28, 256)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_5 (DepthwiseConv2D)          │ (None, 28, 28, 256)         │           2,304 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_5_bn (BatchNormalization)    │ (None, 28, 28, 256)         │           1,024 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_5_relu (ReLU)                │ (None, 28, 28, 256)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_5 (Conv2D)                   │ (None, 28, 28, 256)         │          65,536 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_5_bn (BatchNormalization)    │ (None, 28, 28, 256)         │           1,024 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_5_relu (ReLU)                │ (None, 28, 28, 256)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pad_6 (ZeroPadding2D)           │ (None, 29, 29, 256)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_6 (DepthwiseConv2D)          │ (None, 14, 14, 256)         │           2,304 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_6_bn (BatchNormalization)    │ (None, 14, 14, 256)         │           1,024 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_6_relu (ReLU)                │ (None, 14, 14, 256)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_6 (Conv2D)                   │ (None, 14, 14, 512)         │         131,072 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_6_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_6_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_7 (DepthwiseConv2D)          │ (None, 14, 14, 512)         │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_7_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_7_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_7 (Conv2D)                   │ (None, 14, 14, 512)         │         262,144 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_7_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_7_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_8 (DepthwiseConv2D)          │ (None, 14, 14, 512)         │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_8_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_8_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_8 (Conv2D)                   │ (None, 14, 14, 512)         │         262,144 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_8_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_8_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_9 (DepthwiseConv2D)          │ (None, 14, 14, 512)         │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_9_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_9_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_9 (Conv2D)                   │ (None, 14, 14, 512)         │         262,144 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_9_bn (BatchNormalization)    │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_9_relu (ReLU)                │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_10 (DepthwiseConv2D)         │ (None, 14, 14, 512)         │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_10_bn (BatchNormalization)   │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_10_relu (ReLU)               │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_10 (Conv2D)                  │ (None, 14, 14, 512)         │         262,144 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_10_bn (BatchNormalization)   │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_10_relu (ReLU)               │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_11 (DepthwiseConv2D)         │ (None, 14, 14, 512)         │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_11_bn (BatchNormalization)   │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_11_relu (ReLU)               │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_11 (Conv2D)                  │ (None, 14, 14, 512)         │         262,144 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_11_bn (BatchNormalization)   │ (None, 14, 14, 512)         │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_11_relu (ReLU)               │ (None, 14, 14, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pad_12 (ZeroPadding2D)          │ (None, 15, 15, 512)         │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_12 (DepthwiseConv2D)         │ (None, 7, 7, 512)           │           4,608 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_12_bn (BatchNormalization)   │ (None, 7, 7, 512)           │           2,048 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_12_relu (ReLU)               │ (None, 7, 7, 512)           │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_12 (Conv2D)                  │ (None, 7, 7, 1024)          │         524,288 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_12_bn (BatchNormalization)   │ (None, 7, 7, 1024)          │           4,096 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_12_relu (ReLU)               │ (None, 7, 7, 1024)          │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_13 (DepthwiseConv2D)         │ (None, 7, 7, 1024)          │           9,216 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_13_bn (BatchNormalization)   │ (None, 7, 7, 1024)          │           4,096 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_dw_13_relu (ReLU)               │ (None, 7, 7, 1024)          │               0 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_13 (Conv2D)                  │ (None, 7, 7, 1024)          │       1,048,576 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_13_bn (BatchNormalization)   │ (None, 7, 7, 1024)          │           4,096 │
├--------------------------------------┼-----------------------------┼-----------------┤
│ conv_pw_13_relu (ReLU)               │ (None, 7, 7, 1024)          │               0 │
└--------------------------------------┴-----------------------------┴-----------------┘
 Total params: 3,228,864 (12.32 MB)
 Trainable params: 3,206,976 (12.23 MB)
 Non-trainable params: 21,888 (85.50 KB)

[링크 : https://kau-deeperent.tistory.com/m/59]



# from keras.preprocessing.image import ImageDataGenerator #  에러났음
from tensorflow.keras.preprocessing.image import ImageDataGenerator

[링크 : https://sugyeong0425.tistory.com/151]



voc2012 데이터셋설명

[링크 : https://bo-10000.tistory.com/38]

[링크 : https://velog.io/@kyungmin1029/CV-OpenCV]



2024.8 월 이니 한번 시도해볼 만할 듯?

[링크 : https://velog.io/@choonsik_mom/MobileNet-SSD-object-detector-커스텀-데이터-학습하기-m3j5d0xh]

저작자표시 (새창열림)

'프로그램 사용 > yolo_tensorflow' 카테고리의 다른 글

mean Average Precision(mAP)  (0) 2025.09.05
내장 그래픽으로 ROCm?  (0) 2025.09.05
ai 모델들 조사  (0) 2025.09.04
NMS, soft-NMS  (0) 2024.01.15
VGG-16 / VGG-19  (0) 2024.01.11
Posted by 구차니
이론 관련/전기 전자2025. 9. 15. 14:06

오디오 녹음 재머

초음파를 쏴서 전 대역에 재밍거는 방법과 백색 소음을 전대역에 재밍거는 방법이 있다는데

일단 초음파를 쓰면 line of sight에서만 작동하는 듯.



[링크 : https://www.isecus.com/audio-recording-jammer-comparison/]

[링크 : https://github.com/mcore1976/antispy-jammer]

저작자표시 (새창열림)

'이론 관련 > 전기 전자' 카테고리의 다른 글

pwm 화음 출력  (0) 2025.08.06
ntc r/t-tol  (0) 2025.04.29
전자로드 사용법  (0) 2025.04.28
합성저항, 목표저항 계산  (0) 2025.01.07
edge detector  (0) 2024.11.15
Posted by 구차니
프로그램 사용/iperf2025. 9. 15. 12:45

iperf3 udp 속도 테스트 on rpi 4

라즈베리 4 가 성능이 좋아도..

GbE UDP 테스트 하니 2세대 노트북에서 80% 쳐먹으시고

13세대에서도 25~30% 쳐드시는데



이걸 어떻게 해야하나 찾아보는데

이전에 이런 옵션으로 zerocpy 해서 부하를 줄여보려고 했는데

$ iperf3 -c localhost -u -f m -b 1000M -Z



pid 작은게 받는 쪽 pid 큰게 보내는 쪽. 대충 17.8%(클라) -> 10.9% (서버)

1988904 minimonk   20   0    8316   3968   3456 S  17.8   0.0   0:01.01 iperf3
1988889 minimonk   20   0    8316   3840   3328 S  10.9   0.0   0:01.60 iperf3



-l 64k는 왜 안되는지 모르겠고 63k는 먹는데

$ iperf3 -c localhost -u -f m -b 1000M -Z -l 63K



pid 작은게 받는 쪽 pid 큰게 보내는 쪽. 대충 14.7%(클라) -> 8.8% (서버)

1988975 minimonk   20   0    8348   3968   3456 S  14.7   0.0   0:00.61 iperf3
1988889 minimonk   20   0    8348   3840   3328 S   8.8   0.0   0:03.46 iperf3



이렇게 옵션 주고 하니 라즈베리 4에서도 UDP로 GbE 잘 뽑아낸다. 휴..

[링크 : https://serverfault.com/questions/813413/how-to-set-the-udp-packet-size-with-iperf3]

저작자표시 (새창열림)

'프로그램 사용 > iperf' 카테고리의 다른 글

iperf3 jumbo packet?  (0) 2025.02.15
iperf 파일로 바로바로 떨궈서 tail로 보기  (0) 2025.02.10
iperf3  (0) 2023.07.28
iperf udp 테스트  (0) 2022.03.14
iperf로 100M 랜 / IEEE1394 대역폭 측정  (2) 2011.12.07
Posted by 구차니
개소리 왈왈/육아관련 주저리2025. 9. 14. 22:44

소소한 휴가(?) 끝

금요일에 연차내고

금요일 5시 쯤에 출발해서 처갓댁에 도착.

토요일에는 장모님 / 장인어른 놀러가신대서 빈집에 있게 되었는데

토요일 오후부터 나가서 짜장면 먹고

시내도 갔다가 돌아 다니면서 안가본 카페도 들른 덕에 고양이도 애들이 만져봄

일요일 9시 가 되어 돌아오셔서 밥 먹고

4/9장 열려서 들렀다가 돌아옴.



그 와중에 저번에 교체했던 타이어 위치에 또 터져서 바람 새는것 같아서

아부지께 던지고 옴.

아차.. 고속도로 돈 안냈네

저작자표시 (새창열림)

'개소리 왈왈 > 육아관련 주저리' 카테고리의 다른 글

오랫만에 회전초밥  (4) 2025.08.30
드라이브~  (0) 2025.08.24
애견미용이 비싸서!  (0) 2025.08.23
다시 돌아온 열대야  (0) 2025.08.19
하루 늦은.. 기절?  (0) 2025.08.17
Posted by 구차니
개소리 왈왈/컴퓨터2025. 9. 14. 22:09

키보드 수리 2

이때는 시작 버튼(윈도우)이 문제고

2023.02.20 - [개소리 왈왈/컴퓨터] - 키보드 수리



오늘은 스페이스가 문제.. -_-

나사를 버리자(!!)



기존에 걸그적 거리던 핸드폰 받침대 빼고

위에 빨간색 커버를 어떻게 할까 고민중. 뺄때 마다 고생을 해서.. 그냥 버리고 누드로 써버려?

저작자표시 (새창열림)

'개소리 왈왈 > 컴퓨터' 카테고리의 다른 글

SK-8845RC USB 포트  (0) 2025.09.10
fan error .. 3  (0) 2025.08.10
회사 노트북 배터리 자가교체  (2) 2025.08.07
pth-651 on linux  (0) 2025.08.07
pth-651 on 윈도우  (0) 2025.08.07
Posted by 구차니
하드웨어/pen tablet2025. 9. 14. 18:33

CTL-472 one by wacom 도착

수요일 구매의향을 전달하고 편의점 택배로 이야기 해서

목요일 편의점에 접수되고

토요일에 도착되서

일요일에 수령함.

벽돌이 온다거나 하면 어떡하고 고민했는데 다행히 잘 도착!



어라.. S펜 된대서 샀는데 왜 안되지?!?!? (급 멘붕)

혹시.. wacom one이랑 one by wacom 이랑 펜이 다른가?



처음 꽂으니까 wacom center가 자동실행되는데



영 반응이 없어서 "와콤 타블렛 등록정보" 가서

인튜 프로, s펜 3가지 가져다 대보는데 반응이 없다 ㅠ



설마.. 그냥 인튜랑 되나? 일단 내일 가져가서 봐야 알 것 같다.

사용 가능한 모델
Intuos Draw (CTL-490/W0, CTL-490/B0)
INTUOS Art (CTH-490/K0, CTH-490/B0 , CTH-690/K0, CTH-690/B0)
INTUOS Comic (CTH-490/K1, CTH-490/B1)
Intuos Photo(CTH-490/K2)
One by Wacom(CTL-472, CTL-672)

[링크 : https://wacomzone.co.kr/goods/view?no=95]





설마.. wacom one 계열이 s펜 호환이고, one by wacom은 아닌건가?

다시보니 one by wacom은 intuos랑 모델명이 비슷하다

cth-490 / ctl-472

[링크 : https://m.blog.naver.com/guby_/222588505126]





wacom one 라인업

CTC4110WLW0C 와콤 원 소형
CTC6110WLW0C 와콤 원 중형

[링크 : https://estore.wacom.kr/ko-kr/pen-tablet/wacom-one.html] 펜 타블렛



DTC121W0D 와콤 원 12
DTH134W0D 와콤 원 13 터치

[링크 : https://estore.wacom.kr/ko-kr/display-tablet/wacom-one.html] 액정 타블렛





+

2025.09.15

intuos pen & tablet 에서 사용하던 펜을 사용해보니 잘 뜬다.

이게 되는게 없는 녀석이라, 버튼도 없고 딱히 설정뜨는게 없다.





저작자표시 (새창열림)

'하드웨어 > pen tablet' 카테고리의 다른 글

xsetwacom with intuos pen & touch tablet  (0) 2025.09.10
cth-490 on ubuntu  (0) 2025.09.08
와콤 cth-490 지름  (2) 2025.09.06
ubuntu wacom express key 에 esc 등록하기  (0) 2025.08.29
ubuntu에서 wacom 활성영역 설정하기  (0) 2025.08.28
Posted by 구차니
Microsoft/Windows2025. 9. 14. 08:36

윈도우 11 텍스트 입력 커서 사라짐 해결

찾아서 들어가기 귀찮으니 마우스 속성 실행하기



포인터 탭에서

텍스트 선택 - 찾아보기



beam_r.cur 선택하고 적용



이거 하나 설정 바꾸고 커서 안사라지니 완전 쓰레기 OS! 라는 평에서

보통의 OS까지 급상승!

[링크 : https://blasker.tistory.com/entry/윈도우-11-24H2-마우스-커서-사라짐-문제-해결-방법]

저작자표시 (새창열림)

'Microsoft > Windows' 카테고리의 다른 글

고사구 충전기?  (2) 2025.08.09
파워셀로 GUI 만들기(컴파일 없이)  (0) 2025.07.22
파워셀 실행 안될 경우  (0) 2025.07.22
파워셀 TCP 소켓 열어 데이터 보내기  (0) 2025.07.22
윈도우 11 + 크롬 + 티스토리 글쓰다가 커서 안사라지게 하기  (2) 2025.04.10
Posted by 구차니
게임/홈월드 시리즈2025. 9. 13. 12:20

desserts of kharak normal 끝!

끝내고 나니 어떤 난이도로 끝냈는지 나온다.

처음만 classic(별 3개) 그 이후로는 normal 로 깼더니 easy / medium 끝난걸로 인정되는 듯







카르 토바. 오랫만에 듣는 이름이구만



여기서 하이퍼스페이스 코어를 얻는건가



히가라 문장 모양으로 생긴 최초의 도시

아 도시계획 똑바로 안해?!



죽어라 최종보스!!!

이쯤 되면 아티팩트도 모으기 빡세고

소모전으로 들어가서 레일건 따윈 계급이 중요해지지 않아지는 느낌.. ㅠㅠ





여러 부족(키스)들의 심볼이 처음 나오는 듯?



+

마지막 판만 hard로 했는데 역시 그런 꽁수는 안 먹는군

총 11시간. 싱글 플레이는 hard 빼면 모두 달성이네

저작자표시 (새창열림)

'게임 > 홈월드 시리즈' 카테고리의 다른 글

desserts of kharak 진행중  (0) 2025.09.12
desserts of kharak 역시 뽀려야 제맛이지 ㅋㅋ  (0) 2025.09.10
dessert of kharak 진행 중!  (0) 2025.09.08
dessert of kharak 시작!  (0) 2025.09.07
잘가 홈월드 리마스터  (0) 2025.08.19
Posted by 구차니

티스토리툴바
