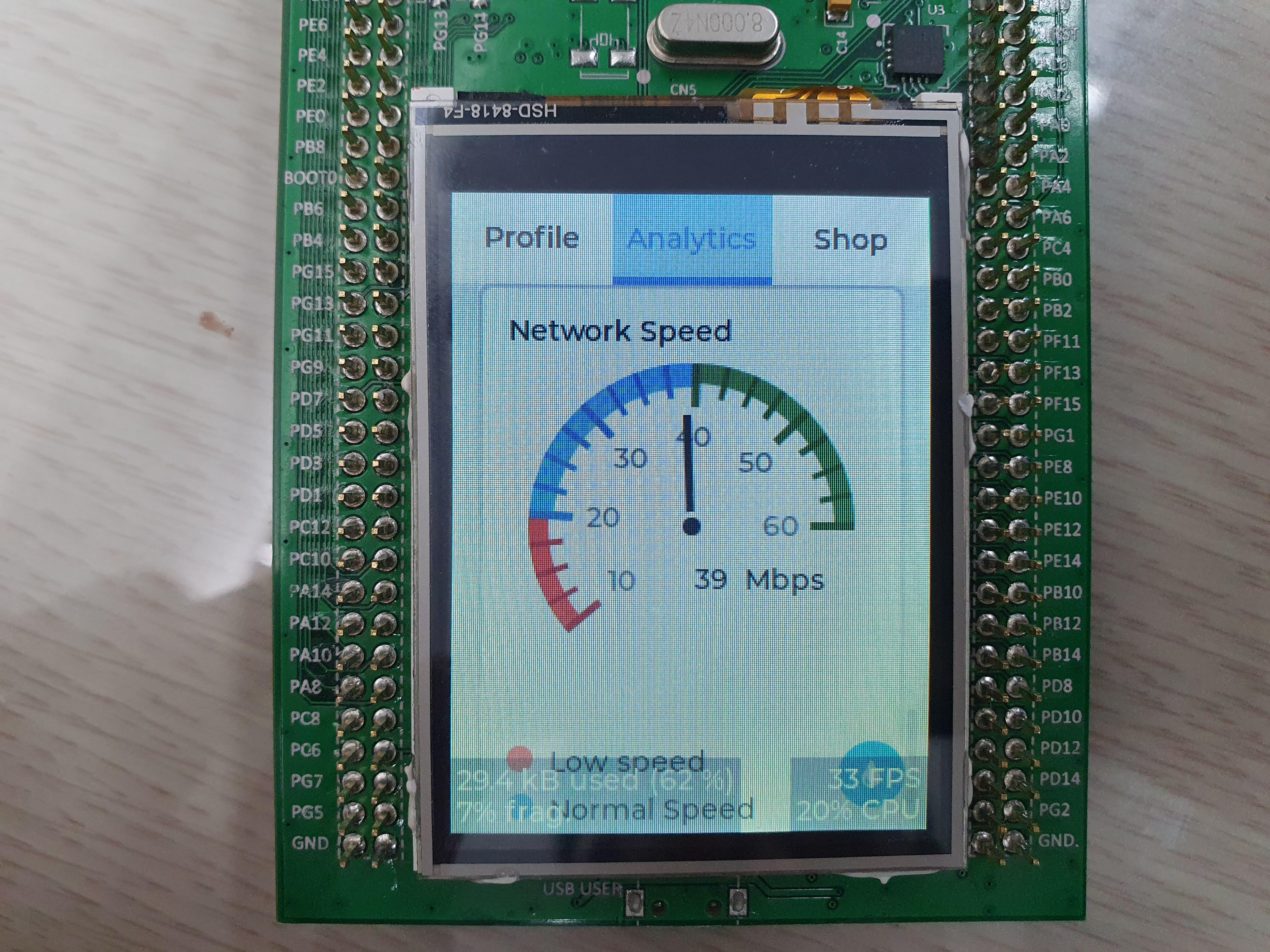

STM32F429I-DISC1 with lvgl

그냥 받아서 하니 잘된다.



git clone https://github.com/littlevgl/stm32f429_disco_no_os_sw4stm32.git --recurse-submodules

[링크 : https://github.com/lvgl/lv_port_stm32f429_disco]



회사에 굴러 다니던게 있었을 줄이야 -_-

[링크 : https://www.st.com/en/evaluation-tools/32f429idiscovery.html]



Core: Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories 512 bytes of OTP memory Up to 2 MB of flash memory organized into two banks allowing read-while-write Up to 256+4 KB of SRAM including 64 KB of CCM (core coupled memory) data RAM Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, compact flash/NOR/NAND memories LCD parallel interface, 8080/6800 modes LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz) Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)

[링크 : https://www.st.com/en/microcontrollers-microprocessors/stm32f429zi.html]



그나저나 main 함수 엄청 단촐하다.

int main(void) { HAL_Init(); /* Configure the system clock to 180 MHz */ SystemClock_Config(); /*Start up indication*/ BSP_LED_Init(LED3); uint32_t i; for (i = 0; i < 8; i++) { BSP_LED_Toggle(LED3); HAL_Delay(50); } lv_init(); tft_init(); touchpad_init(); // lv_example_scroll_3(); // lv_example_chart_7(); lv_demo_widgets(); while (1) { HAL_Delay(3); lv_task_handler(); } }

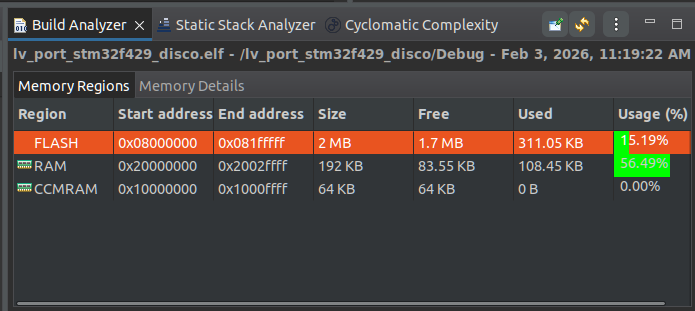

빌드하니 생각외로 용량은 적게 나온다. 이미지는 어떻게 처리한거지?
