- 2025.05.25 기절 기절 기절
- 2025.05.24 날씨가..
- 2025.05.23 ai killed programmer
- 2025.05.22 libfreenect2 VAAPI 버그? 2
- 2025.05.22 ros2 with kinect v2 시도... 3회차
- 2025.05.22 git master -> main branch
- 2025.05.22 별 거 아닌데 수상하네 2
- 2025.05.22 ros2 with kinect v2 시도... 2회차
- 2025.05.21 노트북 저장장치 업그레이드
- 2025.05.21 ros2 with kinect v2 일단 실패
개소리 왈왈/육아관련 주저리2025. 5. 25. 22:45
개소리 왈왈/육아관련 주저리2025. 5. 24. 22:23
개소리 왈왈/인공지능2025. 5. 23. 08:20
'개소리 왈왈 > 인공지능' 카테고리의 다른 글
| gemini-cli 시도 실패 (0) | 2025.07.15 |
|---|---|
| chatGPT가 날로먹으려고 한다!!!! (0) | 2025.03.21 |
| claude 구독 해제 (0) | 2024.11.22 |
| 클로드를 이용해 코드는 손도 안대고 웹페이지 만들기 (1) | 2024.09.13 |
| 클로드로 날로먹기 모드 (0) | 2024.09.12 |
프로그램 사용/kinect2025. 5. 22. 23:51
intel 7세대 노트북에서
별 옵션 주지 않고 cmake 하니까 아래와 같이 설정이 된다.
2세대 에서는 OpenCL yes, VAAPI no 였다.
| -- Using in-tree freenect2 target -- Feature list: -- CUDA no -- CXX11 disabled -- Examples yes -- OpenCL no -- OpenGL yes -- OpenNI2 yes -- TegraJPEG no -- Threading tinythread -- TurboJPEG yes -- VAAPI yes -- VideoToolbox no (Apple only) -- streamer_recorder disabled -- Configuring done (0.1s) -- Generating done (0.0s) |

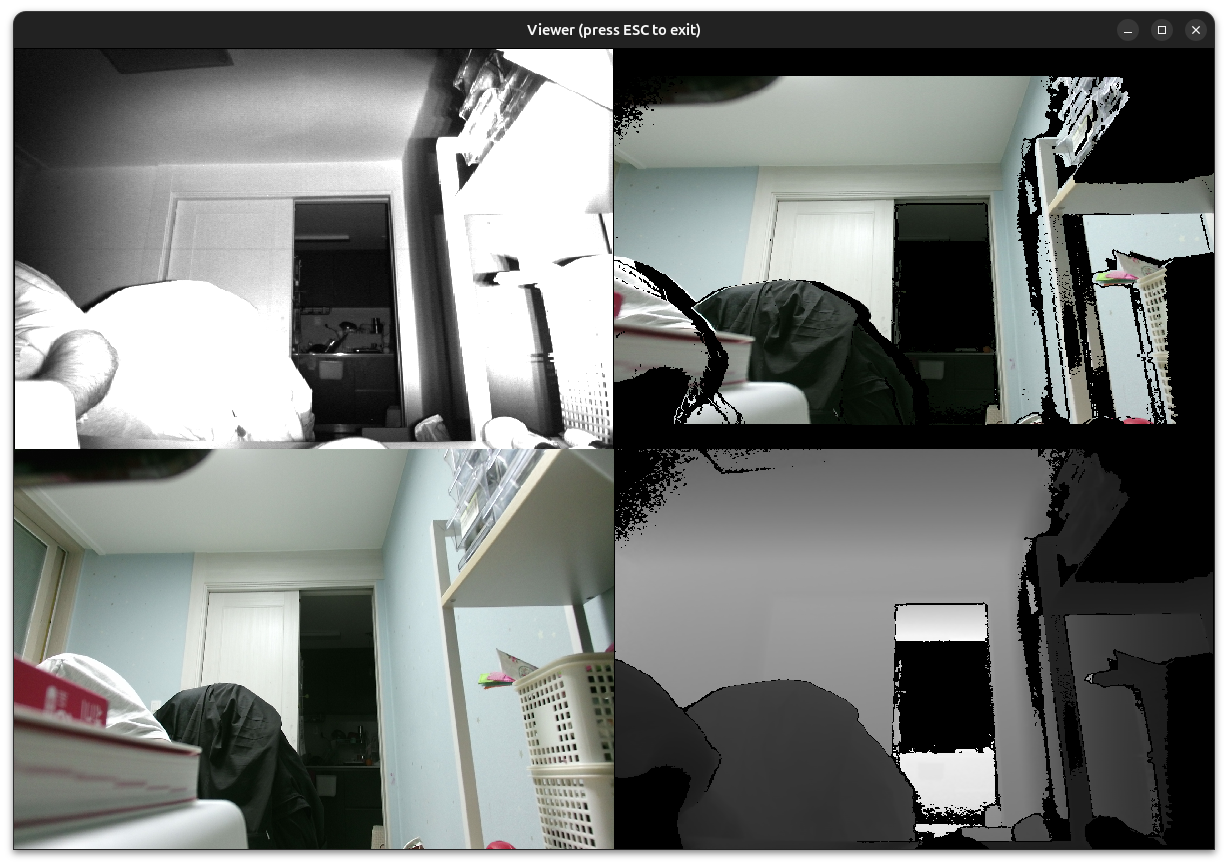

그래서 떴던거 같아서 다시 실행해보니 ir 과 depth는 정상이고 rgb의 폭이 이상해서
3d로 재구성된 녀석도 이상하게 나온다.
| $ ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 9 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @2:11 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices libva info: VA-API version 1.20.0 libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so libva info: Found init function __vaDriverInit_1_20 libva info: va_openDriver() returns 0 [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... [Debug] [Freenect2DeviceImpl] status 0x090000: 9729 [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 [Info] [Freenect2DeviceImpl] submitting rgb transfers... [Info] [Freenect2DeviceImpl] submitting depth transfers... [Info] [Freenect2DeviceImpl] started |
그래서 VAAPI를 끄고 빌드해서 실행해보니
| $ cmake .. -DENABLE_VAAPI=OFF -- Using in-tree freenect2 target -- Feature list: -- CUDA no -- CXX11 disabled -- Examples yes -- OpenCL no -- OpenGL yes -- OpenNI2 yes -- TegraJPEG no -- Threading tinythread -- TurboJPEG yes -- VAAPI disabled -- VideoToolbox no (Apple only) -- streamer_recorder disabled -- Configuring done (0.1s) -- Generating done (0.0s) |
영상은 정상적으로 보이는데, transfer pool size가 달라지진 않네.. 머지?
| $ ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 9 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @2:11 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... [Debug] [Freenect2DeviceImpl] status 0x090000: 9729 [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 [Info] [Freenect2DeviceImpl] submitting rgb transfers... [Info] [Freenect2DeviceImpl] submitting depth transfers... [Debug] [DepthPacketStreamParser] not all subsequences received 0 [Info] [Freenect2DeviceImpl] started |
'프로그램 사용 > kinect' 카테고리의 다른 글
| kinect 1.x, 2.x color <-> depth mapping (0) | 2025.05.07 |
|---|---|
| kinect v2 잘못된 깊이 맵 맵핑 (0) | 2025.05.06 |
| libfreenect2 rgb / depth 매핑 소스코드 분석 (0) | 2025.05.05 |
| kinect rgb - depth mapping (0) | 2025.05.01 |
| kinect 깊이 정밀도 (0) | 2025.04.15 |
프로그램 사용/ros2025. 5. 22. 23:20
다른 사용자의 것과는 다르게 알아서 시리얼을 확인하고 그냥 선택한다.
그때는 물려볼게 없어서 안 죽었나 싶긴한데.
요건 wayland 에서 한 거(우분투 기본 값이니)
| $ ros2 launch kinect2_bridge kinect2_bridge_launch.yaml [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-22-23-16-49-714642-minimonk-900X3N-4099 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge_node-1]: process started with pid [4102] [INFO] [point_cloud_xyzrgb_node-2]: process started with pid [4103] [kinect2_bridge_node-1] [INFO] [1747923410.103073698] [kinect2_bridge_node]: parameter: [kinect2_bridge_node-1] base_name: kinect2 [kinect2_bridge_node-1] sensor: default [kinect2_bridge_node-1] fps_limit: 30 [kinect2_bridge_node-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge_node-1] use_png: false [kinect2_bridge_node-1] jpeg_quality: 90 [kinect2_bridge_node-1] png_level: 1 [kinect2_bridge_node-1] depth_method: default [kinect2_bridge_node-1] depth_device: -1 [kinect2_bridge_node-1] reg_method: default [kinect2_bridge_node-1] reg_device: -1 [kinect2_bridge_node-1] max_depth: 12 [kinect2_bridge_node-1] min_depth: 0.1 [kinect2_bridge_node-1] queue_size: 5 [kinect2_bridge_node-1] bilateral_filter: true [kinect2_bridge_node-1] edge_aware_filter: true [kinect2_bridge_node-1] publish_tf: true [kinect2_bridge_node-1] base_name_tf: kinect2 [kinect2_bridge_node-1] worker_threads: 4 [kinect2_bridge_node-1] libva info: VA-API version 1.20.0 [kinect2_bridge_node-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge_node-1] libva info: Found init function __vaDriverInit_1_20 [kinect2_bridge_node-1] libva info: va_openDriver() returns 0 [kinect2_bridge_node-1] [INFO] [1747923410.268596885] [kinect2_bridge_node]: Kinect2 devices found: [kinect2_bridge_node-1] [INFO] [1747923410.268646704] [kinect2_bridge_node]: 0: 501441643042 (selected) [kinect2_bridge_node-1] [INFO] [1747923410.353586296] [kinect2_bridge_node]: starting kinect2 [kinect2_bridge_node-1] [INFO] [1747923410.702466968] [kinect2_bridge_node]: device serial: 501441643042 [kinect2_bridge_node-1] [INFO] [1747923410.702527385] [kinect2_bridge_node]: device firmware: 4.0.3911.0 [kinect2_bridge_node-1] [WARN] [1747923410.943823711] [kinect2_bridge_node]: using sensor defaults for color intrinsic parameters. [kinect2_bridge_node-1] [WARN] [1747923410.943872088] [kinect2_bridge_node]: using sensor defaults for ir intrinsic parameters. [kinect2_bridge_node-1] [WARN] [1747923410.943884124] [kinect2_bridge_node]: using defaults for rotation and translation. [kinect2_bridge_node-1] [WARN] [1747923410.943893248] [kinect2_bridge_node]: using defaults for depth shift. [kinect2_bridge_node-1] [INFO] [1747923410.957002369] [kinect2_bridge_node]: Using CPU registration method! [kinect2_bridge_node-1] [INFO] [1747923410.957063941] [kinect2_bridge_node]: Using CPU registration method! [kinect2_bridge_node-1] [INFO] [1747923410.989757825] [kinect2_bridge_node]: waiting for clients to connect [kinect2_bridge_node-1] [INFO] [1747923435.975438490] [kinect2_bridge_node]: client connected. starting device... [kinect2_bridge_node-1] X Error of failed request: BadAccess (attempt to access private resource denied) [kinect2_bridge_node-1] Major opcode of failed request: 149 (GLX) [kinect2_bridge_node-1] Minor opcode of failed request: 5 (X_GLXMakeCurrent) [kinect2_bridge_node-1] Serial number of failed request: 186 [kinect2_bridge_node-1] Current serial number in output stream: 186 [kinect2_bridge_node-1] terminate called after throwing an instance of 'rclcpp::exceptions::RCLError' [kinect2_bridge_node-1] what(): failed to publish message: cannot publish data, at ./src/rmw_publish.cpp:66, at ./src/rcl/publisher.c:284 [ERROR] [kinect2_bridge_node-1]: process has died [pid 4102, exit code -6, cmd '/home/minimonk/src/kinect2_ros2/install/kinect2_bridge/lib/kinect2_bridge/kinect2_bridge_node --ros-args -r __node:=kinect2_bridge_node --params-file /tmp/launch_params_iwksxu1_ --params-file /tmp/launch_params_1kuvaz_1 --params-file /tmp/launch_params_01a053mv --params-file /tmp/launch_params_zdcsdjyg --params-file /tmp/launch_params_yuzabhyr --params-file /tmp/launch_params_19tmdd6j --params-file /tmp/launch_params_hba7y_ha --params-file /tmp/launch_params_cz5d_5a0 --params-file /tmp/launch_params_zdnm6_6f --params-file /tmp/launch_params_0c2pkcpz --params-file /tmp/launch_params_z9p0frw3 --params-file /tmp/launch_params_93jygjmd --params-file /tmp/launch_params_gbcl6pwo --params-file /tmp/launch_params_h2ixukh_']. |
X 에러가 나서 혹시나 해 로그아웃했다가 wayland에서 x.org로 변경해서 했는데 흐음..
안되는건 여전하네. 모르겠다! ㅠㅠ
| [kinect2_bridge_node-1] X Error of failed request: BadAccess (attempt to access private resource denied) [kinect2_bridge_node-1] Major opcode of failed request: 152 (GLX) [kinect2_bridge_node-1] Minor opcode of failed request: 5 (X_GLXMakeCurrent) [kinect2_bridge_node-1] Serial number of failed request: 189 [kinect2_bridge_node-1] Current serial number in output stream: 189 [kinect2_bridge_node-1] terminate called after throwing an instance of 'std::system_error' [kinect2_bridge_node-1] what(): Invalid argument [ERROR] [kinect2_bridge_node-1]: process has died [pid 7073, exit code -6, cmd '/home/minimonk/src/kinect2_ros2/install/kinect2_bridge/lib/kinect2_bridge/kinect2_bridge_node --ros-args -r __node:=kinect2_bridge_node --params-file /tmp/launch_params_y5bvhzyw --params-file /tmp/launch_params_gxirdqdy --params-file /tmp/launch_params_hp4gbet8 --params-file /tmp/launch_params_08p1acor --params-file /tmp/launch_params_lmxr_tz6 --params-file /tmp/launch_params_t_ro1l1e --params-file /tmp/launch_params_lijjyb5p --params-file /tmp/launch_params_kyd4zb0u --params-file /tmp/launch_params_4apk49ym --params-file /tmp/launch_params_01ocg_zs --params-file /tmp/launch_params_bz6p08h0 --params-file /tmp/launch_params_htcp1tsf --params-file /tmp/launch_params_7qjvyjg0 --params-file /tmp/launch_params_nqmk926s']. ^C[WARNING] [launch]: user interrupted with ctrl-c (SIGINT) [point_cloud_xyzrgb_node-2] [INFO] [1747923700.776770005] [rclcpp]: signal_handler(signum=2) [INFO] [point_cloud_xyzrgb_node-2]: process has finished cleanly [pid 7074] |
흐음.. --params-file이 많은걸 제외하면 별 특별한건 없어 보이는데..
| [pid 7073, exit code -6, cmd '/home/minimonk/src/kinect2_ros2/install/kinect2_bridge/lib/kinect2_bridge/kinect2_bridge_node --ros-args -r __node:=kinect2_bridge_node --params-file /tmp/launch_params_y5bvhzyw --params-file /tmp/launch_params_gxirdqdy --params-file /tmp/launch_params_hp4gbet8 --params-file /tmp/launch_params_08p1acor --params-file /tmp/launch_params_lmxr_tz6 --params-file /tmp/launch_params_t_ro1l1e --params-file /tmp/launch_params_lijjyb5p --params-file /tmp/launch_params_kyd4zb0u --params-file /tmp/launch_params_4apk49ym --params-file /tmp/launch_params_01ocg_zs --params-file /tmp/launch_params_bz6p08h0 --params-file /tmp/launch_params_htcp1tsf --params-file /tmp/launch_params_7qjvyjg0 --params-file /tmp/launch_params_nqmk926s']. |
혹시나 해서 VAAPI를 쓴 libfreenect2의 문제인가 해서 빌드도 해서 바꾸어 봤는데 차이가 없다
머가 문제일까...
'프로그램 사용 > ros' 카테고리의 다른 글
| ros2 with kinect v2 시도... 2회차 (0) | 2025.05.22 |
|---|---|
| ros2 with kinect v2 일단 실패 (0) | 2025.05.21 |
| ros2 uses concol (0) | 2025.05.20 |
| ros 2 install on ubuntu 24.04, rviz (2) | 2025.05.17 |
| ros...? (0) | 2025.04.08 |
프로그램 사용/Version Control2025. 5. 22. 17:51
아놔... 어떻게 보면 그 쪽에서는 중요할지도 모르지만
컴퓨터 쪽 까지도 PC가 침범하게 될 줄이야.. -_-
'프로그램 사용 > Version Control' 카테고리의 다른 글
| git local branch, merge master (0) | 2025.01.16 |
|---|---|
| git switch (0) | 2025.01.16 |
| git stash drop , clear (0) | 2024.09.19 |
| git submodule ... 2? (0) | 2024.06.19 |
| git diff --staged (0) | 2022.09.05 |
개소리 왈왈/모바일 생활2025. 5. 22. 16:06
이전 같으면 그러려니 하고 그냥 재시작 했을텐데 시국이 시국인지라 수상하다.
공급망에서 재시작 하라고 했으니까
사용자들이 재시작하면
해커들이 usim 복제해서 가로채는거 아냐? 라고 막 의심중..
[링크 : https://r1.community.samsung.com/t5/갤럭시-s/s10-업데이트후-시간대-업데이트-되었다고-재시작-요구/td-p/19383276]
'개소리 왈왈 > 모바일 생활' 카테고리의 다른 글
| 아니 이게 머야?!? (국민카드인증 종료) (0) | 2025.07.03 |
|---|---|
| 핸드폰 요금 폭탄 + usim 구매 (0) | 2025.06.29 |
| 다이소 블루투스 리시버 (0) | 2025.02.17 |
| 삼성 dex 4k로 출력하기 (6) | 2025.02.03 |
| 핸드폰 공기계 구매, 교체 (2) | 2025.02.02 |
프로그램 사용/ros2025. 5. 22. 00:13
다시 제대로 된(?) 녀석을 받고
[링크 : https://github.com/krepa098/kinect2_ros2]
어떻게 설치해서 빌드하는데
| $ colcon build |
kinect2_calibration에서 에러가 발생한다.
| Starting >>> kinect2_calibration --- stderr: kinect2_calibration /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:37:10: fatal error: cv_bridge/cv_bridge.h: No such file or directory 37 | #include "cv_bridge/cv_bridge.h" | ^~~~~~~~~~~~~~~~~~~~~~~ compilation terminated. |
이리저리 찾아보다가 안되서 cv_bridge로 검색하니 include에 있는데.. 어? h가 아니라 hpp?
| /opt/ros/jazzy/include/cv_bridge/cv_bridge$ ls -al total 52 drwxr-xr-x 2 root root 4096 May 17 22:02 . drwxr-xr-x 3 root root 4096 May 17 22:02 .. -rw-r--r-- 1 root root 1079 Apr 30 09:03 cv_bridge_export.h -rw-r--r-- 1 root root 12336 Jun 25 2024 cv_bridge.hpp -rw-r--r-- 1 root root 9541 Jun 25 2024 cv_mat_sensor_msgs_image_type_adapter.hpp -rw-r--r-- 1 root root 4160 Jun 25 2024 rgb_colors.hpp -rw-r--r-- 1 root root 1814 Jun 25 2024 visibility_control.h |
그래서 cv_bridge.h를 cv_bridge.hpp 로 바꾸어주고
| $ git diff diff --git a/kinect2_calibration/src/kinect2_calibration.cpp b/kinect2_calibration/src/kinect2_calibration.cpp index 8e90a54..f4ce85c 100644 --- a/kinect2_calibration/src/kinect2_calibration.cpp +++ b/kinect2_calibration/src/kinect2_calibration.cpp @@ -34,7 +34,7 @@ #include "sensor_msgs/msg/camera_info.hpp" #include "sensor_msgs/msg/image.hpp" -#include "cv_bridge/cv_bridge.h" +#include "cv_bridge/cv_bridge.hpp" #include "image_transport/image_transport.hpp" #include "image_transport/subscriber_filter.hpp" |
빌드하니 성공!
| $ colcon build Starting >>> kinect2_registration Finished <<< kinect2_registration [0.17s] Starting >>> kinect2_bridge Finished <<< kinect2_bridge [0.15s] Starting >>> kinect2_calibration --- stderr: kinect2_calibration /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:195: warning: ignoring ‘#pragma omp parallel’ [-Wunknown-pragmas] 195 | #pragma omp parallel for | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:658: warning: ignoring ‘#pragma omp parallel’ [-Wunknown-pragmas] 658 | #pragma omp parallel for | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:663: warning: ignoring ‘#pragma omp critical’ [-Wunknown-pragmas] 663 | #pragma omp critical | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:669: warning: ignoring ‘#pragma omp critical’ [-Wunknown-pragmas] 669 | #pragma omp critical | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:1162: warning: ignoring ‘#pragma omp parallel’ [-Wunknown-pragmas] 1162 | #pragma omp parallel for | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:1167: warning: ignoring ‘#pragma omp critical’ [-Wunknown-pragmas] 1167 | #pragma omp critical | /home/minimonk/src/kinect2_ros2/kinect2_calibration/src/kinect2_calibration.cpp:1173: warning: ignoring ‘#pragma omp critical’ [-Wunknown-pragmas] 1173 | #pragma omp critical | --- Finished <<< kinect2_calibration [12.1s] Summary: 3 packages finished [12.5s] 1 package had stderr output: kinect2_calibration |
[링크 : https://docs.ros.org/en/jade/api/cv_bridge/html/c++/cv__bridge_8h_source.html]
[링크 : https://docs.ros.org/en/jade/api/cv_bridge/html/c++/cv__bridge_8h.html]
그래서 뭔가를 실행하려고 하니 에러가 나서
| ~/src/kinect2_ros2/install$ source setup.bash ~/src/kinect2_ros2/install$ ros2 launch kinect2_bridge rtabmap.launch.py |
패키지 잔뜩 깔아주니
| $ sudo apt-get install ros-jazzy-rtabmap-odom $ sudo apt-get install ros-jazzy-rtabmap-slam $ sudo apt-get install ros-jazzy-rtabmap-viz |

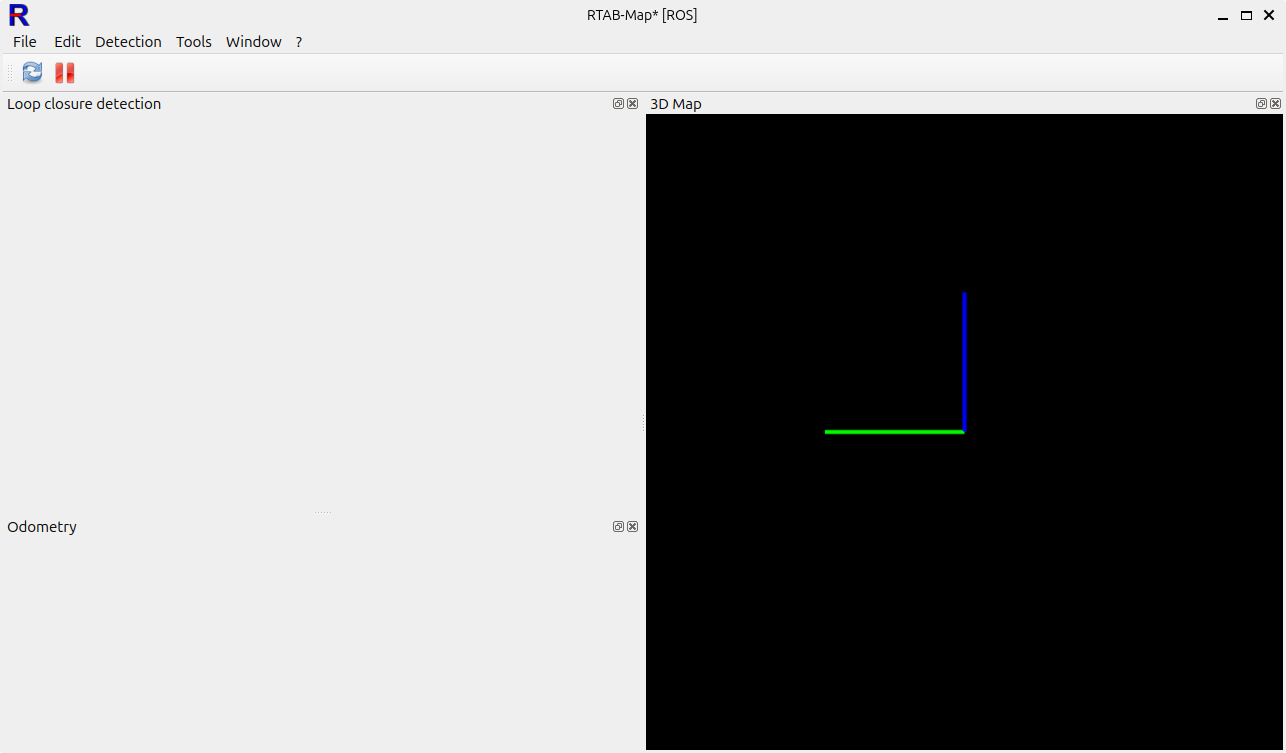

실행에 성공. 키넥트는 나중에 붙여서 slam 되나 봐야겠다.
---
이것저것 해보는데 되는게 없다.
| ament_target_dependencies(${PROJECT_NAME} cv_bridge) |
[링크 : https://www.reddit.com/r/ROS/comments/1f8bupf/cv_bridgeh_not_found_ros2/]
| Something like this usually works for me: ament_target_dependencies(synchronize_wo cv_bridge) When using ament_target_dependencies you should not have to explicitly list the include and library files. Also not when you use target_link_libraries(synchronize_wo cv_bridge::cv_bridge) |
[링크 : https://robotics.stackexchange.com/questions/112861/cv-bridge-h-not-found-ros2]
| sudo apt-get install ros-dashing-cv-bridge |
[링크 : https://answers.ros.org/question/308043/]
| sudo apt-get install ros-kinetic-cv-bridge |
[링크 : https://docs.ros.org/en/rolling/Releases/Release-Rolling-Ridley.html]
'프로그램 사용 > ros' 카테고리의 다른 글
| ros2 with kinect v2 시도... 3회차 (0) | 2025.05.22 |
|---|---|
| ros2 with kinect v2 일단 실패 (0) | 2025.05.21 |
| ros2 uses concol (0) | 2025.05.20 |
| ros 2 install on ubuntu 24.04, rviz (2) | 2025.05.17 |
| ros...? (0) | 2025.04.08 |
개소리 왈왈/컴퓨터2025. 5. 21. 23:36

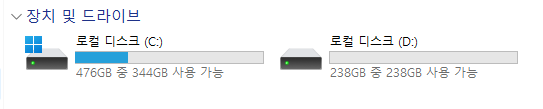

부족한건 아니지만 그냥 샀으니(!)
산김에 일단 달아봄 ㅋ
'개소리 왈왈 > 컴퓨터' 카테고리의 다른 글
| 레노버 E15 fan error (0) | 2025.06.04 |
|---|---|
| 마우스 휠 (0) | 2025.05.26 |
| 지름 도착 (0) | 2025.05.17 |
| 지름 (0) | 2025.05.16 |
| 꼼지락 꼼지락 업(?)그레이드 (0) | 2025.03.29 |
프로그램 사용/ros2025. 5. 21. 00:07
다시 보니 이상한(?) 저장소 걸 받아놓고 고생중.. -_-
[링크 : https://github.com/YuLiHN/kinect2_ros2] << 요걸로 고생중
[링크 : https://github.com/krepa098/kinect2_ros2]
[링크 : https://github.com/paul-shuvo/iai_kinect2_opencv4/tree/master]
[링크 : https://github.com/code-iai/iai_kinect2]
---
시도중..
[링크 : https://github.com/krepa098/kinect2_ros2]
step 1. colcon을 설치한다.
| $ sudo apt-get install colcon |
step 2. 프로젝트를 다운로드 한다.
| $ git clone https://github.com/krepa098/kinect2_ros2.git $ cd kinect2_ros2 |
step3. 빌드한다.
| $ colcon build |
step 4. 런쳐 스크립트 명을 찾고
| /opt/ros/jazzy$ find . -name *launch.py | grep kinect ./share/kinect2_bridge/launch/kinect2_bridge.launch.py ./src/kinect2_bridge/launch/kinect2_bridge.launch.py |
step 5. 실행한다
| $ ros2 launch kinect2_bridge kinect2_bridge.launch.py [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-20-23-46-49-643834-minimonk-900X3N-7825 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge-1]: process started with pid [7842] [INFO] [component_container-2]: process started with pid [7843] [kinect2_bridge-1] [INFO] [1747752410.192080072] [kinect2_bridge]: parameter: [kinect2_bridge-1] base_name: kinect2 [kinect2_bridge-1] sensor: 004436460547 [kinect2_bridge-1] fps_limit: -1 [kinect2_bridge-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge-1] use_png: false [kinect2_bridge-1] jpeg_quality: 90 [kinect2_bridge-1] png_level: 1 [kinect2_bridge-1] depth_method: default [kinect2_bridge-1] depth_device: -1 [kinect2_bridge-1] reg_method: default [kinect2_bridge-1] reg_device: -1 [kinect2_bridge-1] max_depth: 12 [kinect2_bridge-1] min_depth: 0.1 [kinect2_bridge-1] queue_size: 5 [kinect2_bridge-1] bilateral_filter: true [kinect2_bridge-1] edge_aware_filter: true [kinect2_bridge-1] publish_tf: true [kinect2_bridge-1] base_name_tf: kinect2 [kinect2_bridge-1] worker_threads: 4 [component_container-2] [INFO] [1747752410.226624281] [container]: Load Library: /opt/ros/jazzy/lib/libdepth_image_proc.so [component_container-2] [INFO] [1747752410.334243907] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::ConvertMetricNode> [component_container-2] [INFO] [1747752410.334300468] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::CropForemostNode> [component_container-2] [INFO] [1747752410.334307756] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::DisparityNode> [component_container-2] [INFO] [1747752410.334312374] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzNode> [component_container-2] [INFO] [1747752410.334318127] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzRadialNode> [component_container-2] [INFO] [1747752410.334323834] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyziNode> [component_container-2] [INFO] [1747752410.334329282] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyziRadialNode> [component_container-2] [INFO] [1747752410.334334605] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzrgbNode> [component_container-2] [INFO] [1747752410.334340889] [container]: Instantiate class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzrgbNode> [INFO] [launch_ros.actions.load_composable_nodes]: Loaded node '/pointcloud' in container '/container' [kinect2_bridge-1] libva info: VA-API version 1.20.0 [kinect2_bridge-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge-1] libva info: Found init function __vaDriverInit_1_20 [kinect2_bridge-1] libva info: va_openDriver() returns 0 [kinect2_bridge-1] [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 6 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found 0 devices [kinect2_bridge-1] [ERROR] [1747752410.372478119] [kinect2_bridge]: no Kinect2 devices found! [INFO] [kinect2_bridge-1]: process has finished cleanly [pid 7842] ^C[WARNING] [launch]: user interrupted with ctrl-c (SIGINT) [component_container-2] [INFO] [1747752410.727331969] [rclcpp]: signal_handler(signum=2) [INFO] [component_container-2]: process has finished cleanly [pid 7843] ^[[Aminimonk@minimonk-900X3N:~/src/kinect2_ros2$ ros2 launch kinect2_bridge kinect2_bridge.launch file 'kinect2_bridge.launch' was not found in the share directory of package 'kinect2_bridge' which is at '/opt/ros/jazzy/share/kinect2_bridge' |
| $ ros2 launch kinect2_bridge kinect2_bridge.launch.py - malformed launch argument '-', expected format ':=' minimonk@minimonk-900X3N:~/src/kinect2_ros2$ ros2 launch kinect2_bridge kinect2_bridge.launch.py [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-20-23-47-06-104462-minimonk-900X3N-7896 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge-1]: process started with pid [7913] [INFO] [component_container-2]: process started with pid [7914] [kinect2_bridge-1] [INFO] [1747752426.554975848] [kinect2_bridge]: parameter: [kinect2_bridge-1] base_name: kinect2 [kinect2_bridge-1] sensor: 004436460547 [kinect2_bridge-1] fps_limit: -1 [kinect2_bridge-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge-1] use_png: false [kinect2_bridge-1] jpeg_quality: 90 [kinect2_bridge-1] png_level: 1 [kinect2_bridge-1] depth_method: default [kinect2_bridge-1] depth_device: -1 [kinect2_bridge-1] reg_method: default [kinect2_bridge-1] reg_device: -1 [kinect2_bridge-1] max_depth: 12 [kinect2_bridge-1] min_depth: 0.1 [kinect2_bridge-1] queue_size: 5 [kinect2_bridge-1] bilateral_filter: true [kinect2_bridge-1] edge_aware_filter: true [kinect2_bridge-1] publish_tf: true [kinect2_bridge-1] base_name_tf: kinect2 [kinect2_bridge-1] worker_threads: 4 [component_container-2] [INFO] [1747752426.621145906] [container]: Load Library: /opt/ros/jazzy/lib/libdepth_image_proc.so [component_container-2] [INFO] [1747752426.706050975] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706103036] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706109780] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706114307] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706119654] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706124832] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706130184] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706135440] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752426.706140757] [container]: Instantiate class: rclcpp_components::NodeFactoryTemplate [kinect2_bridge-1] libva info: VA-API version 1.20.0 [kinect2_bridge-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge-1] libva info: Found init function __vaDriverInit_1_20 [INFO] [launch_ros.actions.load_composable_nodes]: Loaded node '/pointcloud' in container '/container' [kinect2_bridge-1] libva info: va_openDriver() returns 0 [kinect2_bridge-1] [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 6 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found 0 devices [kinect2_bridge-1] [ERROR] [1747752426.730865489] [kinect2_bridge]: no Kinect2 devices found! [INFO] [kinect2_bridge-1]: process has finished cleanly [pid 7913] ^C[WARNING] [launch]: user interrupted with ctrl-c (SIGINT) [component_container-2] [INFO] [1747752437.540751727] [rclcpp]: signal_handler(signum=2) [INFO] [component_container-2]: process has finished cleanly [pid 7914] minimonk@minimonk-900X3N:~/src/kinect2_ros2$ ros2 launch kinect2_bridge kinect2_bridge.launch.py [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-20-23-47-37-594228-minimonk-900X3N-7960 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge-1]: process started with pid [7982] [INFO] [component_container-2]: process started with pid [7983] [component_container-2] [INFO] [1747752458.147532554] [container]: Load Library: /opt/ros/jazzy/lib/libdepth_image_proc.so [component_container-2] [INFO] [1747752458.226638107] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226688745] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226695944] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226700120] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226705339] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226710495] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226715741] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226720836] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752458.226726217] [container]: Instantiate class: rclcpp_components::NodeFactoryTemplate [INFO] [launch_ros.actions.load_composable_nodes]: Loaded node '/pointcloud' in container '/container' [kinect2_bridge-1] [INFO] [1747752461.903116963] [kinect2_bridge]: parameter: [kinect2_bridge-1] base_name: kinect2 [kinect2_bridge-1] sensor: 004436460547 [kinect2_bridge-1] fps_limit: -1 [kinect2_bridge-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge-1] use_png: false [kinect2_bridge-1] jpeg_quality: 90 [kinect2_bridge-1] png_level: 1 [kinect2_bridge-1] depth_method: default [kinect2_bridge-1] depth_device: -1 [kinect2_bridge-1] reg_method: default [kinect2_bridge-1] reg_device: -1 [kinect2_bridge-1] max_depth: 12 [kinect2_bridge-1] min_depth: 0.1 [kinect2_bridge-1] queue_size: 5 [kinect2_bridge-1] bilateral_filter: true [kinect2_bridge-1] edge_aware_filter: true [kinect2_bridge-1] publish_tf: true [kinect2_bridge-1] base_name_tf: kinect2 [kinect2_bridge-1] worker_threads: 4 [kinect2_bridge-1] libva info: VA-API version 1.20.0 [kinect2_bridge-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge-1] libva info: Found init function __vaDriverInit_1_20 [kinect2_bridge-1] libva info: va_openDriver() returns 0 [kinect2_bridge-1] [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 9 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found valid Kinect v2 @1:7 with serial 501441643042 [kinect2_bridge-1] [Info] [Freenect2Impl] found 1 devices [kinect2_bridge-1] [INFO] [1747752462.073844064] [kinect2_bridge]: Kinect2 devices found: [kinect2_bridge-1] [INFO] [1747752462.073923803] [kinect2_bridge]: 0: 501441643042 [kinect2_bridge-1] [ERROR] [1747752462.073942832] [kinect2_bridge]: Device with serial '004436460547' not found! [INFO] [kinect2_bridge-1]: process has finished cleanly [pid 7982] |
step 6. 파일을 수정한다. (둘다)
| $ sudo vi ./src/kinect2_bridge/launch/kinect2_bridge.launch.py $ sudo vi ./share/kinect2_bridge/launch/kinect2_bridge.launch.py import os from ament_index_python import get_package_share_directory from launch import LaunchDescription from launch_ros.actions import Node, LoadComposableNodes, ComposableNodeContainer from launch_ros.descriptions import ComposableNode parameters=[ {'base_name': 'kinect2', 'sensor': '004436460547', 'fps_limit': -1.0, 'use_png': False, 'jpeg_quality': 90, 'png_level': 1, 'depth_method': 'default', 'depth_device': -1, 'reg_method': 'default', 'reg_device': -1, 'max_depth': 12.0, 'min_depth': 0.1, 'queue_size': 5, 'bilateral_filter': True, 'edge_aware_filter': True, 'worker_threads': 4, 'publish_tf': True}] |
Step 7. 다시 실행한다.
src 쪽만 수정하였을 경우
| $ ros2 launch kinect2_bridge kinect2_bridge.launch.py [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-20-23-56-08-038469-minimonk-900X3N-8222 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge-1]: process started with pid [8239] [INFO] [component_container-2]: process started with pid [8240] [kinect2_bridge-1] [INFO] [1747752968.497895081] [kinect2_bridge]: parameter: [kinect2_bridge-1] base_name: kinect2 [kinect2_bridge-1] sensor: 004436460547 [kinect2_bridge-1] fps_limit: -1 [kinect2_bridge-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge-1] use_png: false [kinect2_bridge-1] jpeg_quality: 90 [kinect2_bridge-1] png_level: 1 [kinect2_bridge-1] depth_method: default [kinect2_bridge-1] depth_device: -1 [kinect2_bridge-1] reg_method: default [kinect2_bridge-1] reg_device: -1 [kinect2_bridge-1] max_depth: 12 [kinect2_bridge-1] min_depth: 0.1 [kinect2_bridge-1] queue_size: 5 [kinect2_bridge-1] bilateral_filter: true [kinect2_bridge-1] edge_aware_filter: true [kinect2_bridge-1] publish_tf: true [kinect2_bridge-1] base_name_tf: kinect2 [kinect2_bridge-1] worker_threads: 4 [component_container-2] [INFO] [1747752968.582669845] [container]: Load Library: /opt/ros/jazzy/lib/libdepth_image_proc.so [kinect2_bridge-1] libva info: VA-API version 1.20.0 [kinect2_bridge-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge-1] libva info: Found init function __vaDriverInit_1_20 [kinect2_bridge-1] libva info: va_openDriver() returns 0 [kinect2_bridge-1] [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 9 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found valid Kinect v2 @1:7 with serial 501441643042 [kinect2_bridge-1] [Info] [Freenect2Impl] found 1 devices [kinect2_bridge-1] [INFO] [1747752968.679076989] [kinect2_bridge]: Kinect2 devices found: [kinect2_bridge-1] [INFO] [1747752968.679151068] [kinect2_bridge]: 0: 501441643042 [kinect2_bridge-1] [ERROR] [1747752968.679166289] [kinect2_bridge]: Device with serial '004436460547' not found! [component_container-2] [INFO] [1747752968.707510234] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::ConvertMetricNode> [component_container-2] [INFO] [1747752968.707583082] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::CropForemostNode> [component_container-2] [INFO] [1747752968.707598835] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::DisparityNode> [component_container-2] [INFO] [1747752968.707605559] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzNode> [component_container-2] [INFO] [1747752968.707613423] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzRadialNode> [component_container-2] [INFO] [1747752968.707620795] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyziNode> [component_container-2] [INFO] [1747752968.707628710] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyziRadialNode> [component_container-2] [INFO] [1747752968.707636427] [container]: Found class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzrgbNode> [component_container-2] [INFO] [1747752968.707644371] [container]: Instantiate class: rclcpp_components::NodeFactoryTemplate<depth_image_proc::PointCloudXyzrgbNode> [INFO] [launch_ros.actions.load_composable_nodes]: Loaded node '/pointcloud' in container '/container' [INFO] [kinect2_bridge-1]: process has finished cleanly [pid 8239] |
둘다 수정하였을 경우
| $ ros2 launch kinect2_bridge kinect2_bridge.launch.py [INFO] [launch]: All log files can be found below /home/minimonk/.ros/log/2025-05-20-23-56-39-190964-minimonk-900X3N-8308 [INFO] [launch]: Default logging verbosity is set to INFO [INFO] [kinect2_bridge-1]: process started with pid [8325] [INFO] [component_container-2]: process started with pid [8326] [kinect2_bridge-1] [INFO] [1747752999.650865409] [kinect2_bridge]: parameter: [kinect2_bridge-1] base_name: kinect2 [kinect2_bridge-1] sensor: 501441643042 [kinect2_bridge-1] fps_limit: -1 [kinect2_bridge-1] calib_path: /home/minimonk/src/kinect2_ros2/kinect2_bridge/data/ [kinect2_bridge-1] use_png: false [kinect2_bridge-1] jpeg_quality: 90 [kinect2_bridge-1] png_level: 1 [kinect2_bridge-1] depth_method: default [kinect2_bridge-1] depth_device: -1 [kinect2_bridge-1] reg_method: default [kinect2_bridge-1] reg_device: -1 [kinect2_bridge-1] max_depth: 12 [kinect2_bridge-1] min_depth: 0.1 [kinect2_bridge-1] queue_size: 5 [kinect2_bridge-1] bilateral_filter: true [kinect2_bridge-1] edge_aware_filter: true [kinect2_bridge-1] publish_tf: true [kinect2_bridge-1] base_name_tf: kinect2 [kinect2_bridge-1] worker_threads: 4 [component_container-2] [INFO] [1747752999.717016720] [container]: Load Library: /opt/ros/jazzy/lib/libdepth_image_proc.so [kinect2_bridge-1] libva info: VA-API version 1.20.0 [kinect2_bridge-1] libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so [kinect2_bridge-1] libva info: Found init function __vaDriverInit_1_20 [kinect2_bridge-1] libva info: va_openDriver() returns 0 [kinect2_bridge-1] [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 24.1.0 () [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 9 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found valid Kinect v2 @1:7 with serial 501441643042 [kinect2_bridge-1] [Info] [Freenect2Impl] found 1 devices [kinect2_bridge-1] [INFO] [1747752999.802972778] [kinect2_bridge]: Kinect2 devices found: [kinect2_bridge-1] [INFO] [1747752999.803048663] [kinect2_bridge]: 0: 501441643042 (selected) [component_container-2] [INFO] [1747752999.817716799] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817762782] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817772723] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817781495] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817789789] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817798000] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817806268] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817814680] [container]: Found class: rclcpp_components::NodeFactoryTemplate [component_container-2] [INFO] [1747752999.817823560] [container]: Instantiate class: rclcpp_components::NodeFactoryTemplate [INFO] [launch_ros.actions.load_composable_nodes]: Loaded node '/pointcloud' in container '/container' [kinect2_bridge-1] [Info] [Freenect2Impl] re-enumerating devices after reset [kinect2_bridge-1] [Info] [Freenect2Impl] enumerating devices... [kinect2_bridge-1] [Info] [Freenect2Impl] 9 usb devices connected [kinect2_bridge-1] [Info] [Freenect2Impl] found valid Kinect v2 @2:10 with serial 501441643042 [kinect2_bridge-1] [Info] [Freenect2Impl] found 1 devices [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] opening... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] opened [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] starting... [kinect2_bridge-1] [INFO] [1747753001.475900709] [kinect2_bridge]: starting kinect2 [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] submitting rgb transfers... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] submitting depth transfers... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] started [kinect2_bridge-1] [INFO] [1747753002.096109296] [kinect2_bridge]: device serial: 501441643042 [kinect2_bridge-1] [INFO] [1747753002.096174412] [kinect2_bridge]: device firmware: 4.0.3911.0 [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] stopping... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] canceling rgb transfers... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] canceling depth transfers... [kinect2_bridge-1] [Info] [Freenect2DeviceImpl] stopped [kinect2_bridge-1] [INFO] [1747753002.311498664] [kinect2_bridge]: default ir camera parameters: [kinect2_bridge-1] [INFO] [1747753002.311621920] [kinect2_bridge]: fx: 365.719, fy: 365.719, cx: 259.505, cy: 210.078 [kinect2_bridge-1] [INFO] [1747753002.311683407] [kinect2_bridge]: k1: 0.0949663, k2: -0.274613, p1: 0, p2: 0, k3: 0.093757 [kinect2_bridge-1] [INFO] [1747753002.311724585] [kinect2_bridge]: default color camera parameters: [kinect2_bridge-1] [INFO] [1747753002.311769717] [kinect2_bridge]: fx: 1081.37, fy: 1081.37, cx: 959.5, cy: 539.5 [kinect2_bridge-1] [WARN] [1747753002.314247853] [kinect2_bridge]: using sensor defaults for color intrinsic parameters. [kinect2_bridge-1] [WARN] [1747753002.314319452] [kinect2_bridge]: using sensor defaults for ir intrinsic parameters. [kinect2_bridge-1] [WARN] [1747753002.314351830] [kinect2_bridge]: using defaults for rotation and translation. [kinect2_bridge-1] [WARN] [1747753002.314370819] [kinect2_bridge]: using defaults for depth shift. [kinect2_bridge-1] Using CPU registration method! [kinect2_bridge-1] Using CPU registration method! [kinect2_bridge-1] [INFO] [1747753002.374909053] [kinect2_bridge]: waiting for clients to connect |
step 8. 먼가 실행해본다. (실패)
| $ ros2 launch kinect2_bridge rtabmap.launch.py file 'rtabmap.launch.py' was not found in the share directory of package 'kinect2_bridge' which is at '/opt/ros/jazzy/share/kinect2_bridge' |
step 9. 깔아본다.
| $ apt-cache search rtabmap ros-jazzy-rtabmap - RTAB-Map's standalone library. ros-jazzy-rtabmap-conversions - RTAB-Map's conversions package. ros-jazzy-rtabmap-conversions-dbgsym - debug symbols for ros-jazzy-rtabmap-conversions ros-jazzy-rtabmap-dbgsym - debug symbols for ros-jazzy-rtabmap ros-jazzy-rtabmap-demos - RTAB-Map's demo launch files. ros-jazzy-rtabmap-examples - RTAB-Map's example launch files. ros-jazzy-rtabmap-launch - RTAB-Map's main launch files. ros-jazzy-rtabmap-msgs - RTAB-Map's msgs package. ros-jazzy-rtabmap-msgs-dbgsym - debug symbols for ros-jazzy-rtabmap-msgs ros-jazzy-rtabmap-odom - RTAB-Map's odometry package. ros-jazzy-rtabmap-odom-dbgsym - debug symbols for ros-jazzy-rtabmap-odom ros-jazzy-rtabmap-python - RTAB-Map's python package. ros-jazzy-rtabmap-ros - RTAB-Map Stack ros-jazzy-rtabmap-rviz-plugins - RTAB-Map's rviz plugins. ros-jazzy-rtabmap-rviz-plugins-dbgsym - debug symbols for ros-jazzy-rtabmap-rviz-plugins ros-jazzy-rtabmap-slam - RTAB-Map's SLAM package. ros-jazzy-rtabmap-slam-dbgsym - debug symbols for ros-jazzy-rtabmap-slam ros-jazzy-rtabmap-sync - RTAB-Map's synchronization package. ros-jazzy-rtabmap-sync-dbgsym - debug symbols for ros-jazzy-rtabmap-sync ros-jazzy-rtabmap-util - RTAB-Map's various useful nodes and nodelets. ros-jazzy-rtabmap-util-dbgsym - debug symbols for ros-jazzy-rtabmap-util ros-jazzy-rtabmap-viz - RTAB-Map's visualization package. ros-jazzy-rtabmap-viz-dbgsym - debug symbols for ros-jazzy-rtabmap-viz $ sudo apt-get install ros-jazzy-rtabmap Reading package lists... Done Building dependency tree... Done Reading state information... Done The following additional packages will be installed: libamd3 libbtf2 libcamd3 libccolamd3 libcholmod5 libcolamd3 libcxsparse4 libgraphblas-dev libgraphblas7 libklu2 libldl3 libparu0 librbio4 libspex2 libspqr4 libsuitesparse-dev libsuitesparse-mongoose3 libsuitesparseconfig7 libumfpack6 ros-jazzy-gtsam ros-jazzy-libg2o ros-jazzy-libnabo ros-jazzy-libpointmatcher The following NEW packages will be installed: libamd3 libbtf2 libcamd3 libccolamd3 libcholmod5 libcolamd3 libcxsparse4 libgraphblas-dev libgraphblas7 libklu2 libldl3 libparu0 librbio4 libspex2 libspqr4 libsuitesparse-dev libsuitesparse-mongoose3 libsuitesparseconfig7 libumfpack6 ros-jazzy-gtsam ros-jazzy-libg2o ros-jazzy-libnabo ros-jazzy-libpointmatcher ros-jazzy-rtabmap 0 upgraded, 24 newly installed, 0 to remove and 1 not upgraded. Need to get 40.6 MB of archives. After this operation, 258 MB of additional disk space will be used. Do you want to continue? [Y/n] |
[링크 : https://index.ros.org/p/rtabmap_launch/]
step 10. 안된다!! 젠장!
| $ ros2 launch kinect2_bridge rtabmap.launch.py file 'rtabmap.launch.py' was not found in the share directory of package 'kinect2_bridge' which is at '/opt/ros/jazzy/share/kinect2_bridge' |
---
실행시 필요한 launch.py 파일명 참조
