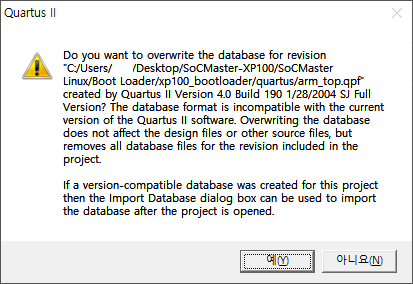

The TimeQuest timing analyzer is a powerful ASIC-style timing analysis tool that validates the timing performance of all logic in a design using industry standard constraint, analysis, and reporting methodology

Synopsis Design Constraints (SDC)

tool command language (Tcl)

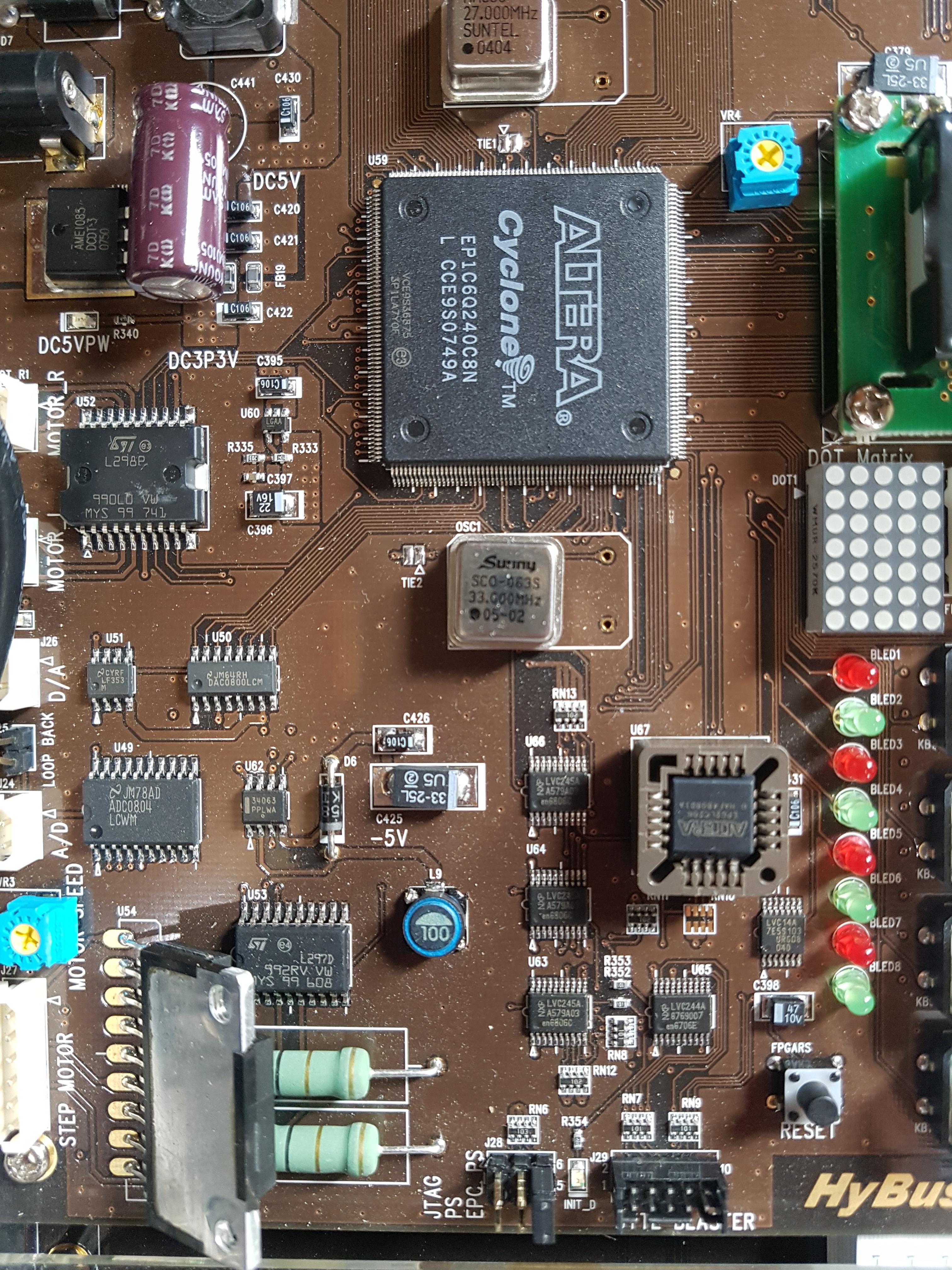

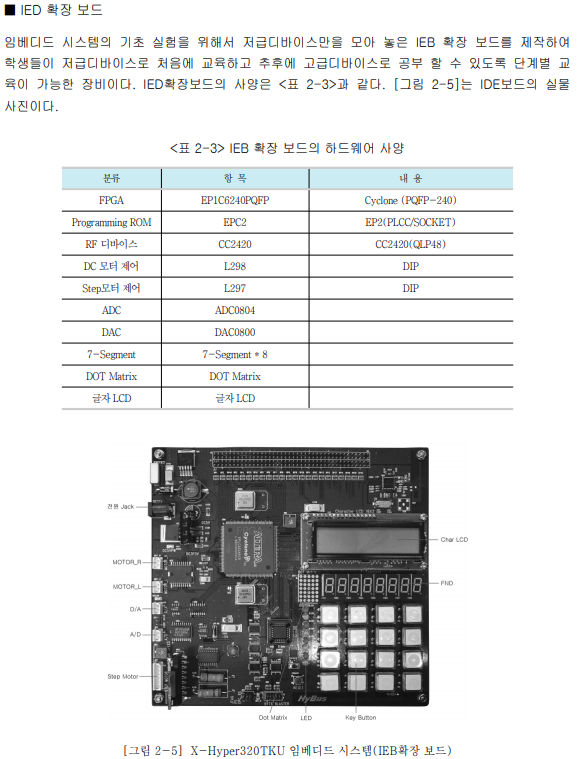

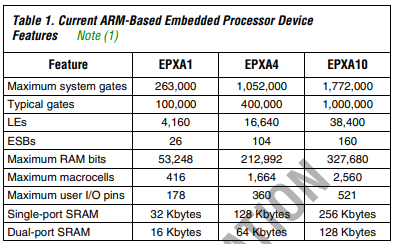

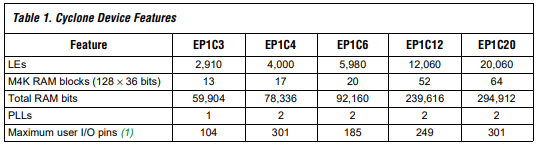

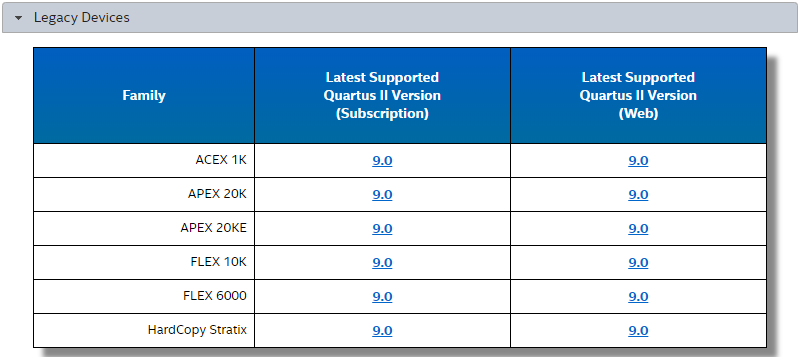

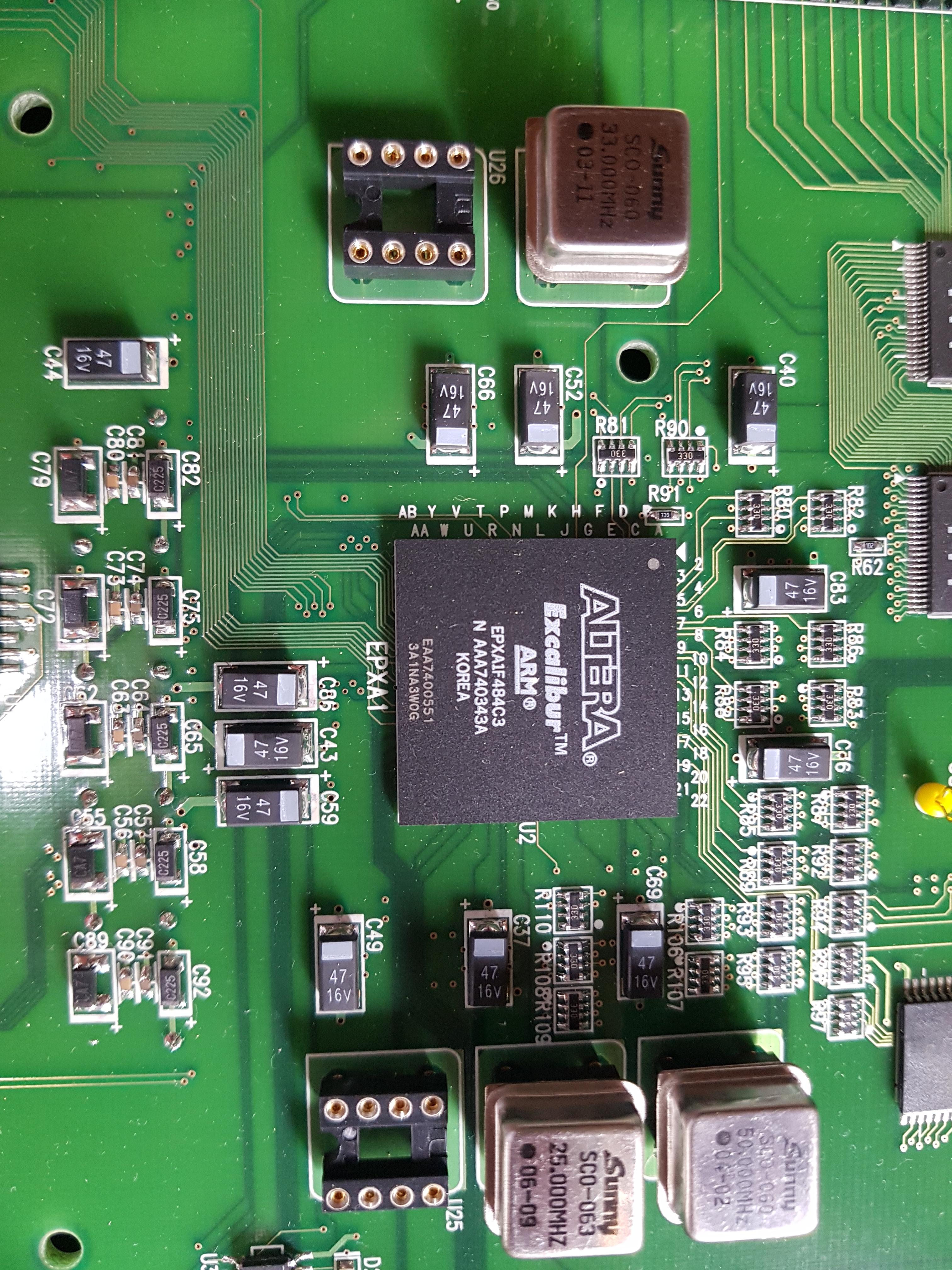

 Intel FPGAs must operate in a continuum of conditions.

 These conditions include the die junction temperature, which varies depending upon the design's requirements. Commercial parts have a legal range of 0°C to 85°C and industrial parts have a legal range of -40°C to 100°C. There are even wider temperature ranges, such as those for automotive and military devices.

 Another aspect of the operating conditions is the voltage supply levels. The most critical voltages for maintaining FPGA performance is the Vcc and the various I/O supplies. Each of the supply voltages has a legal operating range. For example, a subset of Stratix® IV FPGAs has a valid Vcc range of 0.87 V to 0.93 V.

 The third aspect of the operating conditions is the relative speed of each FPGA versus the limit of the speed grade with which it is marked. This is one aspect that the designer has no control over. It should also be noted that devices within one speed grade can still differ slightly in performance, predominantly due to variation in the manufacturing process. All devices, however, are guaranteed to be faster than the limit of the speed grade.

module vga640x480(

input clk,

input rst,

output [7:0] LED,

output reg hsync,

output reg vsync,

output [3:0] r,

output [3:0] g,

output [3:0] b

);

reg clk25;

reg [9:0] horizontal_counter;

reg [9:0] vertical_counter;

reg [9:0] X;

reg [9:0] Y;

wire [7:0] red;

wire [7:0] green;

wire [7:0] blue;

initial

begin

horizontal_counter = 0;

vertical_counter = 0;

end

assign r[3:0] = ((horizontal_counter >= 144)

&& (horizontal_counter < 784)

&& (vertical_counter >=39)

&& (vertical_counter < 519)) ? red : 4'b000;

assign g[3:0] = ((horizontal_counter >= 144)

&& (horizontal_counter < 784)

&& (vertical_counter >=39)

&& (vertical_counter < 519)) ? green : 4'b000;

assign b[3:0] = ((horizontal_counter >= 144)

&& (horizontal_counter < 784)

&& (vertical_counter >=39)

&& (vertical_counter < 519)) ? blue : 4'b000;

assign red =   ((horizontal_counter >= 144)&&(horizontal_counter < 344) ) ? 4'b1111 : 4'b0000;

assign green = ((horizontal_counter >= 344)&&(horizontal_counter < 544) ) ? 4'b1111 : 4'b0000;

assign blue =  ((horizontal_counter >= 544)&&(horizontal_counter < 784) ) ? 4'b1111 : 4'b0000;

always @(posedge clk)

begin

if (clk25 == 0)

begin

   clk25 <= 1;

end

else

begin

clk25 <= 0;

   end

end

always @(posedge clk25)

begin

if ((horizontal_counter > 0) && (horizontal_counter < 97))// -- 96+1

begin

hsync <= 0;

end

else

begin

hsync <= 1;

end

if ((vertical_counter > 0 ) && (vertical_counter < 3 )) //-- 2+1

begin

vsync <= 0;

end

else

begin

vsync <= 1;

end

horizontal_counter <= horizontal_counter+1;

if (horizontal_counter == 800)

begin

vertical_counter <= vertical_counter+1;

horizontal_counter <= 0;

end

if (vertical_counter == 521)

begin

vertical_counter <= 0;

end

end

endmodule

3.4.4 Measuring time

In wave viewer, select from top menus Add -> Cursor. Now you'll see 2 vertical lines (cursors). You can easily drag them and see the time interval between on the bottom. This is very handy when have to measure the execution time (or signal frequency). Just divide the time with the duration of a clock period to derive the number of clock cycles.

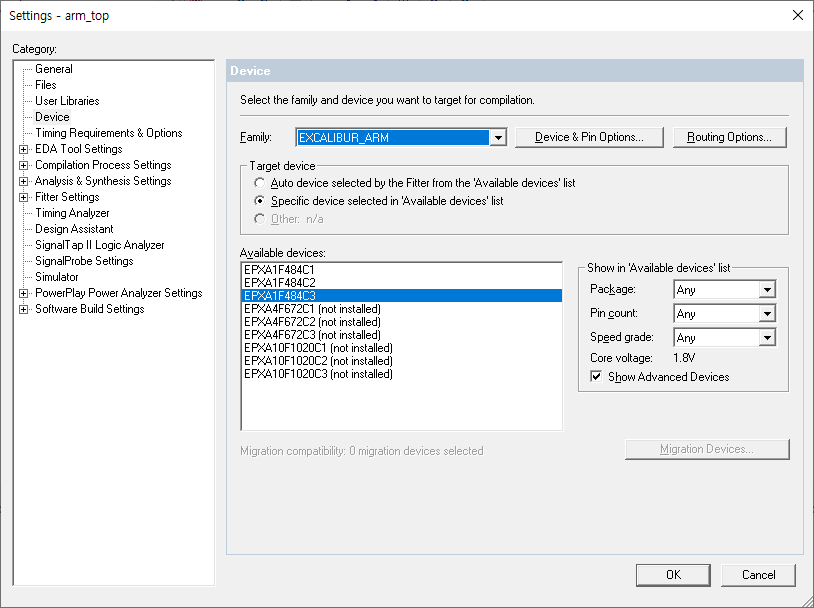

On the Dual-purpose pins page (Assignments > Devices > Device and Pin Options), ensure that the following pins are assigned to the respective values:

— Data[0] = Use as regular I/O

— Data[1] = Use as regular I/O

— DCLK = Use as regular I/O

— FLASH_nCE/nCS0 = Use as regular I/O

`timescale 1ns/1ns

`timescale 1ns/100ps

module Counter_tb;

reg        clk;

reg        rst_n;

wire [7:0] cnt;

// 20 ns 이다..

parameter PERIOD = 20;

Counter counter (

  .CLK(clk),

  .RST_N(rst_n),

  .CNT(cnt)

);

initial begin

  #0  clk   = 1'b0;

      rst_n = 1'b0;

  #10 rst_n = 1'b1;

end

// 50MHz 코멘트를 잘달자

always #(PERIOD/2) clk = ~clk;

endmodule

How do I generate clock in Verilog ?

There are many ways to generate clock in Verilog; you could use one of the following methods:

Method #1

 1 initial begin

 2  clk = 0;

 3 end

 4

 5 always begin

 6    #5  clk = ~clk;

 7

 8 end

You could download file clock_always.v here

Method #2

 1 initial begin

 2   clk = 0;

 3   forever begin

 4      #5  clk = ~clk;

 5   end

 6 end

You could download file clock_forever.v here

Method #3

 1 initial begin

 2   clk = 0;

 3 end

 4

 5 always begin

 6    #5  clk = 0;

 7    #5  clk = 1;

 8 end
