- 2024.07.17 비. 아니 폭우 1
- 2024.07.16 3세대 intel 데스크탑 USB3.0
- 2024.07.16 빨콩 교체!
- 2024.07.16 rpi pico ADC 범위
- 2024.07.15 rpi pico / micropython
- 2024.07.15 libfreenect2 실행 성공..
- 2024.07.14 USB BOS - Binary Object Store
- 2024.07.14 libfreenect2 실행 실패
- 2024.07.13 libfreenect2 CUDA 끄고 빌드 성공
- 2024.07.13 윈도우 바탕화면 경로 변경하기
개소리 왈왈/육아관련 주저리2024. 7. 17. 23:41
개소리 왈왈/컴퓨터2024. 7. 16. 18:12
이 native였나 기억이 안나네
그러니 일단 포맷하고 해보자? ㅋㅋ
원래 주웠던 사양대로 환원하고 (i7-3770)
메모리는 좀 아쉽지만 4GB * 2 로 구성해서
USB3.0 쪽으로 kinect2를 달아봐야겠다.
2023.10.30 - [개소리 왈왈/컴퓨터] - mitx 한대 줍줍
+
칩셋을 찾아보니 7x 시리즈 부터(ivy bridge) 부터 ICH에 통합되서 USB3.0을 지원하기 시작한 듯 하다.
itx 메인보드가 P8H77 인데 메인보드에 USB3.0 포트가 있다고 명시되어 있는걸 보면 조금 희망이 보이는 듯?
[링크 : https://namu.wiki/w/인텔/칩셋]
'개소리 왈왈 > 컴퓨터' 카테고리의 다른 글
| 노트북 휴대용 책상(?) (2) | 2024.07.26 |
|---|---|
| 회사 노트북 vs 구형 컴퓨터 (5) | 2024.07.18 |
| 빨콩 교체! (0) | 2024.07.16 |
| 아부지 컴퓨터 교체 (0) | 2024.07.13 |
| express card 34 to USB 3.0 도착 (uPD720202) (0) | 2024.07.08 |
개소리 왈왈/컴퓨터2024. 7. 16. 10:30

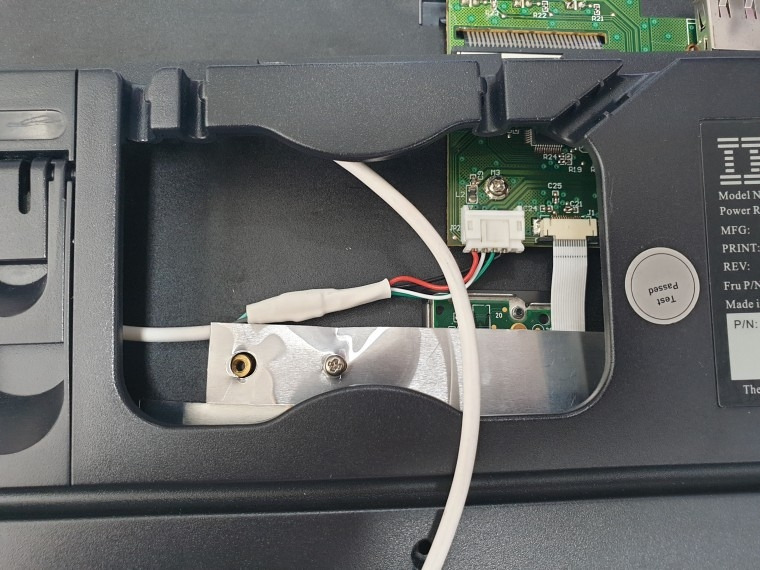

배송처리도 안되었는데 도착해버린 빨콩(!)
[링크 : https://www.fmkorea.com/best/6783136064]
요번에 도착한 쌔거!
헌거! 너무 들이대서 찍었나.. 아무튼 딿은 느낌 한가득
< 새꺼, 헌거 >
< 새꺼, 헌거 >
새거 특유의 말랑말랑함이 행복하게 한다.
그런데 600원 2개를 사기 위해 3000원 배송비.. 크흡
4개 사려니 먼가 쓸데도 없어서 고민..
+
집에와서 2760p 에도 빨콩으로 바꾸려고 했는데 얘는 검은 콩으로 중앙이 오목하게 들어가 있다.
빨콩은 중앙이 약간 볼록한 형태인데
체감상으로는 노트북에 검은콩이 빨콩보다 편한듯
살짝 오목하니까 가장자리 부분을 밀어주듯 해서 손가락에 힘이 덜 들어간다.
검은콩을 사야하나..
'개소리 왈왈 > 컴퓨터' 카테고리의 다른 글
| 회사 노트북 vs 구형 컴퓨터 (5) | 2024.07.18 |
|---|---|
| 3세대 intel 데스크탑 USB3.0 (0) | 2024.07.16 |
| 아부지 컴퓨터 교체 (0) | 2024.07.13 |
| express card 34 to USB 3.0 도착 (uPD720202) (0) | 2024.07.08 |
| 컴퓨터 회수 (0) | 2024.07.04 |
embeded/rpi pico2024. 7. 16. 10:30
신호 발생기 통해서 넣어 보니 3.3V 에서 65535로 가득 찬다.
| raw | base | |
| 60398 | 65535 | 3.04132753490501 |
| 62367 | 65535 | 3.14047608148318 |
| 64319 | 65535 | 3.23876859693294 |
| 65535 | 65535 | 3.3 |
ADC 입력 범위는 0~3.3V 인 듯(음수도 넣어 볼 걸 그랬나..
GND의 경우 0 으로 뜨니 음수는 안될 것 같기도 한데 과연?
ADC가 12bit 인데 16bit 값으로 해서 0.05V 정도 오차가 생기는게 아닐까 싶긴 하다
(혹은 내부 AREF 회로에서 RC 회로로 구현해 오차가 발생한걸지도)
'embeded > rpi pico' 카테고리의 다른 글
| pico real plus 윈도우에 연결하기 (0) | 2024.07.31 |
|---|---|
| pico real plus for U+ 구매 (0) | 2024.07.28 |
| rpi pico / micropython (0) | 2024.07.15 |
| rpi pico usb sound (0) | 2021.11.08 |
| rpi pico pwm channel (0) | 2021.08.02 |
embeded/rpi pico2024. 7. 15. 22:59
circuit python 을 예전에 사용했었는데
circuit python 에서 import machine 하면 모듈이 없다고 해서 찾아보니
micropython 에서 제공하는 녀석이라고 한다.
| machine is a built-in module in MicroPython which means it's part of MicroPython itself. CircuitPython and MicroPython similar but not exactly the same. One difference is that CircuitPython has no built-in module called machine. |
[링크 : https://forums.raspberrypi.com/viewtopic.php?t=314090]
'embeded > rpi pico' 카테고리의 다른 글
| pico real plus for U+ 구매 (0) | 2024.07.28 |
|---|---|
| rpi pico ADC 범위 (0) | 2024.07.16 |
| rpi pico usb sound (0) | 2021.11.08 |
| rpi pico pwm channel (0) | 2021.08.02 |
| rpi pico c (0) | 2021.07.07 |
프로그램 사용/kinect2024. 7. 15. 21:57

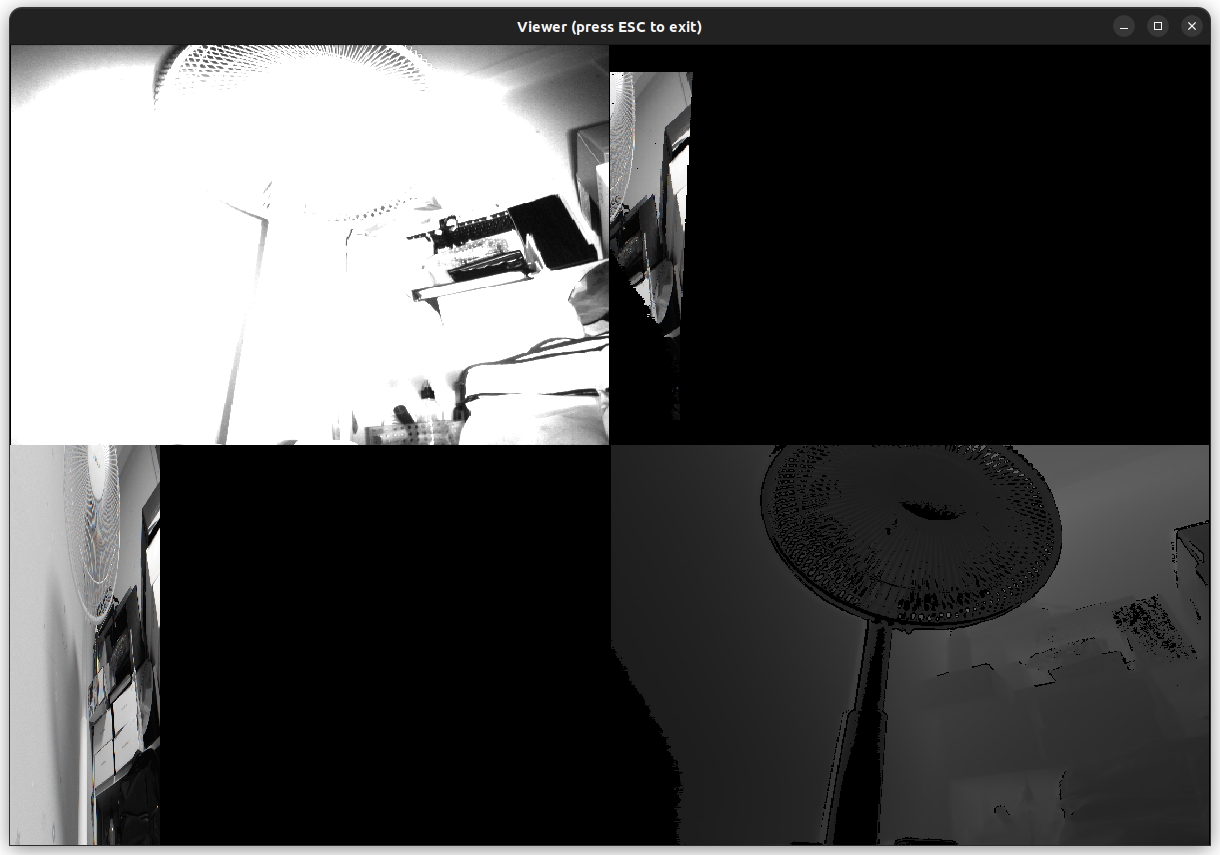

10세대 노트북에서 해서 그런가 잘 된다.
2세대에는 native USB3.0이 없어서 그런가?
| [ 102.223422] usb 1-3: new high-speed USB device number 5 using xhci_hcd [ 102.375595] usb 1-3: New USB device found, idVendor=045e, idProduct=02d9, bcdDevice= 0.70 [ 102.375609] usb 1-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 102.375615] usb 1-3: Product: NuiSensor Adaptor [ 102.375619] usb 1-3: Manufacturer: Microsoft Corporation [ 102.377490] hub 1-3:1.0: USB hub found [ 102.377643] hub 1-3:1.0: 1 port detected [ 102.832793] usb 2-3: new SuperSpeed USB device number 3 using xhci_hcd [ 105.820384] usb 2-3: New USB device found, idVendor=045e, idProduct=02d9, bcdDevice= 0.73 [ 105.820400] usb 2-3: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 105.820406] usb 2-3: Product: NuiSensor Adaptor [ 105.820411] usb 2-3: Manufacturer: Microsoft Corporation [ 105.825068] hub 2-3:1.0: USB hub found [ 105.825375] hub 2-3:1.0: 1 port detected [ 106.307431] usb 2-3.1: new SuperSpeed USB device number 4 using xhci_hcd [ 106.328374] usb 2-3.1: New USB device found, idVendor=045e, idProduct=02d8, bcdDevice= 1.00 [ 106.328380] usb 2-3.1: New USB device strings: Mfr=1, Product=2, SerialNumber=4 [ 106.328381] usb 2-3.1: Product: Xbox NUI Sensor [ 106.328383] usb 2-3.1: Manufacturer: Microsoft [ 106.328384] usb 2-3.1: SerialNumber: 501441643042 [ 106.379651] usbcore: registered new interface driver snd-usb-audio [ 120.739532] usb 2-3.1: reset SuperSpeed USB device number 4 using xhci_hcd [ 163.891946] warning: `ThreadPoolForeg' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211 [ 188.498922] usb 1-3: USB disconnect, device number 5 [ 188.581688] usb 2-3: USB disconnect, device number 3 [ 188.581693] usb 2-3.1: USB disconnect, device number 4 |
되니 좋긴한데.. 되서 나쁘네.. 컴퓨터 바꾸어야 한다는 말이잖아.. ㅠㅠ
| libfreenect2/build/bin$ ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 8 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @2:4 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices libva info: VA-API version 1.14.0 libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so libva info: Found init function __vaDriverInit_1_14 libva info: va_openDriver() returns 0 [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 22.3.1 () [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... [Debug] [Freenect2DeviceImpl] status 0x090000: 9729 [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 [Info] [Freenect2DeviceImpl] submitting rgb transfers... [Info] [Freenect2DeviceImpl] submitting depth transfers... [Debug] [DepthPacketStreamParser] not all subsequences received 0 [Info] [Freenect2DeviceImpl] started device serial: 501441643042 device firmware: 4.0.3911.0 [Debug] [DepthPacketStreamParser] not all subsequences received 960 [Debug] [DepthPacketStreamParser] not all subsequences received 1007 [Info] [DepthPacketStreamParser] 1 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Info] [DepthPacketStreamParser] 3 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1015 [Debug] [DepthPacketStreamParser] not all subsequences received 1015 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Info] [DepthPacketStreamParser] 3 packets were lost [Info] [OpenGLDepthPacketProcessor] avg. time: 7.41895ms -> ~134.79Hz [Info] [VaapiRgbPacketProcessor] avg. time: 3.69809ms -> ~270.41Hz [Debug] [DepthPacketStreamParser] not all subsequences received 1015 [Info] [DepthPacketStreamParser] 1 packets were lost [Info] [OpenGLDepthPacketProcessor] avg. time: 7.03777ms -> ~142.091Hz [Info] [VaapiRgbPacketProcessor] avg. time: 3.92516ms -> ~254.767Hz [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 991 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 987 [Info] [DepthPacketStreamParser] 7 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 991 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Debug] [DepthPacketStreamParser] not all subsequences received 767 [Debug] [DepthPacketStreamParser] not all subsequences received 991 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Info] [DepthPacketStreamParser] 9 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 971 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Info] [VaapiRgbPacketProcessor] avg. time: 4.29916ms -> ~232.603Hz [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Info] [DepthPacketStreamParser] 9 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 987 [Info] [OpenGLDepthPacketProcessor] avg. time: 7.66351ms -> ~130.489Hz [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Info] [DepthPacketStreamParser] 9 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Info] [DepthPacketStreamParser] 2 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1007 [Info] [VaapiRgbPacketProcessor] avg. time: 4.41688ms -> ~226.404Hz [Info] [DepthPacketStreamParser] 2 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Info] [DepthPacketStreamParser] 2 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Info] [OpenGLDepthPacketProcessor] avg. time: 6.63554ms -> ~150.704Hz [Debug] [DepthPacketStreamParser] not all subsequences received 510 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1019 [Debug] [DepthPacketStreamParser] not all subsequences received 1015 [Info] [DepthPacketStreamParser] 5 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Info] [DepthPacketStreamParser] 2 packets were lost [Info] [VaapiRgbPacketProcessor] avg. time: 4.01999ms -> ~248.757Hz [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Info] [DepthPacketStreamParser] 1 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Info] [OpenGLDepthPacketProcessor] avg. time: 6.68671ms -> ~149.55Hz [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Debug] [DepthPacketStreamParser] not all subsequences received 1022 [Info] [DepthPacketStreamParser] 5 packets were lost [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Info] [DepthPacketStreamParser] 2 packets were lost [Info] [VaapiRgbPacketProcessor] avg. time: 4.43949ms -> ~225.251Hz [Info] [OpenGLDepthPacketProcessor] avg. time: 6.87763ms -> ~145.399Hz [Info] [VaapiRgbPacketProcessor] avg. time: 4.5502ms -> ~219.771Hz [Info] [OpenGLDepthPacketProcessor] avg. time: 6.86435ms -> ~145.68Hz [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 959 [Debug] [DepthPacketStreamParser] not all subsequences received 895 [Debug] [DepthPacketStreamParser] not all subsequences received 511 [Debug] [DepthPacketStreamParser] not all subsequences received 959 [Info] [DepthPacketStreamParser] 5 packets were lost [Info] [VaapiRgbPacketProcessor] avg. time: 4.07819ms -> ~245.207Hz [Info] [OpenGLDepthPacketProcessor] avg. time: 6.89874ms -> ~144.954Hz [Info] [VaapiRgbPacketProcessor] avg. time: 4.5117ms -> ~221.646Hz [Debug] [DepthPacketStreamParser] not all subsequences received 991 [Info] [DepthPacketStreamParser] 1 packets were lost [Info] [OpenGLDepthPacketProcessor] avg. time: 7.00382ms -> ~142.779Hz [Info] [VaapiRgbPacketProcessor] avg. time: 4.54288ms -> ~220.125Hz [Info] [OpenGLDepthPacketProcessor] avg. time: 7.04759ms -> ~141.892Hz [Info] [VaapiRgbPacketProcessor] avg. time: 4.4388ms -> ~225.286Hz [Debug] [DepthPacketStreamParser] not all subsequences received 959 [Info] [DepthPacketStreamParser] 1 packets were lost [Info] [Freenect2DeviceImpl] stopping... [Info] [Freenect2DeviceImpl] canceling rgb transfers... [Info] [OpenGLDepthPacketProcessor] avg. time: 7.02522ms -> ~142.344Hz [Info] [Freenect2DeviceImpl] canceling depth transfers... [Info] [Freenect2DeviceImpl] stopped [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] releasing usb interfaces... [Info] [Freenect2DeviceImpl] deallocating usb transfer pools... [Info] [Freenect2DeviceImpl] closing usb device... [Info] [Freenect2DeviceImpl] closed [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] already closed, doing nothing |
디버그 모드로 하니 몇 줄 더 나오긴 한데.. 별 차이가 없어 보인다
| $ LIBUSB_DEBUG=3 ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect libusb: warning [libusb_init] installing new context as implicit default [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 8 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @2:6 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices libva info: VA-API version 1.14.0 libva info: Trying to open /usr/lib/x86_64-linux-gnu/dri/iHD_drv_video.so libva info: Found init function __vaDriverInit_1_14 libva info: va_openDriver() returns 0 [Info] [VaapiRgbPacketProcessorImpl] driver: Intel iHD driver for Intel(R) Gen Graphics - 22.3.1 () [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... libusb: error [udev_hotplug_event] ignoring udev action change libusb: error [udev_hotplug_event] ignoring udev action change [Debug] [Freenect2DeviceImpl] status 0x090000: 1024 [Debug] [Freenect2DeviceImpl] status 0x090000: 9729 [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 [Info] [Freenect2DeviceImpl] submitting rgb transfers... [Info] [Freenect2DeviceImpl] submitting depth transfers... [Debug] [DepthPacketStreamParser] not all subsequences received 0 [Info] [Freenect2DeviceImpl] started device serial: 501441643042 device firmware: 4.0.3911.0 [Debug] [DepthPacketStreamParser] not all subsequences received 896 [Info] [OpenGLDepthPacketProcessor] avg. time: 7.5057ms -> ~133.232Hz [Info] [VaapiRgbPacketProcessor] avg. time: 4.58964ms -> ~217.882Hz [Debug] [DepthPacketStreamParser] not all subsequences received 511 |
| $ lsusb -t -v /: Bus 02.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/6p, 10000M ID 1d6b:0003 Linux Foundation 3.0 root hub |__ Port 3: Dev 5, If 0, Class=Hub, Driver=hub/1p, 5000M ID 045e:02d9 Microsoft Corp. |__ Port 1: Dev 6, If 0, Class=Vendor Specific Class, Driver=, 5000M ID 045e:02d8 Microsoft Corp. |__ Port 1: Dev 6, If 1, Class=Vendor Specific Class, Driver=, 5000M ID 045e:02d8 Microsoft Corp. |__ Port 1: Dev 6, If 2, Class=Audio, Driver=snd-usb-audio, 5000M ID 045e:02d8 Microsoft Corp. |__ Port 1: Dev 6, If 3, Class=Audio, Driver=snd-usb-audio, 5000M ID 045e:02d8 Microsoft Corp. /: Bus 01.Port 1: Dev 1, Class=root_hub, Driver=xhci_hcd/12p, 480M ID 1d6b:0002 Linux Foundation 2.0 root hub |__ Port 3: Dev 6, If 0, Class=Hub, Driver=hub/1p, 480M ID 045e:02d9 Microsoft Corp. |__ Port 5: Dev 2, If 0, Class=Vendor Specific Class, Driver=, 12M ID 04e8:730b Samsung Electronics Co., Ltd |__ Port 6: Dev 3, If 0, Class=Video, Driver=uvcvideo, 480M ID 2b7e:0134 |__ Port 6: Dev 3, If 1, Class=Video, Driver=uvcvideo, 480M ID 2b7e:0134 |__ Port 10: Dev 4, If 0, Class=Wireless, Driver=btusb, 12M ID 8087:0026 Intel Corp. AX201 Bluetooth |__ Port 10: Dev 4, If 1, Class=Wireless, Driver=btusb, 12M ID 8087:0026 Intel Corp. AX201 Bluetooth |
+
2024.07.18
빌드 타임 추가 (노트북)
| 8쓰레드 | 4쓰레드 | 2쓰레드 | 1쓰레드 |
| real 0m6.974s user 0m27.675s sys 0m2.416s |
real 0m7.923s user 0m19.886s sys 0m1.687s |
real 0m11.978s user 0m19.263s sys 0m1.688s |
real 0m17.982s user 0m16.453s sys 0m1.503s |
+
2024.07.20
빌드 타임 추가 (데스크 탑 / i7-3770)
| 8쓰레드 | 4쓰레드 | 2쓰레드 | 1쓰레드 |
| real 0m4.899s user 0m22.435s sys 0m2.366s |
real 0m5.263s user 0m14.712s sys 0m1.612s |
real 0m8.456s user 0m13.561s sys 0m1.707s |
real 0m15.343s user 0m13.623s sys 0m1.707s |
'프로그램 사용 > kinect' 카테고리의 다른 글
| libfreenect2 on 2760p 성공 (0) | 2024.08.18 |
|---|---|
| libfreenect2 성공 (0) | 2024.07.17 |
| libfreenect2 실행 실패 (0) | 2024.07.14 |
| libfreenect2 CUDA 끄고 빌드 성공 (0) | 2024.07.13 |
| kinect v2 / freenect 실패 (0) | 2024.07.09 |
이론 관련/컴퓨터 관련2024. 7. 14. 11:31
BOS가 그래서 머하는건지 까지 가려면.. USB 스펙을 다 읽어야 할 것 같은 느낌이... 크흡
[링크 : https://www.usb.org/bos-descriptor-types]
| However I'm having trouble finding the Binary Device Object Store (BOS) descriptor using either method. The header BOS descriptor is: struct usb_bos_descriptor_header { u8_t bLength; u8_t bDescriptorType; u16_t wTotalLength; u8_t bNumDeviceCaps; }; |
[링크 : https://stackoverflow.com/questions/57947195/]
| EFI_USB_BOS_DESCRIPTOR 구조체는 USB 함수 드라이버에 BOS(Binary Object Store)에 대한 정보를 제공합니다. |
[링크 : https://learn.microsoft.com/ko-kr/windows-hardware/drivers/bringup/efi-usb-bos-descriptor]
'이론 관련 > 컴퓨터 관련' 카테고리의 다른 글
| bit banging (0) | 2025.05.08 |
|---|---|
| numa 와 smp (0) | 2025.05.07 |
| DDR3 pinout과 ECC (0) | 2024.04.01 |
| uefi dxe pei (0) | 2024.04.01 |
| radix 4 - fp4 (0) | 2024.03.21 |
프로그램 사용/kinect2024. 7. 14. 11:19
처음 실행하니 권한부족.. libusb가 권한이 필요한 녀석이었던가?
| libfreenect2/build/bin$ ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 10 usb devices connected [Error] [Freenect2Impl] failed to open Kinect v2: @4:3 LIBUSB_ERROR_ACCESS Access denied (insufficient permissions) [Info] [Freenect2Impl] found 0 devices no device connected! |
짜잔~하고 먼가 나오길 기대했지만... 안된다 -_-
| $ sudo ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 10 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @4:5 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... [Debug] [Freenect2DeviceImpl] status 0x090000: 9729 [Error] [protocol::UsbControl] failed to set ir interface state! LIBUSB_ERROR_OTHER Other error. Try debugging with environment variable: export LIBUSB_DEBUG=3 . [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] releasing usb interfaces... [Info] [Freenect2DeviceImpl] deallocating usb transfer pools... [Info] [Freenect2DeviceImpl] closing usb device... [Info] [Freenect2DeviceImpl] closed |
LIBUSB_DEBUG를 줘도 두 줄 추가 되는 것 외에는 별다른 에러 메시지가 없다.
| # LIBUSB_DEBUG=3 ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect libusb: warning [libusb_init] installing new context as implicit default [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 10 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @4:7 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... libusb: error [udev_hotplug_event] ignoring udev action change libusb: error [udev_hotplug_event] ignoring udev action change [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 libusb: error [op_set_interface] set interface failed, errno=28 [Error] [protocol::UsbControl] failed to set ir interface state! LIBUSB_ERROR_OTHER Other error. Try debugging with environment variable: export LIBUSB_DEBUG=3 . [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] releasing usb interfaces... [Info] [Freenect2DeviceImpl] deallocating usb transfer pools... [Info] [Freenect2DeviceImpl] closing usb device... [Info] [Freenect2DeviceImpl] closed libusb: warning [libusb_exit] device 4.7 still referenced libusb: warning [libusb_exit] device 4.6 still referenced libusb: warning [libusb_exit] device 4.1 still referenced |
커널 메시지로는.... 엥? 왜 갑자기 대역폭 부족?
| $ sudo dmesg -w [ 415.484074] usb 4-1.1: reset SuperSpeed USB device number 7 using xhci_hcd [ 415.595900] usb 4-1.1: Not enough bandwidth for new device state. [ 415.595907] usb 4-1.1: Not enough bandwidth for altsetting 1 |
라이브러리 홈페이지 가서 다시 보니
make install 하고 udev rule을 복사한 뒤, 키넥트를 뽑았다 꽂으라고 한다.
| Build (if you have run cd depends previously, cd .. back to the libfreenect2 root directory first.) mkdir build && cd build cmake .. -DCMAKE_INSTALL_PREFIX=$HOME/freenect2 make make install You need to specify cmake -Dfreenect2_DIR=$HOME/freenect2/lib/cmake/freenect2 for CMake based third-party application to find libfreenect2. Set up udev rules for device access: sudo cp ../platform/linux/udev/90-kinect2.rules /etc/udev/rules.d/, then replug the Kinect. Run the test program: ./bin/Protonect Run OpenNI2 test (optional): sudo apt-get install openni2-utils && sudo make install-openni2 && NiViewer2. Environment variable LIBFREENECT2_PIPELINE can be set to cl, cuda, etc to specify the pipeline. |
[링크 : https://github.com/OpenKinect/libfreenect2]
먼가 잔뜩 뜨긴 한데.. udev 쪽 먼가 실행하는 것 같진 않고..
| [ 517.098960] usb 3-1: new high-speed USB device number 5 using xhci_hcd [ 517.251097] usb 3-1: New USB device found, idVendor=045e, idProduct=02d9, bcdDevice= 0.70 [ 517.251115] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 517.251122] usb 3-1: Product: NuiSensor Adaptor [ 517.251127] usb 3-1: Manufacturer: Microsoft Corporation [ 517.254367] hub 3-1:1.0: USB hub found [ 517.254752] hub 3-1:1.0: 1 port detected [ 517.704842] usb 4-1: new SuperSpeed USB device number 8 using xhci_hcd [ 520.690577] usb 4-1: New USB device found, idVendor=045e, idProduct=02d9, bcdDevice= 0.73 [ 520.690597] usb 4-1: New USB device strings: Mfr=1, Product=2, SerialNumber=0 [ 520.690604] usb 4-1: Product: NuiSensor Adaptor [ 520.690610] usb 4-1: Manufacturer: Microsoft Corporation [ 520.694210] hub 4-1:1.0: USB hub found [ 520.694623] hub 4-1:1.0: 1 port detected [ 521.187545] usb 4-1.1: new SuperSpeed USB device number 9 using xhci_hcd [ 521.212947] usb 4-1.1: New USB device found, idVendor=045e, idProduct=02d8, bcdDevice= 1.00 [ 521.212966] usb 4-1.1: New USB device strings: Mfr=1, Product=2, SerialNumber=4 [ 521.212973] usb 4-1.1: Product: Xbox NUI Sensor [ 521.212977] usb 4-1.1: Manufacturer: Microsoft [ 521.212982] usb 4-1.1: SerialNumber: 501441643042 |
키넥트 관련은 MODE 주는 것 외에는 별다른게 없어 보인다.
| src/libfreenect2/build/bin# cat ../../platform/linux/udev/90-kinect2.rules # this file belongs in /etc/udev/rules.d/ # ATTR{product}=="Kinect2" SUBSYSTEM=="usb", ATTR{idVendor}=="045e", ATTR{idProduct}=="02c4", MODE="0666" SUBSYSTEM=="usb", ATTR{idVendor}=="045e", ATTR{idProduct}=="02d8", MODE="0666" SUBSYSTEM=="usb", ATTR{idVendor}=="045e", ATTR{idProduct}=="02d9", MODE="0666" |
에러는 동일하게 대역폭 부족이 뜬다.
| $ sudo ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 10 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @4:13 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices [Info] [Freenect2DeviceImpl] opening... [Info] [Freenect2DeviceImpl] transfer pool sizes rgb: 20*16384 ir: 60*8*33792 [Info] [Freenect2DeviceImpl] opened [Info] [Freenect2DeviceImpl] starting... [Debug] [Freenect2DeviceImpl] status 0x090000: 9731 [Error] [protocol::UsbControl] failed to set ir interface state! LIBUSB_ERROR_OTHER Other error. Try debugging with environment variable: export LIBUSB_DEBUG=3 . [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] releasing usb interfaces... [Info] [Freenect2DeviceImpl] deallocating usb transfer pools... [Info] [Freenect2DeviceImpl] closing usb device... [Info] [Freenect2DeviceImpl] closed |
| [ 786.203660] usb 4-2.1: reset SuperSpeed USB device number 13 using xhci_hcd [ 786.318931] usb 4-2.1: Not enough bandwidth for new device state. [ 786.318939] usb 4-2.1: Not enough bandwidth for altsetting 1 |
혹시나 해서 USB2.0에 꽂아보니 아래와 같이 에러가 발생한다.
| $ sudo ./Protonect Version: 0.2.0 Environment variables: LOGFILE=<protonect.log> Usage: ./Protonect [-gpu=<id>] [gl | cl | clkde | cuda | cudakde | cpu] [<device serial>] [-noviewer] [-norgb | -nodepth] [-help] [-version] [-frames <number of frames to process>] To pause and unpause: pkill -USR1 Protonect [Info] [Freenect2Impl] enumerating devices... [Info] [Freenect2Impl] 9 usb devices connected [Info] [Freenect2Impl] found valid Kinect v2 @2:5 with serial 501441643042 [Info] [Freenect2Impl] found 1 devices [Info] [Freenect2DeviceImpl] opening... [Error] [protocol::UsbControl] failed to claim interface with IrInterfaceId(=1)! LIBUSB_ERROR_BUSY Resource busy. Try debugging with environment variable: export LIBUSB_DEBUG=3 . [Info] [Freenect2DeviceImpl] closing... [Info] [Freenect2DeviceImpl] deallocating usb transfer pools... [Info] [Freenect2DeviceImpl] closing usb device... [Info] [Freenect2DeviceImpl] closed [Error] [Freenect2Impl] failed to open Kinect v2: @2:5 failure opening device! |
dmesg 상에는 아래와 같이 BOS desciptor 가 없거나 너무 짧다는게 그건 또 머냐..
| [ 683.513603] usb 2-1.1.1: reset high-speed USB device number 5 using ehci-pci [ 683.634757] usb 2-1.1.1: unable to get BOS descriptor or descriptor too short |
expresscard to USB3.0 을 써서 생기는 문제인가.. 아니면 빌드라던가 다른 문제인가..
+
2024.07.15
usbfs 크기가 적으니 늘리는게 도움이 된다는데 해도 해결은 안된다.
기본은 ubutu 22.04 에서 16MB 인 듯한데 1000MB로 늘려도 안된다.
| $ cat /etc/default/grub | grep GRUB_CMDLINE_LINUX_DEFAULT GRUB_CMDLINE_LINUX_DEFAULT="quiet splash" $ cat /sys/module/usbcore/parameters/usbfs_memory_mb 16 $ sudo sh -c 'echo 1000 > /sys/module/usbcore/parameters/usbfs_memory_mb' $ cat /sys/module/usbcore/parameters/usbfs_memory_mb 1000 |
[링크 : https://github.com/OpenKinect/libfreenect2/issues/971]
[링크 : https://importgeek.wordpress.com/2017/02/26/increase-usbfs-memory-limit-in-ubuntu/]
+
혹시나 해서 찾아보는데..
expresscard의 경우 PCIe 2 or USB 3 mode 일 경우 3.2Gbps로 USB3.0의 5Gbps 에는 어떤 모드던 부족하다.
그런데 풀 대역폭을 쓰진 않을수도 있긴한데.. USB 장치에서 필요로 하는 대역폭을 다 커버 할 수 없는건가?
| Speed 480 Mbit/s effective (USB 2 mode) 1.6 Gbit/s effective (PCIe 1 mode) 3.2 Gbit/s effective (PCIe 2 or USB 3 mode) |
[링크 : https://en.wikipedia.org/wiki/ExpressCard]
칩셋인 uPD720202도 스펙상 PCIe Gen2 1 lane 이고, 속도까진 나와있지 않다
| System I/F: PCIe Gen2 x 1 Lane |
i5-2520m 도 PCIe Gen 2 라고 하는데
| 확장 옵션 PCI Express 개정판 2.0 PCI Express 구성 ‡ 1x16, 2x8, 1x8+2x4 최대 PCI Express 레인 수 16 |
pci-e 2.0 lane 1은 5.0GT/s 이고 5Gbps로 계산이 되긴한다.
반대로 생각하면 USB3.0이 생각외로 빠른거구나..
 |
[링크 : https://en.wikipedia.org/wiki/PCI_Express]
| Depends on your thinkpad's generation of Expresscard Gen 1 is 1.6gbps Gen 2 is 3.2gbps Gen 3 is 6.4gbps, but each usb port can only do a max of 5gbps In this case it's a T420 so it has gen 2 expresscard |
[링크 : https://www.reddit.com/r/thinkpad/comments/xy44zj/finally_got_the_cheapest_usb_30_express_card_for/]
expresscard 34 규격의 sony sxs pro 라는 저장장치 인데
우연인지 아니면 대역폭 한계인지 3.2Gbps가 검색되서 나온다. expresscard와 pci-e 와는 속도 차이가 존재하는건가?
| Max. Speeds Read speed 3.5Gbps (=440MB/s) (1) Write Speed 3.2Gbps (=400MB/s) (1) |
[링크 : https://ccktech.com/product/sony-sxs-pro/]
[링크 : https://ccktech.com/product-interface/expresscard-34/]
'프로그램 사용 > kinect' 카테고리의 다른 글
| libfreenect2 성공 (0) | 2024.07.17 |
|---|---|
| libfreenect2 실행 성공.. (0) | 2024.07.15 |
| libfreenect2 CUDA 끄고 빌드 성공 (0) | 2024.07.13 |
| kinect v2 / freenect 실패 (0) | 2024.07.09 |
| xbox one S / 기본형? (0) | 2024.06.25 |
프로그램 사용/kinect2024. 7. 13. 23:05
귀찮으니 실행은 다음에 해보는 걸로 ㅋ
| $ cmake .. -DENABLE_CUDA=OFF CMake Deprecation Warning at CMakeLists.txt:1 (CMAKE_MINIMUM_REQUIRED): Compatibility with CMake < 3.5 will be removed from a future version of CMake. Update the VERSION argument <min> value or use a ...<max> suffix to tell CMake that the project does not need compatibility with older versions. -- using tinythread as threading library -- Checking for modules 'libva;libva-drm' -- No package 'libva' found -- No package 'libva-drm' found -- Could NOT find TegraJPEG (missing: TegraJPEG_LIBRARIES TegraJPEG_INCLUDE_DIRS TegraJPEG_WORKS) CMake Warning (dev) at /home/minimonk/.local/lib/python3.10/site-packages/cmake/data/share/cmake-3.30/Modules/FindOpenGL.cmake:415 (message): Policy CMP0072 is not set: FindOpenGL prefers GLVND by default when available. Run "cmake --help-policy CMP0072" for policy details. Use the cmake_policy command to set the policy and suppress this warning. FindOpenGL found both a legacy GL library: OPENGL_gl_LIBRARY: /usr/lib/x86_64-linux-gnu/libGL.so and GLVND libraries for OpenGL and GLX: OPENGL_opengl_LIBRARY: /usr/lib/x86_64-linux-gnu/libOpenGL.so OPENGL_glx_LIBRARY: /usr/lib/x86_64-linux-gnu/libGLX.so OpenGL_GL_PREFERENCE has not been set to "GLVND" or "LEGACY", so for compatibility with CMake 3.10 and below the legacy GL library will be used. Call Stack (most recent call first): CMakeLists.txt:269 (FIND_PACKAGE) This warning is for project developers. Use -Wno-dev to suppress it. -- Could NOT find OpenCL (missing: OpenCL_LIBRARY OpenCL_INCLUDE_DIR) -- Linking with these libraries: /usr/lib/x86_64-linux-gnu/libusb-1.0.so pthread /usr/lib/x86_64-linux-gnu/libturbojpeg.so.0 /usr/lib/x86_64-linux-gnu/libglfw.so /usr/lib/x86_64-linux-gnu/libGL.so -- Could NOT find Doxygen (missing: DOXYGEN_EXECUTABLE) -- Configurating examples CMake Deprecation Warning at examples/CMakeLists.txt:1 (CMAKE_MINIMUM_REQUIRED): Compatibility with CMake < 3.5 will be removed from a future version of CMake. Update the VERSION argument <min> value or use a ...<max> suffix to tell CMake that the project does not need compatibility with older versions. -- Using in-tree freenect2 target -- Feature list: -- CUDA disabled -- CXX11 disabled -- Examples yes -- OpenCL no -- OpenGL yes -- OpenNI2 yes -- TegraJPEG no -- Threading tinythread -- TurboJPEG yes -- VAAPI no -- VideoToolbox no (Apple only) -- streamer_recorder disabled -- Configuring done (0.1s) -- Generating done (0.0s) -- Build files have been written to: /home/minimonk/src/libfreenect2/build |
| $ make -j4 [ 2%] Building CXX object CMakeFiles/generate_resources_tool.dir/tools/generate_resources.cpp.o [ 5%] Linking CXX executable bin/generate_resources_tool [ 5%] Built target generate_resources_tool [ 8%] Generating resources.inc.h [ 10%] Building CXX object CMakeFiles/freenect2.dir/src/transfer_pool.cpp.o [ 13%] Building CXX object CMakeFiles/freenect2.dir/src/event_loop.cpp.o [ 16%] Building CXX object CMakeFiles/freenect2.dir/src/usb_control.cpp.o [ 18%] Building CXX object CMakeFiles/freenect2.dir/src/allocator.cpp.o [ 21%] Building CXX object CMakeFiles/freenect2.dir/src/frame_listener_impl.cpp.o [ 24%] Building CXX object CMakeFiles/freenect2.dir/src/packet_pipeline.cpp.o [ 27%] Building CXX object CMakeFiles/freenect2.dir/src/rgb_packet_stream_parser.cpp.o [ 29%] Building CXX object CMakeFiles/freenect2.dir/src/rgb_packet_processor.cpp.o [ 32%] Building CXX object CMakeFiles/freenect2.dir/src/depth_packet_stream_parser.cpp.o [ 35%] Building CXX object CMakeFiles/freenect2.dir/src/depth_packet_processor.cpp.o [ 37%] Building CXX object CMakeFiles/freenect2.dir/src/cpu_depth_packet_processor.cpp.o [ 40%] Building CXX object CMakeFiles/freenect2.dir/src/resource.cpp.o [ 43%] Building CXX object CMakeFiles/freenect2.dir/src/command_transaction.cpp.o [ 45%] Building CXX object CMakeFiles/freenect2.dir/src/registration.cpp.o [ 48%] Building CXX object CMakeFiles/freenect2.dir/src/logging.cpp.o /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp: In member function ‘virtual void libfreenect2::CpuDepthPacketProcessor::loadP0TablesFromCommandResponse(unsigned char*, size_t)’: /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:844:53: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 844 | flipHorizontal(Mat(424, 512, p0table->p0table0), impl_->p0_table0); | ~~~~~~~~~^~~~~~~~ /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:845:53: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 845 | flipHorizontal(Mat(424, 512, p0table->p0table1), impl_->p0_table1); | ~~~~~~~~~^~~~~~~~ /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:846:53: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 846 | flipHorizontal(Mat(424, 512, p0table->p0table2), impl_->p0_table2); | ~~~~~~~~~^~~~~~~~ /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:850:42: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 850 | Mat p00(424, 512, p0table->p0table0); | ~~~~~~~~~^~~~~~~~ /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:852:38: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 852 | Mat(424, 512, p0table->p0table1).copyTo(impl_->p0_table1); | ~~~~~~~~~^~~~~~~~ /home/minimonk/src/libfreenect2/src/cpu_depth_packet_processor.cpp:853:38: warning: taking address of packed member of ‘libfreenect2::protocol::P0TablesResponse’ may result in an unaligned pointer value [-Waddress-of-packed-member] 853 | Mat(424, 512, p0table->p0table2).copyTo(impl_->p0_table2); | ~~~~~~~~~^~~~~~~~ [ 51%] Building CXX object CMakeFiles/freenect2.dir/src/libfreenect2.cpp.o [ 54%] Building CXX object CMakeFiles/freenect2.dir/src/tinythread/tinythread.cpp.o [ 56%] Building CXX object CMakeFiles/freenect2.dir/src/turbo_jpeg_rgb_packet_processor.cpp.o [ 59%] Building CXX object CMakeFiles/freenect2.dir/src/flextGL.cpp.o [ 62%] Building CXX object CMakeFiles/freenect2.dir/src/opengl_depth_packet_processor.cpp.o [ 64%] Linking CXX shared library lib/libfreenect2.so [ 64%] Built target freenect2 [ 70%] Building CXX object examples/CMakeFiles/Protonect.dir/Protonect.cpp.o [ 72%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/ColorStream.cpp.o [ 72%] Building CXX object examples/CMakeFiles/Protonect.dir/__/src/flextGL.cpp.o [ 75%] Building CXX object examples/CMakeFiles/Protonect.dir/viewer.cpp.o [ 78%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/DepthStream.cpp.o /home/minimonk/src/libfreenect2/examples/Protonect.cpp: In function ‘int main(int, char**)’: /home/minimonk/src/libfreenect2/examples/Protonect.cpp:157:7: warning: variable ‘deviceId’ set but not used [-Wunused-but-set-variable] 157 | int deviceId = -1; | ^~~~~~~~ [ 81%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/DeviceDriver.cpp.o [ 83%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/IrStream.cpp.o [ 86%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/Registration.cpp.o [ 89%] Linking CXX executable ../bin/Protonect [ 89%] Built target Protonect [ 91%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/Utility.cpp.o [ 94%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/openni2/VideoStream.cpp.o [ 97%] Building CXX object CMakeFiles/freenect2-openni2.dir/src/tinythread/tinythread.cpp.o In file included from /usr/include/string.h:535, from /usr/include/openni2/Linux-x86/OniPlatformLinux-x86.h:34, from /usr/include/openni2/OniPlatform.h:42, from /usr/include/openni2/Driver/OniDriverAPI.h:24, from /home/minimonk/src/libfreenect2/src/openni2/DeviceDriver.cpp:35: In function ‘char* strncpy(char*, const char*, size_t)’, inlined from ‘void Freenect2Driver::Driver::register_uri(std::string)’ at /home/minimonk/src/libfreenect2/src/openni2/DeviceDriver.cpp:404:14: /usr/include/x86_64-linux-gnu/bits/string_fortified.h:95:34: warning: ‘char* __builtin_strncpy(char*, const char*, long unsigned int)’ specified bound 256 equals destination size [-Wstringop-truncation] 95 | return __builtin___strncpy_chk (__dest, __src, __len, | ~~~~~~~~~~~~~~~~~~~~~~~~^~~~~~~~~~~~~~~~~~~~~~ 96 | __glibc_objsize (__dest)); | ~~~~~~~~~~~~~~~~~~~~~~~~~ [100%] Linking CXX shared library lib/libfreenect2-openni2.so [100%] Built target freenect2-openni2 |
| ~/src/libfreenect2/build$ tree -L 2 . ├── CMakeCache.txt ├── CMakeFiles │ ├── 3.30.0 │ ├── CMakeConfigureLog.yaml │ ├── CMakeDirectoryInformation.cmake │ ├── CMakeRuleHashes.txt │ ├── CMakeScratch │ ├── Makefile.cmake │ ├── Makefile2 │ ├── TargetDirectories.txt │ ├── cmake.check_cache │ ├── freenect2-openni2.dir │ ├── freenect2.dir │ ├── generate_resources_tool.dir │ ├── install-openni2.dir │ ├── pkgRedirects │ └── progress.marks ├── Makefile ├── bin │ ├── Protonect │ └── generate_resources_tool ├── cmake_install.cmake ├── doc │ ├── CMakeFiles │ ├── Makefile │ └── cmake_install.cmake ├── examples │ ├── CMakeFiles │ ├── Makefile │ └── cmake_install.cmake ├── freenect2.pc ├── freenect2Config.cmake ├── freenect2ConfigVersion.cmake ├── lib │ ├── libfreenect2-openni2.so -> libfreenect2-openni2.so.0 │ ├── libfreenect2-openni2.so.0 │ ├── libfreenect2.so -> libfreenect2.so.0.2 │ ├── libfreenect2.so.0.2 -> libfreenect2.so.0.2.0 │ └── libfreenect2.so.0.2.0 ├── libfreenect2 │ ├── config.h │ └── export.h └── resources.inc.h 15 directories, 28 files |
bin/Protonect 를 실행하면 스트리밍 된다고 한다.
[링크 : https://www.notaboutmy.life/posts/run-kinect-2-on-ubuntu-20-lts/]
소스를 뒤져보니 glfw 라는 접두로 된 녀석을 통해 그리는데, openGL ES와 vulkan으로 그리는 듯?
[링크 : https://www.glfw.org/]
'프로그램 사용 > kinect' 카테고리의 다른 글
| libfreenect2 실행 성공.. (0) | 2024.07.15 |
|---|---|
| libfreenect2 실행 실패 (0) | 2024.07.14 |
| kinect v2 / freenect 실패 (0) | 2024.07.09 |
| xbox one S / 기본형? (0) | 2024.06.25 |
| kinect for windows v2 설치 (0) | 2024.06.24 |
Microsoft/Windows2024. 7. 13. 21:20
윈도우 바탕화면을 바꿀수 있다는게 신기한데
프로그램에 따라서 프로젝트 파일이 절대경로로 되어있는 경우에
다른 드라이브나 위치를 변경했을 경우 인식을 못한다는 문제아닌 문제가 발생한다.
다른 경로를 누르고 이동을 누르면 바탕화면을 복사한다고 시간이 좀 걸리는데
삭제는 그 이후에 따로 하는지 좀 버벅댄다.
C 드라이브를 자꾸 채워서 바로가기로 하는걸로 관리가 절대 안되는 분들을 위한
나름.. 차선책이랄까..
[링크 : https://san51k.tistory.com/entry/윈도우10-TIP-13-바탕화면-폴더-경로-변경-과-복원하기]
