1. LED 깜박이기

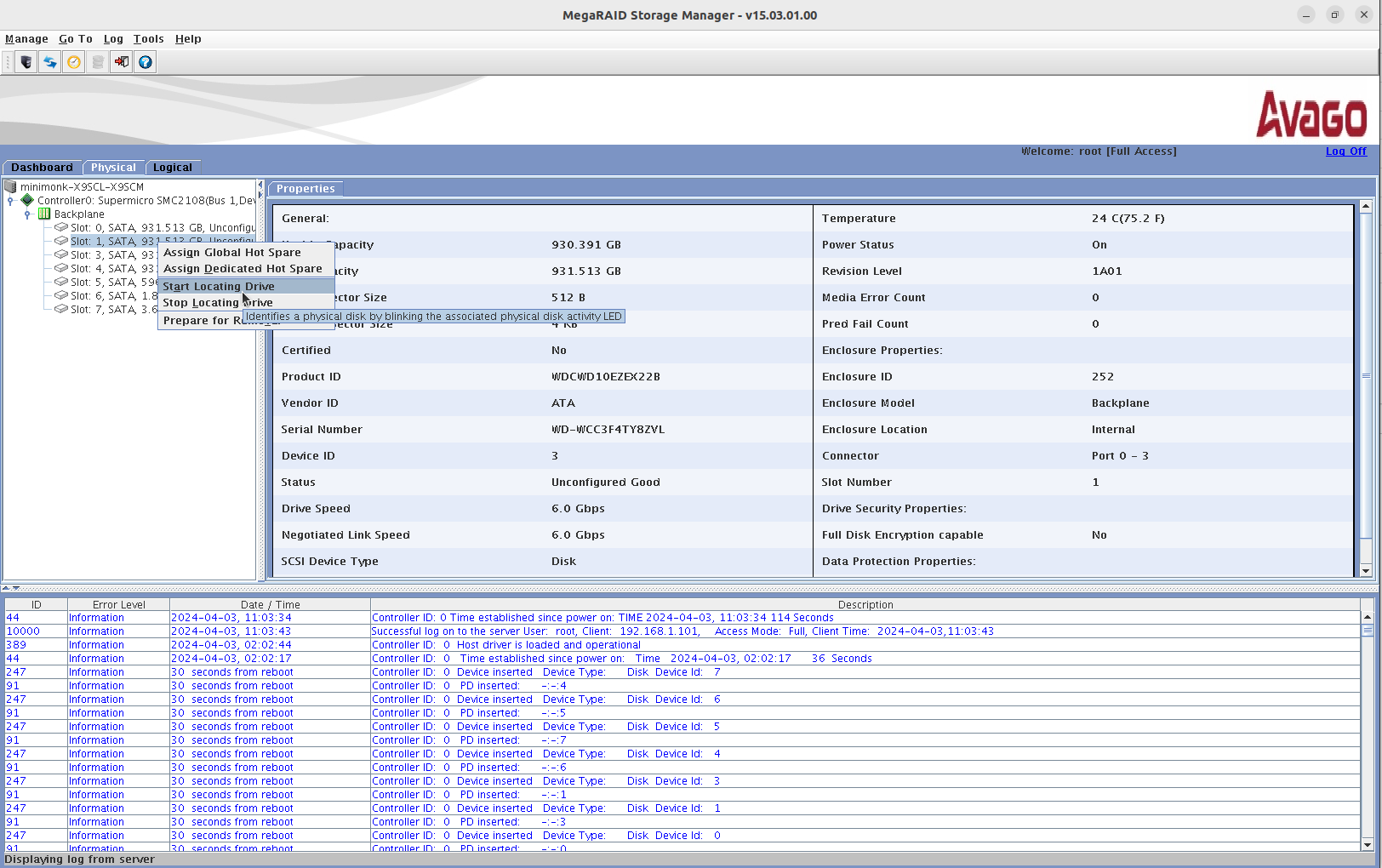

어떤 분이 댓글로 Start Locating Drive 하면 불이 깜박일거라고 하셨는데 맞았다.
그 와중에 막 누르다 보니 도움말이 뜨는걸 뒤늦게 발견!
Dell은 일정시간 깜박이고 꺼지더니 이런건 좀 아쉽네
2. RAID 장치 번호
케이블을 보다보니 손댄적도 없는데 상단이 뒷번호가 할당되어 있는걸 뒤늦게 발견(!)
운영상의 차이일수도 있겠지만 혹시 모르니 메뉴얼은 찾아봐야 할 듯.
그래서 RAID card에 꽂히는 SAS 케이블을 두개 순서 바꾸어서 해결!
| smc2108 (0) | 2024.04.03 |
|---|---|
| SMC2108 SSD cachecade (0) | 2024.04.03 |
| MegaCLI (0) | 2024.04.01 |
| MegaRAID Storage Manager(MSM) 설치완료 (0) | 2024.04.01 |
| msm (megaraid) 관리 설치 실패 (0) | 2023.11.14 |
설치
[링크 : https://gist.github.com/fxkraus/595ab82e07cd6f8e057d31bc0bc5e779]
alien 으로 rpm을 deb로 변환하던가
그냥 rpm을 풀어 버리면 안되나?
[링크 : https://www.lesstif.com/system-admin/rpm-20776290.html]
ubuntu 22.04 에서 압축풀어서 실행하니 되긴 한다.
| $ ./MegaCli64 ? MegaCLI SAS RAID Management Tool Ver 8.07.14 Dec 16, 2013 (c)Copyright 2013, LSI Corporation, All Rights Reserved. NOTE: The following options may be given at the end of any command below: [-Silent] [-AppLogFile filename] [-NoLog] [-page[N]] [-] is optional. N - Number of lines per page. MegaCli -v MegaCli -help|-h|? MegaCli -adpCount MegaCli -AdpSetProp {CacheFlushInterval -val} | { RebuildRate -val} | {PatrolReadRate -val} | {BgiRate -val} | {CCRate -val} | {ForceSGPIO -val} | {ReconRate -val} | {SpinupDriveCount -val} | {SpinupDelay -val} | {CoercionMode -val} | {ClusterEnable -val} | {PredFailPollInterval -val} | {BatWarnDsbl -val} | {EccBucketSize -val} | {EccBucketLeakRate -val} | {AbortCCOnError -val} | AlarmEnbl | AlarmDsbl | AlarmSilence | {SMARTCpyBkEnbl -val} | {SSDSMARTCpyBkEnbl -val} | NCQEnbl | NCQDsbl | {MaintainPdFailHistoryEnbl -val} | {RstrHotSpareOnInsert -val} | {DisableOCR -val} | {BootWithPinnedCache -val} | {enblPI -val} |{PreventPIImport -val} | AutoEnhancedImportEnbl | AutoEnhancedImportDsbl | {EnblSpinDownUnConfigDrvs -val}|{UseDiskActivityforLocate -val} -aN|-a0,1,2|-aALL | {ExposeEnclDevicesEnbl -val} | {SpinDownTime -val} | {SpinUpEncDrvCnt -val} | {SpinUpEncDelay -val} | {Perfmode -val} -aN|-a0,1,2|-aALL | {PerfMode -val �MaxFlushLines -val �NumIOsToOrder -val} -aN|-a0,1,2|-aALL MegaCli -AdpSetProp -AutoDetectBackPlaneDsbl -val -aN|-a0,1,2|-aALL val - 0=Enable Auto Detect of SGPIO and i2c SEP. 1=Disable Auto Detect of SGPIO. 2=Disable Auto Detect of i2c SEP. 3=Disable Auto Detect of SGPIO and i2c SEP. MegaCli -AdpSetProp -CopyBackDsbl -val -aN|-a0,1,2|-aALL val - 0=Enable Copyback. 1=Disable Copyback. MegaCli -AdpSetProp -EnableJBOD -val -aN|-a0,1,2|-aALL val - 0=Disable JBOD mode. 1=Enable JBOD mode. MegaCli -AdpSetProp -DsblCacheBypass -val -aN|-a0,1,2|-aALL val - 0=Enable Cache Bypass. 1=Disable Cache Bypass. MegaCli -AdpSetProp -LoadBalanceMode -val -aN|-a0,1,2|-aALL val - 0=Auto Load balance mode. 1=Disable Load balance mode. MegaCli -AdpSetProp -UseFDEOnlyEncrypt -val -aN|-a0,1,2|-aALL val - 0=FDE and controller encryption (if HW supports) is allowed. 1=Only support FDE encryption, disallow controller encryption. MegaCli -AdpSetProp -PrCorrectUncfgdAreas -val -aN|-a0,1,2|-aALL val - 0= Correcting Media error during PR is disabled. 1=Correcting Media error during PR is allowed. MegaCli -AdpSetProp -DsblSpinDownHSP -val -aN|-a0,1,2|-aALL val - 0= Spinning down the Hot Spare is enabled. 1=Spinning down the Hot Spare is disabled. MegaCli -AdpSetProp -DefaultLdPSPolicy -Automatic| -None | -Maximum| -MaximumWithoutCaching -aN|-a0,1,2|-aALL MegaCli -AdpSetProp -DisableLdPS -interval n1 -time n2 -aN|-a0,1,2|-aALL where n1 is the number of hours beginning at time n2 where n2 is the number of minutes from 12:00am MegaCli -AdpSetProp -ENABLEEGHSP -val -aN|-a0,1,2|-aALL val - 0= Disabled Emergency GHSP. 1= Enabled Emergency GHSP. MegaCli -AdpSetProp -ENABLEEUG -val -aN|-a0,1,2|-aALL val - 0= Disabled Emergency UG as Spare. 1= Enabled Emergency UG as Spare. MegaCli -AdpSetProp -ENABLEESMARTER -val -aN|-a0,1,2|-aALL val - 0= Disabled Emergency Spare as Smarter. 1= Enabled Emergency Spare as Smarter. MegaCli -AdpSetProp -DPMenable -val -aN|-a0,1,2|-aALL val - 0=Disable Drive Performance Monitoring . 1=Enable Drive Performance Monitoring. MegaCli -AdpSetProp -SupportSSDPatrolRead -val -aN|-a0,1,2|-aALL val - 0=Disable Patrol read for SSD drives . 1=Enable Patrol read for SSD drives. MegaCli -AdpGetProp CacheFlushInterval | RebuildRate | PatrolReadRate | ForceSGPIO | BgiRate | CCRate | ReconRate | SpinupDriveCount | SpinupDelay | CoercionMode | ClusterEnable | PredFailPollInterval | BatWarnDsbl | EccBucketSize | EccBucketLeakRate | EccBucketCount | AbortCCOnError | AlarmDsply | SMARTCpyBkEnbl | SSDSMARTCpyBkEnbl | NCQDsply | MaintainPdFailHistoryEnbl | RstrHotSpareOnInsert | EnblSpinDownUnConfigDrvs | DisableOCR | BootWithPinnedCache | enblPI |PreventPIImport | AutoEnhancedImportDsply | AutoDetectBackPlaneDsbl | CopyBackDsbl | LoadBalanceMode | UseFDEOnlyEncrypt | WBSupport | EnableJBOD | DsblCacheBypass | ExposeEnclDevicesEnbl | SpinDownTime | PrCorrectUncfgdAreas | UseDiskActivityforLocate | ENABLEEGHSP | ENABLEEUG | ENABLEESMARTER | Perfmode | PerfModeValues | -DPMenable -aN|-a0,1,2|-aALL | DefaultLdPSPolicy | DisableLdPsInterval | DisableLdPsTime | SpinUpEncDrvCnt | SpinUpEncDelay | PrCorrectUncfgdAreas | DsblSpinDownHSP | SupportSSDPatrolRead -aN|-a0,1,2|-aALL MegaCli -AdpAllInfo -aN|-a0,1,2|-aALL MegaCli -AdpGetTime -aN|-a0,1,2|-aALL MegaCli -AdpSetTime yyyymmdd hh:mm:ss -aN MegaCli -AdpSetVerify -f fileName -aN|-a0,1,2|-aALL MegaCli -AdpBIOS -Enbl |-Dsbl | -SOE | -BE | -HCOE | - HSM | EnblAutoSelectBootLd | DsblAutoSelectBootLd | -Dsply -aN|-a0,1,2|-aALL MegaCli -AdpBootDrive {-Set {-Lx | -physdrv[E0:S0]}} | {-Unset {-Lx | -physdrv[E0:S0]}} |-Get -aN|-a0,1,2|-aALL MegaCli -AdpAutoRbld -Enbl|-Dsbl|-Dsply -aN|-a0,1,2|-aALL MegaCli -AdpCacheFlush -aN|-a0,1,2|-aALL MegaCli -AdpPR -Dsbl|EnblAuto|EnblMan|Start|Suspend|Resume|Stop|Info|SSDPatrolReadEnbl |SSDPatrolReadDsbl |{SetDelay Val}|{-SetStartTime yyyymmdd hh}|{maxConcurrentPD Val} -aN|-a0,1,2|-aALL MegaCli -AdpCcSched -Dsbl|-Info|{-ModeConc | -ModeSeq [-ExcludeLD -LN|-L0,1,2] [-SetStartTime yyyymmdd hh ] [-SetDelay val ] } -aN|-a0,1,2|-aALL MegaCli -AdpCcSched -SetStartTime yyyymmdd hh -aN|-a0,1,2|-aALL MegaCli -AdpCcSched -SetDelay val -aN|-a0,1,2|-aALL MegaCli -FwTermLog -BBUoff|BBUoffTemp|BBUon|BBUGet|Dsply|Clear -aN|-a0,1,2|-aALL MegaCli -AdpAlILog -aN|-a0,1,2|-aALL MegaCli -AdpDiag [val] -aN|-a0,1,2|-aALL val - Time in second. MegaCli -AdpGetPciInfo -aN|-a0,1,2|-aALL MegaCli -AdpShutDown -aN|-a0,1,2|-aALL MegaCli -AdpDowngrade -aN|-a0,1,2|-aALL MegaCli -PDList -aN|-a0,1,2|-aALL MegaCli -PDGetNum -aN|-a0,1,2|-aALL MegaCli -pdInfo -PhysDrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDOnline -PhysDrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDOffline -PhysDrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDMakeGood -PhysDrv[E0:S0,E1:S1,...] | [-Force] -aN|-a0,1,2|-aALL MegaCli -PDMakeJBOD -PhysDrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDHSP {-Set [-Dedicated [-ArrayN|-Array0,1,2...]] [-EnclAffinity] [-nonRevertible]} |-Rmv -PhysDrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDRbld -Start|-Stop|-Suspend|-Resume|-ShowProg |-ProgDsply -PhysDrv [E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PDClear -Start|-Stop|-ShowProg |-ProgDsply -PhysDrv [E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PdLocate {[-start] | -stop} -physdrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PdMarkMissing -physdrv[E0:S0,E1:S1,...] -aN|-a0,1,2|-aALL MegaCli -PdGetMissing -aN|-a0,1,2|-aALL MegaCli -PdReplaceMissing -physdrv[E0:S0] -arrayA, -rowB -aN MegaCli -PdPrpRmv [-UnDo] -physdrv[E0:S0] -aN|-a0,1,2|-aALL MegaCli -EncInfo -aN|-a0,1,2|-aALL MegaCli -EncStatus -aN|-a0,1,2|-aALL MegaCli -PhyInfo -phyM -aN|-a0,1,2|-aALL MegaCli -PhySetLinkSpeed -phyM -speed -aN|-a0,1,2|-aALL MegaCli -PdFwDownload [offline][ForceActivate] {[-SataBridge] -PhysDrv[0:1] }|{-EncdevId[devId1]} -f <filename> -aN|-a0,1,2|-aALL MegaCli -LDInfo -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -LDSetProp {-Name LdNamestring} | -RW|RO|Blocked|RemoveBlocked | WT|WB|ForcedWB [-Immediate] |RA|NORA | DsblPI | Cached|Direct | -EnDskCache|DisDskCache | CachedBadBBU|NoCachedBadBBU -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -LDSetPowerPolicy -Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -LDGetProp -Cache | -Access | -Name | -DskCache | -PSPolicy | Consistency -Lx|-L0,1,2|-LALL -aN|-a0,1,2|-aALL MegaCli -LDInit {-Start [-full]}|-Abort|-ShowProg|-ProgDsply -Lx|-L0,1,2|-LALL -aN|-a0,1,2|-aALL MegaCli -LDCC {-Start [-force]}|-Abort|-Suspend|-Resume|-ShowProg|-ProgDsply -Lx|-L0,1,2|-LALL -aN|-a0,1,2|-aALL MegaCli -LDBI -Enbl|-Dsbl|-getSetting|-Abort|-Suspend|-Resume|-ShowProg|-ProgDsply -Lx|-L0,1,2|-LALL -aN|-a0,1,2|-aALL MegaCli -LDRecon {-Start -rX [{-Add | -Rmv} -Physdrv[E0:S0,...]]}|-ShowProg|-ProgDsply -Lx -aN MegaCli -LdPdInfo -aN|-a0,1,2|-aALL MegaCli -LDGetNum -aN|-a0,1,2|-aALL MegaCli -LDBBMClr -Lx|-L0,1,2,...|-Lall -aN|-a0,1,2|-aALL MegaCli -getLdExpansionInfo -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -LdExpansion -pN -dontExpandArray -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -GetBbtEntries -Lx|-L0,1,2|-Lall -aN|-a0,1,2|-aALL MegaCli -Cachecade -assign|-remove -Lx|-L0,1,2|-LALL -aN|-a0,1,2|-aALL MegaCli -CfgLdAdd -rX[E0:S0,E1:S1,...] [WT|WB] [NORA|RA] [Direct|Cached] [CachedBadBBU|NoCachedBadBBU] [-szXXX [-szYYY ...]] [-strpszM] [-Hsp[E0:S0,...]] [-AfterLdX] | [FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] [-enblPI] [-Force]-aN MegaCli -CfgCacheCadeAdd [-rX] -Physdrv[E0:S0,...] {-Name LdNamestring} [WT|WB|ForcedWB] [-assign -LX|L0,2,5..|LALL] -aN|-a0,1,2|-aALL MegaCli -CfgEachDskRaid0 [WT|WB] [NORA|RA] [Direct|Cached] [-enblPI] [CachedBadBBU|NoCachedBadBBU] [-strpszM]|[FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] -aN|-a0,1,2|-aALL MegaCli -CfgClr [-Force] -aN|-a0,1,2|-aALL MegaCli -CfgDsply -aN|-a0,1,2|-aALL MegaCli -CfgCacheCadeDsply -aN|-a0,1,2|-aALL MegaCli -CfgLdDel -LX|-L0,2,5...|-LALL [-Force] -aN|-a0,1,2|-aALL MegaCli -CfgCacheCadeDel -LX|-L0,2,5...|-LALL -aN|-a0,1,2|-aALL MegaCli -CfgFreeSpaceinfo -aN|-a0,1,2|-aALL MegaCli -CfgSpanAdd -r10 -Array0[E0:S0,E1:S1] -Array1[E0:S0,E1:S1] [-ArrayX[E0:S0,E1:S1] ...] [WT|WB] [NORA|RA] [Direct|Cached] [CachedBadBBU|NoCachedBadBBU] [-szXXX[-szYYY ...]][-strpszM][-AfterLdX]| [FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] [-enblPI] [-Force] -aN MegaCli -CfgSpanAdd -r50 -Array0[E0:S0,E1:S1,E2:S2,...] -Array1[E0:S0,E1:S1,E2:S2,...] [-ArrayX[E0:S0,E1:S1,E2:S2,...] ...] [WT|WB] [NORA|RA] [Direct|Cached] [CachedBadBBU|NoCachedBadBBU][-szXXX[-szYYY ...]][-strpszM][-AfterLdX] [FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] [-enblPI] [-Force] -aN MegaCli -CfgSpanAdd -r60 -Array0[E0:S0,E1:S1,E2:S2,E3,S3...] -Array1[E0:S0,E1:S1,E2:S2,E3,S3...] [-ArrayX[E0:S0,E1:S1,E2:S2,E3,S3...] ...] [WT|WB] [NORA|RA] [Direct|Cached] [CachedBadBBU|NoCachedBadBBU][-szXXX[-szYYY ...]][-strpszM][-AfterLdX]| [FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] [-enblPI] [-Force] -aN MegaCli -CfgAllFreeDrv -rX [-SATAOnly] [-SpanCount XXX] [WT|WB] [NORA|RA] [Direct|Cached] [CachedBadBBU|NoCachedBadBBU] [-strpszM] [-HspCount XX [-HspType -Dedicated|-EnclAffinity|-nonRevertible]]| [FDE|CtrlBased] [-Default| -Automatic| -None| -Maximum| -MaximumWithoutCaching] [-Cache] [-enblPI] -aN MegaCli -CfgSave -f filename -aN MegaCli -CfgRestore -f filename -aN MegaCli -CfgForeign -Scan | [-SecurityKey sssssssssss] -aN|-a0,1,2|-aALL MegaCli -CfgForeign -Dsply [x] | [-SecurityKey sssssssssss] -aN|-a0,1,2|-aALL MegaCli -CfgForeign -Preview [x] | [-SecurityKey sssssssssss] -aN|-a0,1,2|-aALL MegaCli -CfgForeign -Import [x] | [-SecurityKey sssssssssss] -aN|-a0,1,2|-aALL MegaCli -CfgForeign -Clear [x]|[-SecurityKey sssssssssss] -aN|-a0,1,2|-aALL x - index of foreign configurations. Optional. All by default. MegaCli -AdpEventLog -GetEventLogInfo -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -GetEvents {-info -warning -critical -fatal} {-f <fileName>} -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -GetSinceShutdown {-info -warning -critical -fatal} {-f <fileName>} -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -GetSinceReboot {-info -warning -critical -fatal} {-f <fileName>} -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -IncludeDeleted {-info -warning -critical -fatal} {-f <fileName>} -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -GetLatest n {-info -warning -critical -fatal} {-f <fileName>} -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -GetCCIncon -f <fileName> -LX|-L0,2,5...|-LALL -aN|-a0,1,2|-aALL MegaCli -AdpEventLog -Clear -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -GetBbuStatus -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -GetBbuCapacityInfo -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -GetBbuDesignInfo -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -GetBbuProperties -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -BbuLearn -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -BbuMfgSleep -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -BbuMfgSeal -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -getBbumodes -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -SetBbuProperties -f <fileName> -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -GetGGEEPData offset [Hexaddress] NumBytes n -aN|-a0,1,2|-aALL MegaCli -AdpBbuCmd -ScheduleLearn -Dsbl|-Info|[-STARTTIME DDD hh] -aN|-a0,1,2|-aALL MegaCli -AdpFacDefSet -aN MegaCli -AdpFwFlash -f filename [-ResetNow] [-NoSigChk] [-NoVerChk] [-FWTYPE n] -aN|-a0,1,2|-aALL MegaCli -AdpGetConnectorMode -ConnectorN|-Connector0,1|-ConnectorAll -aN|-a0,1,2|-aALL MegaCli -AdpSetConnectorMode -Internal|-External|-Auto -ConnectorN|-Connector0,1|-ConnectorAll -aN|-a0,1,2|-aALL MegaCli -PhyErrorCounters -aN|-a0,1,2|-aALL MegaCli -DirectPdMapping -Enbl|-Dsbl|-Dsply -aN|-a0,1,2|-aALL MegaCli -PDCpyBk -Start -PhysDrv[E0:S0,E1:S1] -aN|-a0,1,2|-aALL MegaCli -PDCpyBk -Stop|-Suspend|-Resume|-ShowProg|-ProgDsply -PhysDrv[E0:S0] -aN|-a0,1,2|-aALL MegaCli -PDInstantSecureErase -PhysDrv[E0:S0,E1:S1,...] | [-Force] -aN|-a0,1,2|-aALL MegaCli -CfgSpanAdd -rX -array0[E0:S1,E1:S1.....] array1[E0:S1,E1:S1.....] -szxxx -enblPI -aN|-a0,1,2|-aALL MegaCli -LDMakeSecure -Lx|-L0,1,2,...|-Lall -aN|-a0,1,2|-aALL MegaCli -DestroySecurityKey | [-Force] -aN MegaCli -CreateSecurityKey -SecurityKey sssssssssss | [-Passphrase sssssssssss] |[-KeyID kkkkkkkkkkk] -aN MegaCli -CreateSecurityKey useEKMS -aN MegaCli -ChangeSecurityKey -OldSecurityKey sssssssssss | -SecurityKey sssssssssss| [-Passphrase sssssssssss] | [-KeyID kkkkkkkkkkk] -aN MegaCli -ChangeSecurityKey -SecurityKey sssssssssss| [-Passphrase sssssssssss] | [-KeyID kkkkkkkkkkk] -aN MegaCli -ChangeSecurityKey useEKMS -OldSecurityKey sssssssssss -aN MegaCli -ChangeSecurityKey -useEKMS -aN MegaCli -GetKeyID [-PhysDrv[E0:S0]] -aN MegaCli -SetKeyID -KeyID kkkkkkkkkkk -aN MegaCli -VerifySecurityKey -SecurityKey sssssssssss -aN MegaCli -GetPreservedCacheList -aN|-a0,1,2|-aALL MegaCli -DiscardPreservedCache -Lx|-L0,1,2|-Lall -force -aN|-a0,1,2|-aALL sssssssssss - It must be between eight and thirty-two characters and contain at least one number, one lowercase letter, one uppercase letter and one non-alphanumeric character. kkkkkkkkkkk - Must be less than 256 characters. MegaCli -ShowSummary [-f filename] -aN MegaCli -ELF -GetSafeId -aN|-a0,1,2|-aALL MegaCli -ELF -ControllerFeatures -aN|-a0,1,2|-aALL MegaCli -ELF -Applykey key <val> [Preview] -aN|-a0,1,2|-aALL MegaCli -ELF -TransferToVault -aN|-a0,1,2|-aALL MegaCli -ELF -DeactivateTrialKey -aN|-a0,1,2|-aALL MegaCli -ELF -ReHostInfo -aN|-a0,1,2|-aALL MegaCli -ELF -ReHostComplete -aN|-a0,1,2|-aALL MegaCli -LDViewMirror -Lx|-L0,1,2,...|-Lall -aN|-a0,1,2|-aALL MegaCli -LDJoinMirror -DataSrc <val> [-force] -Lx|-L0,1,2,...|-Lall -aN|-a0,1,2|-aALL MegaCli -SecureErase Start[ Simple| [Normal [ |ErasePattern ErasePatternA|ErasePattern ErasePatternA ErasePattern ErasePatternB]]| [Thorough [ |ErasePattern ErasePatternA|ErasePattern ErasePatternA ErasePattern ErasePatternB]]] | Stop | ShowProg | ProgDsply [-PhysDrv [E0:S0,E1:S1,...] | -Lx|-L0,1,2|-LALL] -aN|-a0,1,2|-aALL MegaCli -Version -Cli|-Ctrl|-Driver|-Pd -aN|-a0,1,2|-aALL MegaCli -Perfmon {-start -interval <val>} | {stop} | {-getresults -f <Filename>} -aN MegaCli -DpmStat -Dsply {lct | hist | ra | ext } [-physdrv[E0:S0]] -aN|-a0,1,2|-aALL MegaCli -DpmStat -Clear {lct | hist | ra | ext } -aN|-a0,1,2|-aALL Note: The directly connected drives can be specified as [:S] Wildcard '?' can be used to specify the enclosure ID for the drive in the only enclosure without direct connected device or the direct connected drives with no enclosure in the system. Note:[-aALL] option assumes that the parameters specified are valid for all the Adapters. Note:ProgDsply option is not supported in VMWARE-COSLESS. The following options may be given at the end of any command above: [-Silent] [-AppLogFile filename] [-NoLog] [-page[N]] [-] is optional. N - Number of lines per page. MegaCli XD -AddVd <devList> MegaCli XD -RemVd <devList> MegaCli XD -AddCdev <devList> | -force MegaCli XD -RemCdev <devList> MegaCli XD -VdList | -Configured | -Unconfigured MegaCli XD -CdevList | -Configured | -Unconfigured MegaCli XD -ConfigInfo MegaCli XD -PerfStats MegaCli XD -OnlineVd MegaCli XD -WarpDriveInfo -iN | -iALL MegaCli XD -FetchSafeId -iN | -iALL MegaCli XD -ApplyActivationKey <key> -iN Exit Code: 0x00 |
사용법
[링크 : https://www.broadcom.com/support/knowledgebase/1211161498596/megacli-cheat-sheet--live-examples]
5.4 Pre-boot MegaCLI
[링크 : https://www.supermicro.com/manuals/other/MegaRAID_SAS_Software_Rev_I_UG.pdf]
| SMC2108 SSD cachecade (0) | 2024.04.03 |
|---|---|
| raid 케이블이 잘못 연결됨 + LED 깜박이기 (0) | 2024.04.03 |
| MegaRAID Storage Manager(MSM) 설치완료 (0) | 2024.04.01 |
| msm (megaraid) 관리 설치 실패 (0) | 2023.11.14 |
| msm - Megaraid Storage Management (0) | 2022.11.27 |
아래 순서대로 설치
구버전이긴 해도 일단 돌아가니 ok
ubuntu 22.04 LTS 에서 24년도에 시도
| $ wget ftp://tsupport:tsupport@ftp0.broadcom.com/private/MSM/64bit-MSM_6.7_for_Ubuntu_Debian.tgz $ tar -xvf 64bit-MSM_6.7_for_Ubuntu_Debian.tgz $ sudo ./install_msm.sh $ sudo passwd root $ sudo passwd -u root $ cd /usr/local/MegaRAID\ Stroage\ Manager $ ./startupui.sh |
대충 하라는대로 하면 끝. 왜 저번에는 시스템이 날아갔지 -ㅁ-?

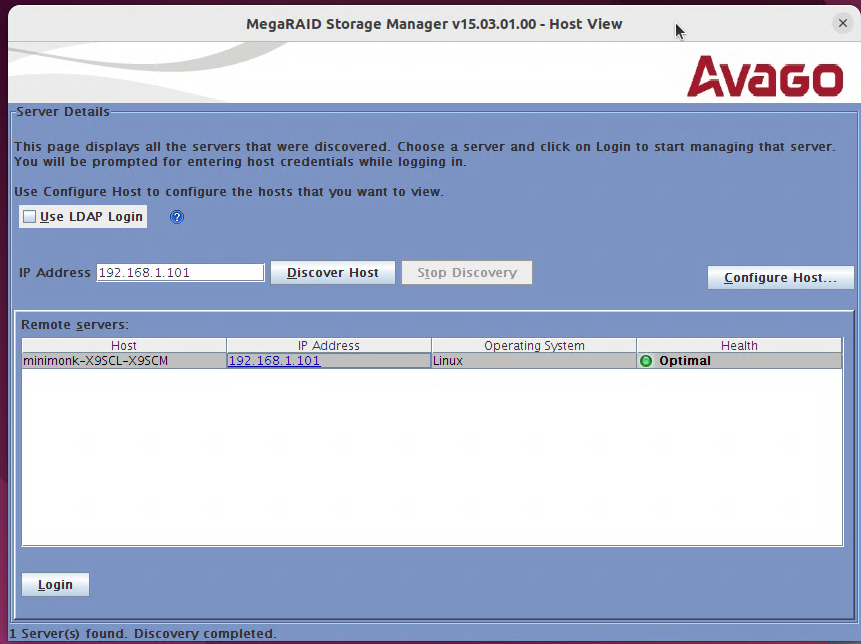

아래 단계에서 ubuntu 기본 계정은 root가 아니라서 view only로 해야한다.

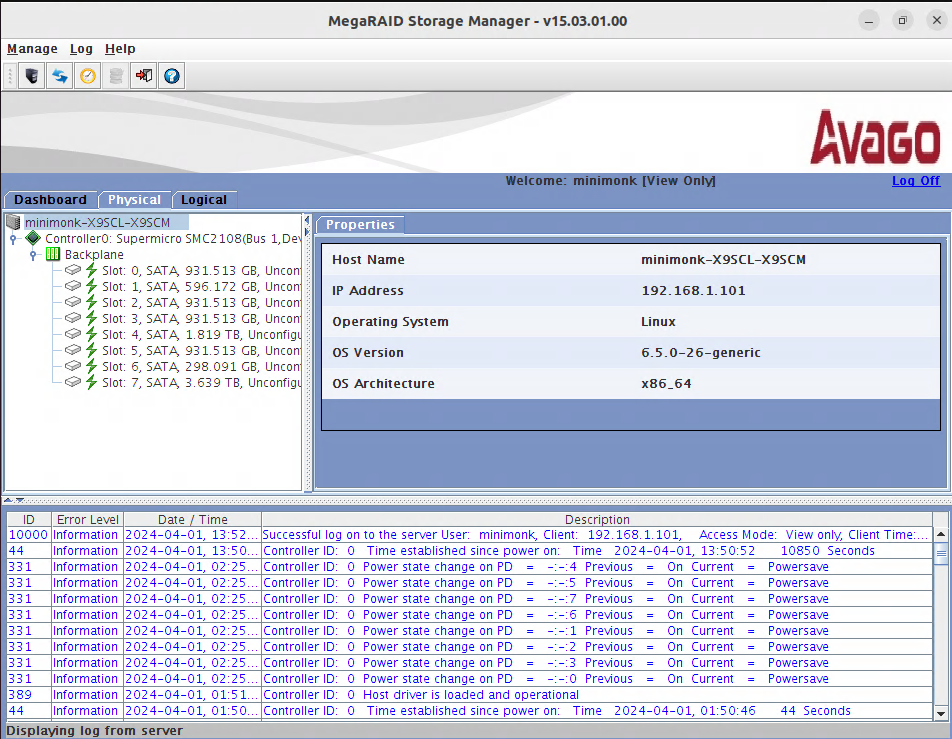

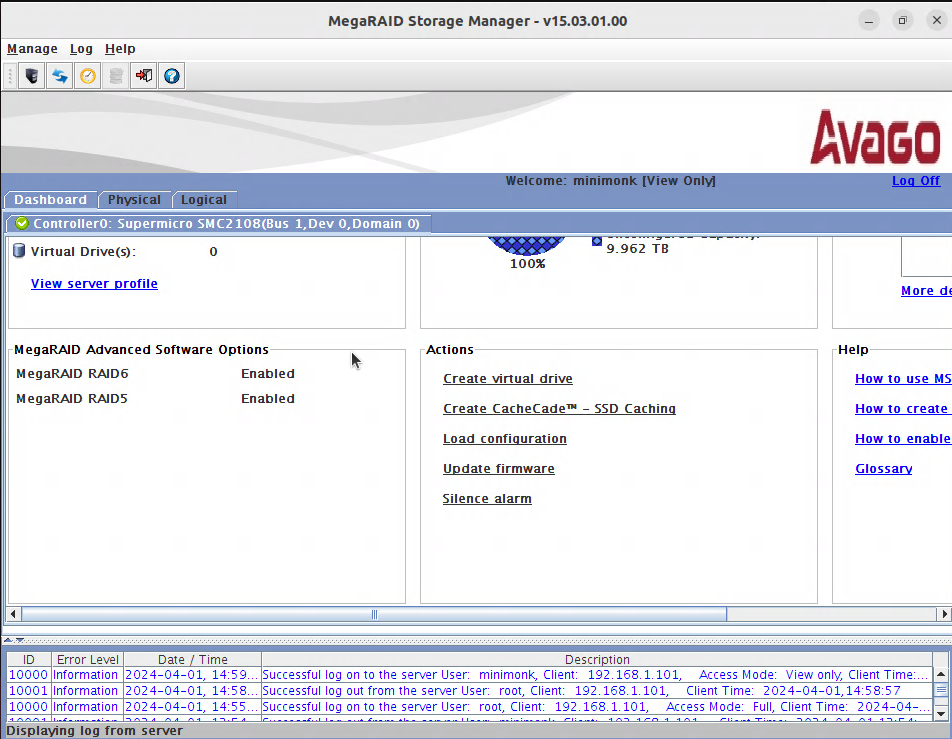

요건 view only로 로그인 시 화면, Actions 쪽에 전부 검은색 출력되어 클릭이 되지 않는다.

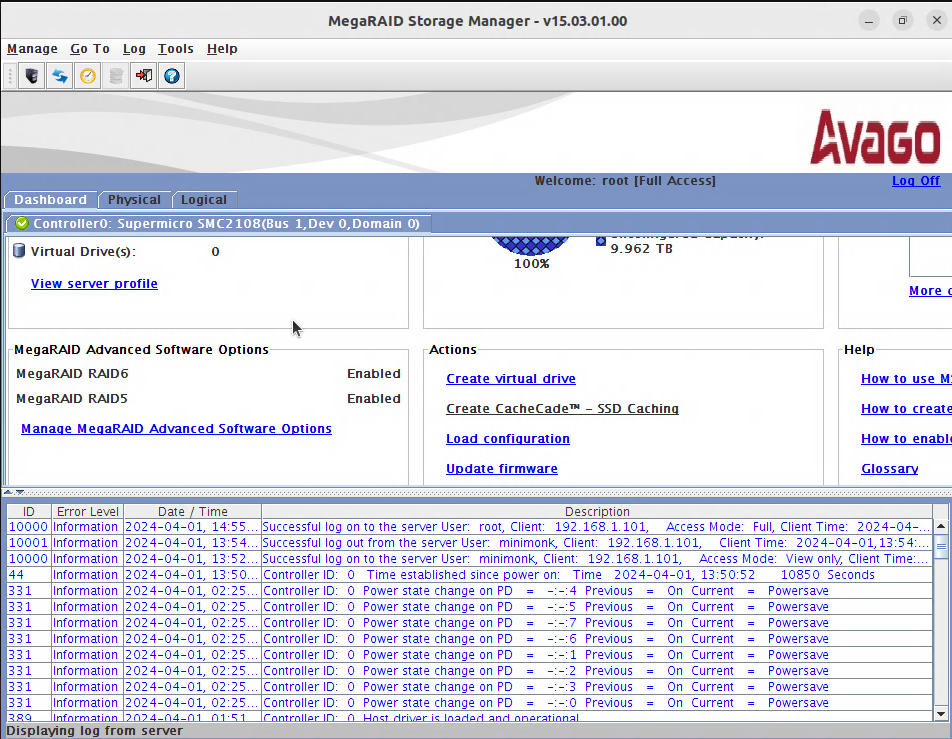

root 계정 추가해서 Full Access로 로그인시에는 전체 권한이 되는데 이 경우에는 Actions 쪽이 활성화 된다.

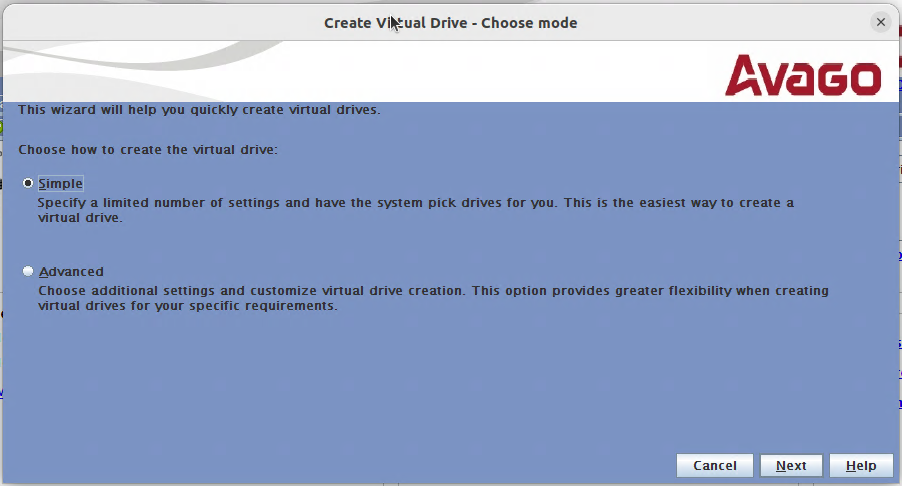

create virtual drive 클릭!

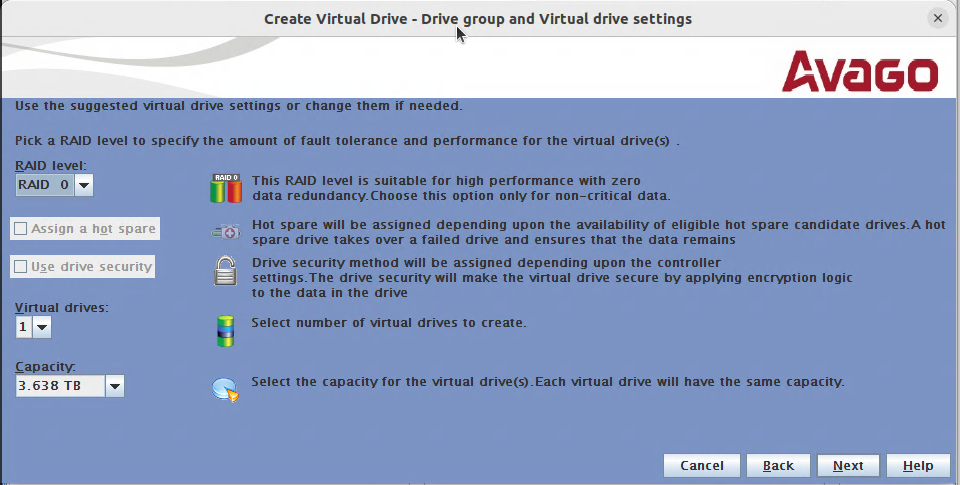

simple

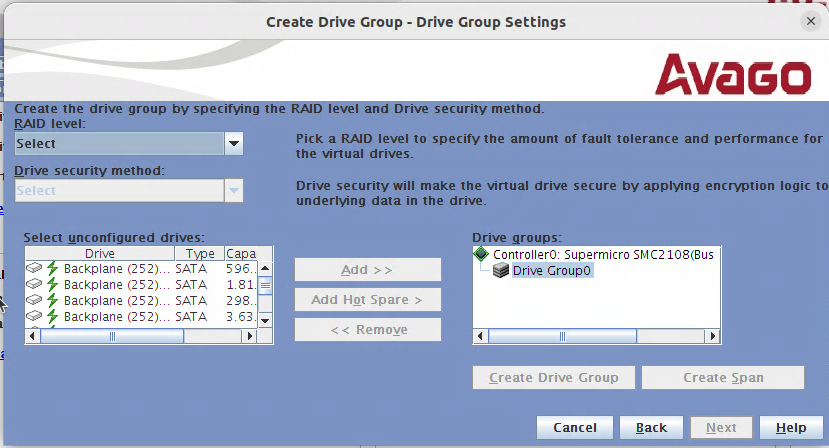

advanced
| raid 케이블이 잘못 연결됨 + LED 깜박이기 (0) | 2024.04.03 |
|---|---|
| MegaCLI (0) | 2024.04.01 |
| msm (megaraid) 관리 설치 실패 (0) | 2023.11.14 |
| msm - Megaraid Storage Management (0) | 2022.11.27 |
| smartctl을 이용하여 개별하드 상태보기 (0) | 2019.03.15 |
엥... 시스템이 날아갔다?
ubunut 20.04 에서 했는데
|
Download MSM for Ubuntu and Debian release MR 6.7
ftp://tsupport:tsupport@ftp0.broadcom.com/private/MSM/64bit-MSM_6.7_for_Ubuntu_Debian.tgz ftp://tsupport:tsupport@ftp0.broadcom.com/private/MSM/32bit-MSM_6.7_for_Ubuntu_Debian.tgz To install MSM, run ./install_msm.sh Start MSM ./msm_start.sh |
| $ wget ftp://tsupport:tsupport@ftp0.broadcom.com/private/MSM/64bit-MSM_6.7_for_Ubuntu_Debian.tgz --2023-11-14 14:42:43-- ftp://tsupport:*password*@ftp0.broadcom.com/private/MSM/64bit-MSM_6.7_for_Ubuntu_Debian.tgz => `64bit-MSM_6.7_for_Ubuntu_Debian.tgz' ftp0.broadcom.com (ftp0.broadcom.com)을(를) 해석하는 중... 192.19.229.165 접속 ftp0.broadcom.com (ftp0.broadcom.com)|192.19.229.165|:21... 접속됨. tsupport(으)로 로그 저장하는 중... 로그인 완료! ==> SYST ... 완료. ==> PWD ... 완료. ==> TYPE I ... 완료. ==> CWD (1) /private/MSM ... 완료. ==> SIZE 64bit-MSM_6.7_for_Ubuntu_Debian.tgz ... 64517549 ==> PASV ... 완료. ==> RETR 64bit-MSM_6.7_for_Ubuntu_Debian.tgz ... 완료. 길이: 64517549 (62M) (인가받지 않음) 64bit-MSM_6.7_for_U 100%[===================>] 61.53M 10.1MB/s / 7.5s s 2023-11-14 14:42:53 (8.18 MB/s) - `64bit-MSM_6.7_for_Ubuntu_Debian.tgz' 저장함 [64517549] minimonk@ministor:~$ ll 합계 63116 drwxr-xr-x 17 minimonk minimonk 4096 11월 14 14:42 ./ drwxr-xr-x 3 root root 4096 3월 6 2022 ../ -rw------- 1 minimonk minimonk 108 11월 27 2022 .Xauthority -rw------- 1 minimonk minimonk 8430 11월 27 2022 .bash_history -rw-r--r-- 1 minimonk minimonk 220 3월 6 2022 .bash_logout -rw-r--r-- 1 minimonk minimonk 3771 3월 6 2022 .bashrc drwx------ 14 minimonk minimonk 4096 3월 6 2022 .cache/ drwx------ 13 minimonk minimonk 4096 3월 6 2022 .config/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 .fontconfig/ drwx------ 3 minimonk minimonk 4096 3월 6 2022 .gnupg/ -rw------- 1 minimonk minimonk 46 3월 7 2022 .lesshst drwx------ 3 minimonk minimonk 4096 3월 6 2022 .local/ -rw-r--r-- 1 minimonk minimonk 807 3월 6 2022 .profile drwx------ 2 minimonk minimonk 4096 3월 6 2022 .ssh/ -rw-r--r-- 1 minimonk minimonk 0 3월 6 2022 .sudo_as_admin_successful -rw------- 1 minimonk minimonk 899 11월 27 2022 .viminfo -rw-rw-r-- 1 minimonk minimonk 64517549 11월 14 14:42 64bit-MSM_6.7_for_Ubuntu_Debian.tgz -rwxrwxr-x 1 minimonk minimonk 184 11월 27 2022 mount.sh* drwxrwxr-x 2 minimonk minimonk 4096 3월 7 2022 smb/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 공개/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 다운로드/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 문서/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 바탕화면/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 비디오/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 사진/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 음악/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 템플릿/ minimonk@ministor:~$ tar -xvf 64bit-MSM_6.7_for_Ubuntu_Debian.tgz lib-utils2_1.00-07_all.deb megaraid-storage-manager_15.03.01-00_all.deb install_msm_quiet.sh install_msm.sh msm_start.sh purge_msm_quiet.sh purge_msm.sh Readme.txt minimonk@ministor:~$ ll 합계 126540 drwxr-xr-x 17 minimonk minimonk 4096 11월 14 14:43 ./ drwxr-xr-x 3 root root 4096 3월 6 2022 ../ -rw------- 1 minimonk minimonk 108 11월 27 2022 .Xauthority -rw------- 1 minimonk minimonk 8430 11월 27 2022 .bash_history -rw-r--r-- 1 minimonk minimonk 220 3월 6 2022 .bash_logout -rw-r--r-- 1 minimonk minimonk 3771 3월 6 2022 .bashrc drwx------ 14 minimonk minimonk 4096 3월 6 2022 .cache/ drwx------ 13 minimonk minimonk 4096 3월 6 2022 .config/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 .fontconfig/ drwx------ 3 minimonk minimonk 4096 3월 6 2022 .gnupg/ -rw------- 1 minimonk minimonk 46 3월 7 2022 .lesshst drwx------ 3 minimonk minimonk 4096 3월 6 2022 .local/ -rw-r--r-- 1 minimonk minimonk 807 3월 6 2022 .profile drwx------ 2 minimonk minimonk 4096 3월 6 2022 .ssh/ -rw-r--r-- 1 minimonk minimonk 0 3월 6 2022 .sudo_as_admin_successful -rw------- 1 minimonk minimonk 899 11월 27 2022 .viminfo -rw-rw-r-- 1 minimonk minimonk 64517549 11월 14 14:42 64bit-MSM_6.7_for_Ubuntu_Debian.tgz -rw-r--r-- 1 minimonk minimonk 940 4월 30 2015 Readme.txt -rwxr-xr-x 1 minimonk minimonk 364 4월 28 2015 install_msm.sh* -rwxr-xr-x 1 minimonk minimonk 411 4월 28 2015 install_msm_quiet.sh* -rw-r--r-- 1 minimonk minimonk 1233438 4월 28 2015 lib-utils2_1.00-07_all.deb -rw-r--r-- 1 minimonk minimonk 63683130 4월 28 2015 megaraid-storage-manager_15.03.01-00_all.deb -rwxrwxr-x 1 minimonk minimonk 184 11월 27 2022 mount.sh* -rwxr-xr-x 1 minimonk minimonk 64 4월 28 2015 msm_start.sh* -rwxr-xr-x 1 minimonk minimonk 345 4월 25 2015 purge_msm.sh* -rwxr-xr-x 1 minimonk minimonk 393 4월 25 2015 purge_msm_quiet.sh* drwxrwxr-x 2 minimonk minimonk 4096 3월 7 2022 smb/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 공개/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 다운로드/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 문서/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 바탕화면/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 비디오/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 사진/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 음악/ drwxr-xr-x 2 minimonk minimonk 4096 3월 6 2022 템플릿/ minimonk@ministor:~$ ./install_msm.sh + dpkg -i lib-utils2_1.00-07_all.deb dpkg: 오류: 요청한 작업을 하려면 수퍼유저 권한이 필요합니다 + dpkg -i megaraid-storage-manager_15.03.01-00_all.deb dpkg: 오류: 요청한 작업을 하려면 수퍼유저 권한이 필요합니다 + sleep 10 ^C minimonk@ministor:~$ sudo ./install_msm.sh [sudo] minimonk의 암호: + dpkg -i lib-utils2_1.00-07_all.deb Selecting previously unselected package lib-utils2. (데이터베이스 읽는중 ...현재 176968개의 파일과 디렉터리가 설치되어 있습니다.) Preparing to unpack lib-utils2_1.00-07_all.deb ... Installing.... Unpacking lib-utils2 (1.00-07) ... lib-utils2 (1.00-07) 설정하는 중입니다 ... + dpkg -i megaraid-storage-manager_15.03.01-00_all.deb Selecting previously unselected package megaraid-storage-manager. (데이터베이스 읽는중 ...현재 176983개의 파일과 디렉터리가 설치되어 있습니다.) Preparing to unpack megaraid-storage-manager_15.03.01-00_all.deb ... Installing.... Unpacking megaraid-storage-manager (15.03.01-00) ... megaraid-storage-manager (15.03.01-00) 설정하는 중입니다 ... / / / /etc/X11/xinit/xinitrc.d Processing triggers for systemd (245.4-4ubuntu3.15) ... Processing triggers for libc-bin (2.31-0ubuntu9.7) ... + sleep 10 + ps -ea + grep -i java + killall java java: no process found + ps -ea + grep -i java + /etc/init.d/vivaldiframeworkd stop Framework is already stopped..... + sleep 5 + /etc/init.d/vivaldiframeworkd start Starting Framework: + sleep 10 + update-rc.d vivaldiframeworkd defaults + cd /usr/local/MegaRAID Storage Manager/ + chmod 755 startupui.sh + ./startupui.sh X11 Display variable is not properly set minimonk@ministor:~$ minimonk@ministor:~$ minimonk@ministor:~$ Exception in thread "main" java.awt.HeadlessException: No X11 DISPLAY variable was set, but this program performed an operation which requires it. at sun.awt.HeadlessToolkit.getScreenSize(Unknown Source) at GUI.VivaldiStartupDialog.main(Unknown Source) minimonk@ministor:~$ minimonk@ministor:~$ minimonk@ministor:~$ java 명령어 'java' 을(를) 찾을 수 없습니다. 그러나 다음을 통해 설치할 수 있습니다: sudo apt install openjdk-11-jre-headless # version 11.0.14+9-0ubuntu2~20.04, or sudo apt install default-jre # version 2:1.11-72 sudo apt install openjdk-13-jre-headless # version 13.0.7+5-0ubuntu1~20.04 sudo apt install openjdk-16-jre-headless # version 16.0.1+9-1~20.04 sudo apt install openjdk-17-jre-headless # version 17.0.2+8-1~20.04 sudo apt install openjdk-8-jre-headless # version 8u312-b07-0ubuntu1~20.04 minimonk@ministor:~$ sudo apt install default-jre 패키지 목록을 읽는 중입니다... 완료 의존성 트리를 만드는 중입니다 상태 정보를 읽는 중입니다... 완료 다음 패키지가 자동으로 설치되었지만 더 이상 필요하지 않습니다: libfprint-2-tod1 libllvm10 'sudo apt autoremove'를 이용하여 제거하십시오. 다음의 추가 패키지가 설치될 것입니다 : ca-certificates-java default-jre-headless fonts-dejavu-extra java-common libatk-wrapper-java libatk-wrapper-java-jni openjdk-11-jre openjdk-11-jre-headless 제안하는 패키지: fonts-ipafont-gothic fonts-ipafont-mincho fonts-wqy-microhei | fonts-wqy-zenhei 다음 새 패키지를 설치할 것입니다: ca-certificates-java default-jre default-jre-headless fonts-dejavu-extra java-common libatk-wrapper-java libatk-wrapper-java-jni openjdk-11-jre openjdk-11-jre-headless 0개 업그레이드, 9개 새로 설치, 0개 제거 및 2개 업그레이드 안 함. 39.5 M바이트 아카이브를 받아야 합니다. 이 작업 후 179 M바이트의 디스크 공간을 더 사용하게 됩니다. 계속 하시겠습니까? [Y/n] 받기:1 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 java-common all 0.72 [6,816 B] 무시:2 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre-headless amd64 11.0.14+9-0ubuntu2~20.04 받기:3 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 default-jre-headless amd64 2:1.11-72 [3,192 B] 받기:4 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 ca-certificates-java all 20190405ubuntu1 [12.2 kB] 무시:5 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre amd64 11.0.14+9-0ubuntu2~20.04 받기:6 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 default-jre amd64 2:1.11-72 [1,084 B] 받기:7 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 fonts-dejavu-extra all 2.37-1 [1,953 kB] 오류:2 http://security.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre-headless amd64 11.0.14+9-0ubuntu2~20.04 404 Not Found [IP: 91.189.91.83 80] 오류:5 http://security.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre amd64 11.0.14+9-0ubuntu2~20.04 404 Not Found [IP: 91.189.91.83 80] 받기:8 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 libatk-wrapper-java all 0.37.1-1 [53.0 kB] 받기:9 http://kr.archive.ubuntu.com/ubuntu focal/main amd64 libatk-wrapper-java-jni amd64 0.37.1-1 [45.1 kB] 내려받기 2,074 k바이트, 소요시간 3초 (690 k바이트/초) E: http://security.ubuntu.com/ubuntu/pool/main/o/openjdk-lts/openjdk-11-jre-headless_11.0.14+9-0ubuntu2~20.04_amd64.deb 파일을 받는데 실패했습니다 404 Not Found [IP: 91.189.91.83 80] E: http://security.ubuntu.com/ubuntu/pool/main/o/openjdk-lts/openjdk-11-jre_11.0.14+9-0ubuntu2~20.04_amd64.deb 파일을 받는데 실패했습니다 404 Not Found [IP: 91.189.91.83 80] E: 아카이브를 받을 수 없습니다. 아마도 apt-get update를 실행해야 하거나 --fix-missing 옵션을 줘서 실행해야 할 것입니다. minimonk@ministor:~$ sudo apt-get updat --fix-missing E: 잘못된 작업 updat minimonk@ministor:~$ sudo apt-get update --fix-missing 기존:1 http://kr.archive.ubuntu.com/ubuntu focal InRelease 받기:2 http://kr.archive.ubuntu.com/ubuntu focal-updates InRelease [114 kB] 받기:3 http://kr.archive.ubuntu.com/ubuntu focal-backports InRelease [108 kB] 받기:4 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 Packages [2,959 kB] 받기:5 http://security.ubuntu.com/ubuntu focal-security InRelease [114 kB] 받기:6 http://kr.archive.ubuntu.com/ubuntu focal-updates/main i386 Packages [906 kB] 받기:7 http://kr.archive.ubuntu.com/ubuntu focal-updates/main Translation-en [481 kB] 받기:8 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 DEP-11 Metadata [275 kB] 받기:9 http://kr.archive.ubuntu.com/ubuntu focal-updates/main DEP-11 48x48 Icons [60.8 kB] 받기:10 http://kr.archive.ubuntu.com/ubuntu focal-updates/main DEP-11 64x64 Icons [98.3 kB] 받기:11 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 c-n-f Metadata [17.2 kB] 받기:12 http://kr.archive.ubuntu.com/ubuntu focal-updates/restricted amd64 Packages [2,479 kB] 받기:13 http://kr.archive.ubuntu.com/ubuntu focal-updates/restricted i386 Packages [36.0 kB] 받기:14 http://kr.archive.ubuntu.com/ubuntu focal-updates/restricted Translation-en [346 kB] 받기:15 http://kr.archive.ubuntu.com/ubuntu focal-updates/restricted amd64 c-n-f Metadata [552 B] 받기:16 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 Packages [1,129 kB] 받기:17 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe i386 Packages [754 kB] 받기:18 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe Translation-en [270 kB] 받기:19 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 DEP-11 Metadata [414 kB] 받기:20 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe DEP-11 48x48 Icons [287 kB] 받기:21 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe DEP-11 64x64 Icons [503 kB] 받기:22 http://security.ubuntu.com/ubuntu focal-security/main amd64 Packages [2,569 kB] 받기:23 http://kr.archive.ubuntu.com/ubuntu focal-updates/universe amd64 c-n-f Metadata [25.7 kB] 받기:24 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 Packages [25.8 kB] 받기:25 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse i386 Packages [8,440 B] 받기:26 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse Translation-en [7,484 B] 받기:27 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 DEP-11 Metadata [940 B] 받기:28 http://kr.archive.ubuntu.com/ubuntu focal-updates/multiverse amd64 c-n-f Metadata [620 B] 받기:29 http://kr.archive.ubuntu.com/ubuntu focal-backports/main amd64 Packages [45.7 kB] 받기:30 http://kr.archive.ubuntu.com/ubuntu focal-backports/main i386 Packages [36.1 kB] 받기:31 http://kr.archive.ubuntu.com/ubuntu focal-backports/main Translation-en [16.3 kB] 받기:32 http://kr.archive.ubuntu.com/ubuntu focal-backports/main amd64 DEP-11 Metadata [7,968 B] 받기:33 http://kr.archive.ubuntu.com/ubuntu focal-backports/main DEP-11 48x48 Icons [7,156 B] 받기:34 http://kr.archive.ubuntu.com/ubuntu focal-backports/main DEP-11 64x64 Icons [10.7 kB] 받기:35 http://kr.archive.ubuntu.com/ubuntu focal-backports/main amd64 c-n-f Metadata [1,420 B] 받기:36 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe i386 Packages [13.8 kB] 받기:37 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe amd64 Packages [25.0 kB] 받기:38 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe Translation-en [16.3 kB] 받기:39 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe amd64 DEP-11 Metadata [30.5 kB] 받기:40 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe DEP-11 48x48 Icons [13.3 kB] 받기:41 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe DEP-11 64x64 Icons [22.7 kB] 받기:42 http://kr.archive.ubuntu.com/ubuntu focal-backports/universe amd64 c-n-f Metadata [880 B] 받기:43 http://security.ubuntu.com/ubuntu focal-security/main i386 Packages [672 kB] 받기:44 http://security.ubuntu.com/ubuntu focal-security/main Translation-en [398 kB] 받기:45 http://security.ubuntu.com/ubuntu focal-security/main amd64 DEP-11 Metadata [59.9 kB] 받기:46 http://security.ubuntu.com/ubuntu focal-security/main DEP-11 48x48 Icons [18.9 kB] 받기:47 http://security.ubuntu.com/ubuntu focal-security/main DEP-11 64x64 Icons [36.0 kB] 받기:48 http://security.ubuntu.com/ubuntu focal-security/main amd64 c-n-f Metadata [13.2 kB] 받기:49 http://security.ubuntu.com/ubuntu focal-security/restricted amd64 Packages [2,367 kB] 받기:50 http://security.ubuntu.com/ubuntu focal-security/restricted i386 Packages [34.7 kB] 받기:51 http://security.ubuntu.com/ubuntu focal-security/restricted Translation-en [329 kB] 받기:52 http://security.ubuntu.com/ubuntu focal-security/restricted amd64 c-n-f Metadata [552 B] 받기:53 http://security.ubuntu.com/ubuntu focal-security/universe amd64 Packages [898 kB] 받기:54 http://security.ubuntu.com/ubuntu focal-security/universe i386 Packages [621 kB] 받기:55 http://security.ubuntu.com/ubuntu focal-security/universe Translation-en [188 kB] 받기:56 http://security.ubuntu.com/ubuntu focal-security/universe amd64 DEP-11 Metadata [96.6 kB] 받기:57 http://security.ubuntu.com/ubuntu focal-security/universe DEP-11 48x48 Icons [55.5 kB] 받기:58 http://security.ubuntu.com/ubuntu focal-security/universe DEP-11 64x64 Icons [106 kB] 받기:59 http://security.ubuntu.com/ubuntu focal-security/universe amd64 c-n-f Metadata [19.2 kB] 받기:60 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 Packages [23.6 kB] 받기:61 http://security.ubuntu.com/ubuntu focal-security/multiverse i386 Packages [7,188 B] 받기:62 http://security.ubuntu.com/ubuntu focal-security/multiverse Translation-en [5,504 B] 받기:63 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 DEP-11 Metadata [940 B] 받기:64 http://security.ubuntu.com/ubuntu focal-security/multiverse DEP-11 48x48 Icons [1,867 B] 받기:65 http://security.ubuntu.com/ubuntu focal-security/multiverse DEP-11 64x64 Icons [2,497 B] 받기:66 http://security.ubuntu.com/ubuntu focal-security/multiverse amd64 c-n-f Metadata [548 B] 내려받기 20.2 M바이트, 소요시간 7초 (2,763 k바이트/초) 패키지 목록을 읽는 중입니다... 완료 minimonk@ministor:~$ sudo apt install default-jre 패키지 목록을 읽는 중입니다... 완료 의존성 트리를 만드는 중입니다 상태 정보를 읽는 중입니다... 완료 다음 패키지가 자동으로 설치되었지만 더 이상 필요하지 않습니다: libfprint-2-tod1 libllvm10 'sudo apt autoremove'를 이용하여 제거하십시오. 다음의 추가 패키지가 설치될 것입니다 : ca-certificates-java default-jre-headless fonts-dejavu-extra java-common libatk-wrapper-java libatk-wrapper-java-jni openjdk-11-jre openjdk-11-jre-headless 제안하는 패키지: fonts-ipafont-gothic fonts-ipafont-mincho fonts-wqy-microhei | fonts-wqy-zenhei 다음 새 패키지를 설치할 것입니다: ca-certificates-java default-jre default-jre-headless fonts-dejavu-extra java-common libatk-wrapper-java libatk-wrapper-java-jni openjdk-11-jre openjdk-11-jre-headless 0개 업그레이드, 9개 새로 설치, 0개 제거 및 452개 업그레이드 안 함. 38.4 M바이트/40.5 M바이트 아카이브를 받아야 합니다. 이 작업 후 184 M바이트의 디스크 공간을 더 사용하게 됩니다. 계속 하시겠습니까? [Y/n] 받기:1 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre-headless amd64 11.0.20.1+1-0ubuntu1~20.04 [38.2 MB] 받기:2 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 ca-certificates-java all 20190405ubuntu1.1 [12.4 kB] 받기:3 http://kr.archive.ubuntu.com/ubuntu focal-updates/main amd64 openjdk-11-jre amd64 11.0.20.1+1-0ubuntu1~20.04 [193 kB] 내려받기 38.4 M바이트, 소요시간 12초 (3,276 k바이트/초) Selecting previously unselected package java-common. (데이터베이스 읽는중 ...현재 181405개의 파일과 디렉터리가 설치되어 있습니다.) Preparing to unpack .../0-java-common_0.72_all.deb ... Unpacking java-common (0.72) ... Selecting previously unselected package openjdk-11-jre-headless:amd64. Preparing to unpack .../1-openjdk-11-jre-headless_11.0.20.1+1-0ubuntu1~20.04_amd 64.deb ... Unpacking openjdk-11-jre-headless:amd64 (11.0.20.1+1-0ubuntu1~20.04) ... Selecting previously unselected package default-jre-headless. Preparing to unpack .../2-default-jre-headless_2%3a1.11-72_amd64.deb ... Unpacking default-jre-headless (2:1.11-72) ... Selecting previously unselected package ca-certificates-java. Preparing to unpack .../3-ca-certificates-java_20190405ubuntu1.1_all.deb ... Unpacking ca-certificates-java (20190405ubuntu1.1) ... Selecting previously unselected package openjdk-11-jre:amd64. Preparing to unpack .../4-openjdk-11-jre_11.0.20.1+1-0ubuntu1~20.04_amd64.deb .. . Unpacking openjdk-11-jre:amd64 (11.0.20.1+1-0ubuntu1~20.04) ... Selecting previously unselected package default-jre. Preparing to unpack .../5-default-jre_2%3a1.11-72_amd64.deb ... Unpacking default-jre (2:1.11-72) ... Selecting previously unselected package fonts-dejavu-extra. Preparing to unpack .../6-fonts-dejavu-extra_2.37-1_all.deb ... Unpacking fonts-dejavu-extra (2.37-1) ... Selecting previously unselected package libatk-wrapper-java. Preparing to unpack .../7-libatk-wrapper-java_0.37.1-1_all.deb ... Unpacking libatk-wrapper-java (0.37.1-1) ... Selecting previously unselected package libatk-wrapper-java-jni:amd64. Preparing to unpack .../8-libatk-wrapper-java-jni_0.37.1-1_amd64.deb ... Unpacking libatk-wrapper-java-jni:amd64 (0.37.1-1) ... java-common (0.72) 설정하는 중입니다 ... fonts-dejavu-extra (2.37-1) 설정하는 중입니다 ... libatk-wrapper-java (0.37.1-1) 설정하는 중입니다 ... libatk-wrapper-java-jni:amd64 (0.37.1-1) 설정하는 중입니다 ... default-jre-headless (2:1.11-72) 설정하는 중입니다 ... openjdk-11-jre-headless:amd64 (11.0.20.1+1-0ubuntu1~20.04) 설정하는 중입니다 ... update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/java to provid e /usr/bin/java (java) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/jjs to provide /usr/bin/jjs (jjs) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/keytool to pro vide /usr/bin/keytool (keytool) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/rmid to provid e /usr/bin/rmid (rmid) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/rmiregistry to provide /usr/bin/rmiregistry (rmiregistry) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/pack200 to pro vide /usr/bin/pack200 (pack200) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/bin/unpack200 to p rovide /usr/bin/unpack200 (unpack200) in auto mode update-alternatives: using /usr/lib/jvm/java-11-openjdk-amd64/lib/jexec to provi de /usr/bin/jexec (jexec) in auto mode openjdk-11-jre:amd64 (11.0.20.1+1-0ubuntu1~20.04) 설정하는 중입니다 ... default-jre (2:1.11-72) 설정하는 중입니다 ... ca-certificates-java (20190405ubuntu1.1) 설정하는 중입니다 ... head: 읽기를 위해 '/etc/ssl/certs/java/cacerts'을(를) 열 수 없음: 그런 파일이나 디렉터리가 없습니다 Adding debian:Entrust.net_Premium_2048_Secure_Server_CA.pem Adding debian:SSL.com_Root_Certification_Authority_ECC.pem Adding debian:IdenTrust_Commercial_Root_CA_1.pem Adding debian:QuoVadis_Root_CA_1_G3.pem Adding debian:emSign_ECC_Root_CA_-_G3.pem Adding debian:GeoTrust_Primary_Certification_Authority_-_G2.pem Adding debian:TrustCor_RootCert_CA-1.pem Adding debian:XRamp_Global_CA_Root.pem Adding debian:DigiCert_Global_Root_G2.pem Adding debian:Global_Chambersign_Root_-_2008.pem Adding debian:GlobalSign_ECC_Root_CA_-_R5.pem Adding debian:Cybertrust_Global_Root.pem Adding debian:ISRG_Root_X1.pem Adding debian:Microsoft_ECC_Root_Certificate_Authority_2017.pem Adding debian:Actalis_Authentication_Root_CA.pem Adding debian:Comodo_AAA_Services_root.pem Adding debian:Hongkong_Post_Root_CA_1.pem Adding debian:CFCA_EV_ROOT.pem Adding debian:AffirmTrust_Commercial.pem Adding debian:DigiCert_Global_Root_CA.pem Adding debian:GTS_Root_R1.pem Adding debian:IdenTrust_Public_Sector_Root_CA_1.pem Adding debian:DigiCert_Global_Root_G3.pem Adding debian:Starfield_Services_Root_Certificate_Authority_-_G2.pem Adding debian:Atos_TrustedRoot_2011.pem Adding debian:Microsoft_RSA_Root_Certificate_Authority_2017.pem Adding debian:Hellenic_Academic_and_Research_Institutions_RootCA_2015.pem Adding debian:AffirmTrust_Premium.pem Adding debian:Hongkong_Post_Root_CA_3.pem Adding debian:DigiCert_Trusted_Root_G4.pem Adding debian:Certum_Trusted_Network_CA_2.pem Adding debian:COMODO_RSA_Certification_Authority.pem Adding debian:Certigna_Root_CA.pem Adding debian:DigiCert_High_Assurance_EV_Root_CA.pem Adding debian:DigiCert_Assured_ID_Root_G2.pem Adding debian:GDCA_TrustAUTH_R5_ROOT.pem Adding debian:Trustwave_Global_ECC_P384_Certification_Authority.pem Adding debian:Trustwave_Global_Certification_Authority.pem Adding debian:SwissSign_Silver_CA_-_G2.pem Adding debian:Amazon_Root_CA_3.pem Adding debian:Amazon_Root_CA_2.pem Adding debian:Hellenic_Academic_and_Research_Institutions_RootCA_2011.pem Adding debian:Microsec_e-Szigno_Root_CA_2009.pem Adding debian:OISTE_WISeKey_Global_Root_GC_CA.pem Adding debian:Go_Daddy_Root_Certificate_Authority_-_G2.pem Adding debian:COMODO_ECC_Certification_Authority.pem Adding debian:QuoVadis_Root_CA.pem Adding debian:Staat_der_Nederlanden_Root_CA_-_G3.pem Adding debian:Security_Communication_RootCA2.pem Adding debian:Certigna.pem Adding debian:Trustwave_Global_ECC_P256_Certification_Authority.pem Adding debian:certSIGN_ROOT_CA.pem Adding debian:QuoVadis_Root_CA_2_G3.pem Adding debian:CA_Disig_Root_R2.pem Adding debian:T-TeleSec_GlobalRoot_Class_2.pem Adding debian:Autoridad_de_Certificacion_Firmaprofesional_CIF_A62634068.pem Adding debian:USERTrust_ECC_Certification_Authority.pem Adding debian:Buypass_Class_2_Root_CA.pem Adding debian:Entrust_Root_Certification_Authority_-_G2.pem Adding debian:VeriSign_Universal_Root_Certification_Authority.pem Adding debian:QuoVadis_Root_CA_2.pem Adding debian:TeliaSonera_Root_CA_v1.pem Adding debian:EC-ACC.pem Adding debian:GlobalSign_Root_CA_-_R6.pem Adding debian:Starfield_Class_2_CA.pem Adding debian:TWCA_Global_Root_CA.pem Adding debian:GTS_Root_R2.pem Adding debian:Staat_der_Nederlanden_EV_Root_CA.pem Adding debian:AffirmTrust_Premium_ECC.pem Adding debian:Network_Solutions_Certificate_Authority.pem Adding debian:QuoVadis_Root_CA_3.pem Adding debian:ePKI_Root_Certification_Authority.pem Adding debian:Entrust_Root_Certification_Authority_-_G4.pem Adding debian:AffirmTrust_Networking.pem Adding debian:COMODO_Certification_Authority.pem Adding debian:UCA_Extended_Validation_Root.pem Adding debian:SecureSign_RootCA11.pem Adding debian:Entrust_Root_Certification_Authority.pem Adding debian:emSign_Root_CA_-_G1.pem Adding debian:SZAFIR_ROOT_CA2.pem Adding debian:TWCA_Root_Certification_Authority.pem Adding debian:GlobalSign_ECC_Root_CA_-_R4.pem Adding debian:UCA_Global_G2_Root.pem Adding debian:GTS_Root_R3.pem Adding debian:AC_RAIZ_FNMT-RCM.pem Adding debian:Certum_Trusted_Network_CA.pem Adding debian:SSL.com_EV_Root_Certification_Authority_ECC.pem Adding debian:D-TRUST_Root_Class_3_CA_2_2009.pem Adding debian:E-Tugra_Certification_Authority.pem Adding debian:Chambers_of_Commerce_Root_-_2008.pem Adding debian:TrustCor_RootCert_CA-2.pem Adding debian:SSL.com_EV_Root_Certification_Authority_RSA_R2.pem Adding debian:SecureTrust_CA.pem Adding debian:TUBITAK_Kamu_SM_SSL_Kok_Sertifikasi_-_Surum_1.pem Adding debian:Buypass_Class_3_Root_CA.pem Adding debian:e-Szigno_Root_CA_2017.pem Adding debian:D-TRUST_Root_Class_3_CA_2_EV_2009.pem Adding debian:ACCVRAIZ1.pem Adding debian:Secure_Global_CA.pem Adding debian:Amazon_Root_CA_4.pem Adding debian:GTS_Root_R4.pem Adding debian:certSIGN_Root_CA_G2.pem Adding debian:Amazon_Root_CA_1.pem Adding debian:Sonera_Class_2_Root_CA.pem Adding debian:emSign_Root_CA_-_C1.pem Adding debian:ssl-cert-snakeoil.pem Adding debian:GlobalSign_Root_CA.pem Adding debian:DigiCert_Assured_ID_Root_CA.pem Adding debian:Security_Communication_Root_CA.pem Adding debian:Entrust_Root_Certification_Authority_-_EC1.pem Adding debian:Go_Daddy_Class_2_CA.pem Adding debian:Trustis_FPS_Root_CA.pem Adding debian:Baltimore_CyberTrust_Root.pem Adding debian:NetLock_Arany_=Class_Gold=_Főtanúsítvány.pem Adding debian:TrustCor_ECA-1.pem Adding debian:SwissSign_Gold_CA_-_G2.pem Adding debian:QuoVadis_Root_CA_3_G3.pem Adding debian:DigiCert_Assured_ID_Root_G3.pem Adding debian:OISTE_WISeKey_Global_Root_GB_CA.pem Adding debian:Starfield_Root_Certificate_Authority_-_G2.pem Adding debian:emSign_ECC_Root_CA_-_C3.pem Adding debian:Hellenic_Academic_and_Research_Institutions_ECC_RootCA_2015.pem Adding debian:GlobalSign_Root_CA_-_R2.pem Adding debian:USERTrust_RSA_Certification_Authority.pem Adding debian:GlobalSign_Root_CA_-_R3.pem Adding debian:Izenpe.com.pem Adding debian:NAVER_Global_Root_Certification_Authority.pem Adding debian:SSL.com_Root_Certification_Authority_RSA.pem Adding debian:T-TeleSec_GlobalRoot_Class_3.pem done. Processing triggers for fontconfig (2.13.1-2ubuntu3) ... Processing triggers for desktop-file-utils (0.24-1ubuntu3) ... Processing triggers for mime-support (3.64ubuntu1) ... Processing triggers for hicolor-icon-theme (0.17-2) ... Processing triggers for gnome-menus (3.36.0-1ubuntu1) ... Processing triggers for man-db (2.9.1-1) ... Processing triggers for ca-certificates (20210119~20.04.2) ... Updating certificates in /etc/ssl/certs... 0 added, 0 removed; done. Running hooks in /etc/ca-certificates/update.d... done. done. minimonk@ministor:~$ minimonk@ministor:~$ minimonk@ministor:~$ sudo ./install_msm.sh + dpkg -i lib-utils2_1.00-07_all.deb (데이터베이스 읽는중 ...현재 181809개의 파일과 디렉터리가 설치되어 있습니다.) Preparing to unpack lib-utils2_1.00-07_all.deb ... Installing.... Unpacking lib-utils2 (1.00-07) over (1.00-07) ... lib-utils2 (1.00-07) 설정하는 중입니다 ... + dpkg -i megaraid-storage-manager_15.03.01-00_all.deb (데이터베이스 읽는중 ...현재 181809개의 파일과 디렉터리가 설치되어 있습니다.) Preparing to unpack megaraid-storage-manager_15.03.01-00_all.deb ... Framework running Inside loadVivaldikeyProp localePath for res file::ko frameworkWWN :192.168.219.199:3071:0 frameworkWWN :192.168.219.199:3071:0 System time before socket connection:Tue Nov 14 14:46:19 KST 2023 SSL_STRONG_ENCRYPTION File Name is ::./StrongSSLEncryption.ini iniFlag isDISABLE frameworkWWN :192.168.219.199:3071:0 LOCAL Registered client :: 192.168.219.199:3071:0 LOCAL Registered client :: 127.0.0.1:0:1 frameworkWWN :192.168.219.199:3071:0 ActiveClientList created No machines Found / / Shutting down Framework: Installing.... Unpacking megaraid-storage-manager (15.03.01-00) over (15.03.01-00) ... megaraid-storage-manager (15.03.01-00) 설정하는 중입니다 ... /var/lib/dpkg/info/megaraid-storage-manager.postinst: 줄 20: /usr/local/MegaRAID Storage Manager/installtype: 그런 파일이나 디렉터리가 없습니다 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 27 줄: cd: /usr/local/MegaRAID Storage Manager: 그런 파일이나 디렉터리가 없습니다 chmod: 'MegaPopup'에 접근할 수 없습니다: 그런 파일이나 디렉터리가 없습니다 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 29 줄: cd: OLDPWD 설정되지 않음 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 30 줄: cd: /usr/local/MegaRAID Storage Manager/MegaPopup: 그런 파일이나 디렉터리가 없습니다 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 32 줄: cd: OLDPWD 설정되지 않음 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 36 줄: cd: /usr/local/MegaRAID Storage Manager/MegaMonitor: 그런 파일이나 디렉터리가 없습니다 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 38 줄: cd: OLDPWD 설정되지 않음 /var/lib/dpkg/info/megaraid-storage-manager.postinst: 줄 200: /usr/local/MegaRAID Storage Manager/pwd.sh: 그런 파일이나 디렉터리가 없습니다 chmod: '/etc/init.d/msm_profile'에 접근할 수 없습니다: 그런 파일이나 디렉터리가 없습니다 Processing triggers for systemd (245.4-4ubuntu3.15) ... Processing triggers for libc-bin (2.31-0ubuntu9.7) ... + sleep 10 + ps -ea + grep -i java 3339 pts/1 00:00:05 java 3404 ? 00:00:00 java 6809 pts/1 00:00:00 java + killall java + ps -ea + grep -i java 3339 pts/1 00:00:05 java 3404 ? 00:00:00 java <defunct> 6809 pts/1 00:00:00 java + /etc/init.d/vivaldiframeworkd stop Shutting down Framework: + sleep 5 sh: 0: Can't open /Framework/shutdown.sh + /etc/init.d/vivaldiframeworkd start Framework is already running..... + sleep 10 + update-rc.d vivaldiframeworkd defaults + cd /usr/local/MegaRAID*/ ./install_msm.sh: 15: cd: can't cd to /usr/local/MegaRAID*/ + chmod 755 startupui.sh chmod: 'startupui.sh'에 접근할 수 없습니다: 그런 파일이나 디렉터리가 없습니다 + ./startupui.sh ./install_msm.sh: 17: ./startupui.sh: not found minimonk@ministor:~$ ls -al -bash: /usr/bin/ls: 허가 거부 minimonk@ministor:~$ pwd /home/minimonk minimonk@ministor:~$ sudo su - -bash: /usr/bin/sudo: 허가 거부 minimonk@ministor:~$ |
| MegaCLI (0) | 2024.04.01 |
|---|---|
| MegaRAID Storage Manager(MSM) 설치완료 (0) | 2024.04.01 |
| msm - Megaraid Storage Management (0) | 2022.11.27 |
| smartctl을 이용하여 개별하드 상태보기 (0) | 2019.03.15 |
| iscsi mdadm (0) | 2019.03.13 |
[링크 : https://kyumdoctor.tistory.com/83]
[링크 : https://www.supermicro.com/en/products/accessories/addon/AOC-USAS2LP-H8iR.php]
SMC2108 AOC-SAS2LP-H8IR
| MegaRAID Storage Manager(MSM) 설치완료 (0) | 2024.04.01 |
|---|---|
| msm (megaraid) 관리 설치 실패 (0) | 2023.11.14 |
| smartctl을 이용하여 개별하드 상태보기 (0) | 2019.03.15 |
| iscsi mdadm (0) | 2019.03.13 |
| LSI raid ir it mode (0) | 2019.03.11 |
smart 정보는 따로 megaraid를 통해 받아올수는 있다.
굳이 hdsentinel 안깔아도 되겠네 싶긴한데
아래의 N은 인터페이스 번호라고 해야하나. /dev/sda는 의미없고
-d megaraid,00
-d megaraid,01 에 따라 하드 데이터가 다르게 올라온다.
# smartctl -a /dev/sda smartctl 6.5 2016-05-07 r4318 [x86_64-linux-3.10.0-957.5.1.el7.x86_64] (local build) Copyright (C) 2002-16, Bruce Allen, Christian Franke, www.smartmontools.org Smartctl open device: /dev/sda failed: DELL or MegaRaid controller, please try adding '-d megaraid,N' |
[링크 : https://serverfault.com/.../how-to-monitor-the-hard-disk-status-behind-dell-perc-h710-...]
| msm (megaraid) 관리 설치 실패 (0) | 2023.11.14 |
|---|---|
| msm - Megaraid Storage Management (0) | 2022.11.27 |
| iscsi mdadm (0) | 2019.03.13 |
| LSI raid ir it mode (0) | 2019.03.11 |
| RAID6 라서 오래 걸리나.. 백그라운드 초기화라 오래 걸리나? (0) | 2019.03.06 |
iscsi를 통해 ethernet으로 SAN을 구성하고
mdadm으로 SCSI RAID를 구축, 스토리지 서버 팜(?)을 만드는 듯
[링크 : https://wiki.alpinelinux.org/wiki/ISCSI_Raid_and_Clustered_File_Systems]
[링크 : https://www.mylinuxplace.com/distributed-raid-over-iscsi/]
| msm - Megaraid Storage Management (0) | 2022.11.27 |
|---|---|
| smartctl을 이용하여 개별하드 상태보기 (0) | 2019.03.15 |
| LSI raid ir it mode (0) | 2019.03.11 |
| RAID6 라서 오래 걸리나.. 백그라운드 초기화라 오래 걸리나? (0) | 2019.03.06 |
| raid5 vs raid6 vs raid10 (0) | 2019.03.04 |
it mode 에 대한 용어는 자주 보이는데 IR mode는 잘 안보여서 검색
일단 LSI raid에서 나오는 용어로 보이는데
HBA 컨트롤러용 펌웨어로 IR 펌웨어를 쓰면 Raid로 작동하고
IT 펌웨어를 쓰면 HBA로 작동하는 녀석인 듯?
The two firmware types are Initiator Target (IT) and Integrated RAID (IR). IR is the typical hardware RAID firmware that the internal cards or boards ship with. The IT firmware, on the other hand, is the Initiator Target firmware which is designed to allow a SAS HBA to connect to up to 256 devices using SAS Expanders. The IT firmware is typically shipped on external cards. The IT firmware does not have any RAID capabilities and simply acts as an HBA. |
[링크 : https://www.supermicro.com/support/faqs/faq.cfm?faq=16169]
| smartctl을 이용하여 개별하드 상태보기 (0) | 2019.03.15 |
|---|---|
| iscsi mdadm (0) | 2019.03.13 |
| RAID6 라서 오래 걸리나.. 백그라운드 초기화라 오래 걸리나? (0) | 2019.03.06 |
| raid5 vs raid6 vs raid10 (0) | 2019.03.04 |
| (Linux)OS 작동중에 하드를 뽑으면 어떻게 될까? (0) | 2019.02.28 |
어제 오전 10시 부터 포맷해서 걸어놓은건데..
어제 퇴근전 30%대
오늘 아침에 확인하니 71%대
지금 확인하니 98%..
근데 로그 상으로는 오전 10시에 24시간에 걸쳐서 끝나긴 했는데
RAID 상태를 확인해보면 98%
도대체 어느게 맞는 값일까?
| iscsi mdadm (0) | 2019.03.13 |
|---|---|
| LSI raid ir it mode (0) | 2019.03.11 |
| raid5 vs raid6 vs raid10 (0) | 2019.03.04 |
| (Linux)OS 작동중에 하드를 뽑으면 어떻게 될까? (0) | 2019.02.28 |
| PERC foreign RAID import (0) | 2019.02.26 |
고민고민 하다가 아직도 결정 못함
(6 디스크)
|
용량 |
속도 |
RAID 10 |
3n |
x3 |
RAID 5 + hot spare |
4n |
x1 |
RAID 6 |
4n |
x1 |
디스크 숫자로 고민하면 RAID 5 + hot spare(1) 이나 RAID 6나 용량은 같은데 전반적으로 RAID6을 지지하네
[링크 : https://serverfault.com/questions/118181/which-is-better-raid5-1-hotspare-raid6]
[링크 : https://www.zdnet.com/article/why-raid-6-stops-working-in-2019/]
[링크 : https://superuser.com/questions/212930/should-i-use-raid-5-spare-or-raid-6]
RAID5 -> RAID6로 갈 순 있는데 끈채로 가능한지 켠채로도 되는지 모르겠고
항상 그러하듯 백업은 필수..(저장 공간이 없는데?!?!?)
[링크 : https://www.dell.com/.../dell-poweredge-how-to-change-the-raid-level-of-a-virtual-disk?lang=en]
+
하드 수명도 예측 불가능하고 나갈때가 된 거 같으니
RAID 6으로 가고 예비 디스크 남겨 두는 걸로 일단 결론을...
