embeded/FPGA - ALTERA2017. 12. 29. 12:46

FPGA로 채굴하는 이야기는 들었는데

막상 장비가 다 갖춰지니 시험삼아 어떻게 돌아가는지 정도 호기심에

해볼까? 라는 생각이 드네


비트코인 채굴하는건 UART로 통신 하는걸로 보이고..

In the mining rig described here an FPGA does all the hard work (SHA-256 hashing) and communicates over a serial link with a Raspberry Pi

[링크 : https://www.rs-online.com/designspark/bitcoin-mining-with-a-raspberry-pi-and-de0-nano]

[링크 : https://github.com/progranism/Open-Source-FPGA-Bitcoin-Miner]


시리얼

Plug GPIO03 on the DE0-Nano into GPIO 15 on the Raspberry Pi.

Plug GPIO05 on the DE0-Nano into GPIO 14 on the Raspberry Pi.

-> 요건 보니.. RS-232/UART로 연결하는거 같고


패러럴

Plug GPIO 133 on the DE0-Nano into GPIO 8 on the Raspberry Pi

Plug GPIO 131 on the DE0-Nano into GPIO 10 on the Raspberry Pi

Plug GPIO 129 on the DE0-Nano into GPIO 24 on the Raspberry Pi

Plug GPIO 127 on the DE0-Nano into GPIO 4 on the Raspberry Pi

Plug GPIO 125 on the DE0-Nano into GPIO 17 on the Raspberry Pi

Plug GPIO 132 on the DE0-Nano into GPIO 22 on the Raspberry Pi

Plug GPIO 130 on the DE0-Nano into GPIO 9 on the Raspberry Pi

Plug GPIO 128 on the DE0-Nano into GPIO 25 on the Raspberry Pi

Plug GPIO 126 on the DE0-Nano into GPIO 18 on the Raspberry Pi

Plug GPIO 124 on the DE0-Nano into GPIO 23 on the Raspberry Pi

-> 요건.. 8비트 병렬 전송+2비트 제어로 순수 GPIO 제어인듯..

[링크 : http://catherineh.github.io/programming/2016/11/15/raspberry-pi-to-fpga-communication-example]


+

전반적으로 라즈베리와 통신하는게 딱히 이렇다할 고속 인터페이스가 없다 보니 어쩔수 없는 건가...

Posted by 구차니
embeded/FPGA - ALTERA2017. 12. 29. 08:41

설치해 놓은 quartus 처음 실행하니 이런거 뜨네?

일단은 걍 실행


DE0_NANO_default

KEY0를 누르면 타이밍에 따라 오작동 하는 것으로 보이는 경우가 있어서  살짝 수정

(오른쪽 LED가 밝아진 후에 KEY0를 누르면 LED0 만 꺼지고 나머지는 유지됨)


그나저나 빌드는 한참 걸리는건 매한가지구만 ㅠㅠ


메뉴 뒤지다 보니 보이는 Pin Planner.

이것도 나중에는 하나하나 해봐야 하는거구만 ㅠㅠ


작성한 프로그램을 업로드 하는 Programmer

Hardware Setup에서 설치된 JTAG 골라주고 Start 누르면 끝!


DE0_NANO_GSensor

얘는 IP 사용중인게 있는지 업데이트 하라고 한다.

Upgrade in Editor가 활성화 되길래 눌렀는데


이거 머야.. 무서워 -_ㅠ cancel 누르고 후퇴!


Perform Automatic upgrade가 최고야 ㅠㅠ


먼가 소스가 보이네.. 일단 빌드하고


막 누르다 보니 vivado에서 보던 신기한거 발견

확대하면 먼가 다른 신기한게 막 나오는데,

자일링스 것 처럼 먼가 자세하게 칩 내부 까지 보이는건 아닌거 같기도 하고..


SPI COUNT~3 에 대한 부분이 여기 있다~ 라는거 정도인가?

schematic이 같이 나와서 먼가 있어 보긴 하네


my_first_fpga

아까 캡쳐 못했던 IP upgrade recommended 메시지 찰칵!


auto upgrade가 하나만 뜨네.. 결국에는 Upgrade in Editor를 해야 하는건가 ㅠㅠ



아 몰라.. 그냥 무조건 Next ㅋㅋ





오.. VHDL이나 Verilog가 아니라 그냥 schematic이 나오네?


빌드해서 돌려보니 KEY0 누르면 빠르게 카운터가 증가함

'embeded > FPGA - ALTERA' 카테고리의 다른 글

de0-nano + W5100 Ethernet Shield(arduino)  (0) 2017.12.29
de0-nano + rpi = 채굴머신..  (0) 2017.12.29
DE0-nano 기본 프로그램 분석  (0) 2017.12.28
terasic DE0-Nano 부품들  (0) 2017.12.27
quartus2 설치 + usb blaster 설치  (0) 2017.12.27
Posted by 구차니
embeded/arduino(genuino)2017. 12. 28. 23:03

심심해서 짜본

바운서 개조용(?) 아두이노 나노 코드

서보는 D9 핀에 연결하도록 했고

시간은 ms 단위로 최소각도와 최대각도 사이를

편도시간으로 설정하여 반복하도록 작성했음


#include <Servo.h>
Servo servo;
int servoPin = 9;

long swing_period = 3000;
long servo_period = 10;
long swing_count  = 0;
long dir = 0;
long angle = 0;
long min_angle = 45;
long max_angle = 135;
long move_angle = max_angle - min_angle;

void setup() {
  // put your setup code here, to run once:
  servo.attach(servoPin);
}

void loop() {
  // put your main code here, to run repeatedly:
  if (swing_count < swing_period) swing_count += servo_period;
  else
  {
    swing_count = 0;
    if (dir == 0) dir = 1;
    else dir = 0;
  }

  if (dir == 0) // inc
    angle = min_angle + move_angle * swing_count / swing_period;
  else // dec
    angle = max_angle - move_angle * swing_count / swing_period;

  servo.write(angle);
  delay(servo_period);
}



정작 달아 보니

아내 왈 : 왜케 조금 움직여? 걍 떼

... 아놔.. ㅠㅠ



+

2017.12.29

개발자 아빠들이란 ㅋㅋㅋ

일단 우리집에 있는건 저렇게 전체가 흔들리는 버전이 아니라 저걸 적용하기는 무리 ㅋㅋ


[링크 : https://www.youtube.com/watch?v=lr7Dg2AO97c]

[링크 : https://www.youtube.com/watch?v=EmSneb8MVgg]

'embeded > arduino(genuino)' 카테고리의 다른 글

아두이노 미세먼지 센서  (2) 2018.03.30
USB to TTL 정보  (0) 2018.01.10

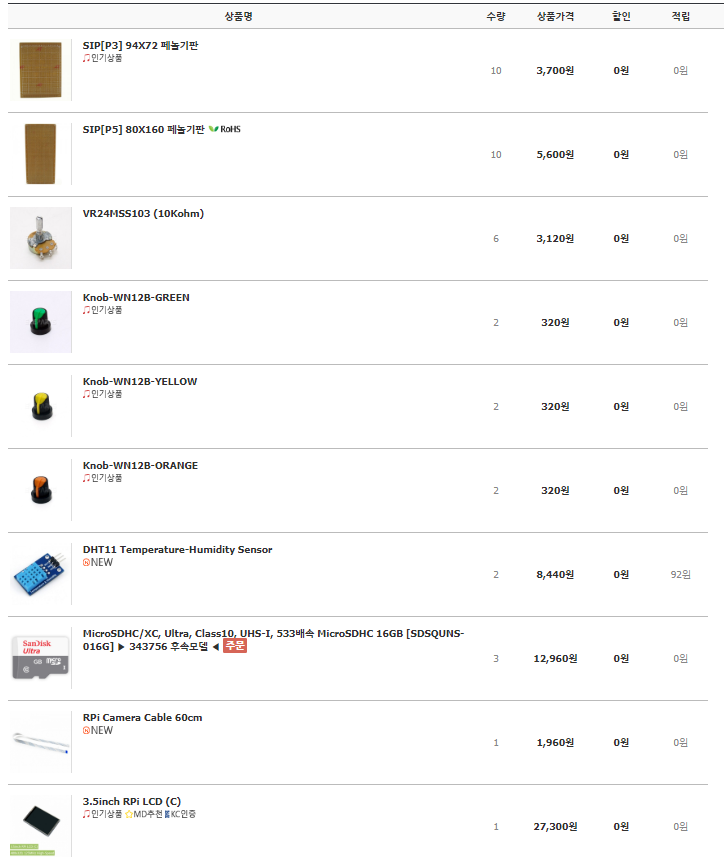

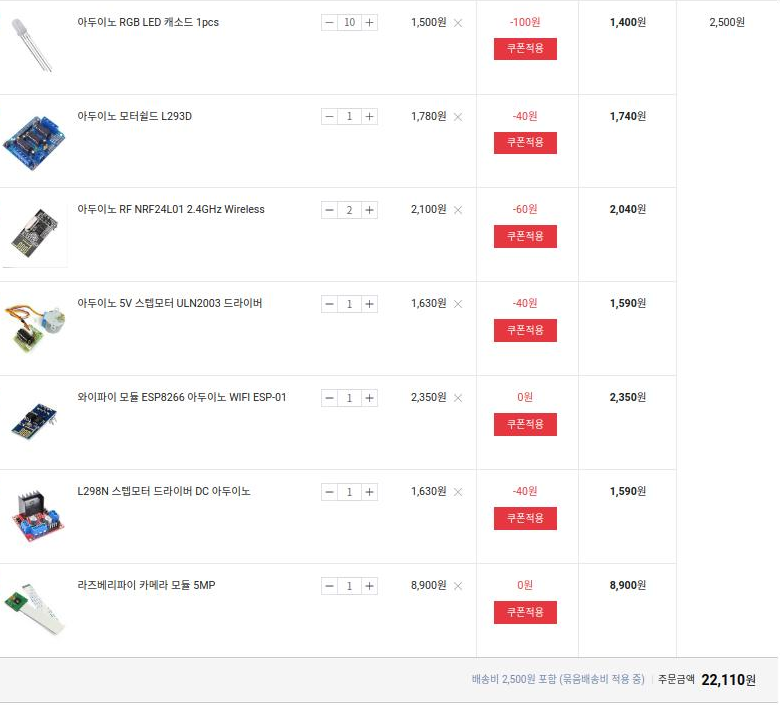

간만에 지름신  (0) 2017.10.26
릴레이로 AC전원 스위치하기  (0) 2017.10.26
hoverlabs 사의 hover 제품  (0) 2017.07.17
Posted by 구차니
embeded/Cortex-M4 Ti2017. 12. 28. 15:01

항상 만만한(?) qs-rgb 예제에서

Linker를 보다 보니... scatter 아래 Misc Control의

--entry Reset_Handler

가 보인다...?



startup_rvmdk.S에

해당 함수가 그럼 entry 포인트로 잡히고

얘는 적절한 초기화 이후 __main 을 호출하게 된다.

;******************************************************************************

;

; This is the code that gets called when the processor first starts execution

; following a reset event.

;

;******************************************************************************

        EXPORT  Reset_Handler

Reset_Handler

        ;

        ; Enable the floating-point unit.  This must be done here to handle the

        ; case where main() uses floating-point and the function prologue saves

        ; floating-point registers (which will fault if floating-point is not

        ; enabled).  Any configuration of the floating-point unit using

        ; DriverLib APIs must be done here prior to the floating-point unit

        ; being enabled.

        ;

        ; Note that this does not use DriverLib since it might not be included

        ; in this project.

        ;

        MOVW    R0, #0xED88

        MOVT    R0, #0xE000

        LDR     R1, [R0]

        ORR     R1, #0x00F00000

        STR     R1, [R0]


        ;

        ; Call the C library enty point that handles startup.  This will copy

        ; the .data section initializers from flash to SRAM and zero fill the

        ; .bss section.

        ;

        IMPORT  __main

        B       __main


그럼.. main()이 __main 으로 맹글링 되는건가?

[링크 : https://en.wikipedia.org/wiki/Name_mangling]

[링크 : http://spikez.tistory.com/19]

[링크 : http://infocenter.arm.com/help/topic/com.arm.doc.dui0205d/RVCT_Compiler_and_Libraries_D.pdf]

Posted by 구차니
embeded/FPGA - ALTERA2017. 12. 28. 13:00

큭... VHDL 공부 하는데 Verilog 라니.. 비겁하다!!!


// ============================================================================ // Copyright (c) 2011 by Terasic Technologies Inc. // ============================================================================ // // Permission: // // Terasic grants permission to use and modify this code for use // in synthesis for all Terasic Development Boards and Altera Development // Kits made by Terasic. Other use of this code, including the selling // ,duplication, or modification of any portion is strictly prohibited. // // Disclaimer: // // This VHDL/Verilog or C/C++ source code is intended as a design reference // which illustrates how these types of functions can be implemented. // It is the user's responsibility to verify their design for // consistency and functionality through the use of formal // verification methods. Terasic provides no warranty regarding the use // or functionality of this code. // // ============================================================================ // // Terasic Technologies Inc // 356 Fu-Shin E. Rd Sec. 1. JhuBei City, // HsinChu County, Taiwan // 302 // // web: http://www.terasic.com/ // email: support@terasic.com // // ============================================================================ // Major Functions/Design Description: // // Please refer to DE0_Nano_User_manual.pdf in DE0_Nano system CD. // // ============================================================================ // Revision History: // ============================================================================ // Ver.: |Author: |Mod. Date: |Changes Made: // V1.0 |EricChen |02/01/2011 | // ============================================================================ //======================================================= // This code is generated by Terasic System Builder //======================================================= module DE0_NANO( //////////// CLOCK ////////// CLOCK_50, //////////// LED ////////// LED, //////////// KEY ////////// KEY, //////////// SW ////////// SW, //////////// SDRAM ////////// DRAM_ADDR, DRAM_BA, DRAM_CAS_N, DRAM_CKE, DRAM_CLK, DRAM_CS_N, DRAM_DQ, DRAM_DQM, DRAM_RAS_N, DRAM_WE_N, //////////// EPCS ////////// EPCS_ASDO, EPCS_DATA0, EPCS_DCLK, EPCS_NCSO, //////////// Accelerometer and EEPROM ////////// G_SENSOR_CS_N, G_SENSOR_INT, I2C_SCLK, I2C_SDAT, //////////// ADC ////////// ADC_CS_N, ADC_SADDR, ADC_SCLK, ADC_SDAT, //////////// 2x13 GPIO Header ////////// GPIO_2, GPIO_2_IN, //////////// GPIO_0, GPIO_0 connect to GPIO Default ////////// GPIO_0_D, GPIO_0_IN, //////////// GPIO_0, GPIO_1 connect to GPIO Default ////////// GPIO_1_D, GPIO_1_IN, ); //======================================================= // PARAMETER declarations //======================================================= //======================================================= // PORT declarations //======================================================= //////////// CLOCK ////////// input CLOCK_50; //////////// LED ////////// output [7:0] LED; //////////// KEY ////////// input [1:0] KEY; //////////// SW ////////// input [3:0] SW; //////////// SDRAM ////////// output [12:0] DRAM_ADDR; output [1:0] DRAM_BA; output DRAM_CAS_N; output DRAM_CKE; output DRAM_CLK; output DRAM_CS_N; inout [15:0] DRAM_DQ; output [1:0] DRAM_DQM; output DRAM_RAS_N; output DRAM_WE_N; //////////// EPCS ////////// output EPCS_ASDO; input EPCS_DATA0; output EPCS_DCLK; output EPCS_NCSO; //////////// Accelerometer and EEPROM ////////// output G_SENSOR_CS_N; input G_SENSOR_INT; output I2C_SCLK; inout I2C_SDAT; //////////// ADC ////////// output ADC_CS_N; output ADC_SADDR; output ADC_SCLK; input ADC_SDAT; //////////// 2x13 GPIO Header ////////// inout [12:0] GPIO_2; input [2:0] GPIO_2_IN; //////////// GPIO_0, GPIO_0 connect to GPIO Default ////////// inout [33:0] GPIO_0_D; input [1:0] GPIO_0_IN; //////////// GPIO_0, GPIO_1 connect to GPIO Default ////////// inout [33:0] GPIO_1_D; input [1:0] GPIO_1_IN; //======================================================= // REG/WIRE declarations //======================================================= wire reset_n; reg [26:0] counter; reg [5:0] PWM_adj; reg [6:0] PWM_width; reg [7:0] LED; //======================================================= // Structural coding //======================================================= assign reset_n = KEY[0]; always @(posedge CLOCK_50 or negedge reset_n) begin if(!reset_n) begin counter <= 0; LED[0] <= 0; end else begin counter <= counter+1; PWM_width <= PWM_width[5:0]+ PWM_adj; if(counter[26]) begin PWM_adj <= counter[25:20]; end else begin PWM_adj <= ~ counter[25:20]; end LED[0] <= ~PWM_width[6]; LED[1] <= ~PWM_width[6]; LED[2] <= ~PWM_width[6]; LED[3] <= ~PWM_width[6]; LED[4] <= PWM_width[6]; LED[5] <= PWM_width[6]; LED[6] <= PWM_width[6]; LED[7] <= PWM_width[6]; end end endmodule


일단.. 눈에 들어오는 키워드는

begin - end 구조 동일해 보이고..

postedge CLOCK_50 으로 50Mhz OSC입력을 positive edge 니까.. rising edge일려나?

negedge reset_n 이니까.. KEY_0를 RESET_N으로 맵핑했고(작동이 그러니까..)

그게 falling edge로 잡히면 트리거 되서 작동하는데

!reset_n이면 카운터와 LED[0]을 0으로 각각 셋팅(LED 0번만 끄고 counter를 0으로 설정)

reset_n이면

카운터(27비트 = 134,217,728)를 증가하면서 PWM_Width 값을 더해주는데

카운터의 MSB가 1이 되면 (67,108,864 초과) counter의 25~20번째 비트를 복사하고

0이면 counter의 25~20번째 비트를 negate 시켜서 (그러니까 감소) 복사한다.

그래서 LED[0:7] 에 PWM_width를 입력해 주는데

가장 상위 비트만 출력함으로서

0과 1을 50Mhz에 연동해서 빠르게 on/off 함으로서 PWM을 구현하게 되는건가?



+

posedge means the transition from 0 to 1

negedge the oposit transition from 1 to 0

그러니까.. posedge는 rising edge고, negedge는 falling edge가 맞겠네?

[링크 : http://www.alteraforum.com/forum/showthread.php?t=19611]

'embeded > FPGA - ALTERA' 카테고리의 다른 글

de0-nano + rpi = 채굴머신..  (0) 2017.12.29
de0-nano 기본 예제 올려봄  (0) 2017.12.29
terasic DE0-Nano 부품들  (0) 2017.12.27
quartus2 설치 + usb blaster 설치  (0) 2017.12.27
de0-nano LED 예제  (0) 2017.12.27
Posted by 구차니
embeded/Cortex-M4 Ti2017. 12. 28. 11:33

ICDI로 설정하고 일단은

부트로더 올리고

LM Flash 통해서 0x1000 에 시작 주소가 0x1000으로 바꾼 qs-rgb를 올리니

(Erase Method를 아무생각없이 Entire로 해서 몇번 고생..)

부트로더 안멈추고 바로 qs-rgb로 시작하는데..

부트로더에서 몇 초 기다리게는 못하려나?


올리고 나서 검증을 위해 Flash Utilties에서 부분 삭제를 해보니

부트로더에서 LED 흰색으로 켜지게 해준거 나오는거 봐서..

부팅이 진행가능하면 바로 qs-rgb로 넘어 가는거 같네...

수정한 내용

0x00000000 -> 0x00001000

;******************************************************************************

;

; qs-rgb.sct - Linker configuration file for qs-rgb.

;

; Copyright (c) 2012-2016 Texas Instruments Incorporated.  All rights reserved.

; Software License Agreement

; Texas Instruments (TI) is supplying this software for use solely and

; exclusively on TI's microcontroller products. The software is owned by

; TI and/or its suppliers, and is protected under applicable copyright

; laws. You may not combine this software with "viral" open-source

; software in order to form a larger program.

; THIS SOFTWARE IS PROVIDED "AS IS" AND WITH ALL FAULTS.

; NO WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT

; NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR

; A PARTICULAR PURPOSE APPLY TO THIS SOFTWARE. TI SHALL NOT, UNDER ANY

; CIRCUMSTANCES, BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL

; DAMAGES, FOR ANY REASON WHATSOEVER.

; This is part of revision 2.1.3.156 of the EK-TM4C123GXL Firmware Package.

;

;******************************************************************************


LR_IROM 0x00001000 0x00040000

{

    ;

    ; Specify the Execution Address of the code and the size.

    ;

    ER_IROM 0x00001000 0x00040000

    {

        *.o (RESET, +First)

        * (InRoot$$Sections, +RO)

    }


    ;

    ; Specify the Execution Address of the data area.

    ;

    RW_IRAM 0x20000000 0x00008000

    {

        ;

        ; Uncomment the following line in order to use IntRegister().

        ;

        ;* (vtable, +First)

        * (+RW, +ZI)

    }


+

//*****************************************************************************

//

// Allows an application to perform in-place data decryption during download.

//

// If hooked, this function will be called on receipt of any new block of

// downloaded firmware image data.  The application must decrypt this data

// in place then return at which point the boot loader will write the data to

// flash.

//

// void MyDecryptionFunc(unsigned char *pucBuffer, unsigned long ulSize);

//

// where:

//

// - pucBuffer points to the first byte of data to be decrypted.

// - ulSize indicates the number of bytes of data at pucBuffer.

//

//*****************************************************************************

//#define BL_DECRYPT_FN_HOOK      MyDecryptionFunc


bl_check.c 소스에서

사용자 함수 확인 부분과 시작 어드레스(기본값은 0x00001000) 에서

바이너리가 존재할 경우 확인하는 부분

uint32_t

CheckForceUpdate(void)

{

#ifdef CHECK_CRC

    uint32_t ui32Retcode;

#endif


#ifdef BL_CHECK_UPDATE_FN_HOOK

    //

    // If the update check function is hooked, call the application to determine

    // how to proceed.

    //

    return(BL_CHECK_UPDATE_FN_HOOK());

#else

    uint32_t *pui32App;


#ifdef ENABLE_UPDATE_CHECK

    g_ui32Forced = 0;

#endif


    //

    // See if the first location is 0xfffffffff or something that does not

    // look like a stack pointer, or if the second location is 0xffffffff or

    // something that does not look like a reset vector.

    //

    pui32App = (uint32_t *)APP_START_ADDRESS;

    if((pui32App[0] == 0xffffffff) ||

       ((pui32App[0] & 0xfff00000) != 0x20000000) ||

       (pui32App[1] == 0xffffffff) ||

       ((pui32App[1] & 0xfff00001) != 0x00000001))

    {

        return(1);

    }

...


빌드된 바이너리 파일을 보면 0x20000df8 이라고 해야하나? 아무튼 이 정보를 가지고 비교하는 듯


Posted by 구차니
embeded/DSP C2000 Ti2017. 12. 28. 09:21

가격이 매너가 없네...

XDS200 이상을 사용하면 될거 같긴한데

호환제품도 드럽게 비싸서.. wiggler 처럼 패러럴 쓰는 염가형은 없나?


[링크 : http://www.tms320.co.kr/shop/goods/goods_view.php?&goodsno=200903031]

[링크 : http://www.tms320.co.kr/shop/goods/goods_view.php?&goodsno=200903075]


TMS320F2808

F280x 시리즈

F2808: 64K x 16 Flash, 18K x 16 SARAM

C28x 계열 아키텍쳐?


5 Device Support

Texas Instruments (TI) offers an extensive line of development tools for the C28x™ generation of DSPs,

including tools to evaluate the performance of the processors, generate code, develop algorithm

implementations, and fully integrate and debug software and hardware modules.

The following products support development of 280x-based applications:

Software Development Tools

• Code Composer Studio™ Integrated Development Environment (IDE)

– C/C++ Compiler

– Code generation tools

– Assembler/Linker

– Cycle Accurate Simulator

• Application algorithms

• Sample applications code

Hardware Development Tools

• 2808 eZdsp™

• Evaluation modules

• JTAG-based emulators - SPI515, XDS510PP, XDS510PP Plus, XDS510USB

• Universal 5-V dc power supply

• Documentation and cables

[링크 : http://www.ti.com/lit/ds/symlink/tms320f2809.pdf]


XDS 100v2 한 9만원은 생각해야 하네... ㄷㄷ

[링크 : http://eleparts.co.kr/EPX3FY3P] XDS100v2

[링크 : http://eleparts.co.kr/EPX7X37M] XDS100v3

[링크 : http://eleparts.co.kr/EPX86FR7] XDS100v3

[링크 : http://processors.wiki.ti.com/index.php/XDS100]

'embeded > DSP C2000 Ti' 카테고리의 다른 글

CCSv6 설치 시도... 실패 ㅠㅠ  (0) 2018.02.09
Code Composer Studio - CCS  (0) 2018.02.09
xds510usb xds510pp  (0) 2018.02.09
MCU와 DSP 차이점  (0) 2017.12.29
TI TMS320DM368용 JTAG  (0) 2013.07.03
Posted by 구차니
embeded/FPGA - ALTERA2017. 12. 27. 21:40

ALTERA EP4C EP4CE22F17C6N Cyclone IV - U1

[링크 : https://www.altera.com/.../global/en_US/pdfs/literature/hb/cyclone-iv/cyiv-51001.pdf


SPANSION FL064PIF 64MBit(8MB) 3.0V SPI FLASH - U9 - EPCS64

악의적이라고 해야하나? 메뉴얼에는 단위가 통일되어 있지 않다.

[링크 : http://www.cypress.com/file/196856/download]


ISSI IS42S16160G-7TLI 256Mb(32MB) SDRAM - U5

[링크 : http://www.issi.com/WW/pdf/42-45S83200G-16160G.pdf]


microchip 24LC02B 2K i2c eeprom - U6

얜... 용도가 멀까? i2c 테스트용?

I2C address 0xA0

[링크 : http://ww1.microchip.com/downloads/en/DeviceDoc/21709c.pdf]


Ti SN74AUC17 슈미트 트리거 버퍼(스위치용) - U2

[링크 : http://www.ti.com/general/docs/lit/getliterature.tsp?genericPartNumber=SN74AUC17&fileType=pdf]


ADXL345 디지털 가속도계 - U3

[링크 : http://www.analog.com/media/en/technical-documentation/data-sheets/ADXL345.pdf


Ti ADC128S022 8ch, 50kSPS~200kSPS, 12bit ADC - U4

[링크 : http://www.ti.com/general/docs/lit/...genericPartNumber=ADC128S022...pdf


LDO

[링크 : http://www.ti.com/lit/ds/symlink/lp5900.pdf] 3.3V / 1.2V

[링크 : http://www.ti.com/lit/ds/symlink/lp38500-adj.pdf] 2.5V


---

아래 두개는 schematic에서 누락된 부분. USB Blaster 구성품으로 추측된다.


ALTERA EPM240M100C4N MAX II 시리즈 - U8

용도불명 -ㅁ-

[링크 : https://www.altera.com/en_US/pdfs/literature/dp/max2/epm240z.pdf]


FDTI FT245BL - U7

USB to Parallel?

[링크 : http://www.ftdichip.com/Support/Documents/DataSheets/ICs/DS_FT245BL.pdf]

'embeded > FPGA - ALTERA' 카테고리의 다른 글

de0-nano 기본 예제 올려봄  (0) 2017.12.29
DE0-nano 기본 프로그램 분석  (0) 2017.12.28
quartus2 설치 + usb blaster 설치  (0) 2017.12.27
de0-nano LED 예제  (0) 2017.12.27
altera 교육자료 요약  (0) 2017.12.27
Posted by 구차니
embeded/FPGA - ALTERA2017. 12. 27. 20:48

Quartus Lite 17.1.0.590을 받으면서

ModelSim 도 같이 받았는데 음.. Quartus에 일정부분은 포함되어 있나 보네

그리고 Cyclone IV만 포함되어 있는데.. 내가 선택한건가? 왜 이거 뿐이지?



다 깔고나서 USB Blaster 2 설치하도록 하네..


Altera(WinUSB) JTAG cables라는 이름으로 심심하게(?) 깔린다.


근데 얘는 다른거고.. DE0-nano는 usb blaster라 인식을 안하니까

quartus 2 기본값 설치시 C:\intelFPGA_lite\17.1\quartus\drivers 하위에 드라이버가 존재하고

USB Blaster를 통해 설치하면 된다.

[링크 : https://www.altera.com/support/support-resources/download/drivers/usb-blaster/dri-usb-blaster-vista.html]


+

2017.12.28

tersaic de0-nano\Demonstration\EPCS_Patch\nios2-flash-override.txt

위의 파일은

C:\intelFPGA_lite\17.1\nios2eds\bin 에 복사해주면 된다고 함.

[링크 : https://blog.naver.com/acidc/220616936189]

'embeded > FPGA - ALTERA' 카테고리의 다른 글

DE0-nano 기본 프로그램 분석  (0) 2017.12.28
terasic DE0-Nano 부품들  (0) 2017.12.27
de0-nano LED 예제  (0) 2017.12.27
altera 교육자료 요약  (0) 2017.12.27
GHDL - 시뮬레이터  (0) 2017.12.26
Posted by 구차니
embeded/FPGA - ALTERA2017. 12. 27. 13:48

카페자료 퍼옴..

그나저나 이거 언제 해보려나..


VHDL 코드나 일단 한줄한줄 분석해보고

글 쓰신분에게 코드 복사해가도 되나 물어 봐야겠다..


[링크 : http://cafe.naver.com/alteratown/6574]



syntax highlight(notepad++) 하니 굳이 주석 안달아도 될 느낌?

library ieee; use ieee.std_logic_1164.all; use ieee.std_logic_unsigned.all; use ieee.std_logic_arith.all; use ieee.numeric_std.all; entity led_top is Port ( p_clk_50Mhz : in std_logic; p_button : in std_logic_vector( 1 downto 0 ); p_led_out : out std_logic ); end led_top; architecture Behavioral of led_top is signal s_reset : std_logic; signal s_clk_50Mhz_cnt : std_logic_vector( 15 downto 0 ); signal s_clk_1Khz : std_logic := '0'; signal s_clk_1Khz_cnt : std_logic_vector( 15 downto 0 ); begin -- reset 신호 생성 s_reset <= not p_button(0); -- 분주 타이머 process( s_reset, p_clk_50Mhz ) is begin if rising_edge( p_clk_50Mhz ) then if s_reset = '1' then s_clk_50Mhz_cnt <= ( others => '0' ); else if s_clk_50Mhz_cnt = (50000-1) then s_clk_1Khz <= not s_clk_1Khz; s_clk_50Mhz_cnt <= ( others => '0' ); else s_clk_50Mhz_cnt <= s_clk_50Mhz_cnt + 1; end if; end if; end if; end process; process( s_reset, s_clk_1Khz ) is begin if rising_edge( s_clk_1Khz ) then if s_reset = '1' then s_clk_1Khz_cnt <= ( others => '0' ); else s_clk_1Khz_cnt <= s_clk_1Khz_cnt + 1; end if; end if; end process; p_led_out <= s_clk_1Khz_cnt(7);

end Behavioral;


'embeded > FPGA - ALTERA' 카테고리의 다른 글

terasic DE0-Nano 부품들  (0) 2017.12.27
quartus2 설치 + usb blaster 설치  (0) 2017.12.27
altera 교육자료 요약  (0) 2017.12.27
GHDL - 시뮬레이터  (0) 2017.12.26
c to HDL ㄷㄷㄷ  (0) 2017.12.22
Posted by 구차니
