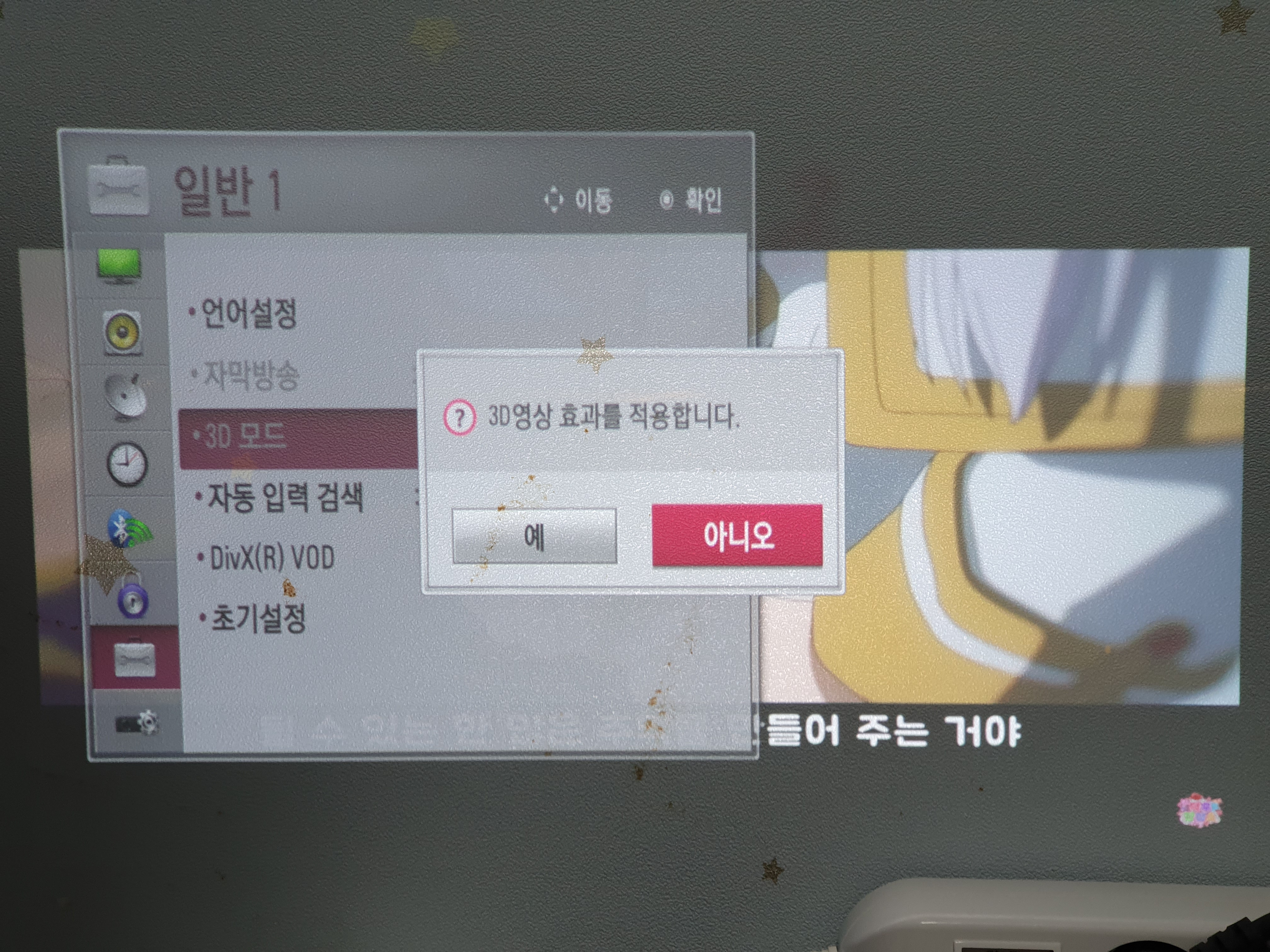

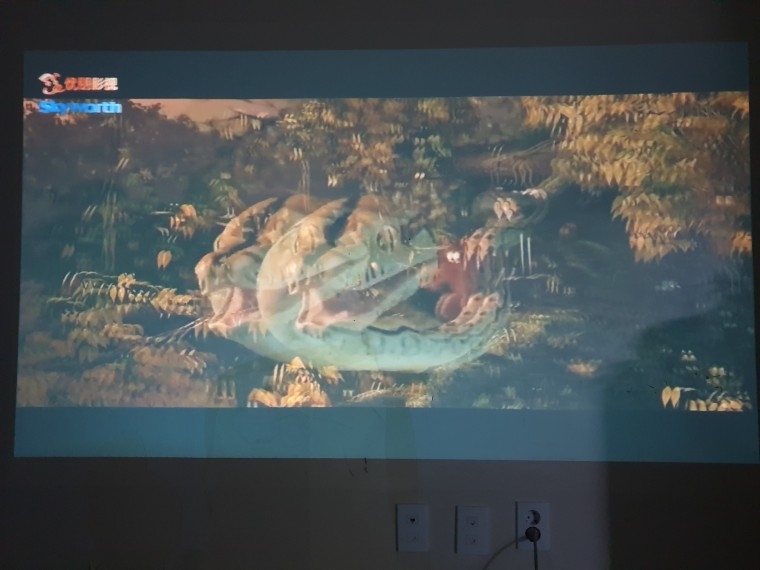

화면 비율도 그렇고 왜 1280x800 까지 지원하는데 16:9가 아니라 4:3을 3d로 해둔걸까?
$ sudo get-edid This is read-edid version 3.0.2. Prepare for some fun. Attempting to use i2c interface No EDID on bus 0 No EDID on bus 3 No EDID on bus 4 No EDID on bus 5 No EDID on bus 6 2 potential busses found: 1 2 Will scan through until the first EDID is found. Pass a bus number as an option to this program to go only for that one. 128-byte EDID successfully retrieved from i2c bus 1 �Px���m 1�QM�$HL1@E@a|q@���@��� �Q 0H�6 Sf!P�Q@p6 S�:zi �LG PROJECTOR Looks like i2c was successful. Have a good day.
$ sudo get-edid > /tmp/edid This is read-edid version 3.0.2. Prepare for some fun. Attempting to use i2c interface No EDID on bus 0 No EDID on bus 3 No EDID on bus 4 No EDID on bus 5 No EDID on bus 6 2 potential busses found: 1 2 Will scan through until the first EDID is found. Pass a bus number as an option to this program to go only for that one. 128-byte EDID successfully retrieved from i2c bus 1 Looks like i2c was successful. Have a good day.
$ parse-edid < /tmp/edid Checksum Correct

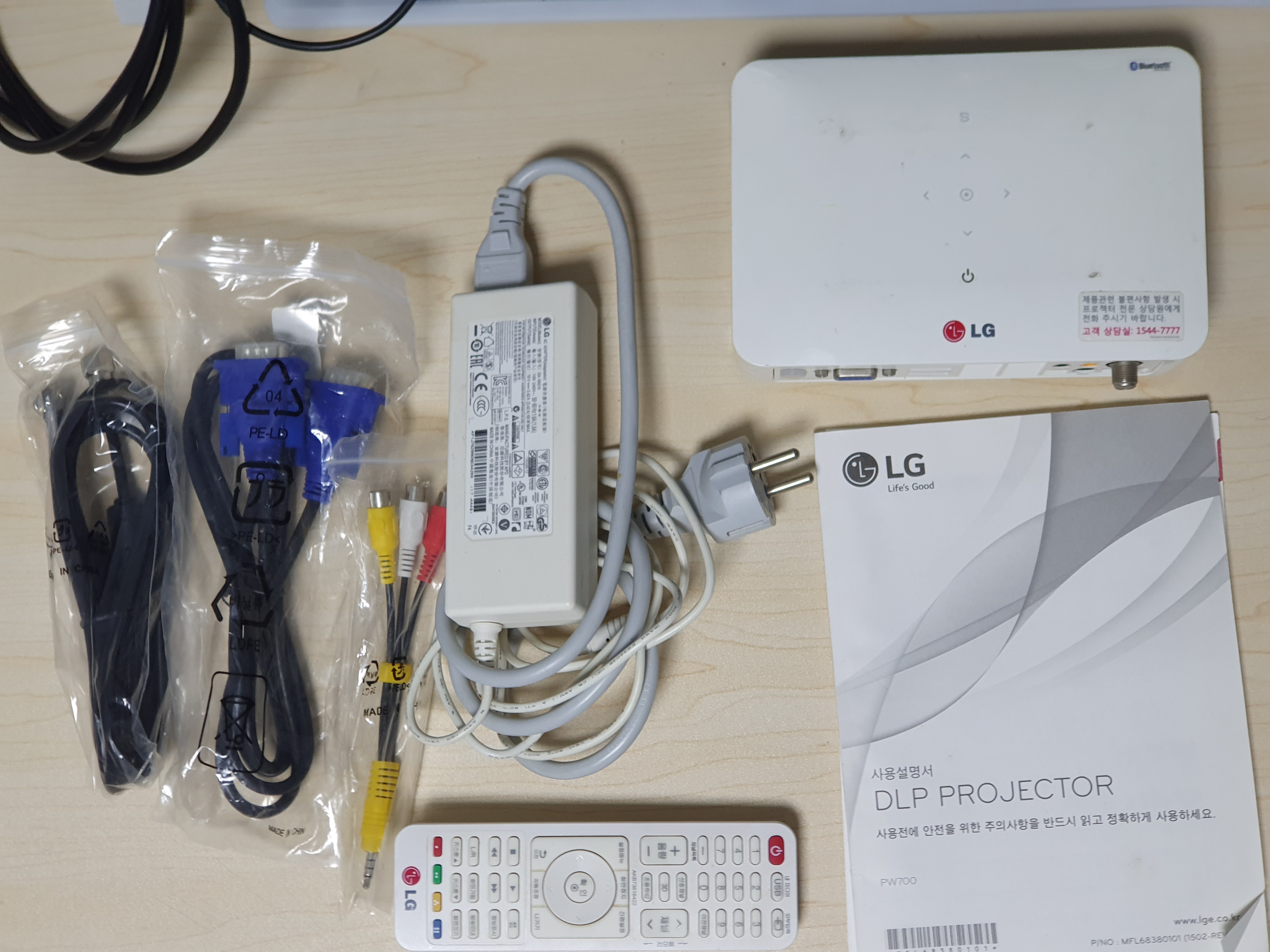

Section "Monitor" Identifier "LG PROJECTOR" ModelName "LG PROJECTOR" VendorName "GSM" # Monitor Manufactured week 1 of 2014 # EDID version 1.3 # Analog Display DisplaySize 1280 800 Gamma 2.20 Option "DPMS" "false" Horizsync 30-105 VertRefresh 58-122 # Maximum pixel clock is 160MHz #Not giving standard mode: 640x480, 60Hz #Not giving standard mode: 800x600, 60Hz #Not giving standard mode: 1024x768, 120Hz #Not giving standard mode: 1152x864, 60Hz #Not giving standard mode: 1280x1024, 60Hz #Not giving standard mode: 1400x1050, 60Hz #Not giving standard mode: 1680x1050, 60Hz #Not giving standard mode: 1280x800, 60Hz Modeline "Mode 0" 83.50 1280 1352 1480 1680 800 803 809 831 +hsync +vsync Modeline "Mode 1" 85.50 1360 1424 1536 1792 768 771 777 795 +hsync +vsync EndSection
#Not giving standard mode: 1280x720, 120Hz #Not giving standard mode: 800x600, 120Hz #Not giving standard mode: 1024x768, 120Hz #Not giving standard mode: 1024x576, 60Hz #Not giving standard mode: 1280x1024, 60Hz #Not giving standard mode: 1440x900, 60Hz #Not giving standard mode: 1400x1050, 60Hz #Not giving standard mode: 1600x1200, 60Hz
이상하게 화면이 으깨져서 타이밍을 잘 못 넣어준게 아닌가 다른 설정값을 넣어야 하나 고민중..
그 와중에 윈도우에서 인텔 콘트롤 패널 까지 설치했는데도 사용자 해상도를 넣을수가 없어서 일단은... 포기해야 할 듯.
3세대 내장이라고 딱히 다를건 없다.

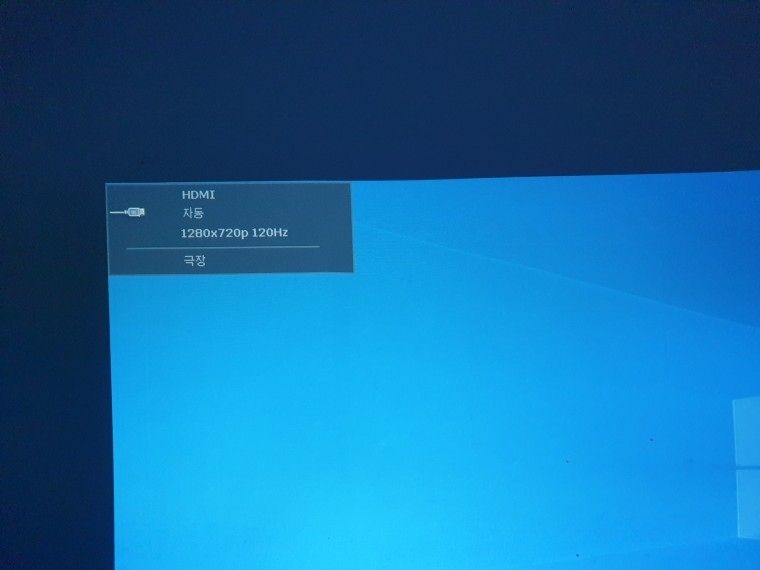

일단은 HDMI로 시도. RGB와는 다르게 extension block 찾았다고 생소한(?) 정보가 많이 보인다.
$ sudo get-edid This is read-edid version 3.0.2. Prepare for some fun. Attempting to use i2c interface Problem requesting slave address: Device or resource busy No EDID on bus 1 No EDID on bus 2 No EDID on bus 3 No EDID on bus 4 No EDID on bus 5 No EDID on bus 7 1 potential busses found: 6 256-byte EDID successfully retrieved from i2c bus 6 ������ ��,%�x*���[V�%O]��E|a|a�����@�@� �Q 0H�6�0V\ �BENQ �MP780ST d"�M� !"# �g 8-�R� �(U@�q X,%���r ,%��� Looks like i2c was successful. Have a good day.
$ parse-edid < /tmp/edid Checksum Correct
Section "Monitor" Identifier "MP780ST" ModelName "MP780ST" VendorName "BNQ" # Monitor Manufactured week 37 of 2010 # EDID version 1.3 # Digital Display # Display Physical Size not given. Normal for projectors. Gamma 2.20 Option "DPMS" "true" Horizsync 31-92 VertRefresh 48-86 # Maximum pixel clock is 170MHz #Not giving standard mode: 1280x720, 120Hz #Not giving standard mode: 800x600, 120Hz #Not giving standard mode: 1024x768, 120Hz #Not giving standard mode: 1024x576, 60Hz #Not giving standard mode: 1280x1024, 60Hz #Not giving standard mode: 1440x900, 60Hz #Not giving standard mode: 1400x1050, 60Hz #Not giving standard mode: 1600x1200, 60Hz
$ sudo get-edid This is read-edid version 3.0.2. Prepare for some fun. Attempting to use i2c interface No EDID on bus 0 No EDID on bus 3 No EDID on bus 4 No EDID on bus 5 No EDID on bus 6 2 potential busses found: 1 2 Will scan through until the first EDID is found. Pass a bus number as an option to this program to go only for that one. 256-byte EDID successfully retrieved from i2c bus 1 ������ ��,%x ���[V�%O]��E|a|a�����@�@� �Q 0H�6�0xc �BENQ �MP780ST ������� ��,%x ���[V�%O]��E|a|a�����@�@� �Q 0H�6�0xc �BENQ �MP780ST Looks like i2c was successful. Have a good day.
rgb로 연결하고 edid를 파싱했는데 benq MP780ST 모델에 2010년 37주차 생산
수직 해상도 48~120로 나오고 1280x800은 보이는데 83.50 이면.. 웬지 60p일 느낌인데
$ parse-edid < /tmp/edid Checksum Correct
Section "Monitor" Identifier "MP780ST" ModelName "MP780ST" VendorName "BNQ" # Monitor Manufactured week 37 of 2010 # EDID version 1.3 # Analog Display Option "SyncOnGreen" "true" # Display Physical Size not given. Normal for projectors. Gamma 2.20 Option "DPMS" "false" Horizsync 31-99 VertRefresh 48-120 # Maximum pixel clock is 170MHz #Not giving standard mode: 1280x720, 120Hz #Not giving standard mode: 800x600, 120Hz #Not giving standard mode: 1024x768, 120Hz #Not giving standard mode: 1024x576, 60Hz #Not giving standard mode: 1280x1024, 60Hz #Not giving standard mode: 1440x900, 60Hz #Not giving standard mode: 1400x1050, 60Hz #Not giving standard mode: 1600x1200, 60Hz Modeline "Mode 0" 83.50 1280 1352 1480 1680 800 803 809 831 -hsync +vsync EndSection
xrandr 하니 xwayland 혹시나 해서 진행했지만 설정이 안 먹어서 x.org로 교체 하고 다시 시도
$ xrandr Screen 0: minimum 16 x 16, current 2560 x 800, maximum 32767 x 32767 XWAYLAND0 connected primary 1280x800+0+0 (normal left inverted right x axis y axis) 260mm x 160mm 1280x800 59.81*+ 1024x768 59.92 800x600 59.86 640x480 59.38 320x240 59.52 720x480 59.71 640x400 59.20 320x200 58.96 1280x720 59.86 1024x576 59.90 864x486 59.92 720x400 59.55 640x350 59.77 XWAYLAND1 connected 1280x800+1280+0 (normal left inverted right x axis y axis) 0mm x 0mm 1280x800 59.63*+ 1024x768 59.68 800x600 59.47 640x480 59.38 320x240 59.52 720x480 59.71 640x400 59.20 320x200 58.96 1280x720 59.65 1024x576 59.58 864x486 59.45 720x400 59.55 640x350 58.91
