M9712 라는 전자로드가 있어서 배터리 방전에 사용을 위해 찾아보는 중

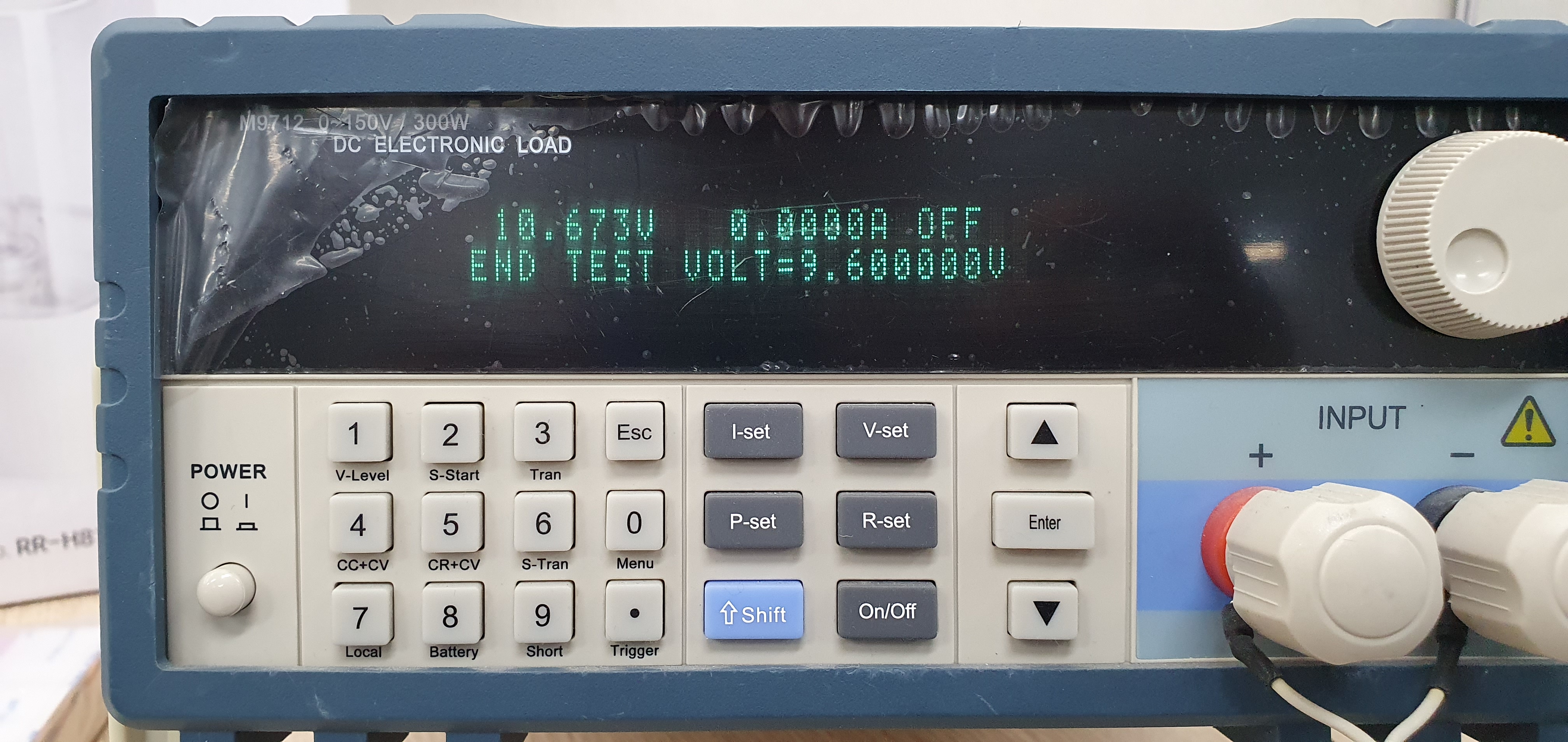

Step 1. SHIFT - 8 눌러서 END TEST VOLT=0.000000V 가 뜨도록 함

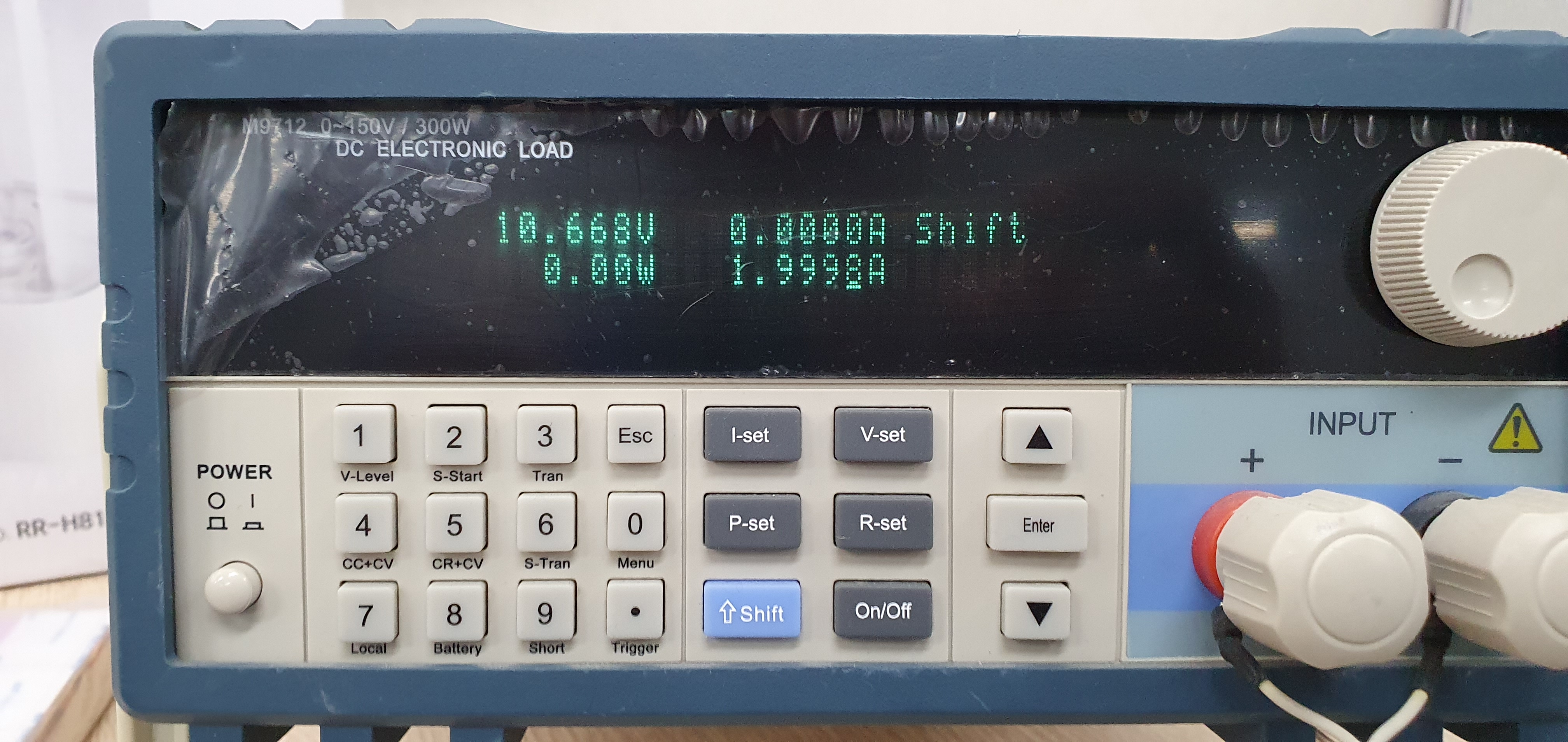

초기상태에서


SHIFT 버튼을 누르면 우측에 Shift라고 뜨고



8을 누르면 OFF 라고 바뀌면서 하단에 END TEST VOLT가 뜬다.


Step 2. 숫자와 .을 이용하여 원하는 전압을 입력

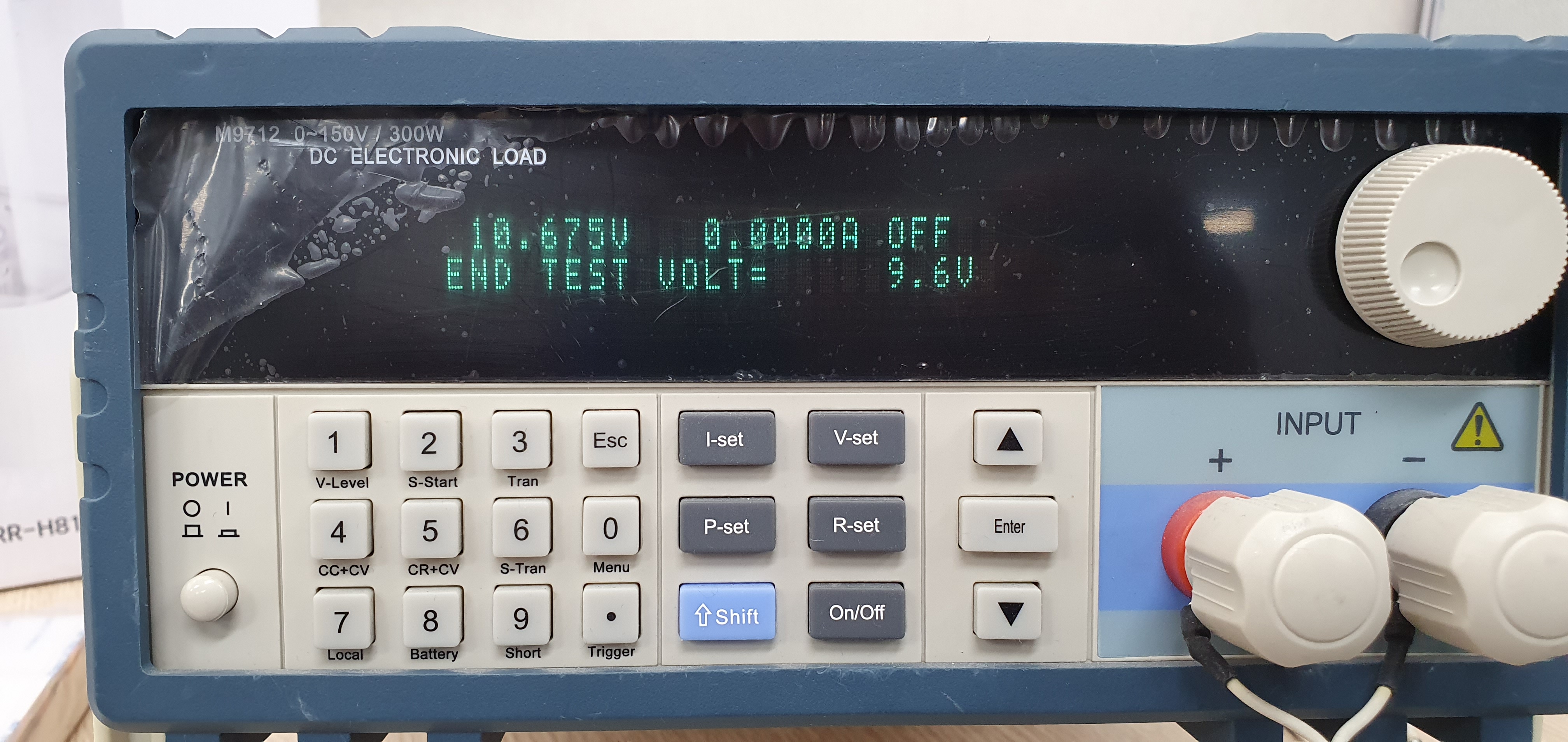

9.6V 완전방전을 목표로 할거라 9.6을 입력함


Step 3. Enter를 누름(0.00W 0.00000AH 라고 아래 라인에 뜸

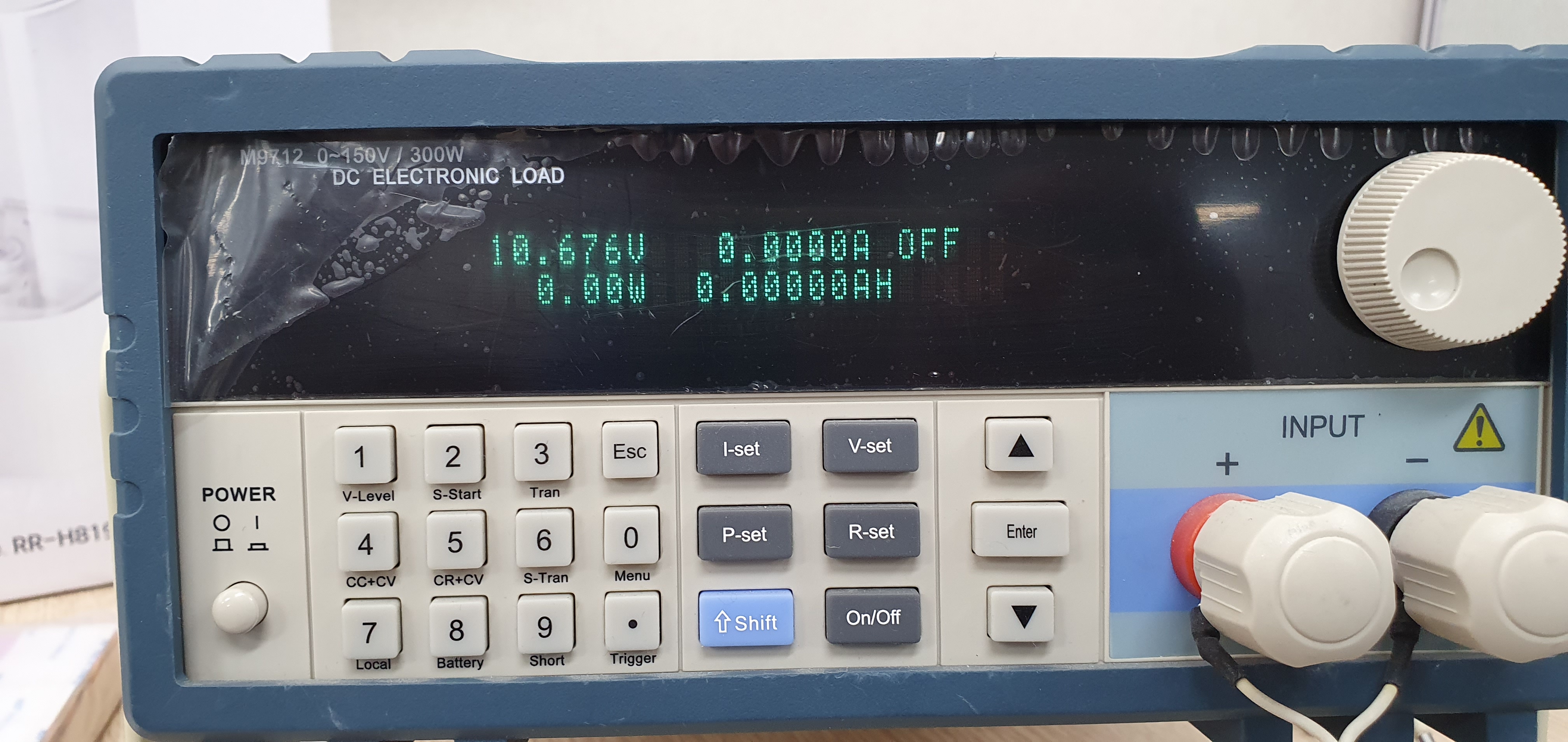

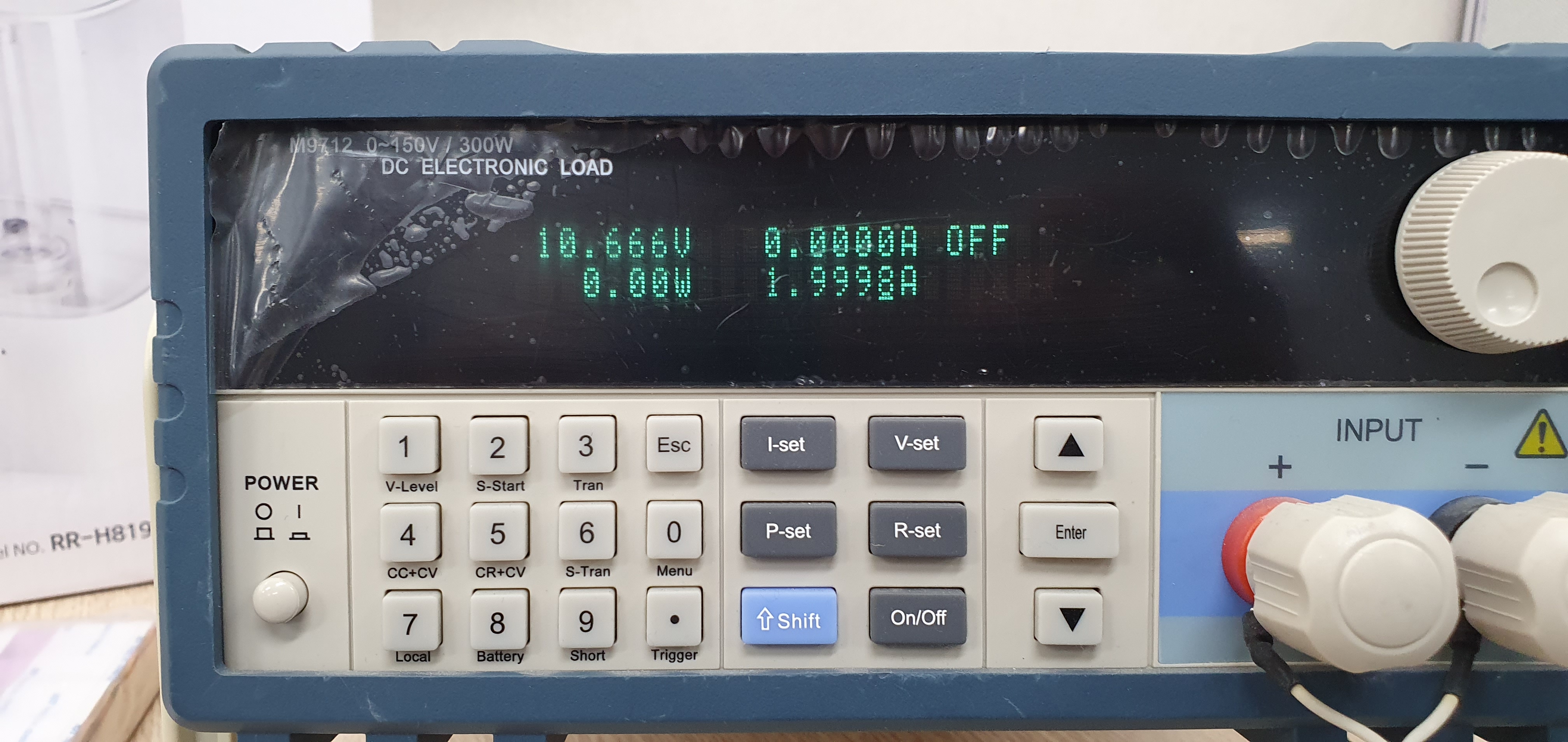

가장 처음 화면으로 돌아온다.


Step 4. On/Off 버튼을 눌러 시작

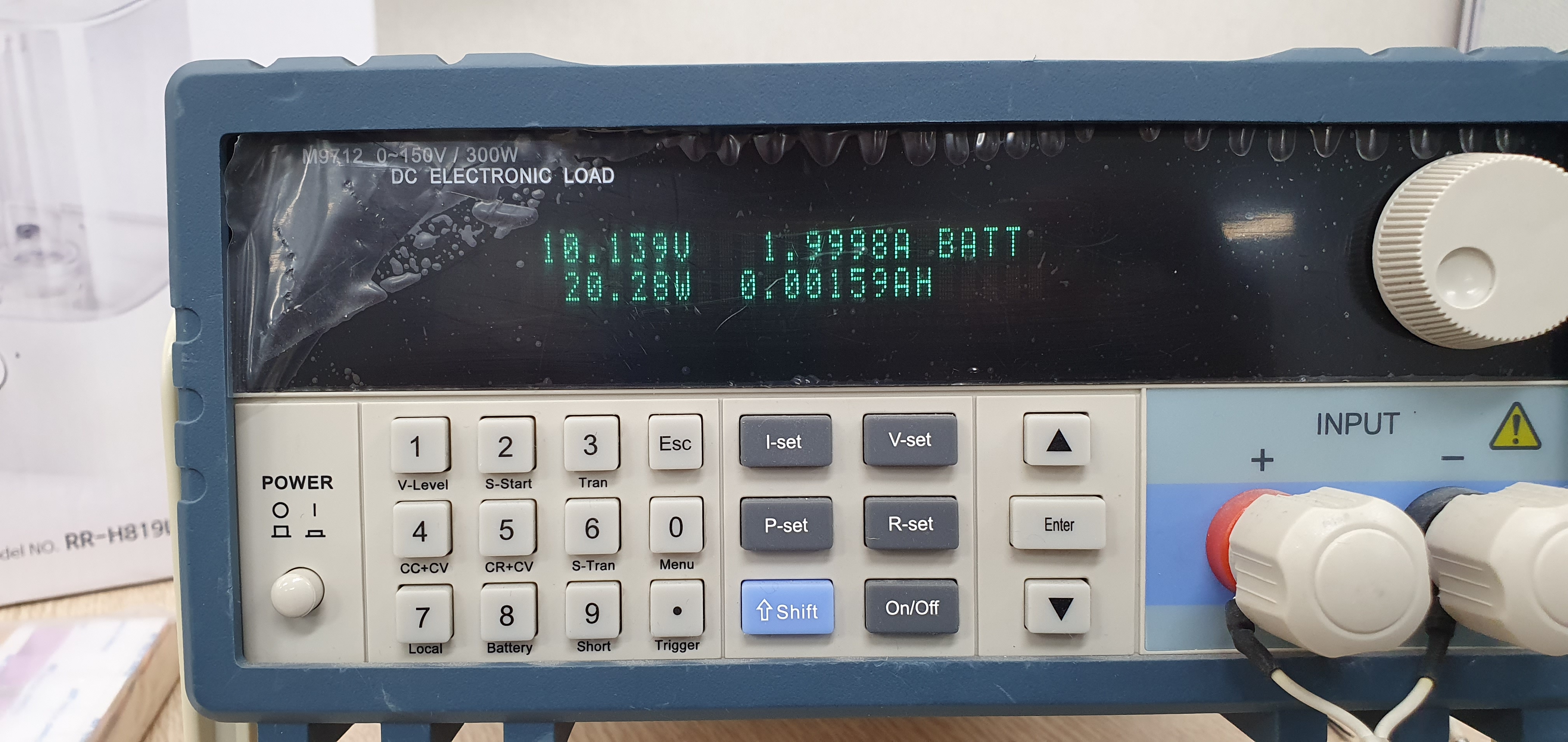

        상단 우측에 BATT 라고 뜨면 배터리 테스트 모드

on/off 버튼을 누르면 BATT로 바뀐다.



Battery Life StabilityTest
In Constant Current mode the Serial electronic load can test battery life stability Set up the load to
control voltage level. When the voltage of the battery is too low, the serial electronic load will identify the
battery being on the threshold value set or at the margin of an insecure state and will stop testing
automatically. When the load is in test mode, you can see the battery's voltage, battery discharge current,
electronic, load power and battery capability that remains. If the load is connected through PC software,
then you can see the battery discharge curve.. This test can measure the reliability and remaining life of
the battery. So it is important to perform the test before the battery is re-charged, or swapped out for a
newer battery.
Operation:
1) In standard constant current mode, adjust the load's current value to the same discharge current
value of battery needed.
2) Press both Shift+8(Battery)keys. When VFD display shows END TEST VOLT= xxxxxxxxV,
input the shut-off voltage and press Enter to start the battery life stability test. When the battery's
voltage drops to the turn-off voltage set, the load will automatically shut off.
3) Press the On/Off keys to start or pause the battery capability test.
4) Press both the Shift+8(Battery) keys to exit the battery life stability test mode.

[ : http://www.maynuo.com/downloadfile/2009102937213561.pdf]

[ : http://www.maynuo.com/english/xpro.asp?pid=52]
