STM32H757 User configuration

이전에 메뉴얼 뒤지다 발견한 BCM7/BCM4는 어디서 접근이 가능한지, 설정이 가능한지 찾질 못했는데

프로그램 하나 설치하니 해피하게 해결.. -_-

[링크 : https://www.st.com/resource/en/application_note/an5557-stm32h745755-and-stm32h747757-lines-dualcore-architecture-stmicroelectronics.pdf]

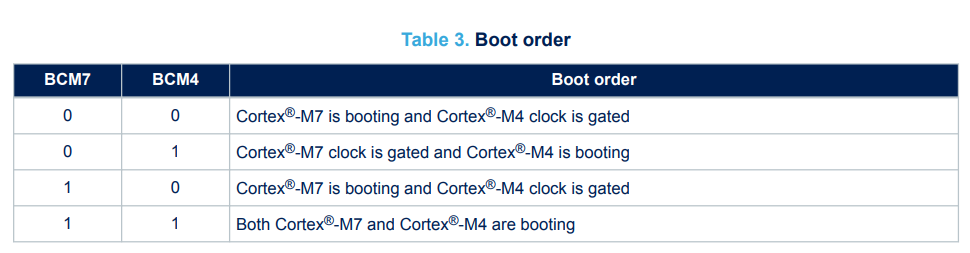

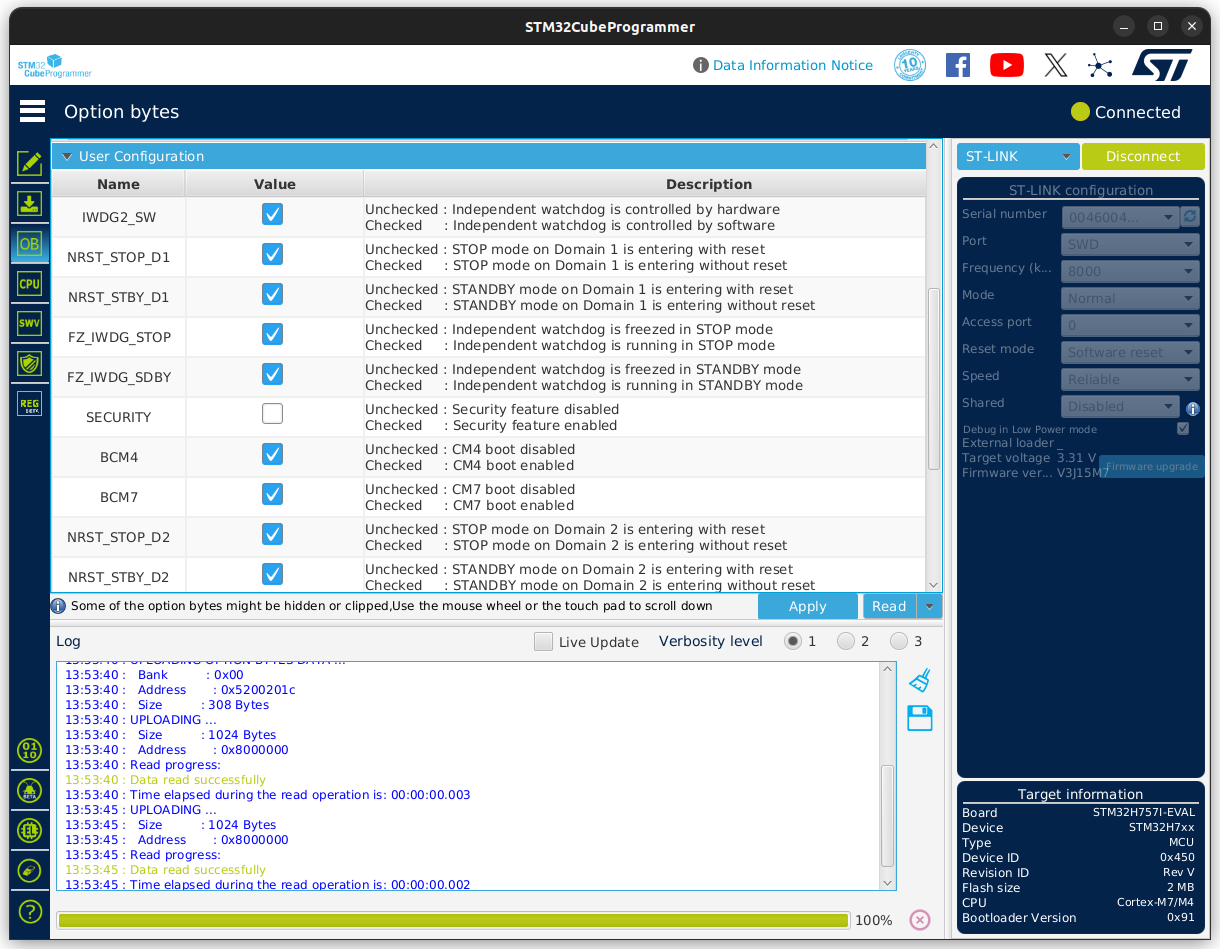

왼쪽 세번째 아이콘 OB가 Option Bytes 인데

거기서 User Configuration 항목에 BCM4 / BCM7을 발견할 수 있다.

[링크 : https://blog.naver.com/chandong83/221652968153]

[링크 : https://www.st.com/en/development-tools/stm32cubeprog.html]

[링크 : https://blog.naver.com/chcbaram/221597488638]



+

HAL_FLASH_Unlock();   HAL_FLASH_OB_Unlock();   HAL_FLASHEx_OBGetConfig(&OBInit);   OBInit.OptionType = OPTIONBYTE_CM7_BOOTADD;   OBInit.BootAddr0 = 0x08010000;   OBInit.BootConfig = OB_BOOT_ADD0;   HAL_FLASHEx_OBProgram(&OBInit);   HAL_FLASH_OB_Launch()

[링크 : https://community.st.com/t5/stm32-mcus-products/stm32h745-set-cm7-boot-addr0-from-cm4/td-p/654791]



+

void HAL_FLASHEx_OBGetConfig(FLASH_OBProgramInitTypeDef *pOBInit) {   pOBInit->OptionType = OPTIONBYTE_WRP | OPTIONBYTE_RDP | OPTIONBYTE_USER | OPTIONBYTE_BOR;   /*Get WRP*/   pOBInit->WRPSector = FLASH_OB_GetWRP();   /*Get RDP Level*/   pOBInit->RDPLevel = FLASH_OB_GetRDP();   /*Get USER*/   pOBInit->USERConfig = FLASH_OB_GetUser();   /*Get BOR Level*/   pOBInit->BORLevel = FLASH_OB_GetBOR(); }

[링크 : https://github.com/fboris/STM32Cube_FW_F4/blob/master/Drivers/STM32F4xx_HAL_Driver/Src/stm32f4xx_hal_flash_ex.c#L341]



typedef struct {   uint32_t OptionType;   /*!< Option byte to be configured.                               This parameter can be a value of @ref FLASHEx_Option_Type */   uint32_t WRPState;     /*!< Write protection activation or deactivation.                               This parameter can be a value of @ref FLASHEx_WRP_State */   uint32_t WRPSector;         /*!< Specifies the sector(s) to be write protected.                               The value of this parameter depend on device used within the same series */   uint32_t Banks;        /*!< Select banks for WRP activation/deactivation of all sectors.                               This parameter must be a value of @ref FLASHEx_Banks */           uint32_t RDPLevel;     /*!< Set the read protection level.                               This parameter can be a value of @ref FLASHEx_Option_Bytes_Read_Protection */   uint32_t BORLevel;     /*!< Set the BOR Level.                               This parameter can be a value of @ref FLASHEx_BOR_Reset_Level */   uint8_t  USERConfig;   /*!< Program the FLASH User Option Byte: IWDG_SW / RST_STOP / RST_STDBY. */ } FLASH_OBProgramInitTypeDef;
