embeded/orange pi2022. 1. 3. 14:07

ornage pi 3 user manual

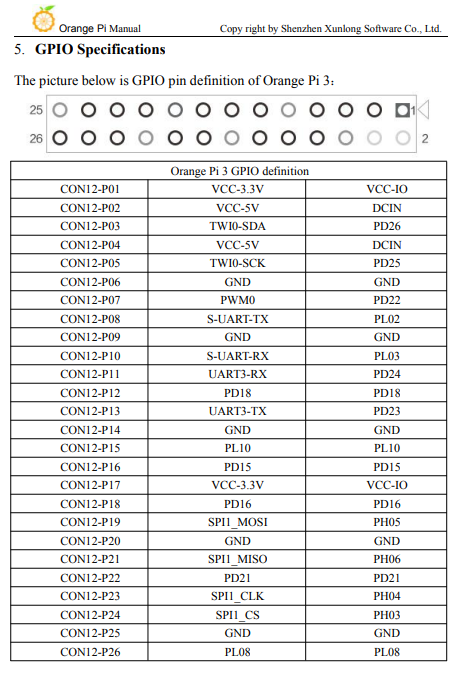

하드웨어 관점에서는 26핀 헤더 설명 외에는 솔찍히 그닥 쓸모 없는 내용 뿐

[링크 : https://download.kamami.pl/p573811-orangepi%203_user%20manual_v1.0.pdf]

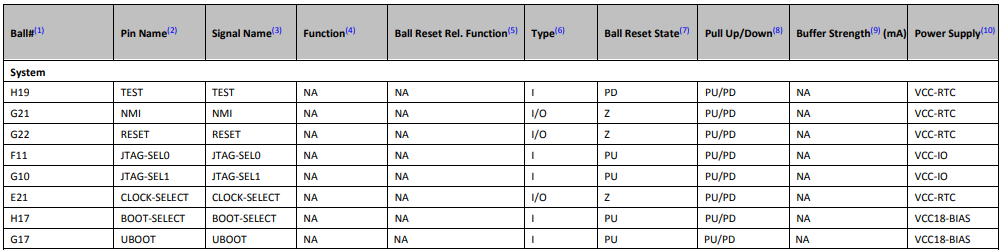

Allwinner H6 데이터 시트(80페이지 짜리)

아니.. 설명이 이게 끝?

[링크 : https://linux-sunxi.org/images/5/5c/Allwinner_H6_V200_Datasheet_V1.1.pdf]



Allwinner H6 user manual(965 페이지 짜리)

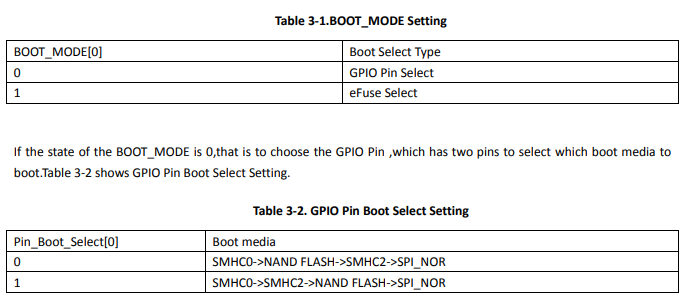

gpio 부팅으로 되어있다는 가정하에

SD 메모리 -> eMMC 순서로 부팅을 진행하게 된다(중간에 NAND는 대충 생략)

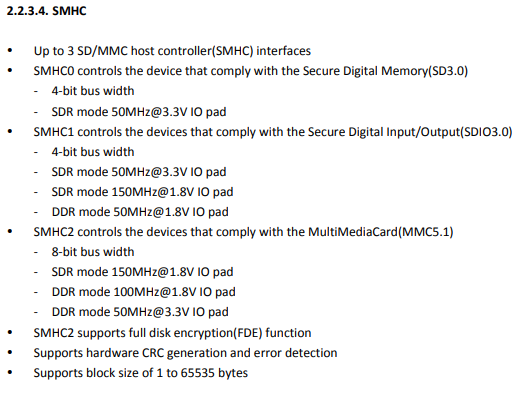

SMHC0가 외부 SD/TF 라고 한데 SDR 50MHz 면.. UHS 지원인진 모르겠네

SMHC0 is external SD/TF card. SMHC2 is external eMMC

[링크 : https://linux-sunxi.org/images/4/46/Allwinner_H6_V200_User_Manual_V1.1.pdf]

'embeded > orange pi' 카테고리의 다른 글

orange pi 3 관련 문서  (0) 2022.01.03
oragne pi 3 / eMMC와 sd 부팅  (0) 2022.01.03
allwinner(orange pi 3) vs amlogic(odroid c2)  (0) 2022.01.01
orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2022. 1. 3. 11:55

오늘 출근해서 해보는데

debug uart 상관없이 둘다 9초는 지나야 kernel이 구동하고 그제서야 LED에 불이 들어온다.

아니.. run led도 아니고 power led 정도는 회로에서 바로 켜지게 해놔야 하는거 아냐?

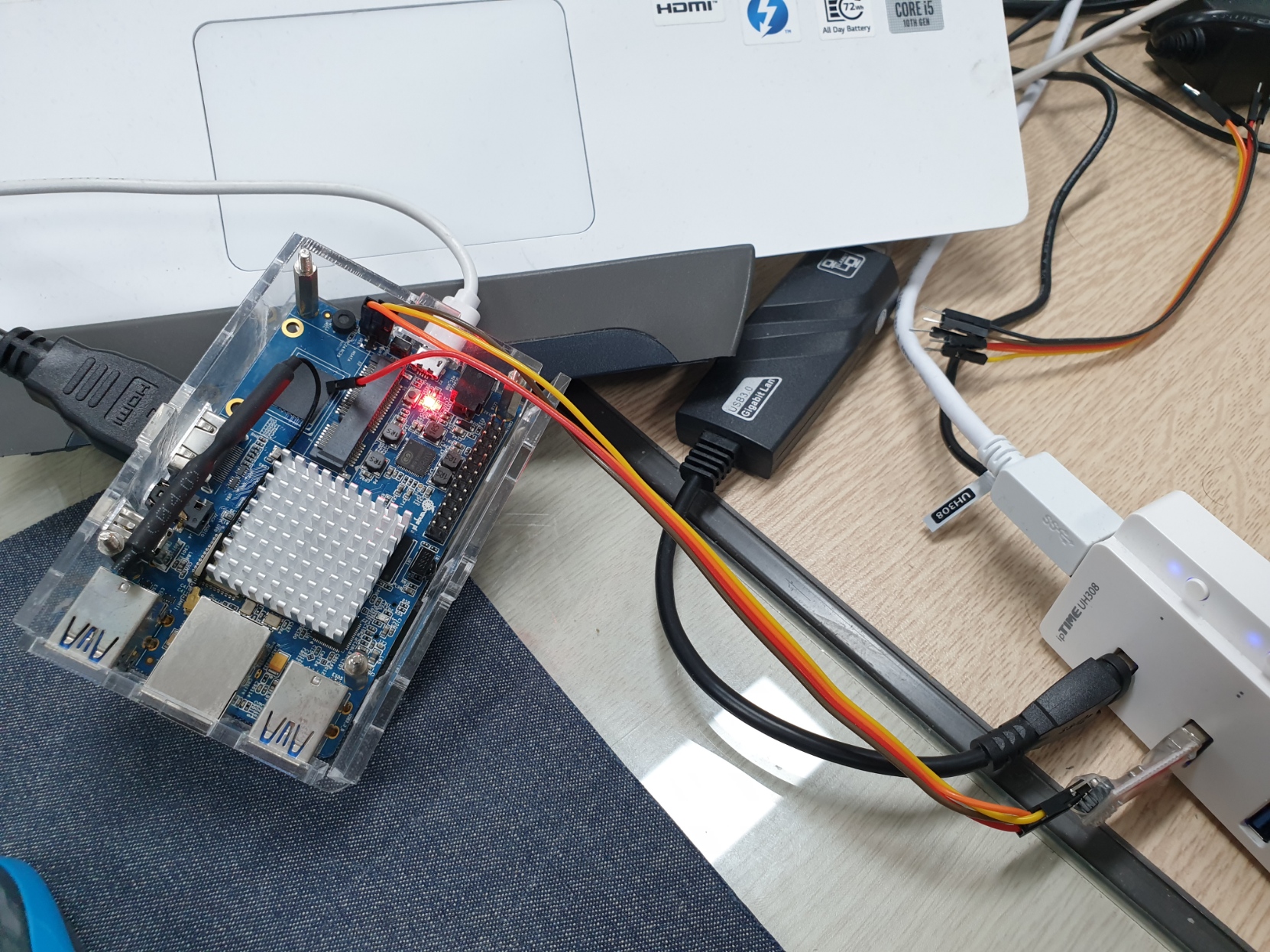

아래 들어온게 power LED.

아니.. 말 그대로 파워만 들어오면 불이 들어와야지 이걸 uboot나 kernel 에서 on 하도록 하는 발상은 누가 한거냐.. -_-

armbian 은 uboot에서 안켜고 kernel 에서 켜고 앉았고

orange pi 3 이미지는 uboot 에서 켜주긴 한데

sd 를 꽂지 않으면 파워 led 자체가 불이 안들어와서 보드 고장난거 아냐!? 싶은 상황이 발생한다.

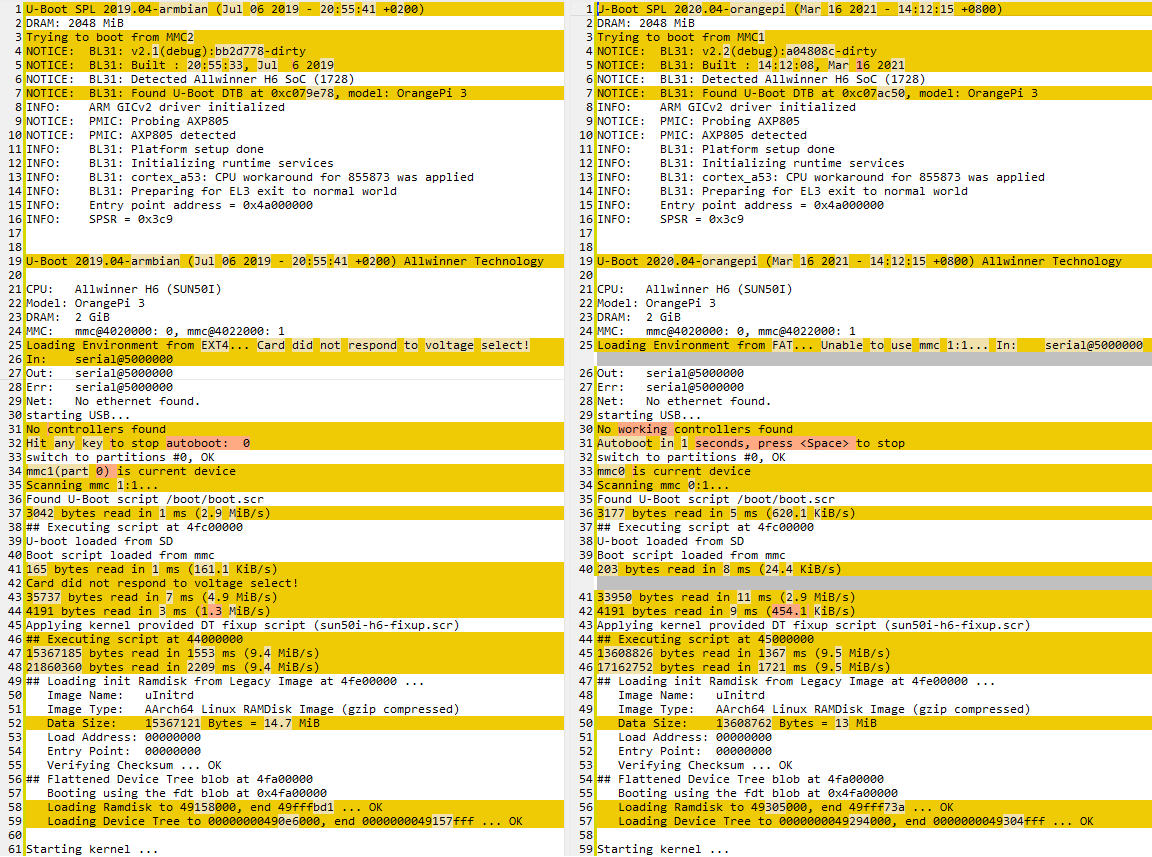

왼쪽 eMMC 부팅, 오른쪽 microSD 부팅 메시지

버전이나 좀 차이나고 로딩 속도에서 차이나지만 LED 켜지는 시간은 그게 그거..

'embeded > orange pi' 카테고리의 다른 글

orange pi 3 관련 문서  (0) 2022.01.03
oragne pi 3 / eMMC와 sd 부팅  (0) 2022.01.03
allwinner(orange pi 3) vs amlogic(odroid c2)  (0) 2022.01.01
orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2022. 1. 1. 21:30

중국제 SoC라 그런가 코덱에 allwinner든 amlogic이든 양쪽다 AVS가 들어있다.

대충 S905는 2016년 10월 이전에 출시 된 것 같고

[링크 : https://en.wikipedia.org/wiki/Amlogic]



H6는 2014년에 출시 된 것 같은데

[링크 : https://en.wikipedia.org/wiki/Allwinner_Technology]

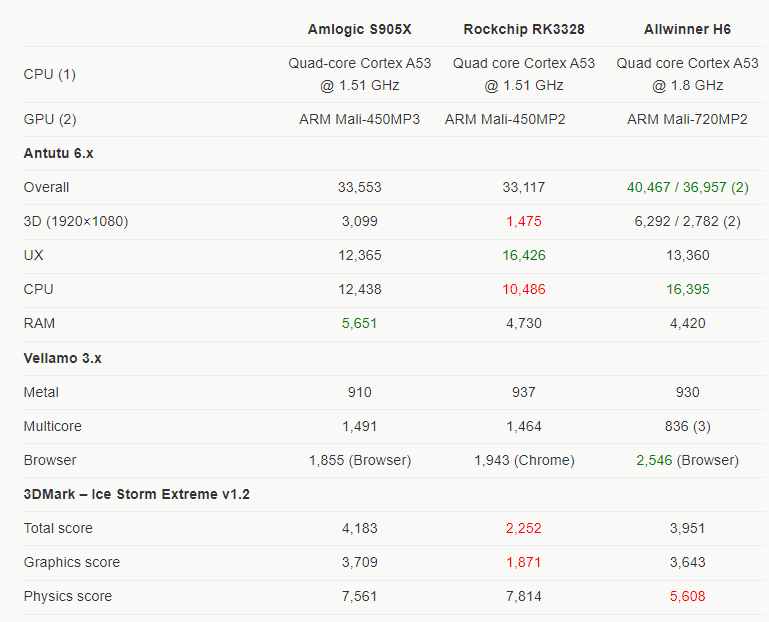

벤치마크만 보면 오히려 늦게 나온 amlogic S905 보다 allwinner H6이 클럭빨로 우월한 성능을 보이는 느낌

그런데 클럭 대비라고 해도 S905X와 H6의 성능 차이가 너무 나는걸 보면 신뢰할 수 있나 싶을 정도..

[링크 : https://www.cnx-software.com/2017/11/27/amlogic-s905x-vs-rockchip-rk3328-vs-allwinner-h6/?amp=1 ]



[링크 : https://www.hardkernel.com/ko/shop/odroid-c2/]

[링크 : http://www.orangepi.org/Orange%20Pi%203/]

'embeded > orange pi' 카테고리의 다른 글

orange pi 3 관련 문서  (0) 2022.01.03
oragne pi 3 / eMMC와 sd 부팅  (0) 2022.01.03
allwinner(orange pi 3) vs amlogic(odroid c2)  (0) 2022.01.01
orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2022. 1. 1. 13:44

armbian이 eMMC에 설치되어 있어서 보는데

480MHz에서 딱 달라붙어 있고 cpu 온도도 32도로 착하다

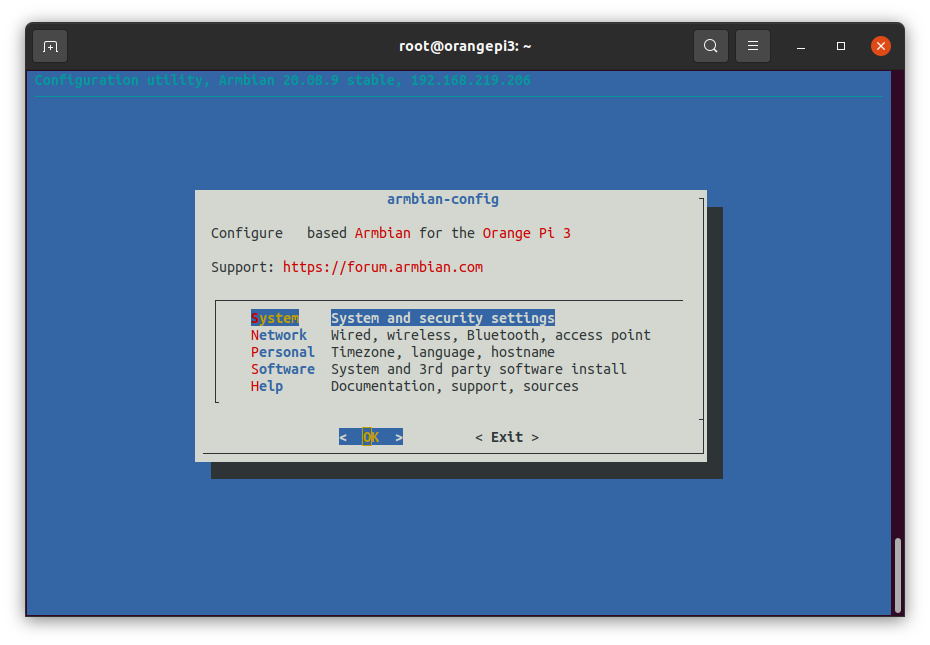

armbian-config를 실행하니

# armbian-config



orangepi-config 처럼 비슷하게 나온다.

'embeded > orange pi' 카테고리의 다른 글

oragne pi 3 / eMMC와 sd 부팅  (0) 2022.01.03
allwinner(orange pi 3) vs amlogic(odroid c2)  (0) 2022.01.01
orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
orangepi-config  (0) 2021.12.31
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2022. 1. 1. 13:39

micro USB쪽이 GND

gnd / rx / tx



[링크 : http://wiki.nathael.net/index.php/Dev/OPi/OPi3]



전에는 안되는 것 같더니(power LED 불 안들어 왔었음)

디버그 꽂으니 감시당하는 느낌이라 잘 되는 건가?

U-Boot SPL 2019.04-armbian (Jul 06 2019 - 20:55:41 +0200)
DRAM: 2048 MiB
Trying to boot from MMC2
NOTICE:  BL31: v2.1(debug):bb2d778-dirty
NOTICE:  BL31: Built : 20:55:33, Jul  6 2019
NOTICE:  BL31: Detected Allwinner H6 SoC (1728)
NOTICE:  BL31: Found U-Boot DTB at 0xc079e78, model: OrangePi 3
INFO:    ARM GICv2 driver initialized
NOTICE:  PMIC: Probing AXP805
NOTICE:  PMIC: AXP805 detected
INFO:    BL31: Platform setup done
INFO:    BL31: Initializing runtime services
INFO:    BL31: cortex_a53: CPU workaround for 855873 was applied
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x4a000000
INFO:    SPSR = 0x3c9


U-Boot 2019.04-armbian (Jul 06 2019 - 20:55:41 +0200) Allwinner Technology

CPU:   Allwinner H6 (SUN50I)
Model: OrangePi 3
DRAM:  2 GiB
MMC:   mmc@4020000: 0, mmc@4022000: 1
Loading Environment from EXT4... Card did not respond to voltage select!
In:    serial@5000000
Out:   serial@5000000
Err:   serial@5000000
Net:   No ethernet found.
starting USB...
No controllers found
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc1(part 0) is current device
Scanning mmc 1:1...
Found U-Boot script /boot/boot.scr
3042 bytes read in 1 ms (2.9 MiB/s)
## Executing script at 4fc00000
U-boot loaded from SD
Boot script loaded from mmc
165 bytes read in 1 ms (161.1 KiB/s)
Card did not respond to voltage select!
35737 bytes read in 7 ms (4.9 MiB/s)
4191 bytes read in 3 ms (1.3 MiB/s)
Applying kernel provided DT fixup script (sun50i-h6-fixup.scr)
## Executing script at 44000000
15367185 bytes read in 1553 ms (9.4 MiB/s)
21860360 bytes read in 2209 ms (9.4 MiB/s)
## Loading init Ramdisk from Legacy Image at 4fe00000 ...
   Image Name:   uInitrd
   Image Type:   AArch64 Linux RAMDisk Image (gzip compressed)
   Data Size:    15367121 Bytes = 14.7 MiB
   Load Address: 00000000
   Entry Point:  00000000
   Verifying Checksum ... OK
## Flattened Device Tree blob at 4fa00000
   Booting using the fdt blob at 0x4fa00000
   Loading Ramdisk to 49158000, end 49fffbd1 ... OK
   Loading Device Tree to 00000000490e6000, end 0000000049157fff ... OK

Starting kernel ...

done.
Begin: Mounting root file system ... Begin: Running /scripts/local-top ... done.
Begin: Running /scripts/local-premount ... Scanning for Btrfs filesystems
done.
Begin: Waiting for root file system ... Begin: Running /scripts/local-block ....
done.
Begin: Will now check root file system ... fsck from util-linux 2.33.1
[/sbin/fsck.ext4 (1) -- /dev/mmcblk2p1] fsck.ext4 -a -C0 /dev/mmcblk2p1
/dev/mmcblk2p1: recovering journal
/dev/mmcblk2p1: clean, 145655/472352 files, 1015560/1888624 blocks
done.
done.
Begin: Running /scripts/local-bottom ... done.
Begin: Running /scripts/init-bottom ... done.

Welcome to Debian GNU/Linux 10 (buster)!

[  OK  ] Reached target Remote File Systems.
[  OK  ] Created slice system-getty.slice.
[  OK  ] Set up automount Arbitrary�…s File System Automount Point.
[  OK  ] Reached target Swap.
[  OK  ] Listening on Journal Socket.
         Starting Create list of re�…odes for the current kernel...
[  OK  ] Reached target System Time Synchronized.
         Mounting Kernel Debug File System...
         Mounting POSIX Message Queue File System...
[  OK  ] Listening on udev Kernel Socket.
         Mounting Huge Pages File System...
[  OK  ] Listening on initctl Compatibility Named Pipe.
[  OK  ] Listening on Journal Socket (/dev/log).
[  OK  ] Started Forward Password R�…uests to Wall Directory Watch.
[  OK  ] Listening on udev Control Socket.
         Starting udev Coldplug all Devices...
[  OK  ] Listening on fsck to fsckd communication Socket.
[  OK  ] Listening on Journal Audit Socket.
         Starting Restore / save the current clock...
[  OK  ] Created slice User and Session Slice.
         Starting Remount Root and Kernel File Systems...
[  OK  ] Listening on Syslog Socket.
         Starting Set the console keyboard layout...
[  OK  ] Reached target Slices.
         Starting Nameserver information manager...
[  OK  ] Created slice system-serial\x2dgetty.slice.
         Starting Load Kernel Modules...
[  OK  ] Started Create list of req�… nodes for the current kernel.
[  OK  ] Mounted Kernel Debug File System.
[  OK  ] Mounted POSIX Message Queue File System.
[  OK  ] Mounted Huge Pages File System.
[  OK  ] Started Restore / save the current clock.
[  OK  ] Started Remount Root and Kernel File Systems.
         Starting Load/Save Random Seed...
         Starting Create System Users...
[  OK  ] Started Nameserver information manager.
[  OK  ] Started Load Kernel Modules.
         Mounting Kernel Configuration File System...
         Starting Apply Kernel Variables...
[  OK  ] Started Load/Save Random Seed.
[  OK  ] Mounted Kernel Configuration File System.
[  OK  ] Started Apply Kernel Variables.
[  OK  ] Started Create System Users.
         Starting Create Static Device Nodes in /dev...
[  OK  ] Started Create Static Device Nodes in /dev.
         Starting udev Kernel Device Manager...
[  OK  ] Started udev Coldplug all Devices.
[  OK  ] Started udev Kernel Device Manager.
         Starting Helper to synchronize boot up for ifupdown...
[  OK  ] Started Set the console keyboard layout.
[  OK  ] Reached target Local File Systems (Pre).
         Mounting /tmp...
         Starting Show Plymouth Boot Screen...
[  OK  ] Mounted /tmp.
[  OK  ] Reached target Local File Systems.
         Starting Armbian ZRAM config...
         Starting Tell Plymouth To Write Out Runtime Data...
         Starting Set console font and keymap...
[  OK  ] Started Helper to synchronize boot up for ifupdown.
[  OK  ] Started Tell Plymouth To Write Out Runtime Data.
         Starting Raise network interfaces...
[  OK  ] Started Show Plymouth Boot Screen.
[  OK  ] Started Set console font and keymap.
[  OK  ] Started Forward Password R�…s to Plymouth Directory Watch.
[  OK  ] Reached target Local Encrypted Volumes.
[  OK  ] Reached target Paths.
[  OK  ] Found device /dev/ttyS0.
[  OK  ] Created slice system-zram\x2dsetup.slice.
[  OK  ] Listening on Load/Save RF �…itch Status /dev/rfkill Watch.
         Starting Tell Plymouth To Write Out Runtime Data...
         Starting Show Plymouth Boot Screen...
[  OK  ] Started Raise network interfaces.
         Starting Load/Save RF Kill Switch Status...
[  OK  ] Started Tell Plymouth To Write Out Runtime Data.
[  OK  ] Started Show Plymouth Boot Screen.
[  OK  ] Started Load/Save RF Kill Switch Status.
[  OK  ] Started Armbian ZRAM config.
         Starting Armbian memory supported logging...
[  OK  ] Started Armbian memory supported logging.
         Starting Journal Service...
[  OK  ] Started Journal Service.
         Starting Flush Journal to Persistent Storage...
[  OK  ] Started Flush Journal to Persistent Storage.
         Starting Create Volatile Files and Directories...
[  OK  ] Started Create Volatile Files and Directories.
         Starting Update UTMP about System Boot/Shutdown...
[  OK  ] Started Entropy daemon using the HAVEGE algorithm.
[  OK  ] Started Update UTMP about System Boot/Shutdown.
[  OK  ] Reached target System Initialization.
         Starting Armbian hardware optimization...
[  OK  ] Listening on Avahi mDNS/DNS-SD Stack Activation Socket.
[  OK  ] Started Daily apt download activities.
[  OK  ] Listening on PC/SC Smart Card Daemon Activation Socket.
[  OK  ] Started Daily rotation of log files.
         Starting Armbian hardware monitoring...
[  OK  ] Started Daily Cleanup of Temporary Directories.
[  OK  ] Started Daily apt upgrade and clean activities.
[  OK  ] Started Daily man-db regeneration.
[  OK  ] Reached target Timers.
[  OK  ] Listening on D-Bus System Message Bus Socket.
[  OK  ] Reached target Sockets.
[  OK  ] Started Armbian hardware monitoring.
[  OK  ] Started Armbian hardware optimization.
[  OK  ] Reached target Basic System.
         Starting Setup zram based device zram2...
         Starting Resets System Activity Data Collector...
         Starting System Logging Service...
[  OK  ] Started D-Bus System Message Bus.
         Starting Network Manager...
         Starting Setup zram based device zram1...
         Starting Modem Manager...
         Starting Avahi mDNS/DNS-SD Stack...
         Starting Bluetooth service...
         Starting Login Service...
         Starting Setup zram based device zram0...
[  OK  ] Started CUPS Scheduler.
[  OK  ] Started Manage Sound Card State (restore and store).
         Starting Save/Restore Sound Card State...
[  OK  ] Started Regular background program processing daemon.
         Starting WPA supplicant...
         Starting LSB: Load kernel �…d to enable cpufreq scaling...
[  OK  ] Started System Logging Service.
[  OK  ] Started Resets System Activity Data Collector.
[  OK  ] Started Save/Restore Sound Card State.
[  OK  ] Started Setup zram based device zram2.
[  OK  ] Started Setup zram based device zram1.
[  OK  ] Started Setup zram based device zram0.
[  OK  ] Started Login Service.
[  OK  ] Reached target Sound Card.
[  OK  ] Started Avahi mDNS/DNS-SD Stack.
[  OK  ] Started Make remote CUPS printers available locally.
         Starting LSB: SANE network scanner server...
[  OK  ] Started WPA supplicant.
[  OK  ] Started Bluetooth service.
[  OK  ] Reached target Bluetooth.
[  OK  ] Started LSB: SANE network scanner server.
         Starting Hostname Service...
         Starting Authorization Manager...
[  OK  ] Started Network Manager.
         Starting Network Manager Wait Online...
[  OK  ] Reached target Network.
         Starting Permit User Sessions...
         Starting OpenVPN service...
         Starting Network Time Service...
[  OK  ] Started OpenVPN service.
[  OK  ] Started Permit User Sessions.
[  OK  ] Started Authorization Manager.
[  OK  ] Started LSB: Load kernel m�…ded to enable cpufreq scaling.
         Starting LSB: set CPUFreq kernel parameters...
[  OK  ] Started Network Time Service.
[  OK  ] Started Hostname Service.
[  OK  ] Started LSB: set CPUFreq kernel parameters.
         Starting LSB: Set sysfs variables from /etc/sysfs.conf...
[  OK  ] Started Modem Manager.
         Starting Network Manager Script Dispatcher Service...
[  OK  ] Started Network Manager Script Dispatcher Service.
[  OK  ] Started LSB: Set sysfs variables from /etc/sysfs.conf.
[  OK  ] Started Network Manager Wait Online.
[  OK  ] Reached target Network is Online.
         Starting /etc/rc.local Compatibility...
         Starting LSB: Advanced IEEE 802.11 management daemon...
[  OK  ] Started /etc/rc.local Compatibility.
[  OK  ] Started LSB: Advanced IEEE 802.11 management daemon.
         Starting Terminate Plymouth Boot Screen...
         Starting Hold until boot process finishes up...

Armbian 20.08.9 Buster ttyS0

orangepi3 login: root
Password:
Last login: Sat Jan  1 13:22:47 KST 2022 on tty1
  ___  ____  _   _____
 / _ \|  _ \(_) |___ /
| | | | |_) | |   |_ \
| |_| |  __/| |  ___) |
 \___/|_|   |_| |____/

Welcome to Debian GNU/Linux 10 (buster) with Linux 5.10.60-sunxi64

System load:   10%              Up time:       0 min
Memory usage:  5% of 1.94G      IP:            192.168.219.206
CPU temp:      22�°C            Usage of /:    56% of 7.1G

[ General system configuration (beta): armbian-config ]

root@orangepi3:~#

'embeded > orange pi' 카테고리의 다른 글

allwinner(orange pi 3) vs amlogic(odroid c2)  (0) 2022.01.01
orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2021. 12. 31. 10:27

전에는 LTS 이미지를 넣어서 그런것 같고

oragne pi 3 이미지를 제대로 넣으니 정상적으로 뜬다.

그나저나 2019년 이미지에 머물러 있다니.. armbian 가야하나?!



# ls -al /dev/mmcblk*
brw-rw---- 1 root disk 179,  0 Mar 17  2021 /dev/mmcblk1
brw-rw---- 1 root disk 179, 32 Mar 17  2021 /dev/mmcblk1boot0
brw-rw---- 1 root disk 179, 64 Mar 17  2021 /dev/mmcblk1boot1
brw-rw---- 1 root disk 179,  1 Mar 17  2021 /dev/mmcblk1p1
brw-rw---- 1 root disk 179, 96 Mar 17  2021 /dev/mmcblk2
brw-rw---- 1 root disk 179, 97 Mar 17  2021 /dev/mmcblk2p1



'embeded > orange pi' 카테고리의 다른 글

orange pi 3 armbian  (0) 2022.01.01
orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
orange pi 3  (0) 2021.12.30
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2021. 12. 31. 10:25

혹시 라즈베리 처럼 config 프로그램이 있지 않을까 하고

oran 하고 탭을 열심히 눌렀더니 먼가 뜬다!





System



Network



Personal



Software



상세하게 들어가서 해보긴 귀찮...

'embeded > orange pi' 카테고리의 다른 글

orange pi 3 eMMC 부팅 로그  (0) 2022.01.01
orange pi 3에 이미지 업데이트  (0) 2021.12.31
orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
orange pi 3  (0) 2021.12.30
orange pi 3 기동  (0) 2021.12.28
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2021. 12. 31. 08:16

왼쪽이 3 LTS, 오른쪽은 3

[링크 : http://www.orangepi.org/Orange%20Pi%203/]

[링크 : http://www.orangepi.org/Orange%20Pi%203%20LTS/]



USB3.0 HUB가 사라지면서 USB 3.0 포트 3개가 사라지고 ,  USB2.0 이 1개에서 2개로 늘어나고

파워가  DC잭, micro USB 에서 USB-C로 교체

mini PCI-E의 삭제가 주요한 차이인 듯 하다.



아무튼 이미지를 받은걸 찾아보니 LTS 버전으로 받아서 커널이 달라 emmc0boot 가 없었던 것 같네

일단 재시도!





'embeded > orange pi' 카테고리의 다른 글

orange pi 3에 이미지 업데이트  (0) 2021.12.31
orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
orange pi 3  (0) 2021.12.30
orange pi 3 기동  (0) 2021.12.28
orange pi gpio  (0) 2021.12.28
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2021. 12. 30. 14:56

install2EMMC.sh 를 써서 어떻게 해보려고 하는데 잘 안되네

저거용 이미지가 따로 있나? 공식 홈페이지의 debian으로는 안되네

~# ./OrangePi_install2EMMC.sh
Error: EMMC not found.



/dev/mmcblk0boot0가 있어야 해당 에러가 발생하지 않는데

왜 sdcard의 파티션을 보고 뜬금없이 EMMC not found 라고 에러를 띄우지?

# ls -al /dev/mmcblk*
brw-rw---- 1 root disk 179, 96 Dec 29 14:17 /dev/mmcblk0
brw-rw---- 1 root disk 179, 97 Dec 29 14:17 /dev/mmcblk0p1
brw-rw---- 1 root disk 179,  0 Dec 29 14:17 /dev/mmcblk2
brw-rw---- 1 root disk 179, 32 Dec 29 14:17 /dev/mmcblk2boot0
brw-rw---- 1 root disk 179, 64 Dec 29 14:17 /dev/mmcblk2boot1
brw-rw---- 1 root disk 179,  1 Dec 29 14:17 /dev/mmcblk2p1





[링크 : https://github.com/zoums/osibook/blob/master/assets/files/OrangePi_install2EMMC.sh]

[링크 : https://raw.githubusercontent.com/zoums/osibook/master/assets/files/OrangePi_install2EMMC.sh]



+

[링크 : https://github.com/orangepi-xunlong]

'embeded > orange pi' 카테고리의 다른 글

orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
orange pi 3  (0) 2021.12.30
orange pi 3 기동  (0) 2021.12.28
orange pi gpio  (0) 2021.12.28
orange pi 3 사양  (0) 2021.12.27
Posted by 구차니

댓글을 달아 주세요

embeded/orange pi2021. 12. 28. 19:01

기본계정은 root / orangepi

전원은 micro USB / OTG 포트로 공급해주니 문제없이 작동한다.

microSD를 꽂지 않으면 power LED 조차 안들어 오는건가?





htop 신버전인가 cpu 온도랑 클럭 주파수가 나오네?

아무튼 1.8GHz랑 480MHZ랑 1초간격으로 오가는걸 보면 최적화는 잘 되어있지 않은듯(idle인데도)



/dev/mmcblk2 가 eMMC  같은데 이녀석만으로 독립 부팅이 가능하려나?

# fdisk -l
Disk /dev/mmcblk0: 14.86 GiB, 15931539456 bytes, 31116288 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xe672dc9f

Device         Boot Start      End  Sectors  Size Id Type
/dev/mmcblk0p1       8192 30805119 30796928 14.7G 83 Linux


Disk /dev/mmcblk2: 7.29 GiB, 7818182656 bytes, 15269888 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x2d07f978

Device         Boot Start      End  Sectors  Size Id Type
/dev/mmcblk2p1       8192 15117183 15108992  7.2G 83 Linux


Disk /dev/zram0: 50 MiB, 52428800 bytes, 12800 sectors
Units: sectors of 1 * 4096 = 4096 bytes
Sector size (logical/physical): 4096 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes


Disk /dev/zram1: 994.69 MiB, 1042993152 bytes, 254637 sectors
Units: sectors of 1 * 4096 = 4096 bytes
Sector size (logical/physical): 4096 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes



# cat /proc/cpuinfo
processor       : 0
Processor       : AArch64 Processor rev 4 (aarch64)
Hardware        : sun50iw1p1
BogoMIPS        : 48.00
Features        : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant     : 0x0
CPU part        : 0xd03
CPU revision    : 4



OrangePi_install2EMMC.sh

파일을 찾아서 eMMC에 설치하고 독립적으로 켤 수 있으면 좋겠네?

[링크 : https://forum.armbian.com/topic/9368-orangepi-3-h6-allwiner-chip/page/23/]

'embeded > orange pi' 카테고리의 다른 글

orangepi-config  (0) 2021.12.31
orange pi 3, 3 lts  (0) 2021.12.31
orange pi 3  (0) 2021.12.30
orange pi 3 기동  (0) 2021.12.28
orange pi gpio  (0) 2021.12.28
orange pi 3 사양  (0) 2021.12.27
Posted by 구차니

댓글을 달아 주세요
