stm32f746g-disco with semtech sx1276 and lvgl

액정은 큰 거 치고는 해상도가 낮다.

그래도 PSP 해상도라고(!) 130,560 pixel 이고 320x240의 76,800 pixel 에 비하면 거의 2배에 가까운 나름(!) 고해상도다.

STM32F746NGH6 Arm® Cortex® core-based microcontroller with 1 Mbyte of Flash memory and 340 Kbytes of RAM, in BGA216 package 4.3” RGB 480×272 color LCD-TFT with capacitive touch screen Ethernet compliant with IEEE-802.3-2002 USB OTG HS USB OTG FS SAI audio codec Two ST-MEMS digital microphones 128-Mbit Quad-SPI Flash memory 128-Mbit SDRAM (64 Mbits accessible)

[링크 : https://www.st.com/en/evaluation-tools/32f746gdiscovery.html]



이건 또 어떻게 살리냐..

[링크 : https://www.semtech.com/products/wireless-rf/lora-connect/sx1276mb1las]



일단 이거부터 빌드해서 넣어보자!

[링크 : https://github.com/lvgl/lv_port_stm32f746_disco]



응~ 에러

라는데 웃긴건 elf 파일이 생성되어 있다.

arm-none-eabi-gcc -o "lv_port_stm32f746_disco.elf" @"objects.list"   -mcpu=cortex-m7 -T"/home/falinux/work/src/lv_port_stm32f746_disco/LinkerScript.ld" --specs=nosys.specs -Wl,-Map="lv_port_stm32f746_disco.map" -Wl,--gc-sections -static --specs=nano.specs -mfpu=fpv5-sp-d16 -mfloat-abi=hard -mthumb -Wl,--start-group -lc -lm -Wl,--end-group /opt/st/stm32cubeide_1.16.0/plugins/cohttp://m.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.0.200.202406132123/tools/bin/../lib/gcc/arm-none-eabi/12.3.1/../../../../arm-none-eabi/bin/ld: warning: /opt/st/stm32cubeide_1.16.0/plugins/cohttp://m.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.0.200.202406132123/tools/bin/../lib/gcc/arm-none-eabi/12.3.1/thumb/v7e-m+fp/hard/crtn.o: missing .note.GNU-stack section implies executable stack /opt/st/stm32cubeide_1.16.0/plugins/cohttp://m.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.0.200.202406132123/tools/bin/../lib/gcc/arm-none-eabi/12.3.1/../../../../arm-none-eabi/bin/ld: NOTE: This behaviour is deprecated and will be removed in a future version of the linker /opt/st/stm32cubeide_1.16.0/plugins/cohttp://m.st.stm32cube.ide.mcu.externaltools.gnu-tools-for-stm32.12.3.rel1.linux64_1.0.200.202406132123/tools/bin/../lib/gcc/arm-none-eabi/12.3.1/../../../../arm-none-eabi/bin/ld: warning: lv_port_stm32f746_disco.elf has a LOAD segment with RWX permissions Finished building target: lv_port_stm32f746_disco.elf   arm-none-eabi-size  lv_port_stm32f746_disco.elf     text    data     bss     dec     hex filename  617604    1064  204368  823036   c8efc lv_port_stm32f746_disco.elf Finished building: default.size.stdout arm-none-eabi-objdump -h -S lv_port_stm32f746_disco.elf  > "lv_port_stm32f746_disco.list"   arm-none-eabi-objcopy  -O binary lv_port_stm32f746_disco.elf  "lv_port_stm32f746_disco.bin" Finished building: lv_port_stm32f746_disco.bin   Finished building: lv_port_stm32f746_disco.list   12:38:35 Build Failed. 1 errors, 2 warnings. (took 53s.960ms)

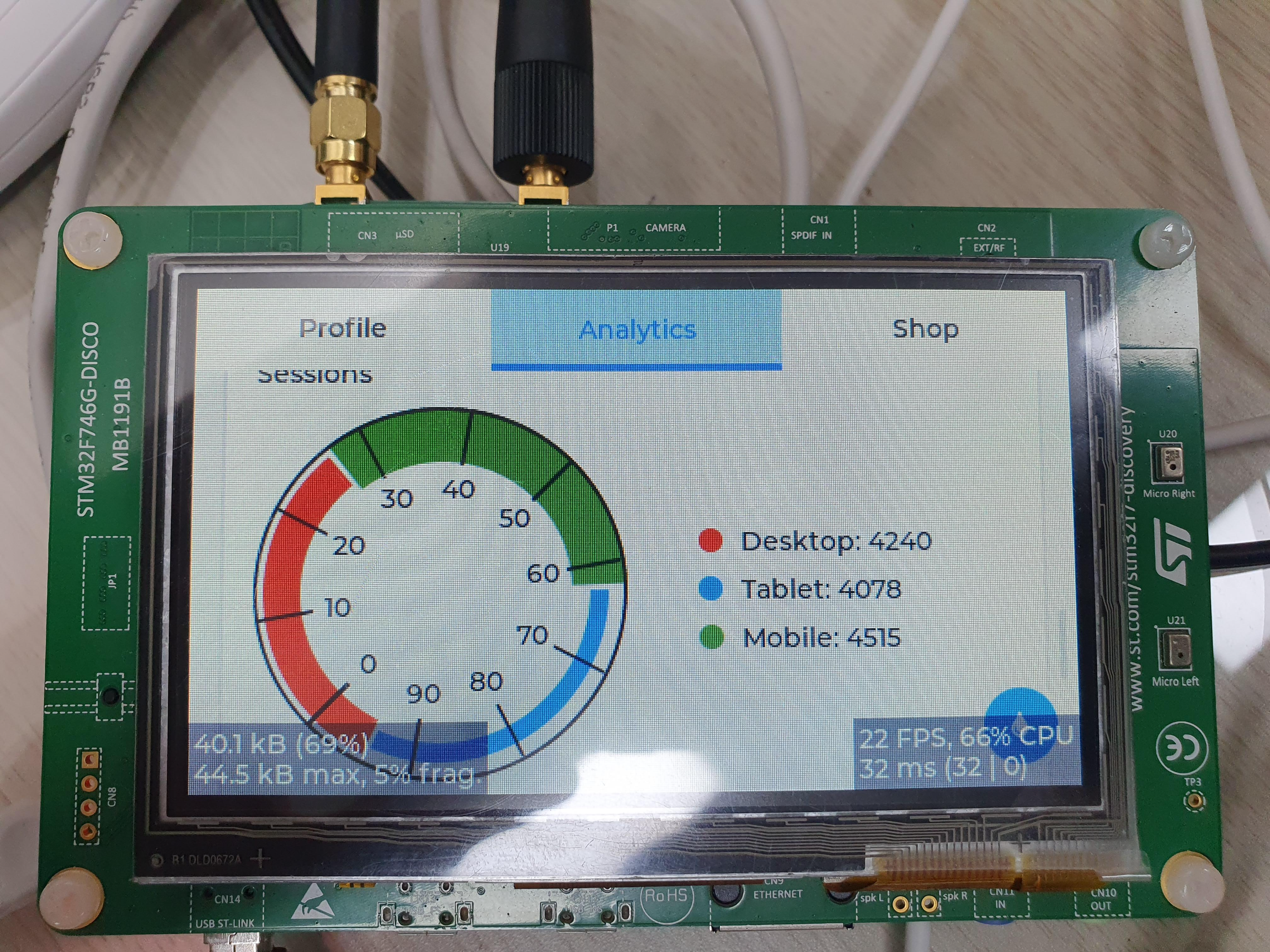

cortex-m7 이라 기대했는데 해상도 때문인가 느리다?!
