zigbee CC2531 on ubuntu 실패

음.. 그러고 보니 zigbee 단말도 없긴하네?



[   40.925908] usb 2-1.2: new full-speed USB device number 5 using ehci-pci [   41.009340] usb 2-1.2: New USB device found, idVendor=0451, idProduct=16a8, bcdDevice= 0.09 [   41.009366] usb 2-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [   41.009375] usb 2-1.2: Product: TI CC2531 USB CDC [   41.009381] usb 2-1.2: Manufacturer: Texas Instruments [   41.009386] usb 2-1.2: SerialNumber: __0X00124B0018E27CF7 [   41.010714] cdc_acm 2-1.2:1.0: ttyACM0: USB ACM device [   64.137191] warning: `ThreadPoolForeg' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211

[링크 : https://github.com/zigbee2mqtt/hassio-zigbee2mqtt]

[링크 : https://m.blog.naver.com/ohminy11/222520636013]

[링크 : https://cafe.naver.com/koreassistant/3962]



$ ls -al /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00  lrwxrwxrwx 1 root root 13 12월 27 18:33 /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00 -> ../../ttyACM0



version: 4 mqtt:     base_topic: zigbee2mqtt     server: mqtt://localhost:1833 serial:     port: /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00     adapter: zstack advanced:     channel: 11     network_key: GENERATE     pan_id: GENERATE     ext_pan_id: GENERATE frontend:     enabled: true homeassistant:     enabled: true

[링크 : https://www.zigbee2mqtt.io/guide/configuration/]



[링크 : https://github.com/Koenkk/zigbee2mqtt]

[링크 : https://www.zigbee2mqtt.io/guide/installation/01_linux.html] 리눅스 직접설치 비추



링크에서 있는거랑은 시리얼이 달라서 일단은 내거랑 맞게 수정

sudo docker run \    --name zigbee2mqtt \    --restart=unless-stopped \    --device=/dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00:/dev/ttyACM0 \    -p 8080:8080 \    -v $(pwd)/data:/app/data \    -v /run/udev:/run/udev:ro \    -e TZ=Asia/Seoul \    ghcr.io/koenkk/zigbee2mqtt

[링크 : https://www.zigbee2mqtt.io/guide/installation/02_docker.html] docker 추천

[링크 : https://github.com/koenkk/zigbee2mqtt/pkgs/container/zigbee2mqtt] 다른 아키텍쳐 일 경우



실행시 메시지

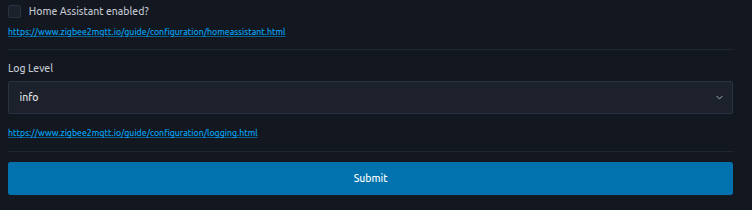

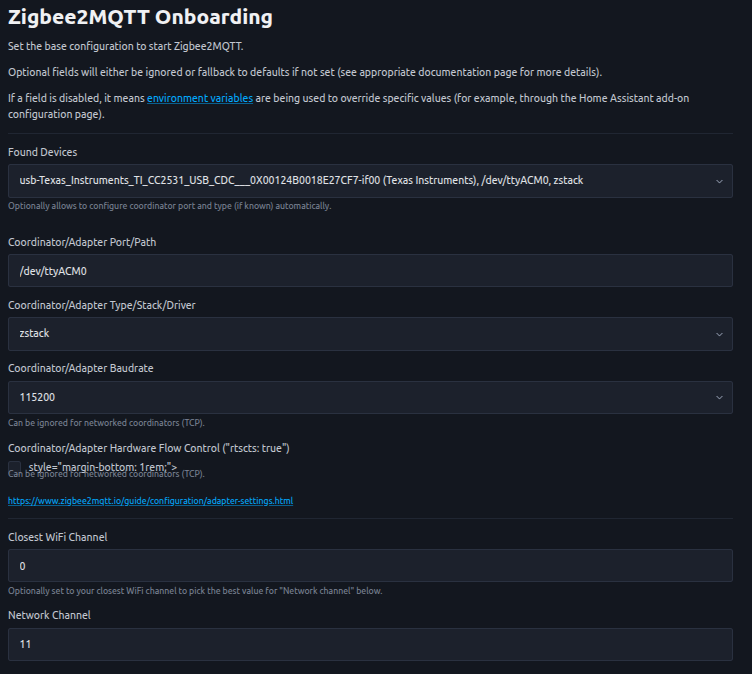

Unable to find image 'ghcr.io/koenkk/zigbee2mqtt:latest' locally latest: Pulling from koenkk/zigbee2mqtt 2d35ebdb57d9: Pull complete  22359d97d4f5: Pull complete  04d924b772af: Pull complete  93836646b368: Pull complete  33e1af1a4e45: Pull complete  3fa2c3ee76eb: Pull complete  7b447ead2b45: Pull complete  ce83bad0f202: Pull complete  508a0def7d14: Pull complete  108de8ed3423: Pull complete  Digest: sha256:163e7351430a95d550d5b1bb958527edc1eff115eb013ca627f3545a192e853f Status: Downloaded newer image for ghcr.io/koenkk/zigbee2mqtt:latest Using '/app/data' as data directory Starting Zigbee2MQTT without watchdog. Onboarding page is available at http://0.0.0.0:8080/



Onboarding page is available at http://0.0.0.0:8080/ [2025-12-27 20:13:39] info:  z2m: Logging to console, file (filename: log.log) [2025-12-27 20:13:39] info:  z2m: Starting Zigbee2MQTT version 2.7.1 (commit #6d30fa156cf208189edbbd7db8422a6fc657fb9e ) [2025-12-27 20:13:39] info:  z2m: Starting zigbee-herdsman (7.0.4) [2025-12-27 20:13:39] info:  zh:adapter:discovery: Matched adapter: {"path":"/dev/ttyACM0","manufacturer":"Texas Instruments","serialNumber":"__0X00124B0018E27CF7","pnpId":"usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00","vendorId":"0451","productId":"16a8"} => zstack: 4 [2025-12-27 20:13:39] info:  zh:zstack:znp: Opening SerialPort with {"path":"/dev/ttyACM0","baudRate":115200,"rtscts":false,"autoOpen":false} [2025-12-27 20:13:39] info:  zh:zstack:znp: Serialport opened [2025-12-27 20:13:46] info:  zh:controller: Wrote coordinator backup to '/app/data/coordinator_backup.json' [2025-12-27 20:13:46] info:  z2m: zigbee-herdsman started (restored) [2025-12-27 20:13:46] info:  z2m: Coordinator firmware version: '{"meta":{"maintrel":3,"majorrel":2,"minorrel":6,"product":0,"revision":20190608,"transportrev":2},"type":"ZStack12"}' [2025-12-27 20:13:46] info:  z2m: Currently 0 devices are joined. [2025-12-27 20:13:46] info:  z2m: Connecting to MQTT server at mqtt://localhost:1883 [2025-12-27 20:13:46] error:  z2m: MQTT failed to connect, exiting... () [2025-12-27 20:13:46] info:  z2m: Stopping zigbee-herdsman... [2025-12-27 20:13:47] info:  zh:controller: Wrote coordinator backup to '/app/data/coordinator_backup.json' [2025-12-27 20:13:47] info:  zh:zstack:znp: closing [2025-12-27 20:13:47] info:  zh:zstack:znp: Port closed [2025-12-27 20:13:47] info:  z2m: Stopped zigbee-herdsman
