forza horizon 4 telemetry 수정

빌드하려고 vs2022 부터 다시 깔고 쑈하긴 했는데

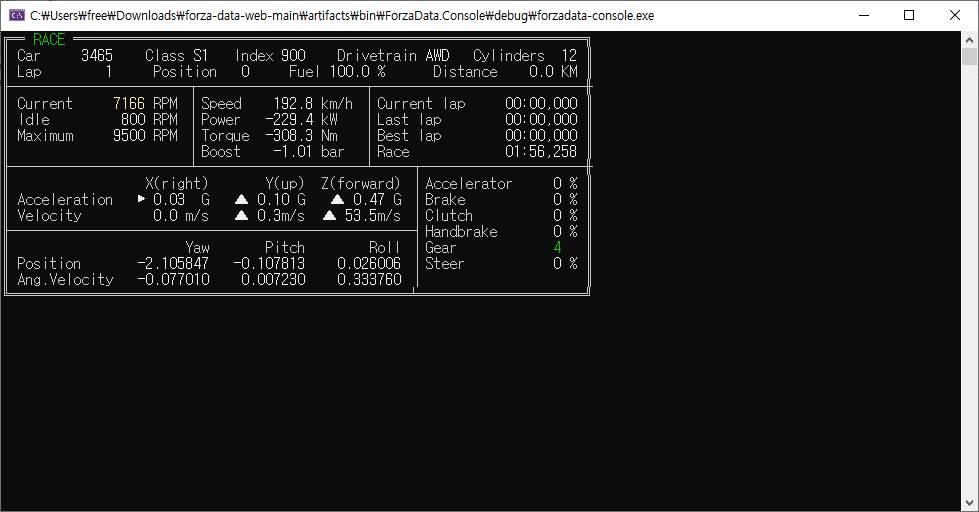

아무튼 기어가 올라오긴 한다.



서버는 자기 자신의 아이피를 넣고(0.0.0.0을 넣으면 되려나?) 포트를 게임에서 설정한대로 하면 끝



이 녀석의 구조체를 뜯어 봐야 겠구만?

[링크 : https://github.com/geeooff/forza-data-web]





다시 원점으로 돌아가서 하나하나 길이 맞추면서 보니까 먼가 12바이트가 추가되어 있었다.

01 00 00 00 // S32 IsRaceOn; 87 65 A8 14 // U32 TimestampMS; FB 6F 14 46 // F32 EngineMaxRpm; F8 FF 47 44 // F32 EngineIdleRpm; D9 18 0A 45 // F32 CurrentEngineRpm; C0 FC 1B BD // F32 AccelerationX; 90 AB 60 3D  6C 00 D9 40  88 EA A9 BD // F32 VelocityX; E8 EF 9D BC  83 62 9B 40  5D F5 9C 3B // F32 AngularVelocityX; 16 7C 65 BC  E9 09 D0 BC  7E D0 B0 BF // F32 Yaw; F2 E8 B1 BE  AA F7 69 3E  FA 31 DB 3E // F32 NormalizedSuspensionTravelFrontLeft CE 72 B3 3E  A4 DD F8 3E  3F 6E 03 3F  FB 1B 71 3F // F32 TireSlipRatioFrontLeft 07 85 59 3F  A2 BE 10 3F  4F 86 29 3F  39 74 A3 41 // F32 WheelRotationSpeedFrontLeft CC 09 8C 41  BC CC 81 41  C2 F8 85 41  00 00 00 00 // S32 WheelOnRumbleStripFrontLeft 00 00 00 00  00 00 00 00  00 00 00 00  00 00 00 00 // F32 WheelInPuddleDepthFrontLeft 00 00 00 00  00 00 00 00  00 00 00 00  99 99 19 3F // F32 SurfaceRumbleFrontLeft 99 99 19 3F  99 99 19 3F 99 99 19 3F 34 3F DD 3D // F32 TireSlipAngleFrontLeft 34 C6 E3 3D  0F 9A 97 3D  35 FA 99 3D  B2 B0 72 3F  // F32 TireCombinedSlipFrontLeft 06 60 5B 3F  DA FA 11 3F  20 9D 2A 3F  1E A2 B0 BB // F32 SuspensionTravelMetersFrontLeft 5C 44 3D BC  00 E9 9A 3A  80 C3 54 3B  89 0D 00 00 // S32 CarOrdinal 04 00 00 00 // S32 CarClass 84 03 00 00 // S32 CarPerformanceIndex 02 00 00 00 // S32 DrivetrainType - // 0 = FWD, 1 = RWD, 2 = AWD 0C 00 00 00 // S32 NumCylinders 0D 00 00 00 // ??  00 00 00 00 // ?? 00 00 00 00 // ?? EC C6 18 C4 // F32 PositionX;  33 08 20 43 // F32 PositionY;  40 A0 1C C5 // F32 PositionZ;  A1 68 9B 40 // F32 Speed;  F4 5F 03 48 // F32 Power;  23 DF 11 44 // F32 Torque;  20 4C 9C 42 // F32 TireTempFrontLeft;  0D 43 9D 42 // F32 TireTempFrontRight;  9B FD A9 42 // F32 TireTempRearLeft;  9B FD A9 42 // F32 TireTempRearRight;  00 00 00 00 // F32 Boost;  00 00 80 3F // F32 Fuel;  00 00 00 00 // F32 DistanceTraveled;  00 00 00 00 // F32 BestLap;  00 00 00 00 // F32 LastLap; 00 00 00 00 // F32 CurrentLap; C8 AF FB 43 // F32 CurrentRaceTime; 00 00       // U16 LapNumber; 00          // U8 RacePosition; FF          // U8 Accel; 00          // U8 Brake; 00          // U8 Clutch; 00          // U8 HandBrake; 01          // U8 Gear; 00          // S8 Steer; 00          // S8 NormalizedDrivingLine; 00          // S8 NormalizedAIBrakeDifference; 00          // ???



sled 구조체에서 Steer 이후에 24bit는 원래의 구조체와는 다른 것 같네

아무튼 아래와 같이 값들이 정상적으로 출력되는 것 확인!



소스코드

#include <stdio.h>

#include <stdlib.h>

#include <string.h>

#include <unistd.h>

#include <arpa/inet.h>

#include <sys/socket.h>

#include <ncurses.h>



#define BUF_SIZE 500



typedef char S8;

typedef unsigned char U8;

typedef unsigned short U16;

typedef int S32;

typedef unsigned int U32;

typedef float F32;



typedef struct _sled_

{

// = 1 when race is on. = 0 when in menus/race stopped …

S32 IsRaceOn;



// Can overflow to 0 eventually

U32 TimestampMS;

F32 EngineMaxRpm;

F32 EngineIdleRpm;

F32 CurrentEngineRpm;



// In the car's local space; X = right, Y = up, Z = forward

F32 AccelerationX;

F32 AccelerationY;

F32 AccelerationZ;



// In the car's local space; X = right, Y = up, Z = forward

F32 VelocityX;

F32 VelocityY;

F32 VelocityZ;



// In the car's local space; X = pitch, Y = yaw, Z = roll

F32 AngularVelocityX;

F32 AngularVelocityY;

F32 AngularVelocityZ;



F32 Yaw;

F32 Pitch;

F32 Roll;



// Suspension travel normalized: 0.0f = max stretch; 1.0 = max compression

F32 NormalizedSuspensionTravelFrontLeft;

F32 NormalizedSuspensionTravelFrontRight;

F32 NormalizedSuspensionTravelRearLeft;

F32 NormalizedSuspensionTravelRearRight;



// Tire normalized slip ratio, = 0 means 100% grip and |ratio| > 1.0 means loss of grip.

F32 TireSlipRatioFrontLeft;

F32 TireSlipRatioFrontRight;

F32 TireSlipRatioRearLeft;

F32 TireSlipRatioRearRight;



// Wheels rotation speed radians/sec.

F32 WheelRotationSpeedFrontLeft;

F32 WheelRotationSpeedFrontRight;

F32 WheelRotationSpeedRearLeft;

F32 WheelRotationSpeedRearRight;



// = 1 when wheel is on rumble strip, = 0 when off.

S32 WheelOnRumbleStripFrontLeft;

S32 WheelOnRumbleStripFrontRight;

S32 WheelOnRumbleStripRearLeft;

S32 heelOnRumbleStripRearRight;



// = from 0 to 1, where 1 is the deepest puddle

F32 WheelInPuddleDepthFrontLeft;

F32 WheelInPuddleDepthFrontRight;

F32 WheelInPuddleDepthRearLeft;

F32 WheelInPuddleDepthRearRight;



// Non-dimensional surface rumble values passed to controller force feedback

F32 SurfaceRumbleFrontLeft;

F32 SurfaceRumbleFrontRight;

F32 SurfaceRumbleRearLeft;

F32 SurfaceRumbleRearRight;



// Tire normalized slip angle, = 0 means 100% grip and |angle| > 1.0 means loss of grip.

F32 TireSlipAngleFrontLeft;

F32 TireSlipAngleFrontRight;

F32 TireSlipAngleRearLeft;

F32 TireSlipAngleRearRight;



// Tire normalized combined slip, = 0 means 100% grip and |slip| > 1.0 means loss of grip.

F32 TireCombinedSlipFrontLeft;

F32 TireCombinedSlipFrontRight;

F32 TireCombinedSlipRearLeft;

F32 TireCombinedSlipRearRight;



// Actual suspension travel in meters

F32 SuspensionTravelMetersFrontLeft;

F32 SuspensionTravelMetersFrontRight;

F32 SuspensionTravelMetersRearLeft;

F32 SuspensionTravelMetersRearRight;



// Unique ID of the car make/model

S32 CarOrdinal;



// Between 0 (D -- worst cars) and 7 (X class -- best cars) inclusive

S32 CarClass;



// Between 100 (worst car) and 999 (best car) inclusive

S32 CarPerformanceIndex;



// 0 = FWD, 1 = RWD, 2 = AWD

S32 DrivetrainType;



// Number of cylinders in the engine

S32 NumCylinders;

} __attribute__((packed)) FORZA_SLED;



typedef struct _dash_

{

// = 1 when race is on. = 0 when in menus/race stopped …

S32 IsRaceOn;



// Can overflow to 0 eventually

U32 TimestampMS;

F32 EngineMaxRpm;

F32 EngineIdleRpm;

F32 CurrentEngineRpm;



// In the car's local space; X = right, Y = up, Z = forward

F32 AccelerationX;

F32 AccelerationY;

F32 AccelerationZ;



// In the car's local space; X = right, Y = up, Z = forward

F32 VelocityX;

F32 VelocityY;

F32 VelocityZ;



// In the car's local space; X = pitch, Y = yaw, Z = roll

F32 AngularVelocityX;

F32 AngularVelocityY;

F32 AngularVelocityZ;



F32 Yaw;

F32 Pitch;

F32 Roll;



// Suspension travel normalized: 0.0f = max stretch; 1.0 = max compression

F32 NormalizedSuspensionTravelFrontLeft;

F32 NormalizedSuspensionTravelFrontRight;

F32 NormalizedSuspensionTravelRearLeft;

F32 NormalizedSuspensionTravelRearRight;



// Tire normalized slip ratio, = 0 means 100% grip and |ratio| > 1.0 means loss of grip.

F32 TireSlipRatioFrontLeft;

F32 TireSlipRatioFrontRight;

F32 TireSlipRatioRearLeft;

F32 TireSlipRatioRearRight;



// Wheels rotation speed radians/sec.

F32 WheelRotationSpeedFrontLeft;

F32 WheelRotationSpeedFrontRight;

F32 WheelRotationSpeedRearLeft;

F32 WheelRotationSpeedRearRight;



// = 1 when wheel is on rumble strip, = 0 when off.

S32 WheelOnRumbleStripFrontLeft;

S32 WheelOnRumbleStripFrontRight;

S32 WheelOnRumbleStripRearLeft;

S32 heelOnRumbleStripRearRight;



// = from 0 to 1, where 1 is the deepest puddle

F32 WheelInPuddleDepthFrontLeft;

F32 WheelInPuddleDepthFrontRight;

F32 WheelInPuddleDepthRearLeft;

F32 WheelInPuddleDepthRearRight;



// Non-dimensional surface rumble values passed to controller force feedback

F32 SurfaceRumbleFrontLeft;

F32 SurfaceRumbleFrontRight;

F32 SurfaceRumbleRearLeft;

F32 SurfaceRumbleRearRight;



// Tire normalized slip angle, = 0 means 100% grip and |angle| > 1.0 means loss of grip.

F32 TireSlipAngleFrontLeft;

F32 TireSlipAngleFrontRight;

F32 TireSlipAngleRearLeft;

F32 TireSlipAngleRearRight;



// Tire normalized combined slip, = 0 means 100% grip and |slip| > 1.0 means loss of grip.

F32 TireCombinedSlipFrontLeft;

F32 TireCombinedSlipFrontRight;

F32 TireCombinedSlipRearLeft;

F32 TireCombinedSlipRearRight;



// Actual suspension travel in meters

F32 SuspensionTravelMetersFrontLeft;

F32 SuspensionTravelMetersFrontRight;

F32 SuspensionTravelMetersRearLeft;

F32 SuspensionTravelMetersRearRight;



// Unique ID of the car make/model

S32 CarOrdinal;



// Between 0 (D -- worst cars) and 7 (X class -- best cars) inclusive

S32 CarClass;



// Between 100 (worst car) and 999 (best car) inclusive

S32 CarPerformanceIndex;



// 0 = FWD, 1 = RWD, 2 = AWD

S32 DrivetrainType;



// Number of cylinders in the engine

S32 NumCylinders;



S32 reserved1;

S32 reserved2;

S32 reserved3;



// add for DASH

F32 PositionX;

F32 PositionY;

F32 PositionZ;

F32 Speed;

F32 Power;

F32 Torque;

F32 TireTempFrontLeft;

F32 TireTempFrontRight;

F32 TireTempRearLeft;

F32 TireTempRearRight;

F32 Boost;

F32 Fuel;

F32 DistanceTraveled;

F32 BestLap;

F32 LastLap;

F32 CurrentLap;

F32 CurrentRaceTime;

U16 LapNumber;

U8 RacePosition;

U8 Accel;

U8 Brake;

U8 Clutch;

U8 HandBrake;

U8 Gear;

S8 Steer;

S8 NormalizedDrivingLine;

S8 NormalizedAIBrakeDifference;



F32 TireWearFrontLeft;

F32 TireWearFrontRight;

F32 TireWearRearLeft;

F32 TireWearRearRight;



// ID for track

S32 TrackOrdinal;

} __attribute__((packed)) FORZA_DASH;



int last_raceon = 0;

void parse_forza_dbg(unsigned char *message)

{

int row = 0;

FORZA_DASH forza;

memcpy(&forza, message, sizeof(FORZA_DASH));



for(int i = 0; i < 324; i++)

{

if(i % 16 == 0)

printf("\n");

printf("%02X ",message[i]);

}

printf("\n");



printf("NumCylinders %d\n", forza.NumCylinders);



printf("PositionX %f\n", forza.PositionX);

printf("PositionY %f\n", forza.PositionY);

printf("PositionZ %f\n", forza.PositionZ);



printf("speed %f\n", forza.Speed);



printf("clutch %d\n", forza.Clutch);

printf("brake %d\n", forza.Brake);

printf("accel %d\n", forza.Accel);

printf("HandBrake %d\n", forza.HandBrake);

}



void parse_forza(unsigned char *message)

{

int row = 0;

FORZA_DASH forza;

memcpy(&forza, message, sizeof(FORZA_DASH));



static unsigned int pack_cnt = 0;



if(last_raceon != forza.IsRaceOn)

{

clear();

last_raceon = forza.IsRaceOn;

}



if(forza.IsRaceOn)

{

mvprintw(row++, 0, "let's fly %d\n",pack_cnt++);



mvprintw(row++, 0, "RPM %.0f / %.0f", forza.CurrentEngineRpm, forza.EngineMaxRpm);



mvprintw(row++, 0, "acc X %f", forza.AccelerationX);

mvprintw(row++, 0, "acc Y %f", forza.AccelerationY);

mvprintw(row++, 0, "acc Z %f", forza.AccelerationZ);



mvprintw(row++, 0, "vel X %f", forza.VelocityX);

mvprintw(row++, 0, "vel Y %f", forza.VelocityY);

mvprintw(row++, 0, "vel Z %f", forza.VelocityZ);



mvprintw(row++, 0, "ang vel X %f", forza.AngularVelocityX);

mvprintw(row++, 0, "ang vel Y %f", forza.AngularVelocityY);

mvprintw(row++, 0, "ang vel Z %f", forza.AngularVelocityZ);



mvprintw(row++, 0, "yaw %f", forza.Yaw);

mvprintw(row++, 0, "roll %f", forza.Pitch);

mvprintw(row++, 0, "pitch %f", forza.Roll);



mvprintw(row++, 0, "CarOrdinal %5d", forza.CarOrdinal);

mvprintw(row++, 0, "CarClass %5d", forza.CarClass);

mvprintw(row++, 0, "CarPerformanceIndex %5d", forza.CarPerformanceIndex);

mvprintw(row++, 0, "DrivetrainType %5d", forza.DrivetrainType);

mvprintw(row++, 0, "NumCylinders %5d", forza.NumCylinders);



mvprintw(row++, 0, "clutch[%3d] brake[%3d] accel[%3d] handbrake[%3d] gear[%2d] Steer[%3d]"

, forza.Clutch

, forza.Brake

, forza.Accel

, forza.HandBrake

, forza.Gear

, forza.Steer

);



mvprintw(row++, 0, "Speed[%5.0f] Power[%7.0f] Torque[%5.0f] Boost[%5.0f] Fuel[%5.0f]"

, forza.Speed

, forza.Power

, forza.Torque

, forza.Boost

, forza.Fuel

);



mvprintw(row++, 0, "Position %f , %f , %f"

, forza.PositionX

, forza.PositionY

, forza.PositionZ

);

}

else mvprintw(row++, 0, "pause");



refresh();

}



void error_handling(char *message);



int main(int argc, char *argv[]){

int serv_sock;

char message[BUF_SIZE];

int str_len;

socklen_t clnt_adr_sz;



struct sockaddr_in serv_adr, clnt_adr;



printf("%d sizeof(FORZA_SLED)\n", sizeof(FORZA_SLED));

printf("%d sizeof(FORZA_DASH)\n", sizeof(FORZA_DASH));



if(argc!=2){

printf("Usage:%s <port>\n", argv[0]);

exit(1);

}



serv_sock = socket(PF_INET, SOCK_DGRAM, 0);

if(serv_sock == -1)

error_handling("UDP socket creation error");



memset(&serv_adr, 0, sizeof(serv_adr));

serv_adr.sin_family=AF_INET;

serv_adr.sin_addr.s_addr=htonl(INADDR_ANY);

serv_adr.sin_port=htons(atoi(argv[1]));



if(bind(serv_sock, (struct sockaddr*)&serv_adr, sizeof(serv_adr)) == -1)

error_handling("bind() error");



initscr();



while(1){

clnt_adr_sz = sizeof(clnt_adr);

str_len = recvfrom(serv_sock, message, BUF_SIZE, 0, (struct sockaddr*)&clnt_adr, &clnt_adr_sz);

message[str_len] = 0x00;

// printf("%d received [%s]\n", str_len, message);

// printf("%d received, %d sizeof(FORZA_DASH)\n", str_len, sizeof(FORZA_DASH));

parse_forza(message);

// parse_forza_dbg(message);

sendto(serv_sock, message, str_len, 0, (struct sockaddr*)&clnt_adr, clnt_adr_sz);

}

close(serv_sock);

return 0;

}



void error_handling(char *message){

fputs(message, stderr);

fputc('\n', stderr);



endwin();

exit(1);

}
