forza horizon 4, 리눅스용 c언어 대시보드

324 바이트를 받고 있고

데이터 포맷이 맞는지 모르겠지만 일단은 pause / racing은 확실한데..

가속도 값이 저게 맞나..?

324 received let's fly acc X 10.054599 acc Y -0.817630 acc Z 2.089930 vel X -6.518519 vel Y -0.198055 vel Z 17.591864 yaw   -2.862235 roll  -0.191706 pitch 0.158119



packed 하지 않으면 아래 사이즈

232 sizeof(FORZA_SLED) 332 sizeof(FORZA_DASH)



packed 하면 아래 사이즈

232 sizeof(FORZA_SLED) 331 sizeof(FORZA_DASH)



forza horizon 은 sled 보단 dash 구조체 인가?

구조체 두개를 비교해보니, 실린더 수까진 동일하고 그 이후로 추가 데이터가 들어온다.

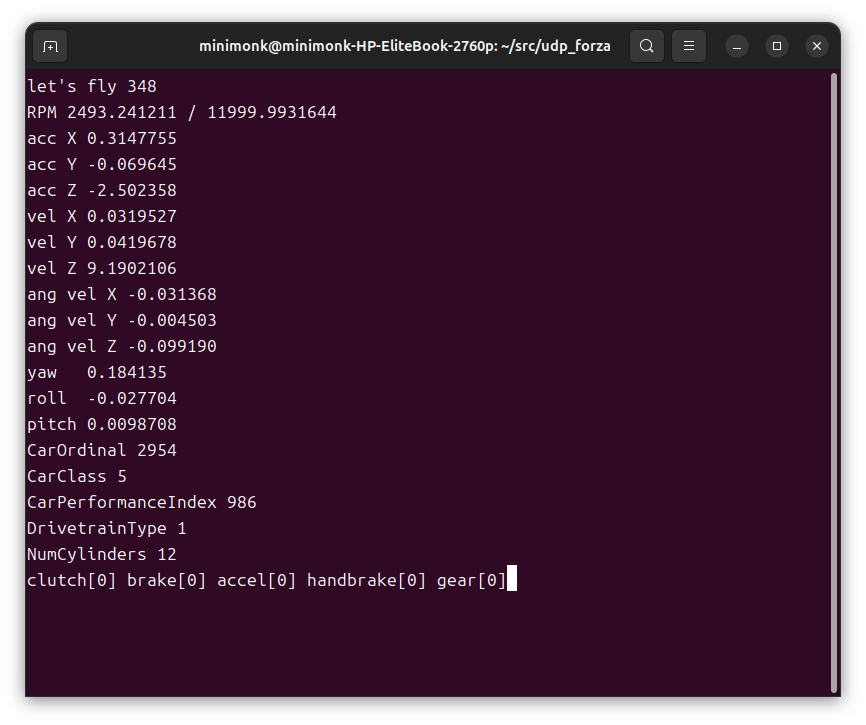

그렇다면.. 가속도가 맞다는건데.. 도대체(?) 왜 기어랑은 브레이크는 값이 왜 안들어 올까!

[링크 : https://support.forzamotorsport.net/hc/en-us/articles/21742934024211-Forza-Motorsport-Data-Out-Documentation]



리눅스 / ncurses / c 니까 어디든 쉽게 이식은 가능하겠지?



소스코드

#include <stdio.h>

#include <stdlib.h>

#include <string.h>

#include <unistd.h>

#include <arpa/inet.h>

#include <sys/socket.h>

#include <ncurses.h>



#define BUF_SIZE 500



typedef char S8;

typedef unsigned char U8;

typedef unsigned short U16;

typedef int S32;

typedef unsigned int U32;

typedef float F32;



typedef struct _sled_

{

// = 1 when race is on. = 0 when in menus/race stopped …

S32 IsRaceOn;



// Can overflow to 0 eventually

U32 TimestampMS;

F32 EngineMaxRpm;

F32 EngineIdleRpm;

F32 CurrentEngineRpm;



// In the car's local space; X = right, Y = up, Z = forward

F32 AccelerationX;

F32 AccelerationY;

F32 AccelerationZ;



// In the car's local space; X = right, Y = up, Z = forward

F32 VelocityX;

F32 VelocityY;

F32 VelocityZ;



// In the car's local space; X = pitch, Y = yaw, Z = roll

F32 AngularVelocityX;

F32 AngularVelocityY;

F32 AngularVelocityZ;



F32 Yaw;

F32 Pitch;

F32 Roll;



// Suspension travel normalized: 0.0f = max stretch; 1.0 = max compression

F32 NormalizedSuspensionTravelFrontLeft;

F32 NormalizedSuspensionTravelFrontRight;

F32 NormalizedSuspensionTravelRearLeft;

F32 NormalizedSuspensionTravelRearRight;



// Tire normalized slip ratio, = 0 means 100% grip and |ratio| > 1.0 means loss of grip.

F32 TireSlipRatioFrontLeft;

F32 TireSlipRatioFrontRight;

F32 TireSlipRatioRearLeft;

F32 TireSlipRatioRearRight;



// Wheels rotation speed radians/sec.

F32 WheelRotationSpeedFrontLeft;

F32 WheelRotationSpeedFrontRight;

F32 WheelRotationSpeedRearLeft;

F32 WheelRotationSpeedRearRight;



// = 1 when wheel is on rumble strip, = 0 when off.

S32 WheelOnRumbleStripFrontLeft;

S32 WheelOnRumbleStripFrontRight;

S32 WheelOnRumbleStripRearLeft;

S32 heelOnRumbleStripRearRight;



// = from 0 to 1, where 1 is the deepest puddle

F32 WheelInPuddleDepthFrontLeft;

F32 WheelInPuddleDepthFrontRight;

F32 WheelInPuddleDepthRearLeft;

F32 WheelInPuddleDepthRearRight;



// Non-dimensional surface rumble values passed to controller force feedback

F32 SurfaceRumbleFrontLeft;

F32 SurfaceRumbleFrontRight;

F32 SurfaceRumbleRearLeft;

F32 SurfaceRumbleRearRight;



// Tire normalized slip angle, = 0 means 100% grip and |angle| > 1.0 means loss of grip.

F32 TireSlipAngleFrontLeft;

F32 TireSlipAngleFrontRight;

F32 TireSlipAngleRearLeft;

F32 TireSlipAngleRearRight;



// Tire normalized combined slip, = 0 means 100% grip and |slip| > 1.0 means loss of grip.

F32 TireCombinedSlipFrontLeft;

F32 TireCombinedSlipFrontRight;

F32 TireCombinedSlipRearLeft;

F32 TireCombinedSlipRearRight;



// Actual suspension travel in meters

F32 SuspensionTravelMetersFrontLeft;

F32 SuspensionTravelMetersFrontRight;

F32 SuspensionTravelMetersRearLeft;

F32 SuspensionTravelMetersRearRight;



// Unique ID of the car make/model

S32 CarOrdinal;



// Between 0 (D -- worst cars) and 7 (X class -- best cars) inclusive

S32 CarClass;



// Between 100 (worst car) and 999 (best car) inclusive

S32 CarPerformanceIndex;



// 0 = FWD, 1 = RWD, 2 = AWD

S32 DrivetrainType;



// Number of cylinders in the engine

S32 NumCylinders;

} __attribute__((packed)) FORZA_SLED;



typedef struct _dash_

{

// = 1 when race is on. = 0 when in menus/race stopped …

S32 IsRaceOn;



// Can overflow to 0 eventually

U32 TimestampMS;

F32 EngineMaxRpm;

F32 EngineIdleRpm;

F32 CurrentEngineRpm;



// In the car's local space; X = right, Y = up, Z = forward

F32 AccelerationX;

F32 AccelerationY;

F32 AccelerationZ;



// In the car's local space; X = right, Y = up, Z = forward

F32 VelocityX;

F32 VelocityY;

F32 VelocityZ;



// In the car's local space; X = pitch, Y = yaw, Z = roll

F32 AngularVelocityX;

F32 AngularVelocityY;

F32 AngularVelocityZ;



F32 Yaw;

F32 Pitch;

F32 Roll;



// Suspension travel normalized: 0.0f = max stretch; 1.0 = max compression

F32 NormalizedSuspensionTravelFrontLeft;

F32 NormalizedSuspensionTravelFrontRight;

F32 NormalizedSuspensionTravelRearLeft;

F32 NormalizedSuspensionTravelRearRight;



// Tire normalized slip ratio, = 0 means 100% grip and |ratio| > 1.0 means loss of grip.

F32 TireSlipRatioFrontLeft;

F32 TireSlipRatioFrontRight;

F32 TireSlipRatioRearLeft;

F32 TireSlipRatioRearRight;



// Wheels rotation speed radians/sec.

F32 WheelRotationSpeedFrontLeft;

F32 WheelRotationSpeedFrontRight;

F32 WheelRotationSpeedRearLeft;

F32 WheelRotationSpeedRearRight;



// = 1 when wheel is on rumble strip, = 0 when off.

S32 WheelOnRumbleStripFrontLeft;

S32 WheelOnRumbleStripFrontRight;

S32 WheelOnRumbleStripRearLeft;

S32 heelOnRumbleStripRearRight;



// = from 0 to 1, where 1 is the deepest puddle

F32 WheelInPuddleDepthFrontLeft;

F32 WheelInPuddleDepthFrontRight;

F32 WheelInPuddleDepthRearLeft;

F32 WheelInPuddleDepthRearRight;



// Non-dimensional surface rumble values passed to controller force feedback

F32 SurfaceRumbleFrontLeft;

F32 SurfaceRumbleFrontRight;

F32 SurfaceRumbleRearLeft;

F32 SurfaceRumbleRearRight;



// Tire normalized slip angle, = 0 means 100% grip and |angle| > 1.0 means loss of grip.

F32 TireSlipAngleFrontLeft;

F32 TireSlipAngleFrontRight;

F32 TireSlipAngleRearLeft;

F32 TireSlipAngleRearRight;



// Tire normalized combined slip, = 0 means 100% grip and |slip| > 1.0 means loss of grip.

F32 TireCombinedSlipFrontLeft;

F32 TireCombinedSlipFrontRight;

F32 TireCombinedSlipRearLeft;

F32 TireCombinedSlipRearRight;



// Actual suspension travel in meters

F32 SuspensionTravelMetersFrontLeft;

F32 SuspensionTravelMetersFrontRight;

F32 SuspensionTravelMetersRearLeft;

F32 SuspensionTravelMetersRearRight;



// Unique ID of the car make/model

S32 CarOrdinal;



// Between 0 (D -- worst cars) and 7 (X class -- best cars) inclusive

S32 CarClass;



// Between 100 (worst car) and 999 (best car) inclusive

S32 CarPerformanceIndex;



// 0 = FWD, 1 = RWD, 2 = AWD

S32 DrivetrainType;



// Number of cylinders in the engine

S32 NumCylinders;



// add for DASH

F32 PositionX;

F32 PositionY;

F32 PositionZ;

F32 Speed;

F32 Power;

F32 Torque;

F32 TireTempFrontLeft;

F32 TireTempFrontRight;

F32 TireTempRearLeft;

F32 TireTempRearRight;

F32 Boost;

F32 Fuel;

F32 DistanceTraveled;

F32 BestLap;

F32 LastLap;

F32 CurrentLap;

F32 CurrentRaceTime;

U16 LapNumber;

U8 RacePosition;

U8 Accel;

U8 Brake;

U8 Clutch;

U8 HandBrake;

U8 Gear;

S8 Steer;

S8 NormalizedDrivingLine;

S8 NormalizedAIBrakeDifference;



F32 TireWearFrontLeft;

F32 TireWearFrontRight;

F32 TireWearRearLeft;

F32 TireWearRearRight;



// ID for track

S32 TrackOrdinal;

} __attribute__((packed)) FORZA_DASH;



int last_raceon = 0;

void parse_forza(char *message)

{

int row = 0;

FORZA_DASH forza;

memcpy(&forza, message, sizeof(FORZA_DASH));



static unsigned int pack_cnt = 0;



if(last_raceon != forza.IsRaceOn)

{

clear();

last_raceon = forza.IsRaceOn;

}



if(forza.IsRaceOn)

{

mvprintw(row++, 0, "let's fly %d\n",pack_cnt++);



mvprintw(row++, 0, "RPM %f / %f", forza.CurrentEngineRpm, forza.EngineMaxRpm);



mvprintw(row++, 0, "acc X %f", forza.AccelerationX);

mvprintw(row++, 0, "acc Y %f", forza.AccelerationY);

mvprintw(row++, 0, "acc Z %f", forza.AccelerationZ);



mvprintw(row++, 0, "vel X %f", forza.VelocityX);

mvprintw(row++, 0, "vel Y %f", forza.VelocityY);

mvprintw(row++, 0, "vel Z %f", forza.VelocityZ);



mvprintw(row++, 0, "ang vel X %f", forza.AngularVelocityX);

mvprintw(row++, 0, "ang vel Y %f", forza.AngularVelocityY);

mvprintw(row++, 0, "ang vel Z %f", forza.AngularVelocityZ);



mvprintw(row++, 0, "yaw %f", forza.Yaw);

mvprintw(row++, 0, "roll %f", forza.Pitch);

mvprintw(row++, 0, "pitch %f", forza.Roll);

mvprintw(row++, 0, "CarOrdinal %d", forza.CarOrdinal);

mvprintw(row++, 0, "CarClass %d", forza.CarClass);

mvprintw(row++, 0, "CarPerformanceIndex %d", forza.CarPerformanceIndex);

mvprintw(row++, 0, "DrivetrainType %d", forza.DrivetrainType);

mvprintw(row++, 0, "NumCylinders %d", forza.NumCylinders);



mvprintw(row++, 0, "clutch[%d] brake[%d] accel[%d] handbrake[%d] gear[%d]"

, forza.Clutch

, forza.Brake

, forza.Accel

, forza.HandBrake

, forza.Gear);



}

else mvprintw(row++, 0, "pause");



refresh();

}



void error_handling(char *message);



int main(int argc, char *argv[]){

int serv_sock;

char message[BUF_SIZE];

int str_len;

socklen_t clnt_adr_sz;



struct sockaddr_in serv_adr, clnt_adr;



printf("%d sizeof(FORZA_SLED)\n", sizeof(FORZA_SLED));

printf("%d sizeof(FORZA_DASH)\n", sizeof(FORZA_DASH));



if(argc!=2){

printf("Usage:%s <port>\n", argv[0]);

exit(1);

}



serv_sock = socket(PF_INET, SOCK_DGRAM, 0);

if(serv_sock == -1)

error_handling("UDP socket creation error");



memset(&serv_adr, 0, sizeof(serv_adr));

serv_adr.sin_family=AF_INET;

serv_adr.sin_addr.s_addr=htonl(INADDR_ANY);

serv_adr.sin_port=htons(atoi(argv[1]));



if(bind(serv_sock, (struct sockaddr*)&serv_adr, sizeof(serv_adr)) == -1)

error_handling("bind() error");



initscr();



while(1){

clnt_adr_sz = sizeof(clnt_adr);

str_len = recvfrom(serv_sock, message, BUF_SIZE, 0, (struct sockaddr*)&clnt_adr, &clnt_adr_sz);

message[str_len] = 0x00;

// printf("%d received [%s]\n", str_len, message);

// printf("%d received, %d sizeof(FORZA_SLED)\n", str_len, sizeof(FORZA_SLED));

parse_forza(message);

sendto(serv_sock, message, str_len, 0, (struct sockaddr*)&clnt_adr, clnt_adr_sz);

}

close(serv_sock);

return 0;

}



void error_handling(char *message){

fputs(message, stderr);

fputc('\n', stderr);



endwin();

exit(1);

}
