spi로 된 lcd를 달면 어떻게 되긴 되는 듯
VSPI가 카메라에서 사용중이라 HSPI를 써야 한다고 한다.
[링크 : https://blog.naver.com/mapes_khkim/221893783364]
SPI0, SPI1은 플래시용 (사용자 사용불가)
SPI2(hspi), SPI3(vspi)
[링크 : https://devicein.tistory.com/entry/ESP32-SPI-설정-관련-팁]

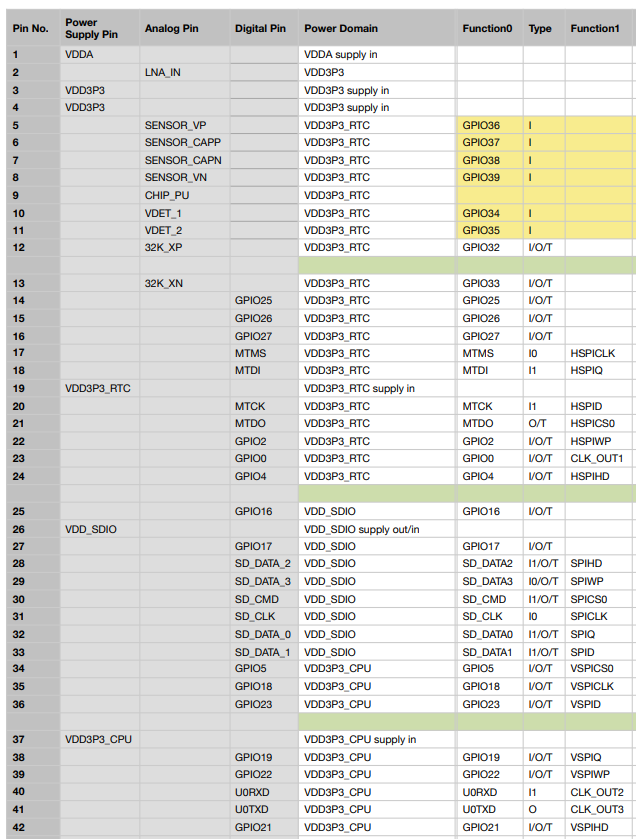

HSPI는 17~24번 사이에 있고
VSPI는 34~42번 사이에 있는 듯.
3.8.2 Serial Peripheral Interface (SPI) ESP32 features three SPIs (SPI, HSPI and VSPI) in slave and master modes in 1-line full-duplex and 1/2/4-line half-duplex communication modes. These SPIs also support the following general-purpose SPI features: • Four modes of SPI transfer format, which depend on the polarity (CPOL) and the phase (CPHA) of the SPI clock • Up to 80 MHz (The actual speed it can reach depends on the selected pads, PCB tracing, peripheral characteristics, etc.) • up to 64-byte FIFO All SPIs can also be connected to the external flash/SRAM and LCD. Each SPI can be served by DMA controllers. |
[링크 : https://www.espressif.com/sites/default/files/documentation/esp32_datasheet_en.pdf]

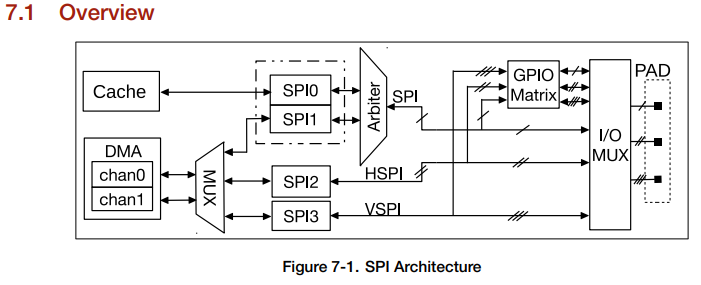

gpio matrix를 거칠수도 있고 아닐수도 있는데 spi2(hspi) spi3(vspi)는 속도에서 차이가 없나?
Controllers SPI2 and SPI3 use signal buses starting with “HSPI” and “VSPI” respectively |
대충보기에는 이 제품인것 같은데
ILI9341C 칩이면 되려나?
[링크 : https://www.11st.co.kr/products/3126317068] 2.2인치 / 24,000
[링크 : https://www.11st.co.kr/products/pa/4440530323] 2.8인치 터치 / 32,030
+
// VSPI (default under Arduino) SPIClass SPI1(VSPI); Adafruit_ILI9341 tft0 = Adafruit_ILI9341(&SPI1, VSP_DC, VSP_CS, VSP_RST); // HSPI SPIClass SPI2(HSPI); Adafruit_ILI9341 tft1 = Adafruit_ILI9341(&SPI2, HSP_DC, HSP_CS, HSP_RST); |
