nxp i.mx8mp win iot part 2

다시 문서를 보니 이전에 10.1 단계를 건너뛰고 10.2만 진행한 것 같다.



아무생각 없이 무지성으로 win 10 x64용 에서 해당 파일 꺼내려고 보니 2GB.

아키텍쳐가 안되겠지...? 라는 생각에

win 10 iot ent 다운로드 받는데 4시간..(32bit / 64bit + 영어 / 국문...)

10.1 Flashing Windows 10 IoT Installer to the SD card Currently, the only way to deploy a Windows IoT Enterprise on the onboard eMMC is to use WinPE. OS (Windows Preinstallation Environment) to write the Windows IoT image to eMMC. Windows manufacturing OS (WinPE) that can be fully loaded and run from memory without using persistent storage. The following steps create an SD card with WinPE and a Windows IoT image that contains the BSP drivers. The boot firmware checks the SD card and boots WinPE, which then installs the Windows IoT image to the eMMC. 1. Decompress the W21H2-1-x-x-imx-windows-bsp-binaries.zip file. The package contains release-signed prebuilt binaries and image files. 2. Open the elevated command prompt and navigate to the IoTEntOnNXP directory. 3. Mount the previously downloaded Windows IoT Enterprise ISO image file (see chapter Software requirements) and copy the install.wim file from the <DVD mount drive:>\sources\install.wim to the IoTEntOnNXP directory. 4. Execute the command: make-winpe-enterprise.cmd /disable_updates /disable_transparency /test_signing This command creates a copy of the selected install.wim image with injected i.MX drivers and applied updates from the kbpatch/ directory. These patches are for Windows 21H2, build 19044.1288 and update the image to build 19044.2566. Note: Be sure to copy the whole command line. 5. Execute the command: make-winpe-enterprise.cmd /apply <disk_number> where <disk_number> is the physical number of the SD card disk on your PC. It can be obtained using the Disk Management tool (right-click the start menu icon and select Disk Management). This command deploys the WinPE image to the SD card. CAUTION: Make sure to select the correct disk number, as this step formats the selected disk! The WinPEbased Windows installer is now deployed on the SD card. 6. Continue with the firmware installation to the SD card. 10.2 Flashing firmware to the SD card During active development of the boot firmware, it can be time-consuming and error-prone to repeatedly change the dip switches between UUU download mode and eMMC boot mode. To simplify this process, the i.MX EVK boards support SD card boot mode that allows you to keep the boot firmware on an SD card. To deploy boot firmware to an SD card from Windows, we recommend using the Cfimager tool from https://www. nxp.com/webapp/Download?colCode=CF_IMAGER. Perform the following steps to flash the firmware to the SD card: 1. Download the NXP cfimager tool and copy it into the firmware directory or a directory listed in the system environment variable %PATH%. 2. Navigate to the firmware directory. 3. Plug the SD card into the host PC and execute the following board-specific command: For i.MX 8M Mini EVK board: flash_bootloader.cmd /device MX8M_MINI_EVK /target_drive <SD card driver letter, for example, f:> For i.MX 8M Quad EVK board: flash_bootloader.cmd /device MX8M_EVK /target_drive <SD card driver letter, for example, f:> For i.MX 8M Nano EVK board: flash_bootloader.cmd /device MX8M_NANO_EVK /target_drive <SD card driver letter, for example, f:> For i.MX 8M Plus EVK board: flash_bootloader.cmd /device MX8M_PLUS_EVK /target_drive <SD card driver letter, for example, f:> For i.MX 8QuadXPlus MEK board: flash_bootloader.cmd /device MX8QXP_MEK /target_drive <SD card driver letter, for example, f:> For i.MX 93 EVK board: flash_bootloader.cmd /device MX93_11X11_EVK /target_drive <SD card driver letter, for example, f:> 4. Power off the board. 5. Insert the SD card to the board. 6. Change the boot device to the SD card. 7. Power on the board

[링크 : https://www.nxp.com/docs/en/quick-reference-guide/IMXWQSG.pdf]





+

다시 시도 하는데 이런저런 또 막히는 것들 산더미 -_-

C:\nxp\W21H2-1-3-0-imx-windows-bsp-binaries\IoTEntOnNXP>make-winpe-enterprise.cmd /disable_updates /disable_transparency /test_signing You must install the Windows PE Add-on for the ADK https://docs.microsoft.com/en-us/windows-hardware/manufacture/desktop/download-winpe--windows-pe Script failed Cleaning up 배포 이미지 서비스 및 관리 도구 버전: 10.0.22621.1 오류: 50 지원되지 않는 요청입니다. DISM 로그 파일은 C:\Windows\Logs\DISM\dism.log에 있습니다. 배포 이미지 서비스 및 관리 도구 버전: 10.0.22621.1 오류: 50 지원되지 않는 요청입니다. DISM 로그 파일은 C:\Windows\Logs\DISM\dism.log에 있습니다. C:\nxp\W21H2-1-3-0-imx-windows-bsp-binaries\IoTEntOnNXP\diskpart.txt을(를) 찾을 수 없습니다.

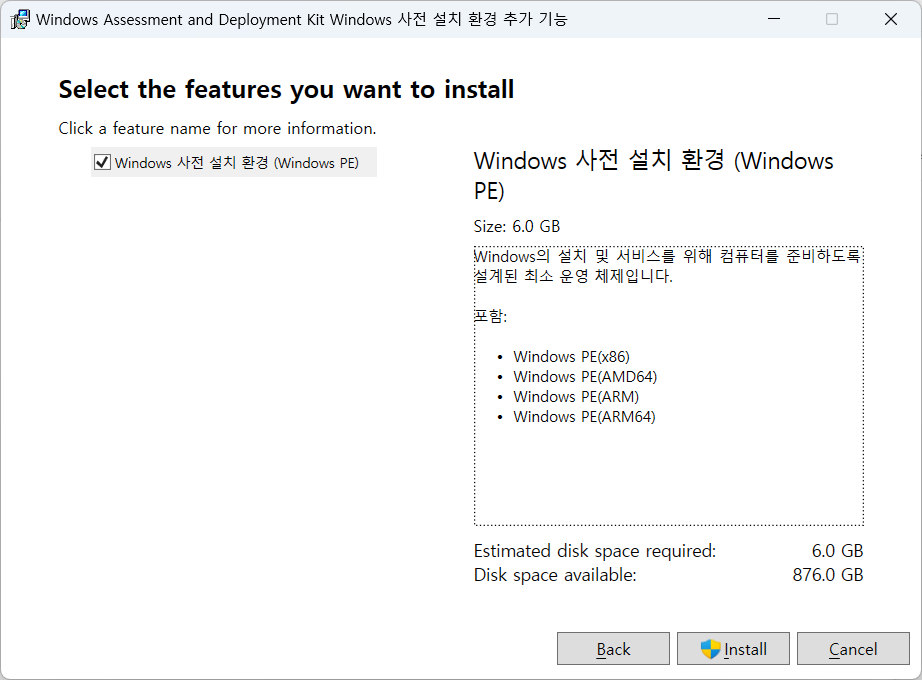

그래서 PE Addon 만 까는 청개구리 짓을 발동!



다시 문서를 읽어 보니 adk for win10, winpe addon for adk 2004 두개를 깔아야 한다고 한데 winPE add-on for ADK 만 설치해도 일단은 넘어간다.

3 Software requirements • Binary drivers and firmware (either downloaded from nxp.com or built locally) • Windows IoT operating system. There are two options: – Visual Studio Subscription portal my.visualstudio.com – At the portal, click Downloads -> Windows 10 -> Search for “Windows 10 IoT Enterprise LTSC 2021” or “Windows 10 IoT Enterprise 2021” – The default architecture is set to x64, click the dropdown menu to change it to Arm64 and download the DVD – Through microsoftoem.com facilitated by a Windows IoT OS distributor – To find a distributor, visit aka.ms/iotdistributorlist • Windows ADK for Windows 10 and Windows PE add-on for ADK, version 2004.



다시 시도하니 되는것 같긴한데

무지성으로(!) 받은 x86 , x64용 Win IoT Ent 라서 ARM64 아니라고 뱉는다.

C:\nxp\W21H2-1-3-0-imx-windows-bsp-binaries\IoTEntOnNXP>make-winpe-enterprise.cmd /disable_updates /disable_transparency /test_signing Selected: "install.wim" Source image:                          install.wim Test signing:                          yes Patch Sdport:                          no Windows debug over ethernet:           no, IP: Windows PE debug over ethernet:        no, IP: KD_NET file (for debug over net):      no Windows debug over serial:             no Windows PE debug over serial:          no Unattended install answer file:        no Disable updates:                       yes Disable transparency:                  yes Split wim:                             no Cummulative update:                    no, path: ********************************************************************************************************************************************************* +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ *** Step 1 Creating i.MX Windows IoT Enterprise image: out\imx_win_iot_install.wim ********************************************************************************************************************************************************* +++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++ Cleaning up from previous run --------------------------------------------------------------------------------------------------------------------------------------------------------- *** Step 1.1 Copying Windows Enterprise image install.wim to out\imx_win_iot_install.wim --------------------------------------------------------------------------------------------------------------------------------------------------------- 하위 디렉터리 또는 파일 out이(가) 이미 있습니다. copy "install.wim" "out\imx_win_iot_install.wim"         1개 파일이 복사되었습니다. --------------------------------------------------------------------------------------------------------------------------------------------------------- *** Step 1.2 Mounting i.MX Windows IoT Enterprise image at out\mount_enterprise --------------------------------------------------------------------------------------------------------------------------------------------------------- dism /mount-wim /wimfile:"out\imx_win_iot_install.wim" /mountdir:"out\mount_enterprise" /index:2 배포 이미지 서비스 및 관리 도구 버전: 10.0.22621.1 오류: 0xc1510113 지정한 이미지가 WIM에 없습니다. WIM에서 먼저 기존 이미지가 있는지 확인하십시오. DISM 로그 파일은 C:\Windows\Logs\DISM\dism.log에 있습니다.
