LTC connector?

DE1-SoC 에서 LTC 커넥터라는 말이 나와서

이게 멀 의미하는건가 싶어 검색하는데 딱히 보이지 않는다.

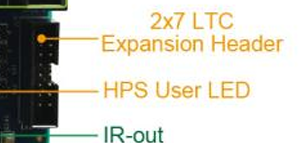

그냥 디~~게 평범한 2x7 배열을 가진 핀헤더 같은데 왜 LTC 인가..



GPIO / I2C / SPI 연결되는 평범한 녀석인데..

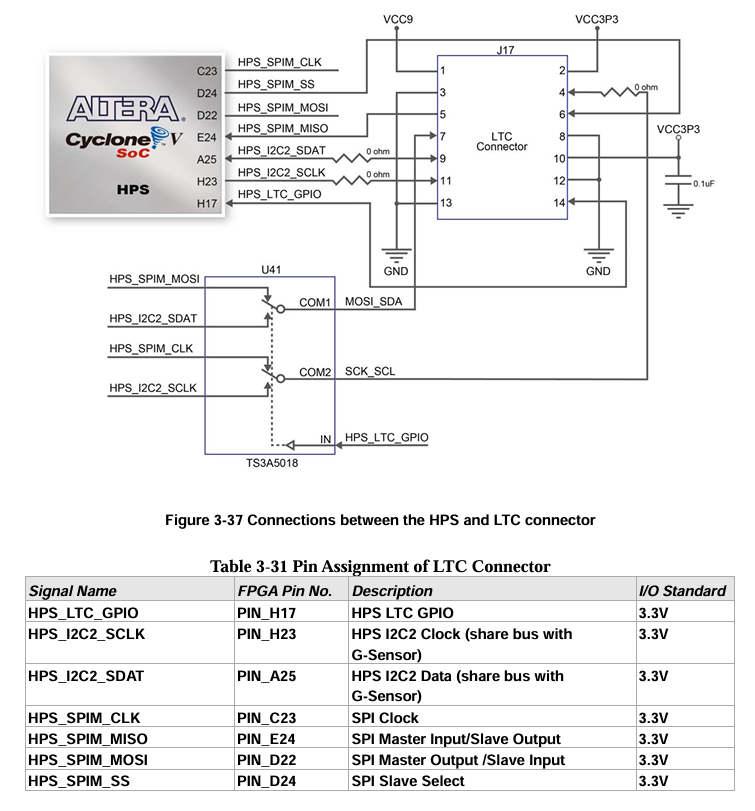

3.7.8 LTC Connector The board has a 14-pin header, which is originally used to communicate with various daughter cards from Linear Technology. It is connected to the SPI Master and I2C ports of HPS. The communication with these two protocols is bi-directional. The 14-pin header can also be used for GPIO, SPI, or I2C based communication with the HPS. Connections between the HPS and LTC connector are shown in Figure 3-37, and the pin assignment of LTC connector is listed in Table 3-31.



Linear Technology Co. 줄여서 LTC 라고 하는건가?



[링크 : https://www.analog.com/media/en/technical-documentation/user-guides/dc1223a-bfa.pdf]



2016년 ADI(Analog Devices Inc.) 가 Linear technology 인수.

그래서 지금와서 칩셋 찾으면 Linear Technology 인데 도메인이 analog devices로 나왔나 보군..

[링크 : https://www.yna.co.kr/view/AKR20160727122200009]
