lvgl pro on win10 실패

해본다는게 맨날 까먹네 -_-







podman 이라고 docker를 대체하는거라고 나오네.. 머지?

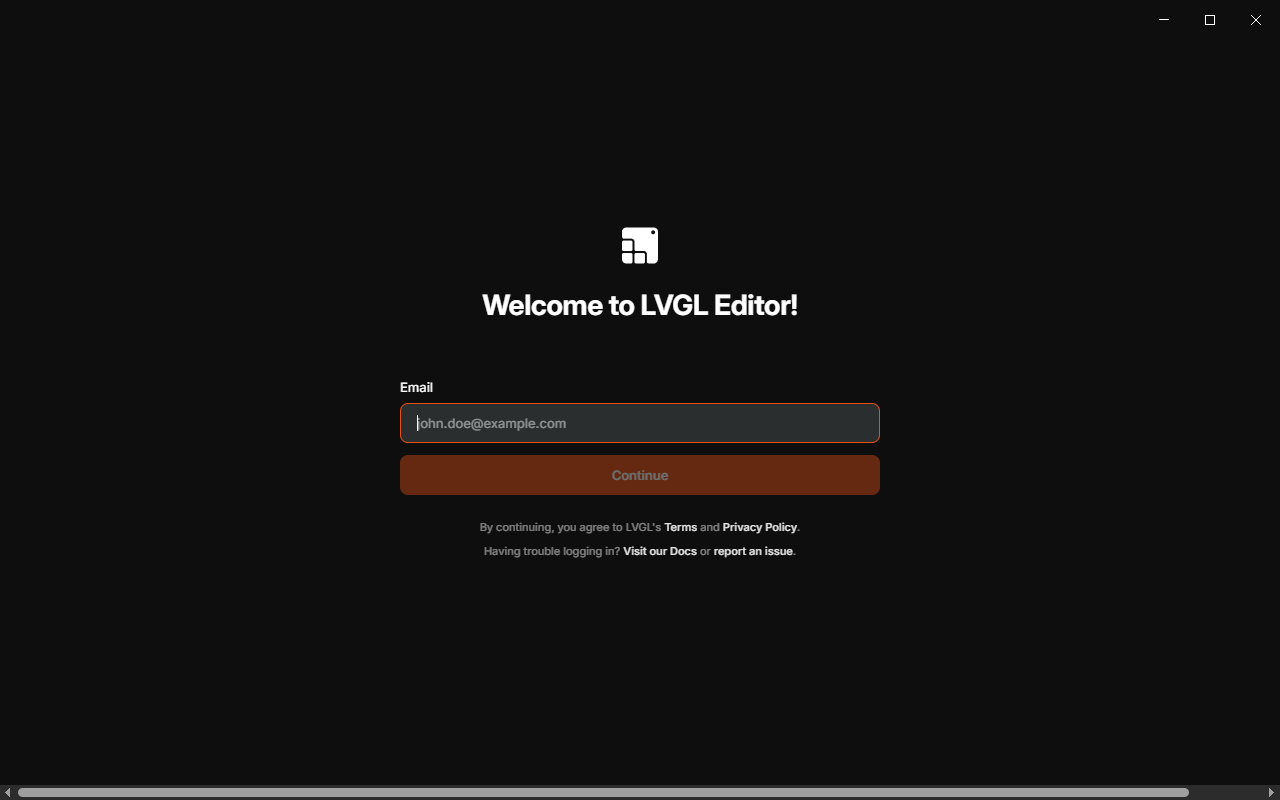

아무튼 메일을 쓰란다 쩝..

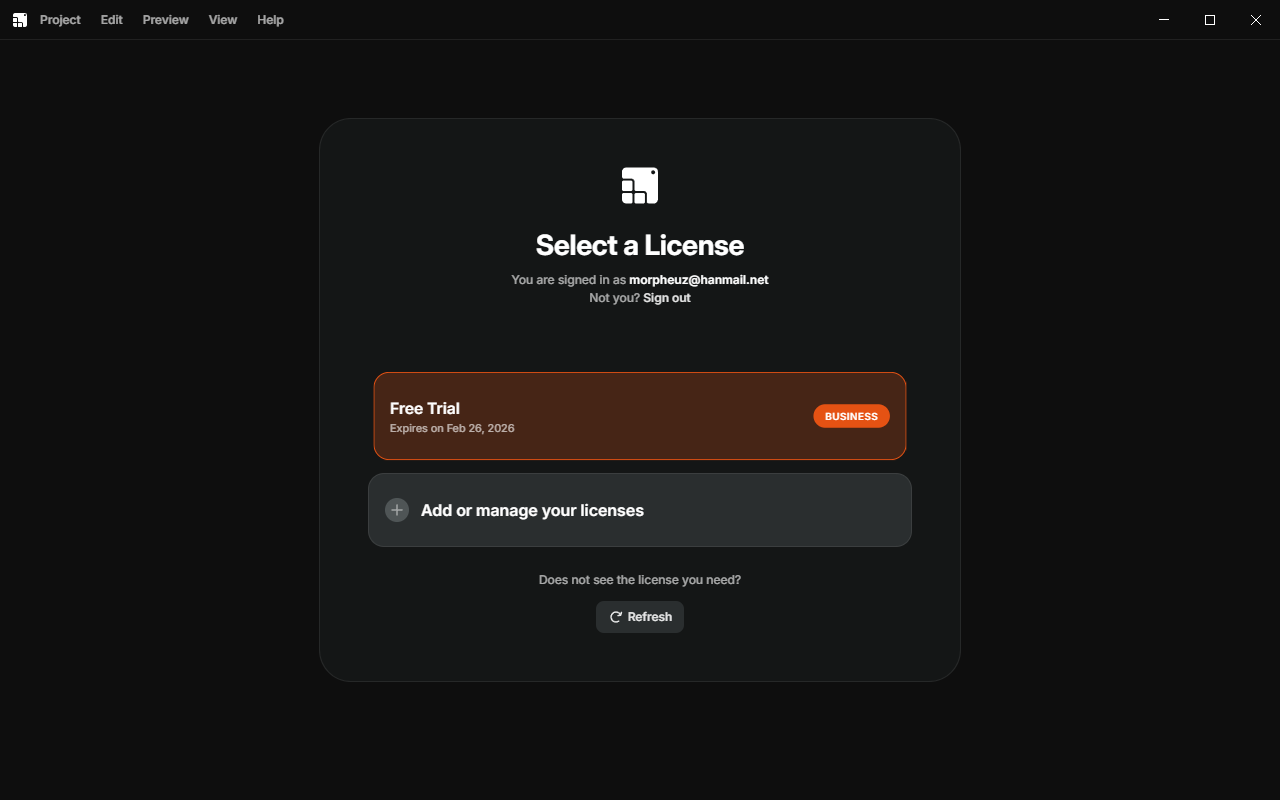

한달짜리 주네. 쩝





wsl을 안깔아놨었던거 같은데 그래서 그런가 에러가 발생해서 머가 되지 않는다.

아니 내 한달은?!?!?



아니.. 이정도면 인스톨러에 wsl 확인하고 하던가 너무하잖아

Windows Install WSL Before using the Editor WSL (Windows Subsystem for Linux) needs to be installed. Open a Terminal and type wsl.exe --list --verbose to see if it's already installed. If it's not, just type wsl --install and hit Enter.

[링크 : https://docs.lvgl.io/master/xml/editor/install.html]



+

다른 pc에서 시도하는데 안된다.



일반사용자 모드시 에러

Console Ready ⚠️ Deleted preview-build and preview-bin because they were built with an older version of LVGL. Runtime not found in project, building... Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js. Generating code for project: C:/Users/shin/Desktop/lvgl/test ⏳ Generating code... Cleaning generated files... Validating code... LVGLSchemaService: loading schemas... Found 2 XML files. Code Validation passed Generating C code: ☑️ Generated test_gen.h ☑️ Generated test_gen.c ☑️ Generated test.c ☑️ Generated test.h [Resource Converter] Mirror docker.io/lvglio/emscripten-sdl2:0.2.0 unavailable: Cannot connect to Podman. Please verify your connection to the Linux system using `podman system connection list`, or try `podman machine init` and `podman machine start` to manage a new Linux VM Error: unable to connect to Podman socket: Get "http://d/v5.5.1/libpod/_ping": dial unix /run/podman/podman.sock: connect: A socket operation encountered a dead network. Mirror ghcr.io/lvgl/emscripten-sdl2:0.2.0 unavailable: Cannot connect to Podman. Please verify your connection to the Linux system using `podman system connection list`, or try `podman machine init` and `podman machine start` to manage a new Linux VM Error: unable to connect to Podman socket: Get "http://d/v5.5.1/libpod/_ping": dial unix /run/podman/podman.sock: connect: A socket operation encountered a dead network. Falling back to local image reference emscripten-sdl2:0.2.0 ✅ Code generated successfully Compiling project Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js. Checking Podman virtual machine status... No Podman virtual machine found. A new one will be created automatically. It may take a few minutes before generating and compiling will be ready for use. Error: command C:\Windows\System32\wsl.exe [-l --quiet] failed: exit status 1 () Virtual machine init error: Error: command C:\Windows\System32\wsl.exe [-l --quiet] failed: exit status 1 () Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js.



관리자 모드로 다시 실행. 흠.. 윈도우에서 왜 안될까..

Console Ready Preparing container environment... Checking Podman virtual machine status... Error: command C:\Windows\System32\wsl.exe [-l --quiet] failed: exit status 1 () Virtual machine init error: Error: command C:\Windows\System32\wsl.exe [-l --quiet] failed: exit status 1 () Could not prepare container environment: 'Error: command C:\Windows\System32\wsl.exe [-l --quiet] failed: exit status 1 () ' ⚠️ Deleted preview-build and preview-bin because they were built with an older version of LVGL.



다시 보니 wsl 자체가 설치가 안되어 있었던것 같아서 설치!

C:\> wsl.exe --install



일반권한, 관리자 권한으로 재시도! 는 실패 -_-

Console Ready Preparing container environment... Checking Podman virtual machine status... Error: command C:\Users\minimonk\AppData\Local\Microsoft\WindowsApps\wsl.exe [-l --quiet] failed: exit status 0xffffffff () Virtual machine init error: Error: command C:\Users\minimonk\AppData\Local\Microsoft\WindowsApps\wsl.exe [-l --quiet] failed: exit status 0xffffffff () Could not prepare container environment: 'Error: command C:\Users\minimonk\AppData\Local\Microsoft\WindowsApps\wsl.exe [-l --quiet] failed: exit status 0xffffffff () ' ⚠️ Deleted preview-build and preview-bin because they were built with an older version of LVGL.



+

C:\>wsl.exe --install 요청한 작업을 수행하려면 권한 상승이 필요합니다. 설치 중: 가상 머신 플랫폼 가상 머신 플랫폼이(가) 설치되었습니다. 설치 중: Linux용 Windows 하위 시스템 Linux용 Windows 하위 시스템이(가) 설치되었습니다. 설치 중: Linux용 Windows 하위 시스템 Linux용 Windows 하위 시스템이(가) 설치되었습니다. 설치 중: Ubuntu Ubuntu이(가) 설치되었습니다. 요청한 작업이 잘 실행되었습니다. 시스템을 다시 시작하면 변경 사항이 적용됩니다. C:\>wsl -d ubuntu 이 응용 프로그램을 사용하려면 Linux용 Windows 하위 시스템 선택적 구성 요소가 필요합니다. 실행하여 설치: wsl.exe --install --no-distribution 변경 내용을 적용하려면 시스템을 다시 시작해야 할 수 있습니다. 오류 코드: Wsl/WSL_E_WSL_OPTIONAL_COMPONENT_REQUIRED C:\>wsl.exe --install --no-distribution 요청한 작업을 수행하려면 권한 상승이 필요합니다. Windows 선택적 구성 요소 설치 중: Microsoft-Windows-Subsystem-Linux 배포 이미지 서비스 및 관리 도구 버전: 10.0.19041.3636 이미지 버전: 10.0.19045.6466 기능을 사용하도록 설정하는 중 [==========================100.0%==========================] 작업을 완료했습니다. Windows 선택적 구성 요소 설치 중: VirtualMachinePlatform 배포 이미지 서비스 및 관리 도구 버전: 10.0.19041.3636 이미지 버전: 10.0.19045.6466 기능을 사용하도록 설정하는 중 [==========================100.0%==========================] 작업을 완료했습니다. 요청한 작업이 잘 실행되었습니다. 시스템을 다시 시작하면 변경 사항이 적용됩니다. 요청한 작업이 잘 실행되었습니다. 시스템을 다시 시작하면 변경 사항이 적용됩니다.

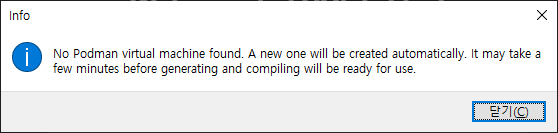

재부팅 하고 와서 일반 권한으로 하니 먼가 되는 느낌이다.







i5-7200U 라 그런가.. 한 10분? 15분 기다린거 같네 -_-

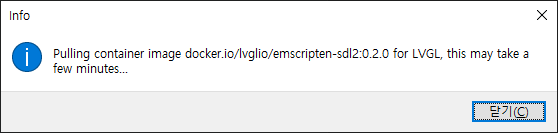

Container image docker.io/lvglio/emscripten-sdl2:0.2.0 is ready Removing any old Docker images in this list: docker.io/lvglio/emscripten-sdl2:0.1.0 No local image found for docker.io/lvglio/emscripten-sdl2:0.1.0, skipping removal. Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js. Runtime not found in project, building... Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js. Generating code for project: C:/Users/minimonk/Desktop/lvgl/test ⏳ Generating code... Cleaning generated files... Validating code... LVGLSchemaService: loading schemas... Found 2 XML files. ✅ Code generated successfully Compiling project Code Validation passed Generating C code: ☑️ Generated test_gen.h ☑️ Generated test_gen.c [Resource Converter] Failed to read file C:\Users\minimonk\Desktop\lvgl\test\preview-bin\lved-runtime.js. Checking Podman virtual machine status... Virtual machine is running ⌛ Compiling project C:/Users/minimonk/Desktop/lvgl/test for "web" environment ⏳ Building lib LVGL configure: cmake /lved/resources/lib -DCMAKE_TOOLCHAIN_FILE=/emsdk/upstream/emscripten/cmake/Modules/Platform/Emscripten.cmake -DCMAKE_CROSSCOMPILING_EMULATOR=/emsdk/node/20.18.0_64bit/bin/node -- The C compiler identification is Clang 21.0.0 -- Detecting C compiler ABI info -- Detecting C compiler ABI info - done -- Check for working C compiler: /emsdk/upstream/emscripten/emcc - skipped -- Detecting C compile features -- Detecting C compile features - done -- Configuring done -- Generating done -- Build files have been written to: /tmp/build make: make -j 4 -Oline [  0%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_group.c.o [  0%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj.c.o [  0%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_class.c.o [  0%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_draw.c.o [  1%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_event.c.o [  1%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_id_builtin.c.o [  1%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_pos.c.o [  1%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_property.c.o [  1%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_scroll.c.o [  2%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_style.c.o [  2%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_style_gen.c.o [  2%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_obj_tree.c.o [  2%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/core/lv_refr.c.o [  3%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/display/lv_display.c.o [  3%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/convert/helium/lv_draw_buf_convert_helium.c.o [  3%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/convert/lv_draw_buf_convert.c.o [  3%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/convert/neon/lv_draw_buf_convert_neon.c.o [  3%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/dma2d/lv_draw_dma2d.c.o [  4%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/dma2d/lv_draw_dma2d_fill.c.o [  4%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/dma2d/lv_draw_dma2d_img.c.o [  4%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/espressif/ppa/lv_draw_ppa.c.o [  4%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/espressif/ppa/lv_draw_ppa_buf.c.o [  5%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/espressif/ppa/lv_draw_ppa_fill.c.o [  5%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/espressif/ppa/lv_draw_ppa_img.c.o [  5%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve.c.o [  5%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_arc.c.o [  5%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_fill.c.o [  6%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_image.c.o [  6%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_letter.c.o [  6%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_line.c.o [  6%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_ram_g.c.o [  6%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_draw_eve_triangle.c.o [  7%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/eve/lv_eve.c.o [  7%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw.c.o [  7%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_3d.c.o [  7%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_arc.c.o [  8%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_buf.c.o [  8%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_image.c.o [  8%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_label.c.o [  8%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_line.c.o [  8%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_mask.c.o [  9%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_rect.c.o [  9%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_triangle.c.o [  9%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_draw_vector.c.o [  9%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/lv_image_decoder.c.o [ 10%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx.c.o [ 10%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_arc.c.o [ 10%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_border.c.o [ 10%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_fill.c.o [ 10%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_img.c.o [ 11%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_label.c.o [ 11%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_layer.c.o [ 11%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_line.c.o [ 11%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_stm32_hal.c.o [ 11%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_triangle.c.o [ 12%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_utils.c.o [ 12%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_draw_nema_gfx_vector.c.o [ 12%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nema_gfx/lv_nema_gfx_path.c.o [ 12%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_draw_buf_g2d.c.o [ 13%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_draw_g2d.c.o [ 13%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_draw_g2d_fill.c.o [ 13%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_draw_g2d_img.c.o [ 13%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_g2d_buf_map.c.o [ 13%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/g2d/lv_g2d_utils.c.o [ 14%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_draw_buf_pxp.c.o [ 14%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_draw_pxp.c.o [ 14%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_draw_pxp_fill.c.o [ 15%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_draw_pxp_layer.c.o [ 14%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_draw_pxp_img.c.o [ 15%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_pxp_cfg.c.o [ 15%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_pxp_osa.c.o [ 15%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/nxp/pxp/lv_pxp_utils.c.o [ 15%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/opengles/lv_draw_opengles.c.o [ 16%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d.c.o [ 16%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_arc.c.o [ 16%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_border.c.o [ 16%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_fill.c.o [ 16%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_image.c.o [ 17%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_label.c.o [ 17%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_line.c.o [ 17%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_mask_rectangle.c.o [ 17%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_triangle.c.o [ 18%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/renesas/dave2d/lv_draw_dave2d_utils.c.o [ 18%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sdl/lv_draw_sdl.c.o [ 18%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend.c.o [ 18%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_al88.c.o [ 18%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_argb8888.c.o [ 19%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_argb8888_premultiplied.c.o [ 19%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_i1.c.o [ 19%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_l8.c.o [ 19%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_rgb565.c.o [ 20%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_rgb565_swapped.c.o [ 20%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/lv_draw_sw_blend_to_rgb888.c.o [ 20%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/neon/lv_draw_sw_blend_neon_to_rgb565.c.o [ 20%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/blend/neon/lv_draw_sw_blend_neon_to_rgb888.c.o [ 20%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw.c.o [ 21%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_arc.c.o [ 21%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_border.c.o [ 21%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_box_shadow.c.o [ 21%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_fill.c.o [ 21%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_grad.c.o [ 22%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_img.c.o [ 22%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_letter.c.o [ 22%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_line.c.o [ 22%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_mask.c.o [ 23%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_mask_rect.c.o [ 23%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_transform.c.o [ 23%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_triangle.c.o [ 23%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_utils.c.o [ 23%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/sw/lv_draw_sw_vector.c.o [ 24%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_buf_vg_lite.c.o [ 24%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite.c.o [ 24%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_arc.c.o [ 24%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_border.c.o [ 25%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_box_shadow.c.o [ 25%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_fill.c.o [ 25%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_img.c.o [ 25%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_label.c.o [ 25%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_layer.c.o [ 26%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_line.c.o [ 26%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_mask_rect.c.o [ 26%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_triangle.c.o [ 26%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_draw_vg_lite_vector.c.o [ 26%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_decoder.c.o [ 27%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_grad.c.o [ 27%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_math.c.o [ 27%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_path.c.o [ 27%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_pending.c.o [ 28%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_stroke.c.o [ 28%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/draw/vg_lite/lv_vg_lite_utils.c.o [ 28%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/drm/lv_linux_drm.c.o [ 28%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/drm/lv_linux_drm_common.c.o [ 28%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/drm/lv_linux_drm_egl.c.o [ 29%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/fb/lv_linux_fbdev.c.o [ 29%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/ft81x/lv_ft81x.c.o [ 29%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/ili9341/lv_ili9341.c.o [ 29%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/lcd/lv_lcd_generic_mipi.c.o [ 30%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/nv3007/lv_nv3007.c.o [ 30%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/nxp_elcdif/lv_nxp_elcdif.c.o [ 30%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/renesas_glcdc/lv_renesas_glcdc.c.o [ 30%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/st7735/lv_st7735.c.o [ 30%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/st7789/lv_st7789.c.o [ 31%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/st7796/lv_st7796.c.o [ 31%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/display/st_ltdc/lv_st_ltdc.c.o [ 31%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/draw/eve/lv_draw_eve_display.c.o [ 31%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/evdev/lv_evdev.c.o [ 31%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/libinput/lv_libinput.c.o [ 32%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/libinput/lv_xkb.c.o [ 32%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_cache.c.o [ 32%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_entry.c.o [ 32%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_fbdev.c.o [ 33%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_image_cache.c.o [ 33%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_lcd.c.o [ 33%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_libuv.c.o [ 33%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_mouse.c.o [ 33%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_profiler.c.o [ 34%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/nuttx/lv_nuttx_touchscreen.c.o [ 34%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/assets/lv_opengles_shader.c.o [ 34%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/glad/src/egl.c.o [ 34%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/glad/src/gles2.c.o [ 35%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/lv_opengles_debug.c.o [ 35%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/lv_opengles_driver.c.o [ 35%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/lv_opengles_egl.c.o [ 35%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/lv_opengles_glfw.c.o [ 35%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/lv_opengles_texture.c.o [ 36%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/opengl_shader/lv_opengl_shader_manager.c.o [ 36%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/opengles/opengl_shader/lv_opengl_shader_program.c.o [ 36%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/qnx/lv_qnx.c.o [ 36%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/sdl/lv_sdl_keyboard.c.o [ 36%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/sdl/lv_sdl_mouse.c.o [ 37%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/sdl/lv_sdl_mousewheel.c.o [ 37%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/sdl/lv_sdl_window.c.o [ 37%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_context.c.o [ 37%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_display.c.o [ 38%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_indev_keyboard.c.o [ 38%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_indev_pointer.c.o [ 38%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_indev_touch.c.o [ 38%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/uefi/lv_uefi_private.c.o [ 38%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wayland.c.o [ 39%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wayland_smm.c.o [ 39%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_cache.c.o [ 39%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_dmabuf.c.o [ 39%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_keyboard.c.o [ 40%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_pointer.c.o [ 40%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_pointer_axis.c.o [ 40%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_seat.c.o [ 40%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_shm.c.o [ 40%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_touch.c.o [ 41%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_window.c.o [ 41%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_window_decorations.c.o [ 41%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/wayland/lv_wl_xdg_shell.c.o [ 41%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/windows/lv_windows_context.c.o [ 41%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/windows/lv_windows_display.c.o [ 42%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/windows/lv_windows_input.c.o [ 42%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/x11/lv_x11_display.c.o [ 42%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/drivers/x11/lv_x11_input.c.o [ 42%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_binfont_loader.c.o [ 43%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font.c.o [ 43%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_dejavu_16_persian_hebrew.c.o [ 43%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_fmt_txt.c.o [ 43%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_10.c.o [ 43%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_12.c.o [ 44%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_14.c.o [ 44%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_14_aligned.c.o [ 44%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_16.c.o [ 44%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_18.c.o [ 45%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_20.c.o [ 45%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_22.c.o [ 45%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_24.c.o [ 45%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_26.c.o [ 45%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_28.c.o [ 46%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_28_compressed.c.o [ 46%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_30.c.o [ 46%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_32.c.o [ 46%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_34.c.o [ 46%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_36.c.o [ 47%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_38.c.o [ 47%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_40.c.o [ 47%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_42.c.o [ 47%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_44.c.o [ 48%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_46.c.o [ 48%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_48.c.o [ 48%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_montserrat_8.c.o [ 48%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_source_han_sans_sc_14_cjk.c.o [ 48%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_source_han_sans_sc_16_cjk.c.o [ 49%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_unscii_8.c.o [ 49%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/font/lv_font_unscii_16.c.o [ 49%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/indev/lv_indev.c.o [ 49%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/indev/lv_indev_gesture.c.o [ 50%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/indev/lv_indev_scroll.c.o [ 50%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/layouts/flex/lv_flex.c.o [ 50%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/layouts/grid/lv_grid.c.o [ 50%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/layouts/lv_layout.c.o [ 50%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/FT800-FT813/EVE_commands.c.o [ 51%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/FT800-FT813/EVE_supplemental.c.o [ 51%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/barcode/code128.c.o [ 51%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/barcode/lv_barcode.c.o [ 51%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/bin_decoder/lv_bin_decoder.c.o [ 51%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/bmp/lv_bmp.c.o [ 52%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/expat/xmlparse.c.o [ 52%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/expat/xmlrole.c.o [ 52%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/expat/xmltok.c.o [ 52%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/expat/xmltok_impl.c.o [ 53%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/expat/xmltok_ns.c.o [ 53%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/ffmpeg/lv_ffmpeg.c.o [ 53%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/freetype/lv_freetype.c.o [ 53%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/freetype/lv_freetype_glyph.c.o [ 53%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/freetype/lv_freetype_image.c.o [ 54%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/freetype/lv_freetype_outline.c.o [ 54%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/freetype/lv_ftsystem.c.o [ 54%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/frogfs/src/decomp_raw.c.o [ 54%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/frogfs/src/frogfs.c.o [ 55%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_cbfs.c.o [ 55%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_fatfs.c.o [ 55%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_frogfs.c.o [ 55%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_littlefs.c.o [ 55%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_memfs.c.o [ 56%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_posix.c.o [ 56%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_stdio.c.o [ 56%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_uefi.c.o [ 56%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/fsdrv/lv_fs_win32.c.o [ 56%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gif/AnimatedGIF/src/gif.c.o [ 57%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gif/lv_gif.c.o [ 57%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gltf/gltf_view/assets/chromatic.c.o [ 57%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gltf/gltf_view/assets/lv_gltf_view_shader.c.o [ 57%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gltf/gltf_view/ibl/lv_gltf_ibl_sampler.c.o [ 58%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/gstreamer/lv_gstreamer.c.o [ 58%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/libjpeg_turbo/lv_libjpeg_turbo.c.o [ 58%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/libpng/lv_libpng.c.o [ 58%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/lodepng/lodepng.c.o [ 58%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/lodepng/lv_lodepng.c.o [ 59%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/lz4/lz4.c.o [ 59%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/qrcode/lv_qrcode.c.o [ 59%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/qrcode/qrcodegen.c.o [ 59%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/rle/lv_rle.c.o [ 60%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/rlottie/lv_rlottie.c.o [ 60%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/svg/lv_svg.c.o [ 60%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/svg/lv_svg_decoder.c.o [ 60%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/svg/lv_svg_parser.c.o [ 60%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/svg/lv_svg_render.c.o [ 61%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/svg/lv_svg_token.c.o [ 61%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/tiny_ttf/lv_tiny_ttf.c.o [ 61%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/tjpgd/lv_tjpgd.c.o [ 61%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/tjpgd/tjpgd.c.o [ 61%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLite/vg_lite.c.o [ 62%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLite/vg_lite_image.c.o [ 62%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLite/vg_lite_matrix.c.o [ 62%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLite/vg_lite_path.c.o [ 62%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLite/vg_lite_stroke.c.o [ 63%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/VGLiteKernel/vg_lite_kernel.c.o [ 63%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/lv_vg_lite_hal/lv_vg_lite_hal.c.o [ 63%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/libs/vg_lite_driver/lv_vg_lite_hal/vg_lite_os.c.o [ 63%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/lv_init.c.o [ 63%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/class/lv_cache_lru_ll.c.o [ 64%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/class/lv_cache_lru_rb.c.o [ 64%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/class/lv_cache_sc_da.c.o [ 64%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/instance/lv_image_cache.c.o [ 64%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/instance/lv_image_header_cache.c.o [ 65%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/lv_cache.c.o [ 65%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/cache/lv_cache_entry.c.o [ 65%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_anim.c.o [ 65%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_anim_timeline.c.o [ 65%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_area.c.o [ 66%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_array.c.o [ 66%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_async.c.o [ 66%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_bidi.c.o [ 66%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_circle_buf.c.o [ 66%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_color.c.o [ 67%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_color_op.c.o [ 67%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_event.c.o [ 67%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_fs.c.o [ 67%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_grad.c.o [ 68%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_iter.c.o [ 68%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_ll.c.o [ 68%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_log.c.o [ 68%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_lru.c.o [ 68%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_math.c.o [ 69%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_matrix.c.o [ 69%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_palette.c.o [ 69%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_profiler_builtin.c.o [ 69%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_profiler_builtin_posix.c.o [ 70%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_rb.c.o [ 70%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_style.c.o [ 70%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_style_gen.c.o [ 70%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_templ.c.o [ 70%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_text.c.o [ 71%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_text_ap.c.o [ 71%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_timer.c.o [ 71%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_tree.c.o [ 71%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/misc/lv_utils.c.o [ 71%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_cmsis_rtos2.c.o [ 72%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_freertos.c.o [ 72%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_linux.c.o [ 72%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_mqx.c.o [ 72%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_os.c.o [ 73%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_os_none.c.o [ 73%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_pthread.c.o [ 73%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_rtthread.c.o [ 73%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_sdl2.c.o [ 73%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/osal/lv_windows.c.o [ 74%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/file_explorer/lv_file_explorer.c.o [ 74%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/font_manager/lv_font_manager.c.o [ 74%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/font_manager/lv_font_manager_recycle.c.o [ 74%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/fragment/lv_fragment.c.o [ 75%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/fragment/lv_fragment_manager.c.o [ 75%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/gridnav/lv_gridnav.c.o [ 75%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/ime/lv_ime_pinyin.c.o [ 75%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/imgfont/lv_imgfont.c.o [ 75%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/monkey/lv_monkey.c.o [ 76%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/observer/lv_observer.c.o [ 76%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/snapshot/lv_snapshot.c.o [ 76%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/sysmon/lv_sysmon.c.o [ 76%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/test/lv_test_display.c.o [ 76%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/test/lv_test_helpers.c.o [ 77%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/test/lv_test_indev.c.o [ 77%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/test/lv_test_indev_gesture.c.o [ 77%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/test/lv_test_screenshot_compare.c.o [ 77%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/translation/lv_translation.c.o [ 78%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/vg_lite_tvg/vg_lite_matrix.c.o [ 78%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml.c.o [ 78%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_base_types.c.o [ 78%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_component.c.o [ 78%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_load.c.o [ 79%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_parser.c.o [ 79%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_style.c.o [ 79%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_test.c.o [ 79%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_translation.c.o [ 80%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_update.c.o [ 80%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_utils.c.o [ 80%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/lv_xml_widget.c.o [ 80%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_arc_parser.c.o [ 80%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_bar_parser.c.o [ 81%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_button_parser.c.o [ 81%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_buttonmatrix_parser.c.o [ 81%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_calendar_parser.c.o [ 81%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_canvas_parser.c.o [ 81%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_chart_parser.c.o [ 82%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_checkbox_parser.c.o [ 82%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_dropdown_parser.c.o [ 82%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_image_parser.c.o [ 82%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_keyboard_parser.c.o [ 83%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_label_parser.c.o [ 83%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_obj_parser.c.o [ 83%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_qrcode_parser.c.o [ 83%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_roller_parser.c.o [ 83%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_scale_parser.c.o [ 84%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_slider_parser.c.o [ 84%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_spangroup_parser.c.o [ 84%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_spinbox_parser.c.o [ 84%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_switch_parser.c.o [ 85%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_table_parser.c.o [ 85%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_tabview_parser.c.o [ 85%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/others/xml/parsers/lv_xml_textarea_parser.c.o [ 85%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/builtin/lv_mem_core_builtin.c.o [ 85%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/builtin/lv_sprintf_builtin.c.o [ 86%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/builtin/lv_string_builtin.c.o [ 86%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/builtin/lv_tlsf.c.o [ 86%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/clib/lv_mem_core_clib.c.o [ 86%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/clib/lv_sprintf_clib.c.o [ 86%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/clib/lv_string_clib.c.o [ 87%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/lv_mem.c.o [ 87%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/micropython/lv_mem_core_micropython.c.o [ 87%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/rtthread/lv_mem_core_rtthread.c.o [ 87%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/rtthread/lv_sprintf_rtthread.c.o [ 88%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/rtthread/lv_string_rtthread.c.o [ 88%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/stdlib/uefi/lv_mem_core_uefi.c.o [ 88%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/themes/default/lv_theme_default.c.o [ 88%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/themes/lv_theme.c.o [ 88%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/themes/mono/lv_theme_mono.c.o [ 89%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/themes/simple/lv_theme_simple.c.o [ 89%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/tick/lv_tick.c.o [ 89%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/3dtexture/lv_3dtexture.c.o [ 89%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/animimage/lv_animimage.c.o [ 90%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/arc/lv_arc.c.o [ 90%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/arclabel/lv_arclabel.c.o [ 90%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/bar/lv_bar.c.o [ 90%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/button/lv_button.c.o [ 90%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/buttonmatrix/lv_buttonmatrix.c.o [ 91%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/calendar/lv_calendar.c.o [ 91%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/calendar/lv_calendar_chinese.c.o [ 91%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/calendar/lv_calendar_header_arrow.c.o [ 91%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/calendar/lv_calendar_header_dropdown.c.o [ 91%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/canvas/lv_canvas.c.o [ 92%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/chart/lv_chart.c.o [ 92%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/checkbox/lv_checkbox.c.o [ 92%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/dropdown/lv_dropdown.c.o [ 92%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/image/lv_image.c.o [ 93%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/imagebutton/lv_imagebutton.c.o [ 93%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/keyboard/lv_keyboard.c.o [ 93%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/label/lv_label.c.o [ 93%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/led/lv_led.c.o [ 93%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/line/lv_line.c.o [ 94%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/list/lv_list.c.o [ 94%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/lottie/lv_lottie.c.o [ 94%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/menu/lv_menu.c.o [ 94%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/msgbox/lv_msgbox.c.o [ 95%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/objx_templ/lv_objx_templ.c.o [ 95%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_animimage_properties.c.o [ 95%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_dropdown_properties.c.o [ 95%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_image_properties.c.o [ 95%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_keyboard_properties.c.o [ 96%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_label_properties.c.o [ 96%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_obj_properties.c.o [ 96%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_roller_properties.c.o [ 96%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_slider_properties.c.o [ 96%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_style_properties.c.o [ 97%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/property/lv_textarea_properties.c.o [ 97%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/roller/lv_roller.c.o [ 97%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/scale/lv_scale.c.o [ 97%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/slider/lv_slider.c.o [ 98%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/span/lv_span.c.o [ 98%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/spinbox/lv_spinbox.c.o [ 98%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/spinner/lv_spinner.c.o [ 98%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/switch/lv_switch.c.o [ 99%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/table/lv_table.c.o [ 99%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/tabview/lv_tabview.c.o [ 99%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/textarea/lv_textarea.c.o [ 99%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/tileview/lv_tileview.c.o [ 99%] Building C object CMakeFiles/lvgl.dir/lved/resources/lvgl/src/widgets/win/lv_win.c.o [100%] Linking C static library /lved/resources/lib/liblvgl.a [100%] Built target lvgl ✅ Built lib LVGL Project name: test ⛭ Building runtime for Preview configure: cmake -B /lved/project/preview-build -S /lved/resources -DPROJECT_NAME=lved-runtime -DCODE_PROJECT_NAME=test -DOUTPUT_DIR=/lved/preview-bin -DLVGL_SRC_DIR=/lved/resources/lvgl -DLVGL_CONF_DIR=/lved/resources/conf -DUSER_SRC_DIR=/lved/project -DLVED_ENV=web -DCMAKE_TOOLCHAIN_FILE=/emsdk/upstream/emscripten/cmake/Modules/Platform/Emscripten.cmake -DCMAKE_CROSSCOMPILING_EMULATOR=/emsdk/node/20.18.0_64bit/bin/node -- The C compiler identification is Clang 21.0.0 -- Detecting C compiler ABI info -- Detecting C compiler ABI info - done -- Check for working C compiler: /emsdk/upstream/emscripten/emcc - skipped -- Detecting C compile features -- Detecting C compile features - done -- Configuring done -- Generating done -- Build files have been written to: /lved/project/preview-build Deleting CMakeCCompilerId.c make: make -j 4 -Oline -C /lved/project/preview-build make[2]: Entering directory '/lved/project/preview-build' [ 33%] Building C object project/CMakeFiles/lib-ui.dir/test_gen.c.o make[2]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' [ 33%] Building C object project/CMakeFiles/lib-ui.dir/test.c.o make[2]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' [ 50%] Linking C static library liblib-ui.a make[2]: Leaving directory '/lved/project/preview-build' make[1]: Entering directory '/lved/project/preview-build' [ 50%] Built target lib-ui make[1]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' [ 66%] Building C object CMakeFiles/lved-runtime.dir/src/getrandom_compat.c.o make[2]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' [ 83%] Building C object CMakeFiles/lved-runtime.dir/src/runtime.c.o make[2]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' [100%] Linking C executable /lved/preview-bin/lved-runtime.js make[2]: Leaving directory '/lved/project/preview-build' make[2]: Entering directory '/lved/project/preview-build' cache:INFO: generating system asset: symbol_lists/f1ebb76c5cbf50c355a1f07f42860da5f8c91914.json... (this will be cached in "/emsdk/upstream/emscripten/cache/symbol_lists/f1ebb76c5cbf50c355a1f07f42860da5f8c91914.json" for subsequent builds) cache:INFO:  - ok emcc: warning: running limited binaryen optimizations because DWARF info requested (or indirectly required) [-Wlimited-postlink-optimizations] make[2]: Leaving directory '/lved/project/preview-build' make[1]: Entering directory '/lved/project/preview-build' [100%] Built target lved-runtime make[1]: Leaving directory '/lved/project/preview-build' ✅ Built runtime for Preview ✅ Project compiled successfully Runtime found in project: C:/Users/minimonk/Desktop/lvgl/test

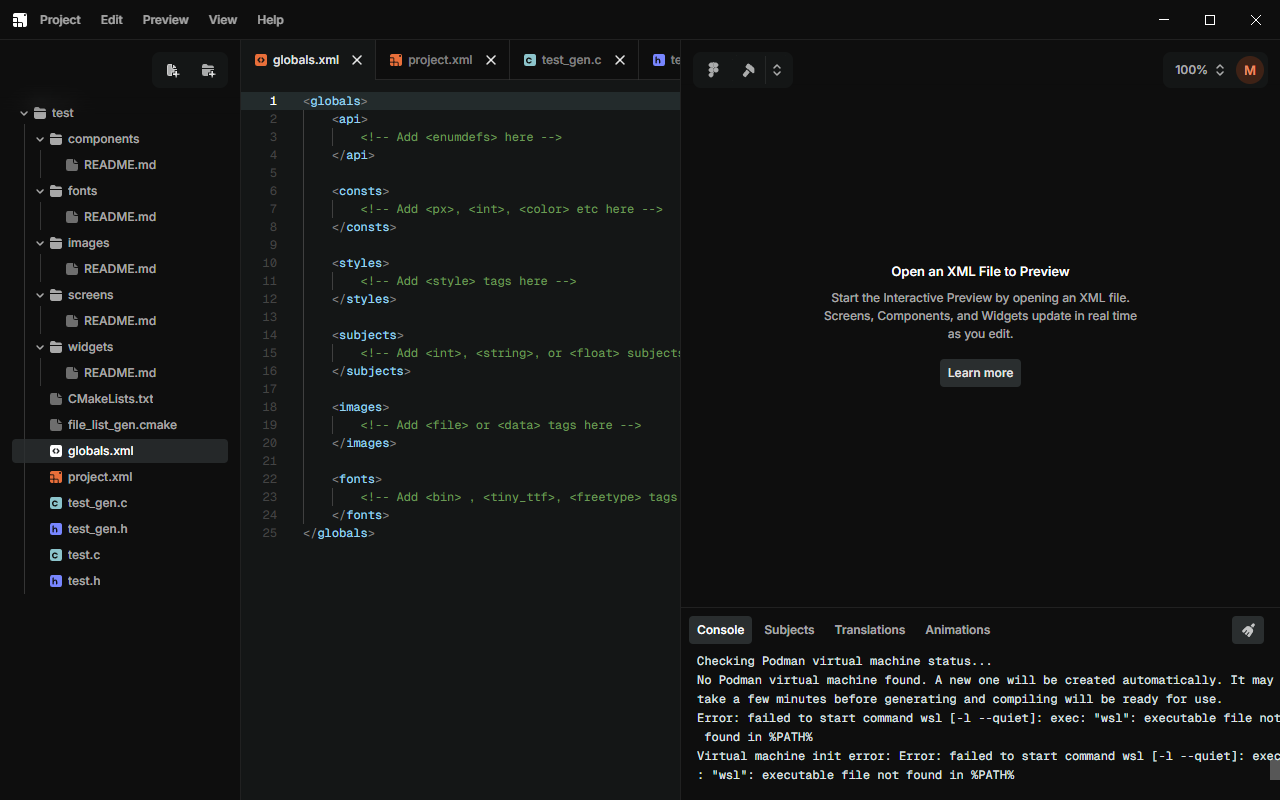

이건 웹버전에서 예제 열어 xml 파일 끌어오려고 한거고

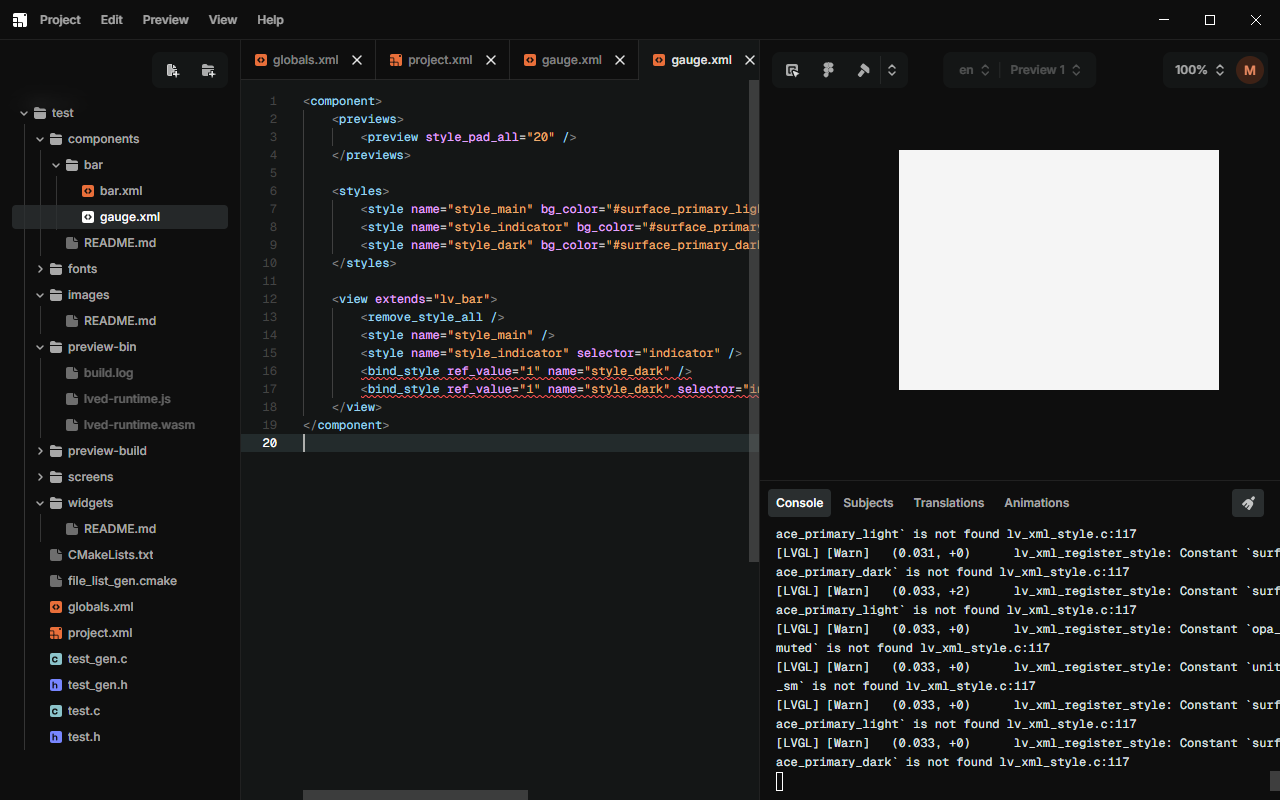

데스크탑 버전에 붙여넣으니 미리보기가 조금 보이는 듯한 느낌?

솔찍히 Figma 에서 디자인 하고 끌어와야 하는지 단독으로는 못써먹을 것 같고

자체적인 위지윅 에디터도 없고 이 데스크탑 버전은 머하는데 써먹으라고 있는건지 좀 고민해봐야겠다.
