qt quick 예제 calqlatr 코드분석

qt quick 으로 작성된 계산기 어플 소스 분석



실행하면 평범한 계산기가 뜬다.



가로로 길게 늘리면 공학계산기로 바뀐다.



프로젝트는 아래와 같이 구성되어 있고



main.cpp

언제나 그렇듯(?) main.cpp 는 조촐하고 별 내용이 없다.

// Copyright (C) 2020 The Qt Company Ltd.
// SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause

#include <QGuiApplication>
#include <QQmlApplicationEngine>
#include <QQuickStyle>

int main(int argc, char *argv[])
{
    QCoreApplication::setOrganizationName("QtProject");
    QCoreApplication::setApplicationName("Calqlatr");

    QGuiApplication app(argc, argv);

    QQuickStyle::setStyle("Basic");

    QQmlApplicationEngine engine;
    QObject::connect(&engine, &QQmlApplicationEngine::objectCreationFailed,
            &app, []() { QCoreApplication::exit(-1); },
            Qt::QueuedConnection);
    engine.loadFromModule("demos.calqlatr", "Main");

    return app.exec();
}



Main.qml

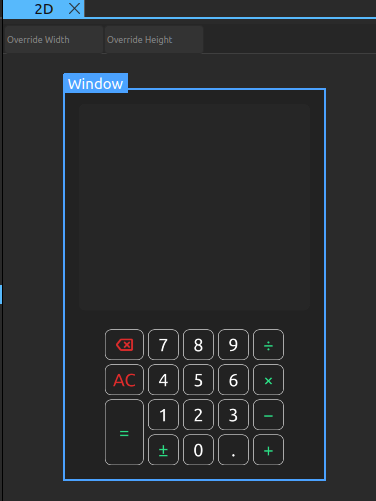

전체 모양을 그리는 녀석인데, design 에서 보면 아래처럼 보인다.

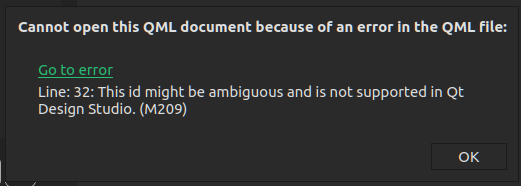

다만 qt designer의 버그인지 ApplicationState 의 id: state 구문이 에러가 나는데

위지윅 에디터에서 보려면 해당 라인을 주석처리 하면 된다. (물론 실행하면 작동안하게 되는 버그 발생)





column, row Layout 으로 배치를 어떻게 하는것 같고

Keys.onPressed: function (event) {} 를 통해서 키 입력시 state에 추가하는 식으로 작동하게 된다.

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause import QtQuick import QtQuick.Layouts Window {     visible: true     width: 320     height: 480     minimumWidth: Math.max(numberPad.portraitModeWidth, display.minWidth) + root.margin * 2     minimumHeight: display.minHeight + numberPad.height + root.margin * 3     color: root.backgroundColor     Item {         id: root         anchors.fill: parent         anchors.topMargin: parent.SafeArea.margins.top         anchors.leftMargin: parent.SafeArea.margins.left         anchors.rightMargin: parent.SafeArea.margins.right         anchors.bottomMargin: parent.SafeArea.margins.bottom         readonly property int margin: 18         readonly property color backgroundColor: "#222222"         readonly property int minLandscapeModeWidth: numberPad.landscapeModeWidth                                                      + display.minWidth + margin * 3         property bool isPortraitMode: root.width < root.minLandscapeModeWidth         ApplicationState {             id: state             display: display         }         Display {             id: display             readonly property int minWidth: 210             readonly property int minHeight: 60             Layout.minimumWidth: minWidth             Layout.fillWidth: true             Layout.fillHeight: true             Layout.margins: root.margin             // remove the margin on the side that the numberPad is on, to prevent a double margin             Layout.bottomMargin: root.isPortraitMode ? 0 : root.margin             Layout.rightMargin: root.isPortraitMode ? root.margin : 0         }         NumberPad {             id: numberPad             Layout.margins: root.margin             isPortraitMode: root.isPortraitMode             state: state         }         // define the responsive layouts         ColumnLayout {             id: portraitMode             anchors.fill: parent             visible: root.isPortraitMode             LayoutItemProxy {                 target: display                 Layout.minimumHeight: display.minHeight             }             LayoutItemProxy {                 target: numberPad                 Layout.alignment: Qt.AlignHCenter             }         }         RowLayout {             id: landscapeMode             anchors.fill: parent             visible: !root.isPortraitMode             LayoutItemProxy {                 target: display             }             LayoutItemProxy {                 target: numberPad                 Layout.alignment: Qt.AlignVCenter             }         }         Keys.onPressed: function (event) {             switch (event.key) {                 case Qt.Key_0: state.digitPressed("0"); break;                 case Qt.Key_1: state.digitPressed("1"); break;                 case Qt.Key_2: state.digitPressed("2"); break;                 case Qt.Key_3: state.digitPressed("3"); break;                 case Qt.Key_4: state.digitPressed("4"); break;                 case Qt.Key_5: state.digitPressed("5"); break;                 case Qt.Key_6: state.digitPressed("6"); break;                 case Qt.Key_7: state.digitPressed("7"); break;                 case Qt.Key_8: state.digitPressed("8"); break;                 case Qt.Key_9: state.digitPressed("9"); break;                 case Qt.Key_E: state.digitPressed("e"); break;                 case Qt.Key_P: state.digitPressed("π"); break;                 case Qt.Key_Plus: state.operatorPressed("+"); break;                 case Qt.Key_Minus: state.operatorPressed("-"); break;                 case Qt.Key_Asterisk: state.operatorPressed("×"); break;                 case Qt.Key_Slash: state.operatorPressed("÷"); break;                 case Qt.Key_Enter:                 case Qt.Key_Return: state.operatorPressed("="); break;                 case Qt.Key_Comma:                 case Qt.Key_Period: state.digitPressed("."); break;                 case Qt.Key_Backspace: state.operatorPressed("bs"); break;             }         }     } }



ApplicationState.qml

말로는 qml  인데 design에서 보여지는 요소는 존재하지 않고

main.qml 에서 호출되는 operatorPressed() 나 digitPressed()와 같은 함수가 존재한다.

특이한건 import as 인데 js를 불러서 CalcEngine 으로 사용하는 부분 정도?

그 와중에 Display는 display.qml 에서 끌려오는건가?

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause import QtQml import "calculator.js" as CalcEngine QtObject {     required property Display display     function operatorPressed(operator) {         CalcEngine.operatorPressed(operator, display);     }     function digitPressed(digit) {         CalcEngine.digitPressed(digit, display);     }     function isButtonDisabled(op) {         return CalcEngine.isOperationDisabled(op, display);     } }



calculator.js

평범한(?) js로 작성된 코드가 존재한다.

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause let accumulator = 0 let pendingOperator = "" let lastButton = "" let digits = "" function isOperationDisabled(op, display) {     if (digits !== "" && lastButton !== "=" && (op === "π" || op === "e"))         return true     if (digits === "" && !((op >= "0" && op <= "9") || op === "π" || op === "e" || op === "AC"))         return true     if (op === "bs" && (display.isOperandEmpty() || !((lastButton >= "0" && lastButton <= "9")                                                       || lastButton === "π" || lastButton === "e" || lastButton === ".")))         return true     if (op === '=' && pendingOperator.length != 1)         return true     if (op === "." && digits.search(/\./) != -1)         return true     if (op === "√" &&  digits.search(/-/) != -1)         return true     if (op === "AC" && display.isDisplayEmpty())         return true     return false } function digitPressed(op, display) {     if (isOperationDisabled(op, display))         return     if (lastButton === "π" || lastButton === "e")         return     // handle mathematical constants     if (op === "π") {         lastButton = op         digits = Math.PI.toPrecision(display.maxDigits - 1).toString()         display.appendDigit(digits)         return     }     if (op === "e") {         lastButton = op         digits = Math.E.toPrecision(display.maxDigits - 1).toString()         display.appendDigit(digits)         return     }     // append a digit to another digit or decimal point     if (lastButton.toString().length === 1 && ((lastButton >= "0" && lastButton <= "9") || lastButton === ".") ) {         if (digits.length >= display.maxDigits)             return         digits = digits + op.toString()         display.appendDigit(op.toString())     // else just write a single digit to display     } else {         digits = op.toString()         display.appendDigit(digits)     }     lastButton = op } function operatorPressed(op, display) {     if (isOperationDisabled(op, display))         return     if (op === "±") {         digits = Number(digits.valueOf() * -1).toString()         display.setDigit(display.displayNumber(Number(digits)))         return     }     if (op === "bs") {         digits = digits.slice(0, -1)         if (digits === "-")             digits = ""         display.backspace()         return     }     lastButton = op     if (pendingOperator === "+") {         digits = (Number(accumulator) + Number(digits.valueOf())).toString()     } else if (pendingOperator === "−") {         digits = (Number(accumulator) - Number(digits.valueOf())).toString()     } else if (pendingOperator === "×") {         digits = (Number(accumulator) * Number(digits.valueOf())).toString()     } else if (pendingOperator === "÷") {         digits = (Number(accumulator) / Number(digits.valueOf())).toString()     }     if (op === "+" || op === "−" || op === "×" || op === "÷") {         pendingOperator = op         accumulator = digits.valueOf()         digits = ""         display.displayOperator(pendingOperator)         return     }     accumulator = 0     pendingOperator = ""     if (op === "=") {         display.newLine("=", Number(digits))     }     if (op === "√") {         digits = (Math.sqrt(digits.valueOf())).toString()         display.newLine("√", Number(digits))     } else if (op === "⅟x") {         digits = (1 / digits.valueOf()).toString()         display.newLine("⅟x", Number(digits))     } else if (op === "x²") {         digits = (digits.valueOf() * digits.valueOf()).toString()         display.newLine("x²", Number(digits))     } else if (op === "x³") {         digits = (digits.valueOf() * digits.valueOf() * digits.valueOf()).toString()         display.newLine("x³", Number(digits))     } else if (op === "|x|") {         digits = (Math.abs(digits.valueOf())).toString()         display.newLine("|x|", Number(digits))     } else if (op === "⌊x⌋") {         digits = (Math.floor(digits.valueOf())).toString()         display.newLine("⌊x⌋", Number(digits))     } else if (op === "sin") {         digits = Number(Math.sin(digits.valueOf())).toString()         display.newLine("sin", Number(digits))     } else if (op === "cos") {         digits = Number(Math.cos(digits.valueOf())).toString()         display.newLine("cos", Number(digits))     } else if (op === "tan") {         digits = Number(Math.tan(digits.valueOf())).toString()         display.newLine("tan", Number(digits))     } else if (op === "log") {         digits = Number(Math.log10(digits.valueOf())).toString()         display.newLine("log", Number(digits))     } else if (op === "ln") {         digits = Number(Math.log(digits.valueOf())).toString()         display.newLine("ln", Number(digits))     }     if (op === "AC") {         display.allClear()         accumulator = 0         lastButton = ""         digits = ""         pendingOperator = ""     } }



Display.qml

design 상에서는 별 내용이 없어 보이지만



코드에서는 라인별로 추가하는 등 제법 ui를 건드리는 작동을 많이 한다.

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause pragma ComponentBehavior: Bound import QtQuick Item {     id: display     property int fontSize: 22     readonly property int maxDigits: Math.min((width / fontSize) + 1, 9)     readonly property color backgroundColor: "#262626"     readonly property color qtGreenColor: "#2CDE85"     property string displayedOperand: ""     readonly property string errorString: qsTr("ERROR")     readonly property bool isError: displayedOperand === errorString     property bool enteringDigits: false     function displayOperator(operator) {         calculationsListView.model.append({                                               "operator": operator,                                               "operand": ""                                           });         enteringDigits = true;         calculationsListView.positionViewAtEnd();     }     function newLine(operator, operand) {         displayedOperand = displayNumber(operand);         calculationsListView.model.append({                                               "operator": operator,                                               "operand": displayedOperand                                           });         enteringDigits = false;         calculationsListView.positionViewAtEnd();     }     function appendDigit(digit) {         if (!enteringDigits)             calculationsListView.model.append({                                                   "operator": "",                                                   "operand": ""                                               });         const i = calculationsListView.model.count - 1;         calculationsListView.model.get(i).operand = calculationsListView.model.get(i).operand                 + digit;         enteringDigits = true;         calculationsListView.positionViewAtEnd();     }     function setDigit(digit) {         const i = calculationsListView.model.count - 1;         calculationsListView.model.get(i).operand = digit;         calculationsListView.positionViewAtEnd();     }     function backspace() {         const i = calculationsListView.model.count - 1;         if (i >= 0) {             let operand = calculationsListView.model.get(i).operand.toString().slice(0, -1);             if (operand === "-")                 operand = "";             calculationsListView.model.get(i).operand = operand;             return;         }         return;     }     function isOperandEmpty() {         const i = calculationsListView.model.count - 1;         return i >= 0 ? calculationsListView.model.get(i).operand === "" : true;     }     function isDisplayEmpty() {         const i = calculationsListView.model.count - 1;         return i == -1 ? true : (i == 0 ? calculationsListView.model.get(0).operand === "" : false);     }     function clear() {         displayedOperand = "";         if (enteringDigits) {             const i = calculationsListView.model.count - 1;             if (i >= 0)                 calculationsListView.model.remove(i);             enteringDigits = false;         }     }     function allClear() {         display.clear();         calculationsListView.model.clear();         enteringDigits = false;     }     // Returns a string representation of a number that fits in     // display.maxDigits characters, trying to keep as much precision     // as possible. If the number cannot be displayed, returns an     // error string.     function displayNumber(num) {         if (typeof (num) !== "number")             return errorString;         // deal with the absolute         const abs = Math.abs(num);         if (abs.toString().length <= maxDigits) {             return isFinite(num) ? num.toString() : errorString;         }         if (abs < 1) {             // check if abs < 0.00001, if true, use exponential form             // if it isn't true, we can round the number without losing             // too much precision             if (Math.floor(abs * 100000) === 0) {                 const expVal = num.toExponential(maxDigits - 6).toString();                 if (expVal.length <= maxDigits + 1)                     return expVal;             } else {                 // the first two digits are zero and .                 return num.toFixed(maxDigits - 2);             }         } else {             // if the integer part of num is greater than maxDigits characters, use exp form             const intAbs = Math.floor(abs);             if (intAbs.toString().length <= maxDigits)                 return parseFloat(num.toPrecision(maxDigits - 1)).toString();             const expVal = num.toExponential(maxDigits - 6).toString();             if (expVal.length <= maxDigits + 1)                 return expVal;         }         return errorString;     }     Item {         anchors.fill: parent         Rectangle {             anchors.fill: parent             radius: 8             color: display.backgroundColor             ListView {                 id: calculationsListView                 x: 5                 y: 10                 width: parent.width                 height: parent.height - 2 * y                 clip: true                 delegate: Item {                     height: display.fontSize * 1.1                     width: calculationsListView.width                     required property string operator                     required property string operand                     Text {                         x: 6                         font.pixelSize: display.fontSize                         color: display.qtGreenColor                         text: parent.operator                         Accessible.name: parent.operator                     }                     Text {                         font.pixelSize: display.fontSize                         anchors.right: parent.right                         anchors.rightMargin: 16                         text: parent.operand                         Accessible.name: parent.operand                         color: "white"                     }                 }                 model: ListModel {}                 onHeightChanged: positionViewAtEnd()             }         }     } }





Numpad.qml

계산기의 버튼 부분인것 같은데 rectangle 안에 Rowlayout  안에 GridLayout이 있는데 그래서 그런가 이상하게 보여지는 느낌.



그나저나 제곱이나 sin tan 같은 과학계산기도 넣으려다가 흔적만 남은건가?

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause pragma ComponentBehavior: Bound import QtQuick import QtQuick.Layouts Item {     id: controller     required property bool isPortraitMode     required property ApplicationState state     readonly property color qtGreenColor: "#2CDE85"     readonly property color backspaceRedColor: "#DE2C2C"     readonly property int spacing: 5     property int portraitModeWidth: mainGrid.width     property int landscapeModeWidth: scientificGrid.width + mainGrid.width     implicitWidth: isPortraitMode ? portraitModeWidth : landscapeModeWidth     implicitHeight: mainGrid.height     function updateDimmed() {         for (let i = 0; i < mainGrid.children.length; i++) {             mainGrid.children[i].dimmed = state.isButtonDisabled(mainGrid.children[i].text);         }         for (let j = 0; j < scientificGrid.children.length; j++) {             scientificGrid.children[j].dimmed = state.isButtonDisabled(                         scientificGrid.children[j].text);         }     }     component DigitButton: CalculatorButton {         onClicked: {             controller.state.digitPressed(text);             controller.updateDimmed();         }     }     component OperatorButton: CalculatorButton {         dimmable: true         implicitWidth: 48         textColor: controller.qtGreenColor         onClicked: {             controller.state.operatorPressed(text);             controller.updateDimmed();         }     }     Component.onCompleted: updateDimmed()     Rectangle {         id: numberPad         anchors.fill: parent         radius: 8         color: "transparent"         RowLayout {             spacing: controller.spacing             GridLayout {                 id: scientificGrid                 columns: 3                 columnSpacing: controller.spacing                 rowSpacing: controller.spacing                 visible: !controller.isPortraitMode                 OperatorButton {                     text: "x²"                     Accessible.name: "x squared"                 }                 OperatorButton {                     text: "⅟x"                     Accessible.name: "one over x"                 }                 OperatorButton { text: "√" }                 OperatorButton {                     text: "x³"                     Accessible.name: "x cubed"                 }                 OperatorButton {                     text: "sin"                     Accessible.name: "sine"                 }                 OperatorButton {                     text: "|x|"                     Accessible.name: "absolute value"                 }                 OperatorButton { text: "log" }                 OperatorButton {                     text: "cos"                     Accessible.name: "cosine"                 }                 DigitButton {                     text: "e"                     dimmable: true                     implicitWidth: 48                 }                 OperatorButton { text: "ln" }                 OperatorButton { text: "tan" }                 DigitButton {                     text: "π"                     dimmable: true                     implicitWidth: 48                 }             }             GridLayout {                 id: mainGrid                 columns: 5                 columnSpacing: controller.spacing                 rowSpacing: controller.spacing                 BackspaceButton {                     onClicked: {                         controller.state.operatorPressed(this.text);                         controller.updateDimmed();                     }                 }                 DigitButton { text: "7" }                 DigitButton { text: "8" }                 DigitButton { text: "9" }                 OperatorButton {                     text: "÷"                     implicitWidth: 38                 }                 OperatorButton {                     text: "AC"                     textColor: controller.backspaceRedColor                     accentColor: controller.backspaceRedColor                 }                 DigitButton { text: "4" }                 DigitButton { text: "5" }                 DigitButton { text: "6" }                 OperatorButton {                     text: "×"                     implicitWidth: 38                 }                 OperatorButton {                     text: "="                     implicitHeight: 81                     Layout.rowSpan: 2                 }                 DigitButton { text: "1" }                 DigitButton { text: "2" }                 DigitButton { text: "3" }                 OperatorButton {                     text: "−"                     implicitWidth: 38                 }                 OperatorButton {                     text: "±"                     implicitWidth: 38                 }                 DigitButton { text: "0" }                 DigitButton {                     text: "."                     dimmable: true                 }                 OperatorButton {                     text: "+"                     implicitWidth: 38                 }             }         } // RowLayout     } }





BackspaceButton.qml

numpad 에서 호출되는 버튼. 그 외에는 크게 눈에 띄진 않네

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause import QtQuick import QtQuick.Controls RoundButton {     id: button     implicitWidth: 48     implicitHeight: 38     radius: buttonRadius     icon.source: getIcon()     icon.width: 38     icon.height: 38     icon.color: getIconColor()     // include this text property as the calculator engine     // differentiates buttons through text. The text is never drawn.     text: "bs"     Accessible.name: "backspace"     property bool dimmable: true     property bool dimmed: false     readonly property color backgroundColor: "#222222"     readonly property color borderColor: "#A9A9A9"     readonly property color backspaceRedColor: "#DE2C2C"     readonly property int buttonRadius: 8     function getBackgroundColor() {         if (button.dimmable && button.dimmed)             return backgroundColor;         if (button.pressed)             return backspaceRedColor;         return backgroundColor;     }     function getBorderColor() {         if (button.dimmable && button.dimmed)             return borderColor;         if (button.pressed || button.hovered)             return backspaceRedColor;         return borderColor;     }     function getIconColor() {         if (button.dimmable && button.dimmed)             return Qt.darker(backspaceRedColor);         if (button.pressed)             return backgroundColor;         return backspaceRedColor;     }     function getIcon() {         if (button.dimmable && button.dimmed)             return "images/backspace.svg";         if (button.pressed)             return "images/backspace_fill.svg";         return "images/backspace.svg";     }     background: Rectangle {         radius: button.buttonRadius         color: button.getBackgroundColor()         border.color: button.getBorderColor()     } }



CalculatorButton.qml

numpad 에서 호출되는 버튼. 그 외에는 크게 눈에 띄진 않네 2

// Copyright (C) 2023 The Qt Company Ltd. // SPDX-License-Identifier: LicenseRef-Qt-Commercial OR BSD-3-Clause import QtQuick import QtQuick.Controls RoundButton {     id: button     implicitWidth: 38     implicitHeight: 38     radius: buttonRadius     property bool dimmable: false     property bool dimmed: false     readonly property int fontSize: 22     readonly property int buttonRadius: 8     property color textColor: "#FFFFFF"     property color accentColor: "#2CDE85"     readonly property color backgroundColor: "#222222"     readonly property color borderColor: "#A9A9A9"     function getBackgroundColor() {         if (button.dimmable && button.dimmed)             return backgroundColor;         if (button.pressed)             return accentColor;         return backgroundColor;     }     function getBorderColor() {         if (button.dimmable && button.dimmed)             return borderColor;         if (button.pressed || button.hovered)             return accentColor;         return borderColor;     }     function getTextColor() {         if (button.dimmable && button.dimmed)             return Qt.darker(textColor);         if (button.pressed)             return backgroundColor;         if (button.hovered)             return accentColor;         return textColor;     }     background: Rectangle {         radius: button.buttonRadius         color: button.getBackgroundColor()         border.color: button.getBorderColor()     }     contentItem: Text {         text: button.text         font.pixelSize: button.fontSize         horizontalAlignment: Text.AlignHCenter         verticalAlignment: Text.AlignVCenter         color: button.getTextColor()         Behavior on color {             ColorAnimation {                 duration: 120                 easing.type: Easing.OutElastic             }         }     } }
