stm32 wwdg, iwdg 차이

iwdg는 내부 rc 클럭으로 작동을 하는 부분으로 stop이나 standby 모드에서도 작동한다.

즉, 절전모드 하려면 iwdg는 조금은 더 주의 깊게 설정해야 한다는 의미인데...

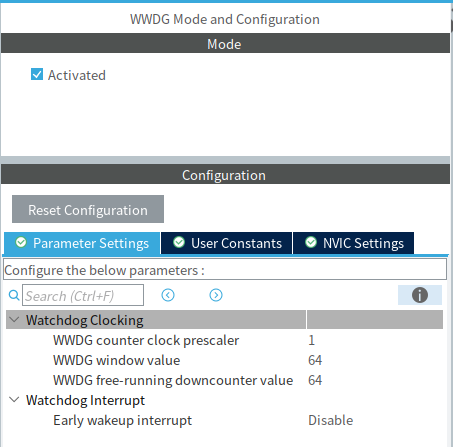

wwdg 는 window 라서 특정 시간대에만 와치독을 리셋할 수 있게 한다.

너무 빠르게 리셋해도 전체 시스템이 리셋되고, 너무 늦어도 리셋된다.

작동 시간이 일정하다면 wwdg를 쓰면 될 것 같기한데...



Independent watchdog The independent watchdog is based on a 12-bit downcounter and 8-bit prescaler. It is clocked from an independent 40 kHz internal RC and as it operates independently of the main clock, it can operate in Stop and Standby modes. It can be used either as a watchdog to reset the device when a problem occurs, or as a free-running timer for application timeout management. It is hardware- or software-configurable through the option bytes. The counter can be frozen in debug mode. Window watchdog The window watchdog is based on a 7-bit downcounter that can be set as free-running. It can be used as a watchdog to reset the device when a problem occurs. It is clocked from the main clock. It has an early warning interrupt capability and the counter can be frozen in debug mode.

[링크 : https://www.st.com/resource/en/datasheet/stm32f103c8.pdf]







[링크 : https://pineenergy.tistory.com/138]

[링크 : https://electronics.stackexchange.com/questions/123080/independent-watchdog-iwdg-or-window-watchdog-wwdg]

[링크 : https://community.st.com/t5/stm32-mcus-products/iwdg-vs-wwdg/td-p/451732]
