아래 명령은 openfoam221 쉘안에서 하니 되긴한데

openfoam2212:~/src/OpenFOAMTeaching/JozsefNagy/
minimonk$ fluentMeshToFoam elbow_tri.msh
/*---------------------------------------------------------------------------*\
| =========                 |                                                 |
| \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \\    /   O peration     | Version:  2212                                  |
|   \\  /    A nd           | Website:  www.openfoam.com |
|    \\/     M anipulation  |                                                 |
\*---------------------------------------------------------------------------*/
Build  : _f8e05934-20230403 OPENFOAM=2212 patch=230110 version=2212
Arch   : "LSB;label=32;scalar=64"
Exec   : fluentMeshToFoam elbow_tri.msh
Date   : May 24 2023
Time   : 16:38:06
Host   : mini2760p
PID    : 23712
I/O    : uncollated
Case   : /home/minimonk/src/OpenFOAMTeaching/JozsefNagy
nProcs : 1
trapFpe: Floating point exception trapping enabled (FOAM_SIGFPE).
fileModificationChecking : Monitoring run-time modified files using timeStampMaster (fileModificationSkew 5, maxFileModificationPolls 20)
allowSystemOperations : Allowing user-supplied system call operations

// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
Create time



--> FOAM FATAL ERROR: (openfoam-2212 patch=230110)
cannot find file "/home/minimonk/src/OpenFOAMTeaching/JozsefNagy/system/controlDict"

    From virtual Foam::autoPtr<Foam::ISstream> Foam::fileOperations::uncollatedFileOperation::readStream(Foam::regIOobject&, const Foam::fileName&, const Foam::word&, bool) const
    in file global/fileOperations/uncollatedFileOperation/uncollatedFileOperation.C at line 561.

FOAM exiting

openfoam2212:~/src/OpenFOAMTeaching/JozsefNagy/
minimonk$

[링크 : https://youtu.be/KznljrgWSvo?t=1129]

[링크 : https://www.youtube.com/watch?v=KznljrgWSvo]

[링크 : https://openfoamwiki.net/index.php/Fluent3DMeshToFoam]

[링크 : https://github.com/jnmlujnmlu/OpenFOAMTeaching/tree/master/JozsefNagy]





$ openfoam
openfoam = /usr/lib/openfoam/openfoam2212

 * Using:     OpenFOAM-v2212 (2212) - visit www.openfoam.com
 * Build:     _f8e05934-20230403 (patch=230110)
 * Arch:      label=32;scalar=64
 * Platform:  linux64GccDPInt32Opt (mpi=sys-openmpi)

OpenFOAM shell session - use 'exit' to quit

openfoam2212:~/src/tutorials/incompressible/icoFoam/elbow_tri/
minimonk$ fluentMeshToFoam elbow_tri.msh
/*---------------------------------------------------------------------------*\
| =========                 |                                                 |
| \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \\    /   O peration     | Version:  2212                                  |
|   \\  /    A nd           | Website:  www.openfoam.com |
|    \\/     M anipulation  |                                                 |
\*---------------------------------------------------------------------------*/
Build  : _f8e05934-20230403 OPENFOAM=2212 patch=230110 version=2212
Arch   : "LSB;label=32;scalar=64"
Exec   : fluentMeshToFoam elbow_tri.msh
Date   : May 24 2023
Time   : 17:15:20
Host   : mini2760p
PID    : 24479
I/O    : uncollated
Case   : /home/minimonk/src/tutorials/incompressible/icoFoam/elbow_tri
nProcs : 1
trapFpe: Floating point exception trapping enabled (FOAM_SIGFPE).
fileModificationChecking : Monitoring run-time modified files using timeStampMaster (fileModificationSkew 5, maxFileModificationPolls 20)
allowSystemOperations : Allowing user-supplied system call operations

// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
Create time

Reading header: "TGrid 2D 2.4.1"
Reading header: "PreBFC V4.3"
Dimension of grid: 2
Embedded blocks in comment or unknown: (
Embedded blocks in comment or unknown:(
Found end of section in unknown:)
Embedded blocks in comment or unknown:(
Found end of section in unknown:)
Found end of section in unknown:)
Embedded blocks in comment or unknown: (
Embedded blocks in comment or unknown:(
Found end of section in unknown:)
Embedded blocks in comment or unknown:
(
Found end of section in unknown:)
Found end of section in unknown:)
Embedded blocks in comment or unknown: (
Embedded blocks in comment or unknown:(
Found end of section in unknown:)
Found end of section in unknown:)
Number of points: 537

number of faces: 1454
Number of cells: 918
Reading points
Reading points
Reading uniform faces
Reading uniform faces
Reading uniform faces
Reading uniform faces
Reading uniform faces
Reading uniform faces
Tgrid syntax problem: 9 1 396 1
cellGroupZoneID:9
cellGroupStartIndex:1
cellGroupEndIndex:918
cellGroupType:1
Read zone1:3 name:internal-3 patchTypeID:interior
Reading zone data
Read zone1:4 name:wall-4 patchTypeID:wall
Reading zone data
Read zone1:5 name:velocity-inlet-5 patchTypeID:velocity-inlet
Reading zone data
Read zone1:6 name:velocity-inlet-6 patchTypeID:velocity-inlet
Reading zone data
Read zone1:7 name:pressure-outlet-7 patchTypeID:pressure-outlet
Reading zone data
Read zone1:8 name:wall-8 patchTypeID:wall
Reading zone data
Read zone1:9 name:fluid-9 patchTypeID:fluid
Reading zone data


FINISHED LEXING


dimension of grid: 2
Grid is 2-D. Extruding in z-direction by: 1.87548
Creating shapes for 2-D cells
Building patch-less mesh...--> FOAM Warning :
    From Foam::polyMesh::polyMesh(const Foam::IOobject&, Foam::pointField&&, const cellShapeList&, const faceListList&, const wordList&, const wordList&, const Foam::word&, const Foam::word&, const wordList&, bool)
    in file meshes/polyMesh/polyMeshFromShapeMesh.C at line 645
    Found 1990 undefined faces in mesh; adding to default patch defaultFaces
done.

Building boundary and internal patches.
Creating patch 0 for zone: 3 start: 155 end: 1454 type: interior name: internal-3
Creating patch 1 for zone: 4 start: 55 end: 154 type: wall name: wall-4
Creating patch 2 for zone: 5 start: 47 end: 54 type: velocity-inlet name: velocity-inlet-5
Creating patch 3 for zone: 6 start: 43 end: 46 type: velocity-inlet name: velocity-inlet-6
Creating patch 4 for zone: 7 start: 35 end: 42 type: pressure-outlet name: pressure-outlet-7
Creating patch 5 for zone: 8 start: 1 end: 34 type: wall name: wall-8
Creating patch for front and back planes

Patch internal-3 is internal to the mesh  and is not being added to the boundary.
Adding new patch wall-4 of type wall as patch 0
Adding new patch velocity-inlet-5 of type patch as patch 1
Adding new patch velocity-inlet-6 of type patch as patch 2
Adding new patch pressure-outlet-7 of type patch as patch 3
Adding new patch wall-8 of type wall as patch 4
Adding new patch frontAndBackPlanes of type empty as patch 5

Writing mesh... to "constant/polyMesh"  done.


End

openfoam2212:~/src/tutorials/incompressible/icoFoam/elbow_tri/

minimonk$ tree
.
├── 0
│   ├── U
│   └── p
├── 0.orig
│   ├── U
│   └── p
├── Allclean
├── Allrun
├── constant
│   ├── polyMesh
│   │   ├── boundary
│   │   ├── cellZones
│   │   ├── faceZones
│   │   ├── faces
│   │   ├── neighbour
│   │   ├── owner
│   │   ├── pointZones
│   │   └── points
│   ├── transportProperties
│   └── transportProperties.bak
├── elbow_quad.msh
├── elbow_tri.msh
└── system
    ├── controlDict
    ├── foamDataToFluentDict
    ├── fvSchemes
    └── fvSolution

5 directories, 22 files
openfoam2212:~/src/tutorials/incompressible/icoFoam/elbow_tri/

minimonk$ ico
ico                                 icoReactingMultiphaseInterFoam      icoUncoupledKinematicParcelFoam     iconv
icoFoam                             icoUncoupledKinematicParcelDyMFoam  icontopbm                           iconvconfig
openfoam2212:~/src/tutorials/incompressible/icoFoam/elbow_tri/
minimonk$ icoFoam
/*---------------------------------------------------------------------------*\
| =========                 |                                                 |
| \\      /  F ield         | OpenFOAM: The Open Source CFD Toolbox           |
|  \\    /   O peration     | Version:  2212                                  |
|   \\  /    A nd           | Website:  www.openfoam.com |
|    \\/     M anipulation  |                                                 |
\*---------------------------------------------------------------------------*/
Build  : _f8e05934-20230403 OPENFOAM=2212 patch=230110 version=2212
Arch   : "LSB;label=32;scalar=64"
Exec   : icoFoam
Date   : May 24 2023
Time   : 17:19:48
Host   : mini2760p
PID    : 24543
I/O    : uncollated
Case   : /home/minimonk/src/tutorials/incompressible/icoFoam/elbow_tri
nProcs : 1
trapFpe: Floating point exception trapping enabled (FOAM_SIGFPE).
fileModificationChecking : Monitoring run-time modified files using timeStampMaster (fileModificationSkew 5, maxFileModificationPolls 20)
allowSystemOperations : Allowing user-supplied system call operations

// * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * //
Create time

Create mesh for time = 0


PISO: Operating solver in PISO mode

Reading transportProperties

Reading field p

Reading field U

Reading/calculating face flux field phi


Starting time loop

Time = 0.05

Courant Number mean: 0.000415941 max: 0.173205
smoothSolver:  Solving for Ux, Initial residual = 1, Final residual = 2.59879e-07, No Iterations 1
smoothSolver:  Solving for Uy, Initial residual = 1, Final residual = 2.7558e-06, No Iterations 1
DICPCG:  Solving for p, Initial residual = 1, Final residual = 0.036127, No Iterations 62
DICPCG:  Solving for p, Initial residual = 0.0964781, Final residual = 0.00388218, No Iterations 3
DICPCG:  Solving for p, Initial residual = 0.00947597, Final residual = 0.000467612, No Iterations 44
time step continuity errors : sum local = 7.42259e-05, global = 1.62183e-06, cumulative = 1.62183e-06
DICPCG:  Solving for p, Initial residual = 0.00302872, Final residual = 0.000137611, No Iterations 9
DICPCG:  Solving for p, Initial residual = 0.00040051, Final residual = 1.89259e-05, No Iterations 11
DICPCG:  Solving for p, Initial residual = 7.55534e-05, Final residual = 7.72999e-07, No Iterations 55
time step continuity errors : sum local = 1.18435e-07, global = 2.9852e-09, cumulative = 1.62482e-06
ExecutionTime = 0.01 s  ClockTime = 0 s

Time = 0.1

Courant Number mean: 0.0788444 max: 0.397028
smoothSolver:  Solving for Ux, Initial residual = 0.41777, Final residual = 1.43339e-06, No Iterations 2
smoothSolver:  Solving for Uy, Initial residual = 0.415998, Final residual = 7.16337e-06, No Iterations 2
DICPCG:  Solving for p, Initial residual = 0.0174141, Final residual = 0.000701295, No Iterations 60
DICPCG:  Solving for p, Initial residual = 0.503317, Final residual = 0.0203323, No Iterations 3
DICPCG:  Solving for p, Initial residual = 0.0837591, Final residual = 0.00367981, No Iterations 45
time step continuity errors : sum local = 6.59525e-05, global = -1.04379e-06, cumulative = 5.81027e-07
DICPCG:  Solving for p, Initial residual = 0.104572, Final residual = 0.00332569, No Iterations 58
DICPCG:  Solving for p, Initial residual = 0.257662, Final residual = 0.0119158, No Iterations 6
DICPCG:  Solving for p, Initial residual = 0.0349453, Final residual = 6.69377e-07, No Iterations 73
time step continuity errors : sum local = 1.96408e-09, global = -3.1581e-11, cumulative = 5.80996e-07
ExecutionTime = 0.02 s  ClockTime = 0 s

...

Time = 74.95

Courant Number mean: 0.0810354 max: 0.50158
smoothSolver:  Solving for Ux, Initial residual = 1.22107e-05, Final residual = 3.41265e-08, No Iterations 1
smoothSolver:  Solving for Uy, Initial residual = 9.0529e-06, Final residual = 9.0529e-06, No Iterations 0
DICPCG:  Solving for p, Initial residual = 0.000279752, Final residual = 1.15931e-05, No Iterations 5
DICPCG:  Solving for p, Initial residual = 4.33362e-05, Final residual = 1.84484e-06, No Iterations 20
DICPCG:  Solving for p, Initial residual = 1.21591e-05, Final residual = 9.52858e-07, No Iterations 6
time step continuity errors : sum local = 2.40141e-10, global = 4.53557e-11, cumulative = 5.99696e-07
DICPCG:  Solving for p, Initial residual = 9.88006e-05, Final residual = 4.91478e-06, No Iterations 4
DICPCG:  Solving for p, Initial residual = 1.34255e-05, Final residual = 9.18873e-07, No Iterations 18
DICPCG:  Solving for p, Initial residual = 5.38886e-06, Final residual = 9.52181e-07, No Iterations 1
time step continuity errors : sum local = 2.39966e-10, global = -3.02947e-12, cumulative = 5.99693e-07
ExecutionTime = 6.25 s  ClockTime = 7 s

Time = 75

Courant Number mean: 0.0810354 max: 0.501578
smoothSolver:  Solving for Ux, Initial residual = 1.29443e-05, Final residual = 3.26777e-08, No Iterations 1
smoothSolver:  Solving for Uy, Initial residual = 8.86138e-06, Final residual = 8.86138e-06, No Iterations 0
DICPCG:  Solving for p, Initial residual = 0.000425003, Final residual = 1.9758e-05, No Iterations 3
DICPCG:  Solving for p, Initial residual = 3.72637e-05, Final residual = 1.5002e-06, No Iterations 47
DICPCG:  Solving for p, Initial residual = 1.25032e-05, Final residual = 9.53705e-07, No Iterations 4
time step continuity errors : sum local = 2.40409e-10, global = -2.83052e-12, cumulative = 5.9969e-07
DICPCG:  Solving for p, Initial residual = 8.65794e-05, Final residual = 4.13674e-06, No Iterations 8
DICPCG:  Solving for p, Initial residual = 1.40349e-05, Final residual = 8.71206e-07, No Iterations 15
DICPCG:  Solving for p, Initial residual = 4.26225e-06, Final residual = 7.88447e-07, No Iterations 1
time step continuity errors : sum local = 1.98748e-10, global = -4.50203e-11, cumulative = 5.99645e-07
ExecutionTime = 6.26 s  ClockTime = 7 s

End

openfoam2212:~/src/tutorials/incompressible/icoFoam/elbow_tri/
minimonk$



여기는 연산하는 거고

이제 보는건  paraview를 쓰면 된다.

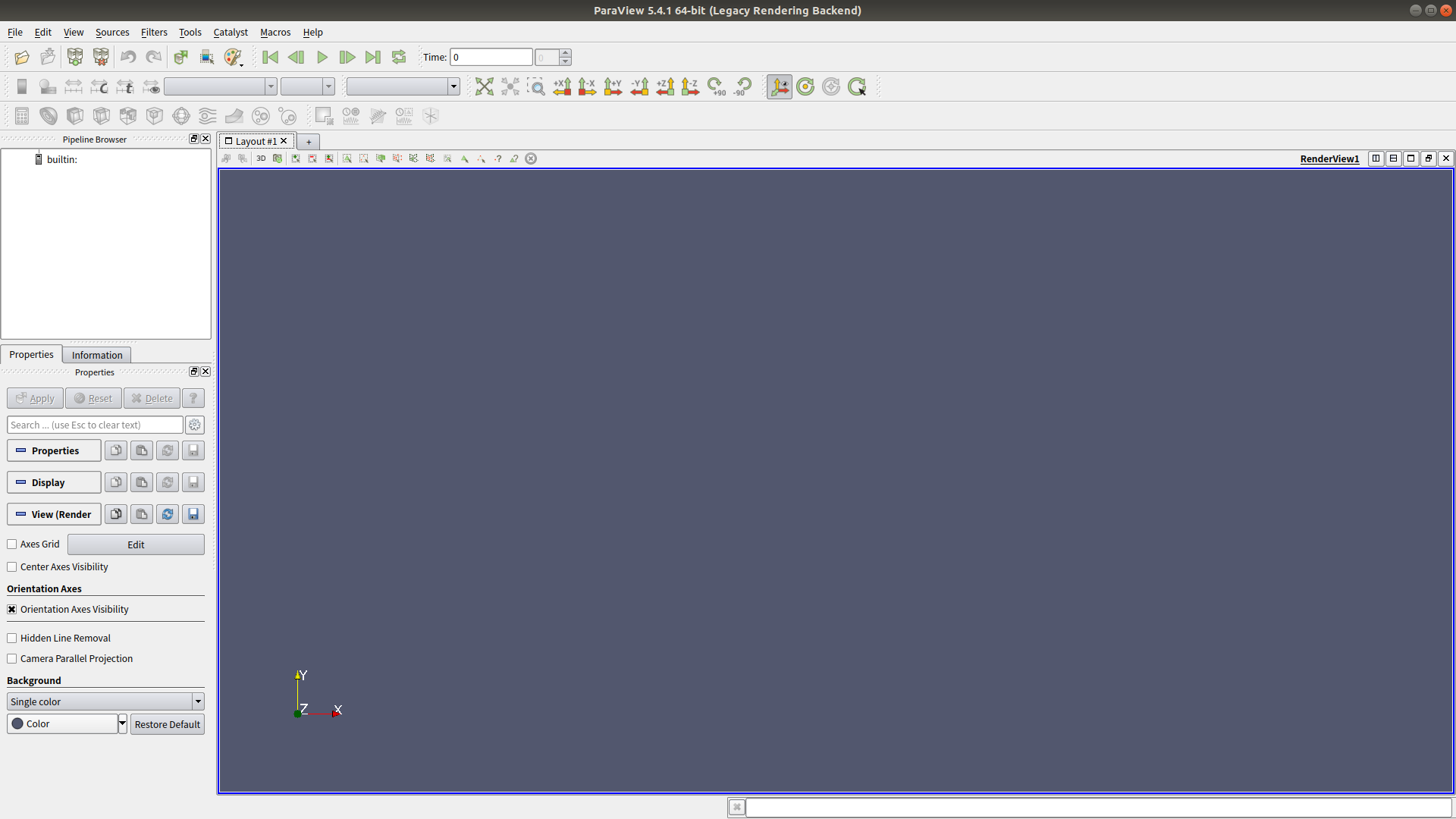

1. 좌측 상단의 폴더 눌러서 파일 열기

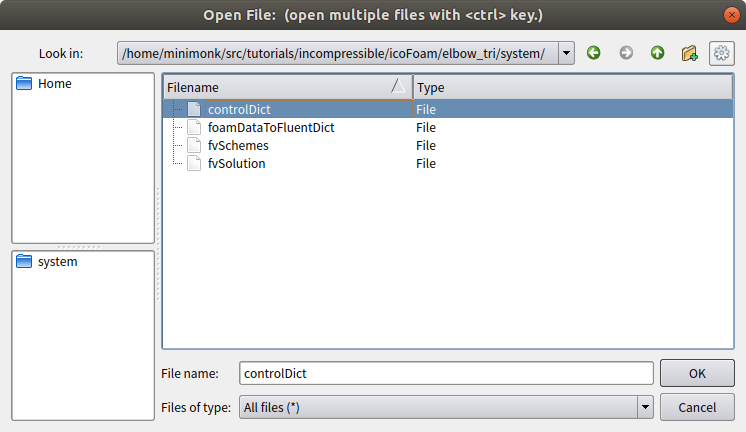

2. elbow_tri/system 디렉토리에서 파일을 모든 유형으로 선택하고 controlDict를 연다.

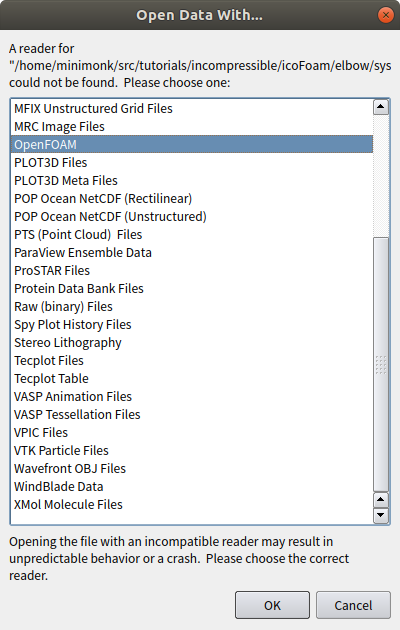

3. OpenFoam 유형으로 연다.



4. apply를 누른다.

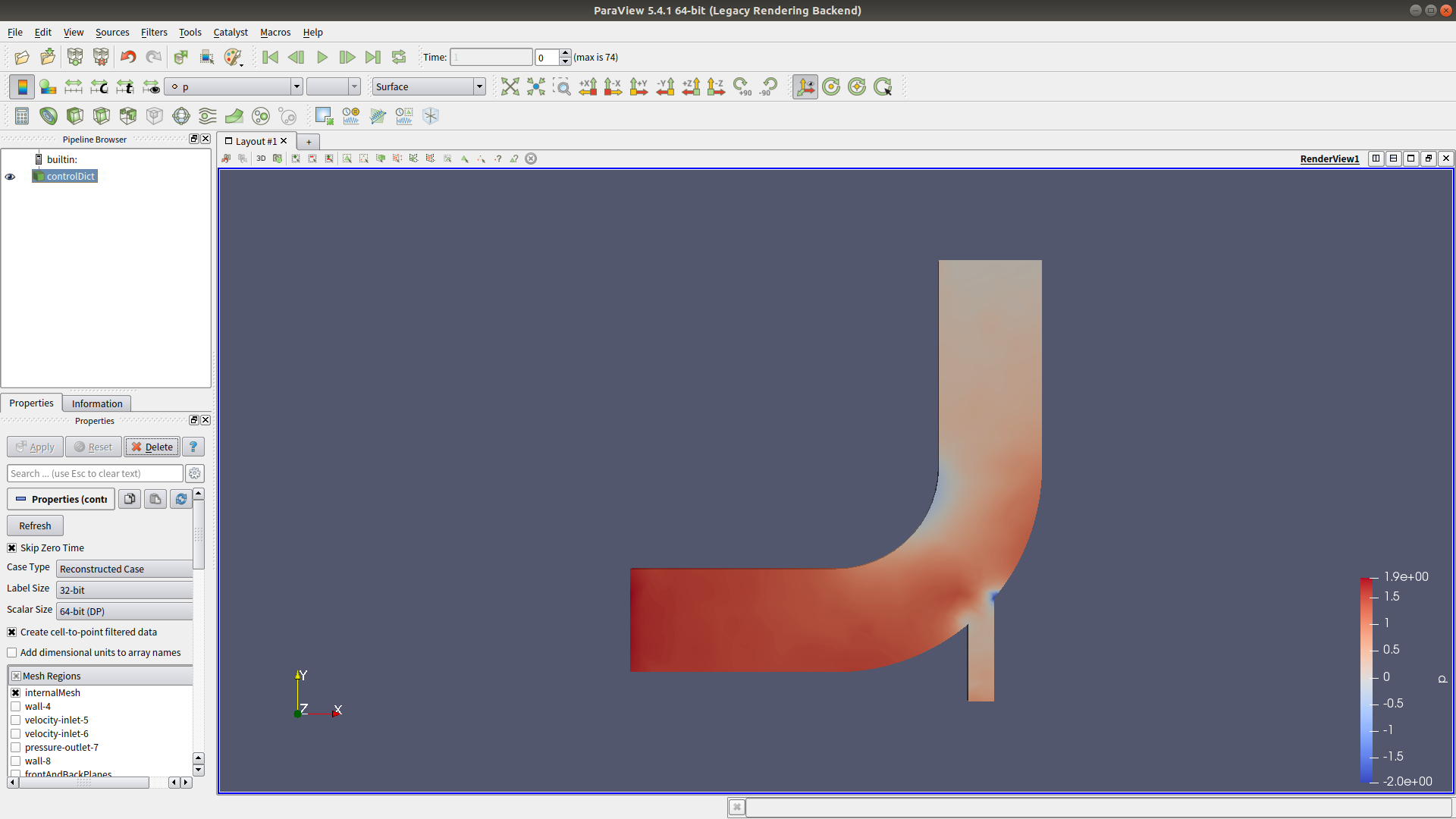

(처음 열어 보면 그냥 wireframe만 나오는데, icoFoam 까지 하고 나서 다시 열면 색상이 보인다)

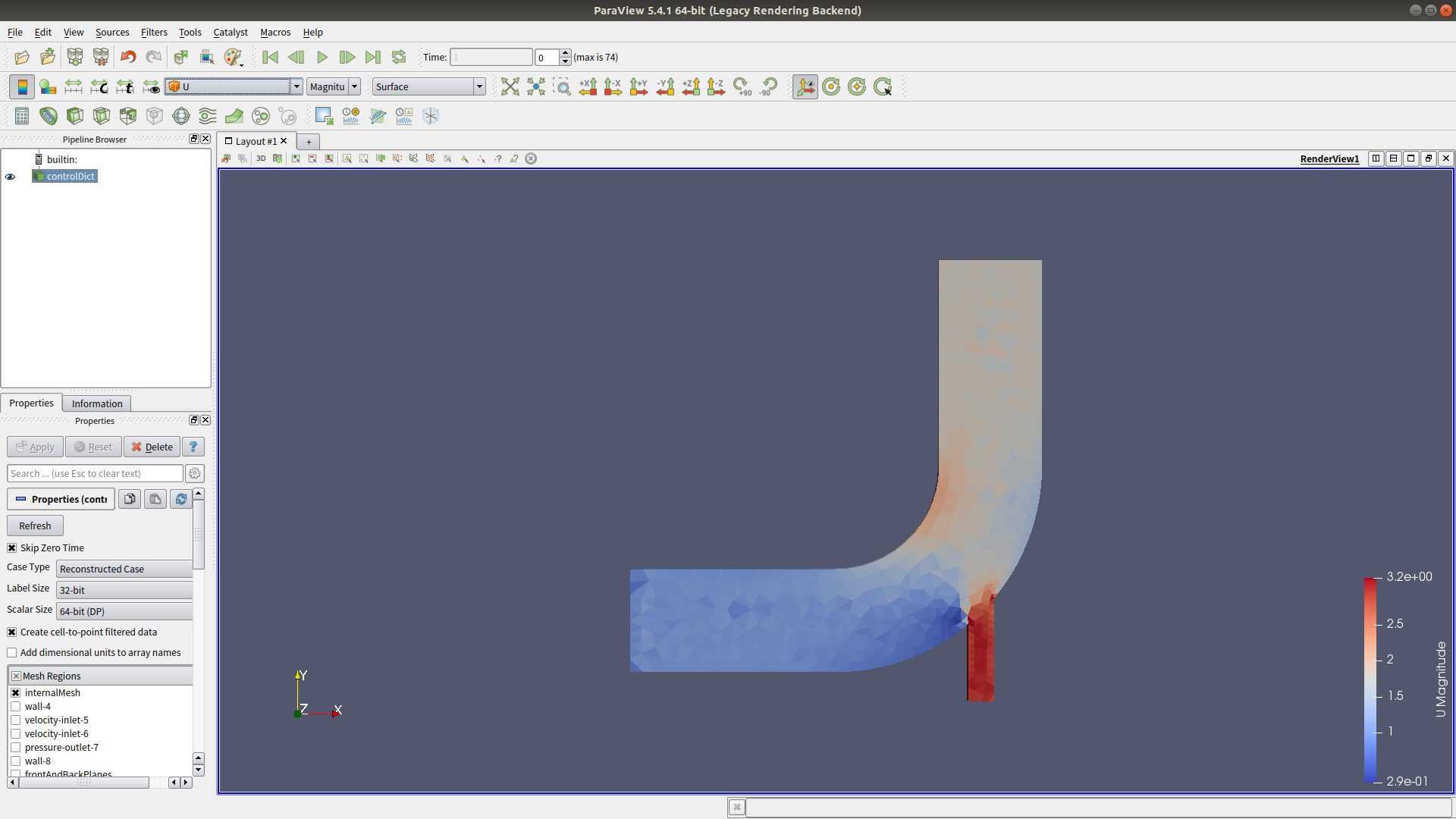

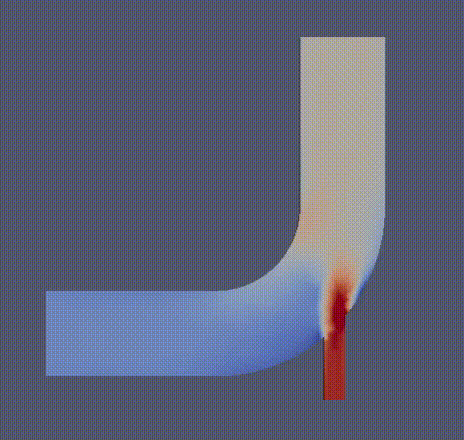

5. 상단에 U로 바꾸어 주고 재생 버튼을 누르면 75초간 시뮬레이션 한 결과가 재생된다.



오.. 신기해라(영혼 없음)

'프로그램 사용 > openFOAM' 카테고리의 다른 글

mpirun illegal instruction  (0) 2023.09.01
openFOAM + freecad + salome  (0) 2023.06.07
openfoam on ubuntu  (0) 2023.05.24
openFOAM tutorial  (4) 2023.05.24
openfoam7 on ubuntu 18.04  (0) 2020.08.09
Posted by 구차니
