luckfox pico mini - ubuntu 이미지, 윈도우에서 굽기
구차니
2026. 9. 8. 11:54
아래 링크 따라해봄
[링크 : https://wiki.luckfox.com/Luckfox-Pico-Plus-Mini/Flash-image]

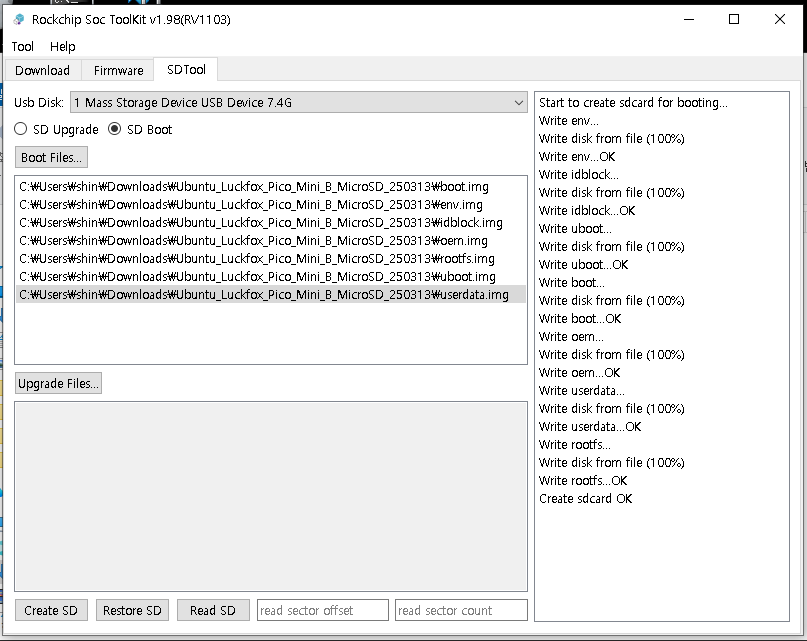

soc toolkit은 관리자 권한으로 실행해야지 usb disk를 찾는다. 머냐.. 찜찜하게
ubuntu...zip 을 압축 풀고 update.img를 제외하고 전부 선택하면 된다.
| DDR 306b9977f5 wesley.yao 23/12/21-09:28:37,fwver: v1.15 S5P1 4x fc27 rgef0 rgef1 DDRConf1 DDR2, BW=16 Col=10 Bk=4 CS0 Row=13 CS=1 Size=64MB 528MHz DDR bin out U-Boot SPL board init U-Boot SPL 2017.09 (Jun 26 2025 - 11:26:17) Trying to boot from MMC2 ENVF: Primary 0x00000000 - 0x00008000 ENVF: Primary 0x00000000 - 0x00008000 No misc partition Trying fit image at 0x440 sector ## Verified-boot: 0 ## Checking uboot 0x00200000 (lzma @0x00400000) ... sha256(155eb2eff5...) + sha256(39851d494f...) + OK ## Checking fdt 0x00260998 ... sha256(9f596c5683...) + OK Total: 428.120/510.978 ms Jumping to U-Boot(0x00200000) U-Boot 2017.09 (Mar 13 2025 - 22:07:02 +0800) Model: Rockchip RV1106 EVB Board MPIDR: 0xf00 PreSerial: 2, raw, 0xff4c0000 DRAM: 64 MiB Sysmem: init Relocation Offset: 03d81000 Relocation fdt: 02dfa778 - 02dfede0 CR: M/C/I Using default environment no mmc device at slot 1 ENVF: Primary 0x00000000 - 0x00008000 ENVF: Primary 0x00000000 - 0x00008000 mmc@ffa90000: 0, mmc@ffaa0000: 1 (SD) Bootdev(atags): mmc 1 MMC1: Legacy, 52Mhz PartType: ENV DM: v2 No misc partition boot mode: None RESC: 'boot', blk@0x00001db6 resource: sha256+ FIT: no signed, no conf required DTB: rk-kernel.dtb HASH(c): OK Model: Luckfox Pico Mini ## retrieving sd_update.txt ... bad MBR sector signature 0x0000 ** Invalid partition 1 ** CLK: (uboot. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A) apll 816000 KHz dpll 528000 KHz gpll 1188000 KHz cpll 1000000 KHz aclk_peri_root 400000 KHz hclK_peri_root 200000 KHz pclk_peri_root 100000 KHz aclk_bus_root 300000 KHz pclk_top_root 100000 KHz pclk_pmu_root 100000 KHz hclk_pmu_root 200000 KHz No misc partition Net: eth0: ethernet@ffa80000 Hit key to stop autoboot('CTRL+C'): 0 ## Booting FIT Image at 0x290ab40 with size 0x002eec00 Fdt Ramdisk skip relocation No misc partition ## Loading kernel from FIT Image at 0290ab40 ... Using 'conf' configuration ## Verified-boot: 0 Trying 'kernel' kernel subimage Description: unavailable Type: Kernel Image Compression: uncompressed Data Start: 0x02914140 Data Size: 3036240 Bytes = 2.9 MiB Architecture: ARM OS: Linux Load Address: 0x00008000 Entry Point: 0x00008000 Hash algo: sha256 Hash value: 771db266e47561fe03689039c5f37c245966055ca6c4b8626f8bbcb5a287d0c5 Verifying Hash Integrity ... sha256+ OK ## Loading fdt from FIT Image at 0290ab40 ... Using 'conf' configuration Trying 'fdt' fdt subimage Description: unavailable Type: Flat Device Tree Compression: uncompressed Data Start: 0x0290b340 Data Size: 36058 Bytes = 35.2 KiB Architecture: ARM Load Address: 0x00c00000 Hash algo: sha256 Hash value: ec878326be328d02cf921dd47e26715622d000bcf412e78c8a936ec0f5bb3285 Verifying Hash Integrity ... sha256+ OK Loading fdt from 0x0290ab40 to 0x00c00000 Booting using the fdt blob at 0x00c00000 Loading Kernel Image from 0x02914140 to 0x00008000 ... OK kernel loaded at 0x00008000, end = 0x002ed450 Using Device Tree in place at 00c00000, end 00c0bcd9 Adding bank: 0x00000000 - 0x04000000 (size: 0x04000000) Total: 937.378/1453.452 ms Starting kernel ... [ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 5.10.160 (root@DESKTOP-RUMO6US) (arm-rockchip830-linux-uclibcgnueabihf-gcc (crosstool-NG 1.24.0) 8.3.0, GNU ld (crosstool-NG 1.24.05 [ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=50c53c7d [ 0.000000] CPU: div instructions available: patching division code [ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache [ 0.000000] OF: fdt: Machine model: Luckfox Pico Mini [ 0.000000] Memory policy: Data cache writeback [ 0.000000] cma: Reserved 1024 KiB at 0x03f00000 [ 0.000000] Zone ranges: [ 0.000000] Normal [mem 0x0000000000000000-0x0000000003ffffff] [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000000000000-0x0000000003ffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff] [ 0.000000] CPU: All CPU(s) started in SVC mode. [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 16256 [ 0.000000] Kernel command line: user_debug=31 storagemedia=sd androidboot.storagemedia=sd androidboot.mode=normal rootwait earlycon=uart8250,mmio32,0xff4c05 [ 0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes, linear) [ 0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes, linear) [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 57176K/65536K available (3793K kernel code, 379K rwdata, 1816K rodata, 196K init, 138K bss, 7336K reserved, 1024K cma-reserved) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1 [ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16 [ 0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns [ 0.000006] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns [ 0.000018] Switching to timer-based delay loop, resolution 41ns [ 0.000513] Console: colour dummy device 80x30 [ 0.000565] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000) [ 0.000581] pid_max: default: 4096 minimum: 301 [ 0.000758] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.000772] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.001422] CPU: Testing write buffer coherency: ok [ 0.002107] Setting up static identity map for 0x81c0 - 0x81f8 [ 0.002584] devtmpfs: initialized [ 0.009512] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5 [ 0.009709] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.009729] futex hash table entries: 16 (order: -5, 192 bytes, linear) [ 0.009866] pinctrl core: initialized pinctrl subsystem [ 0.011124] NET: Registered protocol family 16 [ 0.011568] DMA: failed to allocate 0 KiB pool for atomic coherent allocation [ 0.012163] Registered FIQ tty driver [ 0.012504] thermal_sys: Registered thermal governor 'step_wise' [ 0.012511] thermal_sys: Registered thermal governor 'user_space' [ 0.012752] cpuidle: using governor menu [ 0.026002] rockchip-gpio ff380000.gpio: probed /pinctrl/gpio@ff380000 [ 0.026819] rockchip-gpio ff530000.gpio: probed /pinctrl/gpio@ff530000 [ 0.027620] rockchip-gpio ff550000.gpio: probed /pinctrl/gpio@ff550000 [ 0.028315] rockchip-gpio ff560000.gpio: probed /pinctrl/gpio@ff560000 [ 0.028416] rockchip-pinctrl pinctrl: probed pinctrl [ 0.038327] fiq_debugger fiq_debugger.0: IRQ uart_irq not found [ 0.038352] fiq_debugger fiq_debugger.0: IRQ wakeup not found [ 0.038642] printk: console [ttyFIQ0] enabled [ 0.038867] Registered fiq debugger ttyFIQ0 [ 0.041050] SCSI subsystem initialized [ 0.041273] usbcore: registered new interface driver usbfs [ 0.041322] usbcore: registered new interface driver hub [ 0.041372] usbcore: registered new device driver usb [ 0.041638] mc: Linux media interface: v0.10 [ 0.041677] videodev: Linux video capture interface: v2.00 [ 0.042883] Advanced Linux Sound Architecture Driver Initialized. [ 0.043708] rockchip-cpuinfo cpuinfo: SoC : 11031000 [ 0.043735] rockchip-cpuinfo cpuinfo: Serial : 3c6d8f8ee95e4dd0 [ 0.044129] rockchip,rknpor-powergood ff000000.syscon:rknpor-powergood: probe success! [ 0.044968] clocksource: Switched to clocksource arch_sys_counter [ 0.051609] NET: Registered protocol family 2 [ 0.051855] IP idents hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.052289] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear) [ 0.052319] TCP established hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.052336] TCP bind hash table entries: 1024 (order: 0, 4096 bytes, linear) [ 0.052352] TCP: Hash tables configured (established 1024 bind 1024) [ 0.052467] UDP hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.052490] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.052630] NET: Registered protocol family 1 [ 0.053300] RPC: Registered named UNIX socket transport module. [ 0.053326] RPC: Registered udp transport module. [ 0.053332] RPC: Registered tcp transport module. [ 0.053339] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 0.054444] rockchip-thermal ff3c8000.tsadc: tsadc is probed successfully! [ 0.055591] Initialise system trusted keyrings [ 0.055864] workingset: timestamp_bits=30 max_order=14 bucket_order=0 [ 0.059606] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.060492] NFS: Registering the id_resolver key type [ 0.060568] Key type id_resolver registered [ 0.060579] Key type id_legacy registered [ 0.060626] jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc. [ 0.061126] Key type asymmetric registered [ 0.061149] Asymmetric key parser 'x509' registered [ 0.061175] io scheduler mq-deadline registered [ 0.061568] rockchip-usb2phy ff3e0000.usb2-phy: IRQ index 0 not found [ 0.066562] dma-pl330 ff420000.dma-controller: Loaded driver for PL330 DMAC-241330 [ 0.066592] dma-pl330 ff420000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16 [ 0.067425] rockchip-pvtm ff240000.pvtm: pvtm@0 probed [ 0.067605] rockchip-pvtm ff390000.pvtm: pvtm@0 probed [ 0.067911] rockchip-system-monitor rockchip-system-monitor: system monitor probe [ 0.068472] Serial: 8250/16550 driver, 6 ports, IRQ sharing disabled [ 0.074189] random: crng init done [ 0.083411] brd: module loaded [ 0.089361] loop: module loaded [ 0.091595] spi-nand spi2.0: Winbond SPI NAND was found. [ 0.091625] spi-nand spi2.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64 [ 0.100923] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 0.101278] usbcore: registered new interface driver usb-storage [ 0.101472] gadgetfs: USB Gadget filesystem, version 24 Aug 2004 [ 0.101527] Mass Storage Function, version: 2009/09/11 [ 0.101541] LUN: removable file: (no medium) [ 0.101572] no file given for LUN0 [ 0.101608] udc ffb00000.usb: failed to start g_mass_storage: -22 [ 0.102147] i2c /dev entries driver [ 0.103735] i2c i2c-4: 1 i2c clients have been registered at 0x30 [ 0.104130] i2c i2c-4: 2 i2c clients have been registered at 0x30 [ 0.105229] usbcore: registered new interface driver uvcvideo [ 0.105247] USB Video Class driver (1.1.1) Welcome to Ubuntu 22.04.3 LTS! [ 0.106016] cpu cpu0: leakage=15 [ 0.106800] cpu cpu0: avs=0 [ 0.106970] cpu cpu0: opp calibration done [ 0.107130] cpu cpu0: l=10000 h=2147483647 hyst=5000 l_limit=0 h_limit=0 h_table=0 [ 0.107595] Synopsys Designware Multimedia Card Interface Driver [ 0.108510] dtbocfg: 0.1.0 [ 0.108583] dtbocfg: OK [ 0.110069] dwmmc_rockchip ffaa0000.mmc: No normal pinctrl state [ 0.110100] dwmmc_rockchip ffaa0000.mmc: No idle pinctrl state [ 0.110362] dwmmc_rockchip ffaa0000.mmc: IDMAC supports 32-bit address mode. [ 0.110415] dwmmc_rockchip ffaa0000.mmc: Using internal DMA controller. [ 0.110435] dwmmc_rockchip ffaa0000.mmc: Version ID is 270a [ 0.110481] dwmmc_rockchip ffaa0000.mmc: DW MMC controller at irq 48,32 bit host data width,256 deep fifo [ 0.112245] rv1106-acodec ff480000.acodec: current soc_id: rv1103 [ 0.112355] rv1106-acodec ff480000.acodec: Use pa_ctl_gpio and pa_ctl_delay_ms: 0 [ 0.114188] NET: Registered protocol family 17 [ 0.114339] Key type dns_resolver registered [ 0.115458] Loading compiled-in X.509 certificates [ 0.131919] mmc_host mmc1: Bus speed (slot 0) = 400000Hz (slot req 400000Hz, actual 400000HZ div = 0) [ 0.143640] input: adc-keys as /devices/platform/adc-keys/input/input0 [ 0.199077] mmc_host mmc1: Bus speed (slot 0) = 49500000Hz (slot req 50000000Hz, actual 49500000HZ div = 0) [ 0.199234] mmc1: new high speed SDHC card at address aaaa [ 0.200185] mmcblk1: mmc1:aaaa SL08G 7.40 GiB [ 0.201223] mmcblk1: p1(env) p2(idblock) p3(uboot) p4(boot) p5(oem) p6(userdata) p7(rootfs) [ 0.228638] ALSA device list: [ 0.228673] #0: rv-acodec [ 0.242141] EXT4-fs (mmcblk1p7): mounted filesystem with ordered data mode. Opts: (null) [ 0.242251] VFS: Mounted root (ext4 filesystem) readonly on device 179:7. [ 0.250194] devtmpfs: mounted [ 0.250425] Freeing unused kernel memory: 196K [ 0.250434] Kernel memory protection not selected by kernel config. [ 0.250467] Run /sbin/init as init process [ 0.736059] systemd[1]: System time before build time, advancing clock. [ 0.753328] systemd[1]: Failed to look up module alias 'autofs4': Function not implemented [ 0.773975] systemd[1]: systemd 249.11-0ubuntu3.11 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT +GNUTLS +OPENSSL +ACL ) [ 0.774918] systemd[1]: Detected architecture arm. [ 1.903361] systemd[1]: Queued start job for default target Graphical Interface. [ 1.908512] systemd[1]: Created slice Slice /system/getty. [ OK ] Created slice Slice /system/getty. [ 1.911295] systemd[1]: Created slice Slice /system/modprobe. [ OK ] Created slice Slice /system/modprobe. [ 1.913680] systemd[1]: Created slice Slice /system/serial-getty. [ OK ] Created slice Slice /system/serial-getty. [ 1.915458] systemd[1]: Created slice User and Session Slice. [ OK ] Created slice User and Session Slice. [ 1.916576] systemd[1]: Started Dispatch Password Requests to Console Directory Watch. [ OK ] Started Dispatch Password …ts to Console Directory Watch. [ 1.917599] systemd[1]: Started Forward Password Requests to Wall Directory Watch. [ OK ] Started Forward Password R…uests to Wall Directory Watch. [ 1.918557] systemd[1]: Condition check resulted in Arbitrary Executable File Formats File System Automount Point being skipped. [ OK ] Reached target Local Encrypted Volumes. [ 1.919104] systemd[1]: Reached target Local Encrypted Volumes. [ OK ] Reached target Remote File Systems. [ 1.920227] systemd[1]: Reached target Remote File Systems. [ OK ] Reached target Slice Units. [ 1.920820] systemd[1]: Reached target Slice Units. [ OK ] Reached target Swaps. [ 1.921465] systemd[1]: Reached target Swaps. [ OK ] Reached target Local Verity Protected Volumes. [ 1.922135] systemd[1]: Reached target Local Verity Protected Volumes. [ OK ] Listening on Syslog Socket. [ 1.923752] systemd[1]: Listening on Syslog Socket. [ OK ] Listening on initctl Compatibility Named Pipe. [ 1.924897] systemd[1]: Listening on initctl Compatibility Named Pipe. [ OK ] Listening on Journal Socket (/dev/log). [ 1.948168] systemd[1]: Condition check resulted in Journal Audit Socket being skipped. [ OK ] Listening on Journal Socket. [ 1.949378] systemd[1]: Listening on Journal Socket (/dev/log). [ OK ] Listening on udev Control Socket. [ 1.951076] systemd[1]: Listening on Journal Socket. [ OK ] Listening on udev Kernel Socket. [ 1.953737] systemd[1]: Listening on udev Control Socket. Mounting Kernel Debug File System... [ 1.955378] systemd[1]: Listening on udev Kernel Socket. Starting Journal Service... [ 1.956719] systemd[1]: Condition check resulted in Huge Pages File System being skipped. Starting Load Kernel Module configfs... [ 1.957447] systemd[1]: Condition check resulted in POSIX Message Queue File System being skipped. Starting Load Kernel Module drm... [ 1.961599] systemd[1]: Mounting Kernel Debug File System... Starting Load Kernel Module efi_pstore... [ 1.962951] systemd[1]: Condition check resulted in Kernel Trace File System being skipped. Starting Load Kernel Module fuse... [ 1.966082] systemd[1]: systemd-journald.service: unit configures an IP firewall, but the local system does not support BPF/cgroup firewalling. Starting Load Kernel Modules... [ 1.966136] systemd[1]: (This warning is only shown for the first unit using IP firewalling.) Starting Remount Root and Kernel File Systems... [ 1.976021] systemd[1]: Starting Journal Service... Starting Coldplug All udev Devices... [ 1.986332] systemd[1]: Condition check resulted in Create List of Static Device Nodes being skipped. [ OK ] Mounted Kernel Debug File System. [ 2.003514] systemd[1]: Starting Load Kernel Module configfs... [ 2.034590] systemd[1]: Starting Load Kernel Module drm... [ OK ] Finished Load Kernel Module configfs. [ 2.065952] systemd[1]: Starting Load Kernel Module efi_pstore... [ 2.092134] systemd[1]: Starting Load Kernel Module fuse... [ 2.127047] systemd[1]: Starting Load Kernel Modules... [ 2.149059] systemd[1]: Starting Remount Root and Kernel File Systems... [ 2.180449] systemd[1]: Starting Coldplug All udev Devices... [ 2.231724] systemd[1]: Mounted Kernel Debug File System. [ 2.242669] systemd[1]: modprobe@configfs.service: Deactivated successfully. [ OK ] Finished Load Kernel Module drm. [ 2.255396] systemd[1]: Finished Load Kernel Module configfs. [ 2.306533] systemd[1]: modprobe@drm.service: Deactivated successfully. [ OK ] Finished Load Kernel Module efi_pstore. [ 2.307823] systemd[1]: Finished Load Kernel Module drm. [ 2.310247] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully. [ OK ] Finished Load Kernel Module fuse. [ 2.323757] systemd[1]: Finished Load Kernel Module efi_pstore. [ OK ] Finished Load Kernel Modules. [ 2.331081] systemd[1]: modprobe@fuse.service: Deactivated successfully. [ 2.340210] systemd[1]: Finished Load Kernel Module fuse. [ OK ] Finished Remount Root and Kernel File Systems. [ 2.345533] EXT4-fs (mmcblk1p7): re-mounted. Opts: (null) [ 2.351206] systemd[1]: Finished Load Kernel Modules. [ 2.375236] systemd[1]: Finished Remount Root and Kernel File Systems. Mounting Kernel Configuration File System... [ 2.377500] systemd[1]: Condition check resulted in FUSE Control File System being skipped. [ 2.395573] systemd[1]: Mounting Kernel Configuration File System... [ 2.405844] systemd[1]: Condition check resulted in Platform Persistent Storage Archival being skipped. Starting Load/Save Random Seed... [ 2.423654] systemd[1]: Starting Load/Save Random Seed... [ 2.455953] systemd[1]: Starting Apply Kernel Variables... Starting Apply Kernel Variables... [ 2.509363] systemd[1]: Starting Create System Users... Starting Create System Users... [ 2.562007] systemd[1]: Mounted Kernel Configuration File System. [ OK ] Mounted Kernel Configuration File System. [ 2.611546] systemd[1]: Started Journal Service. [ OK ] Started Journal Service. Starting Flush Journal to Persistent Storage... [ OK ] Finished Coldplug All udev Devices. Starting Helper to synchronize boot up for ifupdown... [ OK ] Finished Load/Save Random Seed. [ OK ] Finished Apply Kernel Variables. [ OK ] Finished Helper to synchronize boot up for ifupdown. [ OK ] Finished Create System Users. Starting Create Static Device Nodes in /dev... [ OK ] Finished Flush Journal to Persistent Storage. [ OK ] Finished Create Static Device Nodes in /dev. [ OK ] Reached target Preparation for Local File Systems. Starting Rule-based Manage…for Device Events and Files... [ OK ] Started Rule-based Manager for Device Events and Files. Starting Load Kernel Module efi_pstore... Starting Load Kernel Module fuse... [ OK ] Finished Load Kernel Module efi_pstore. [ OK ] Found device /dev/ttyFIQ0. [ OK ] Finished Load Kernel Module fuse. [ OK ] Found device /dev/mmcblk1p6. [ OK ] Found device /dev/mmcblk1p5. [ OK ] Reached target Hardware activated USB gadget. Mounting /oem... Mounting /userdata... [ OK ] Mounted /oem. [ OK ] Mounted /userdata. [ OK ] Reached target Local File Systems. Starting Raise network interfaces... Starting Create Volatile Files and Directories... [ OK ] Finished Create Volatile Files and Directories. Starting Network Name Resolution... Starting Record System Boot/Shutdown in UTMP... [ OK ] Finished Record System Boot/Shutdown in UTMP. [ OK ] Reached target System Initialization. [ OK ] Started ACPI Events Check. [ OK ] Started Daily apt download activities. [ OK ] Started Daily apt upgrade and clean activities. [ OK ] Started Daily dpkg database backup timer. [ OK ] Started Periodic ext4 Onli…ata Check for All Filesystems. [ OK ] Started Discard unused blocks once a week. [ OK ] Started Daily rotation of log files. [ OK ] Started Message of the Day. [ OK ] Started Daily Cleanup of Temporary Directories. [ OK ] Reached target Path Units. [ OK ] Reached target Timer Units. [ OK ] Listening on ACPID Listen Socket. [ OK ] Reached target Socket Units. [ OK ] Reached target Basic System. [ OK ] Listening on D-Bus System Message Bus Socket. Starting Save/Restore Sound Card State... [ OK ] Started Regular background program processing daemon. [ OK ] Started D-Bus System Message Bus. Starting Network Manager... [ OK ] Started Save initial kernel messages after boot. Starting Remove Stale Onli…t4 Metadata Check Snapshots... Starting Dispatcher daemon for systemd-networkd... Starting Authorization Manager... Starting System Logging Service... Starting User Login Management... Starting WPA supplicant... [ OK ] Finished Raise network interfaces. [ OK ] Finished Save/Restore Sound Card State. [ OK ] Reached target Sound Card. [ OK ] Started System Logging Service. [ OK ] Started WPA supplicant. [ OK ] Started Authorization Manager. Starting Modem Manager... [ OK ] Started User Login Management. [ OK ] Started Network Manager. [ OK ] Started Network Name Resolution. [ OK ] Reached target Network. [ OK ] Reached target Host and Network Name Lookups. Starting Network Time Service... Starting /etc/rc.local Compatibility... Starting OpenBSD Secure Shell server... Starting Permit User Sessions... Starting vsftpd FTP server... [ OK ] Started vsftpd FTP server. [ OK ] Finished Permit User Sessions. Starting Hostname Service... [ OK ] Started Network Time Service. [ 14.188232] sc3336 4-0030: could not get default pinstate [ 14.188264] sc3336 4-0030: could not get sleep pinstate [ 15.104003] rkcif rkcif-mipi-lvds: failed to get dphy hw node [ 15.104056] : terminal subdev does not exist [ 15.104069] : terminal subdev does not exist [ 15.104077] : terminal subdev does not exist [ 15.104086] : terminal subdev does not exist [ 15.104097] : get_remote_sensor: video pad[0] is null [ 15.104108] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed! [ 15.104126] : get_remote_sensor: video pad[0] is null [ 15.104134] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed! [ 15.104149] : get_remote_sensor: video pad[0] is null [ 15.104156] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed! [ 15.104170] : get_remote_sensor: video pad[0] is null [ 15.104177] : rkcif_update_sensor_info: stream[0] get remote sensor_sd failed! [ 15.197383] rockchip-mipi-csi2: Async registered subdev [ 17.359228] rc.local[275]: 0 [ 17.563134] mpp_vepu_pp ffa60000.rkvenc-pp: shared_rst_a_pp is not found! [ 17.563165] vepu_pp_init:526: No aclk reset resource define [ 17.563177] mpp_vepu_pp ffa60000.rkvenc-pp: shared_rst_h_pp is not found! [ 17.563185] vepu_pp_init:529: No hclk reset resource define [ 17.703716] RKNPU ff660000.npu: dev_pm_opp_set_regulators: no regulator (rknpu) found: -19 [ 17.760752] rc.local[288]: Input rkcif-mipi-lvds Format:SBGGR10_1X10 Size:2304x1296@30fps Offset(0,0) [ 24.032674] rc.local[356]: cat: '/sys/bus/sdio/devices/*/uevent': No such file or directory [ 24.084765] rc.local[358]: cat: '/sys/bus/sdio/devices/*/uevent': No such file or directory [ 24.120213] rc.local[360]: cat: '/sys/bus/sdio/devices/*/uevent': No such file or directory [ 24.146917] rc.local[362]: cat: '/sys/bus/sdio/devices/*/uevent': No such file or directory [ 24.174028] rc.local[364]: cat: '/sys/bus/usb/devices/*/uevent': No such file or directory [ 24.207367] rc.local[366]: cat: '/sys/bus/usb/devices/*/uevent': No such file or directory [ 24.232187] rc.local[368]: cat: '/sys/bus/usb/devices/*/uevent': No such file or directory [ 24.267132] rc.local[370]: cat: '/sys/bus/sdio/devices/*/uevent': No such file or directory [ 25.268919] rc.local[350]: wlan0 not found. Stop run rkwifi_server. [ 25.354028] rc.local[384]: resize2fs 1.46.5 (30-Dec-2021) [ 26.336900] rc.local[384]: Filesystem at /dev/mmcblk1p5 is mounted on /oem; on-line resizing required [ 26.338154] rc.local[384]: old_desc_blocks = 1, new_desc_blocks = 1 [ 26.339087] rc.local[384]: The filesystem on /dev/mmcblk1p5 is now 131072 (4k) blocks long. [ 26.654170] rc.local[395]: resize2fs 1.46.5 (30-Dec-2021) [ 31.106295] rc.local[395]: Filesystem at /dev/mmcblk1p6 is mounted on /userdata; on-line resizing required [ 31.110425] rc.local[395]: old_desc_blocks = 1, new_desc_blocks = 1 [ 31.118636] rc.local[395]: The filesystem on /dev/mmcblk1p6 is now 262144 (1k) blocks long. [ 31.269909] rc.local[404]: resize2fs 1.46.5 (30-Dec-2021) [ 36.048860] rc.local[404]: Filesystem at /dev/mmcblk1p7 is mounted on /; on-line resizing required [ 36.074125] rc.local[404]: old_desc_blocks = 1, new_desc_blocks = 1 [ 36.075627] rc.local[404]: The filesystem on /dev/mmcblk1p7 is now 1572864 (4k) blocks long. [ 36.826968] rc.local[352]: Filesystem resized successfully. [ 38.315487] rc.local[352]: Swap successfully. [ 38.649020] rc.local[189]: /etc/rc.local: line 24: warning: command substitution: ignored null byte in input [ 38.701204] rc.local[473]: Debug: configfs_init [ 50.244421] rc.local[520]: /usr/bin/luckfox-config: line 234: warning: command substitution: ignored null byte in input [ 52.294743] rc.local[520]: Only Luckfox Pico Ultra /Luckfox Pico Ultra W support RGB [ 53.907365] rc.local[520]: Complete configuration loading [ 53.976024] rc.local[775]: hwclock: Cannot access the Hardware Clock via any known method. [ 53.979581] rc.local[775]: hwclock: Use the --verbose option to see the details of our search for an access method. Ubuntu 22.04.3 LTS luckfox ttyFIQ0 [username:password] root:root pico:luckfox luckfox login: root Password: ==== ==== ======== ======== =========== =========== ==== =============== ==== ==== ========= ==== ==== ==== = = ============ ============ ================================ ====== ========== ======= ===== ======= ===== ========== === =========== ============ ============ ======= ====== ====== ===== ============ ======== ==== === === === ======= === === ========= ====== === === === === === === === === === === === === === === === === === === ====== === === === ===== === === === === ====== ========= === === ===== === === === === === === === === === === === === ========= ====== ======= === === === ====== === === Welcome to Ubuntu 22.04.3 LTS (GNU/Linux 5.10.160 armv7l) * Documentation: https://wiki.luckfox.com * Management: https://www.luckfox.com This system has been minimized by removing packages and content that are not required on a system that users do not log into. To restore this content, you can run the 'unminimize' command. The programs included with the Ubuntu system are free software; the exact distribution terms for each program are described in the individual files in /usr/share/doc/*/copyright. Ubuntu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by applicable law. root@luckfox:~# root@luckfox:~# ifconfig lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 loop txqueuelen 1000 (Local Loopback) RX packets 190 bytes 14100 (14.1 KB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 190 bytes 14100 (14.1 KB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 usb0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 172.32.0.70 netmask 255.255.0.0 broadcast 172.32.255.255 ether 3a:91:cb:ae:12:82 txqueuelen 1000 (Ethernet) RX packets 83 bytes 14315 (14.3 KB) RX errors 0 dropped 63 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 root@luckfox:~# netstat -tnlp Active Internet connections (only servers) Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name tcp 0 0 127.0.0.1:5037 0.0.0.0:* LISTEN 499/adbd tcp 0 0 0.0.0.0:5555 0.0.0.0:* LISTEN 499/adbd tcp 0 0 127.0.0.53:53 0.0.0.0:* LISTEN 128/systemd-resolve tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 215/sshd: /usr/sbin root@luckfox:~# free -h total used free shared buff/cache available Mem: 56Mi 23Mi 4.0Mi 0.0Ki 27Mi 27Mi Swap: 1.0Gi 16Mi 1.0Gi root@luckfox:~# lsmod Module Size Used by rve 23436 0 rockit 225880 0 rknpu 27019 0 mpp_vcodec 414257 1 rockit rga3 90762 1 rockit phy_rockchip_csi2_dphy 9338 0 phy_rockchip_csi2_dphy_hw 10066 0 video_rkisp 171838 1 rockit video_rkcif 162117 1 rockit sc3336 9940 1 rk_dvbm 5941 2 mpp_vcodec,video_rkisp root@luckfox:~# df -h Filesystem Size Used Avail Use% Mounted on /dev/root 5.9G 1.9G 3.8G 34% / tmpfs 29M 0 29M 0% /dev/shm tmpfs 12M 988K 11M 9% /run tmpfs 5.0M 4.0K 5.0M 1% /run/lock /dev/mmcblk1p5 488M 91M 375M 20% /oem /dev/mmcblk1p6 238M 15K 233M 1% /userdata tmpfs 5.7M 0 5.7M 0% /run/user/0 |
