zigbee CC2531 on ubuntu 실패

구차니 2025. 12. 27. 18:35

음.. 그러고 보니 zigbee 단말도 없긴하네?

[   40.925908] usb 2-1.2: new full-speed USB device number 5 using ehci-pci
[   41.009340] usb 2-1.2: New USB device found, idVendor=0451, idProduct=16a8, bcdDevice= 0.09
[   41.009366] usb 2-1.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[   41.009375] usb 2-1.2: Product: TI CC2531 USB CDC
[   41.009381] usb 2-1.2: Manufacturer: Texas Instruments
[   41.009386] usb 2-1.2: SerialNumber: __0X00124B0018E27CF7
[   41.010714] cdc_acm 2-1.2:1.0: ttyACM0: USB ACM device
[   64.137191] warning: `ThreadPoolForeg' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211

[링크 : https://github.com/zigbee2mqtt/hassio-zigbee2mqtt]

[링크 : https://m.blog.naver.com/ohminy11/222520636013]

[링크 : https://cafe.naver.com/koreassistant/3962]

$ ls -al /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00
lrwxrwxrwx 1 root root 13 12월 27 18:33 /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00 -> ../../ttyACM0

version: 4
mqtt:
    base_topic: zigbee2mqtt
    server: mqtt://localhost:1833
serial:
    port: /dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00
    adapter: zstack
advanced:
    channel: 11
    network_key: GENERATE
    pan_id: GENERATE
    ext_pan_id: GENERATE
frontend:
    enabled: true
homeassistant:
    enabled: true

[링크 : https://www.zigbee2mqtt.io/guide/configuration/]

[링크 : https://github.com/Koenkk/zigbee2mqtt]

[링크 : https://www.zigbee2mqtt.io/guide/installation/01_linux.html] 리눅스 직접설치 비추

링크에서 있는거랑은 시리얼이 달라서 일단은 내거랑 맞게 수정

sudo docker run \
   --name zigbee2mqtt \
   --restart=unless-stopped \
   --device=/dev/serial/by-id/usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00:/dev/ttyACM0 \
   -p 8080:8080 \
   -v $(pwd)/data:/app/data \
   -v /run/udev:/run/udev:ro \
   -e TZ=Asia/Seoul \
   ghcr.io/koenkk/zigbee2mqtt

[링크 : https://www.zigbee2mqtt.io/guide/installation/02_docker.html] docker 추천

[링크 : https://github.com/koenkk/zigbee2mqtt/pkgs/container/zigbee2mqtt] 다른 아키텍쳐 일 경우

실행시 메시지

Unable to find image 'ghcr.io/koenkk/zigbee2mqtt:latest' locally
latest: Pulling from koenkk/zigbee2mqtt
2d35ebdb57d9: Pull complete
22359d97d4f5: Pull complete
04d924b772af: Pull complete
93836646b368: Pull complete
33e1af1a4e45: Pull complete
3fa2c3ee76eb: Pull complete
7b447ead2b45: Pull complete
ce83bad0f202: Pull complete
508a0def7d14: Pull complete
108de8ed3423: Pull complete
Digest: sha256:163e7351430a95d550d5b1bb958527edc1eff115eb013ca627f3545a192e853f
Status: Downloaded newer image for ghcr.io/koenkk/zigbee2mqtt:latest
Using '/app/data' as data directory
Starting Zigbee2MQTT without watchdog.

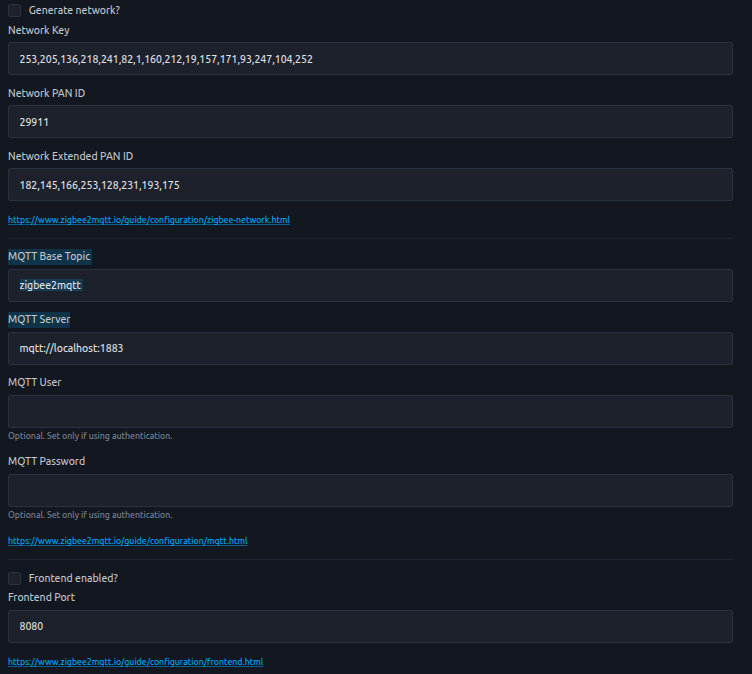

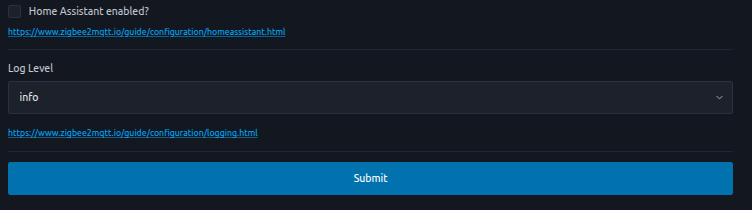

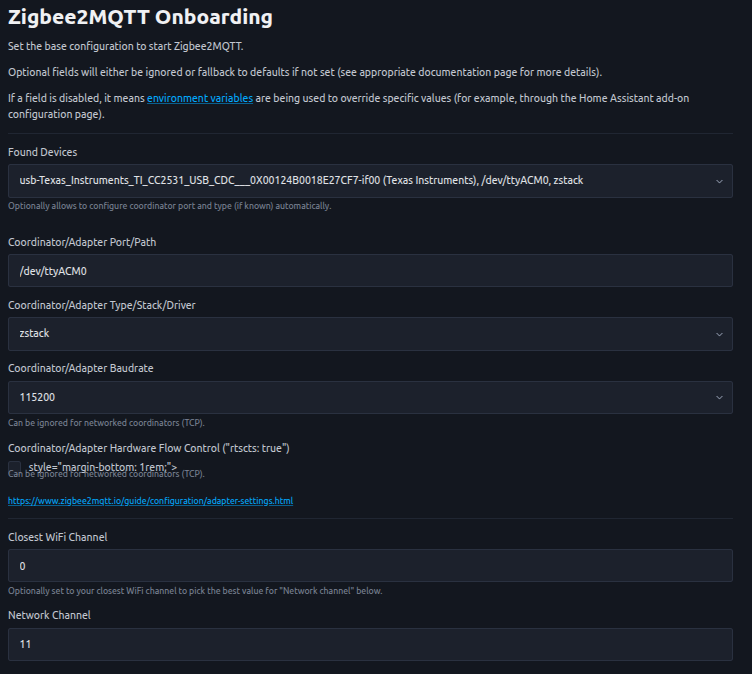

Onboarding page is available at http://0.0.0.0:8080/

Onboarding page is available at http://0.0.0.0:8080/
[2025-12-27 20:13:39] info: z2m: Logging to console, file (filename: log.log)
[2025-12-27 20:13:39] info: z2m: Starting Zigbee2MQTT version 2.7.1 (commit #6d30fa156cf208189edbbd7db8422a6fc657fb9e
)
[2025-12-27 20:13:39] info: z2m: Starting zigbee-herdsman (7.0.4)
[2025-12-27 20:13:39] info: zh:adapter:discovery: Matched adapter: {"path":"/dev/ttyACM0","manufacturer":"Texas Instruments","serialNumber":"__0X00124B0018E27CF7","pnpId":"usb-Texas_Instruments_TI_CC2531_USB_CDC___0X00124B0018E27CF7-if00","vendorId":"0451","productId":"16a8"} => zstack: 4
[2025-12-27 20:13:39] info: zh:zstack:znp: Opening SerialPort with {"path":"/dev/ttyACM0","baudRate":115200,"rtscts":false,"autoOpen":false}
[2025-12-27 20:13:39] info: zh:zstack:znp: Serialport opened
[2025-12-27 20:13:46] info: zh:controller: Wrote coordinator backup to '/app/data/coordinator_backup.json'
[2025-12-27 20:13:46] info: z2m: zigbee-herdsman started (restored)
[2025-12-27 20:13:46] info: z2m: Coordinator firmware version: '{"meta":{"maintrel":3,"majorrel":2,"minorrel":6,"product":0,"revision":20190608,"transportrev":2},"type":"ZStack12"}'
[2025-12-27 20:13:46] info: z2m: Currently 0 devices are joined.
[2025-12-27 20:13:46] info: z2m: Connecting to MQTT server at mqtt://localhost:1883
[2025-12-27 20:13:46] error: z2m: MQTT failed to connect, exiting... ()
[2025-12-27 20:13:46] info: z2m: Stopping zigbee-herdsman...
[2025-12-27 20:13:47] info: zh:controller: Wrote coordinator backup to '/app/data/coordinator_backup.json'
[2025-12-27 20:13:47] info: zh:zstack:znp: closing
[2025-12-27 20:13:47] info: zh:zstack:znp: Port closed
[2025-12-27 20:13:47] info: z2m: Stopped zigbee-herdsman
