lora evk
구차니
2025. 10. 2. 15:39

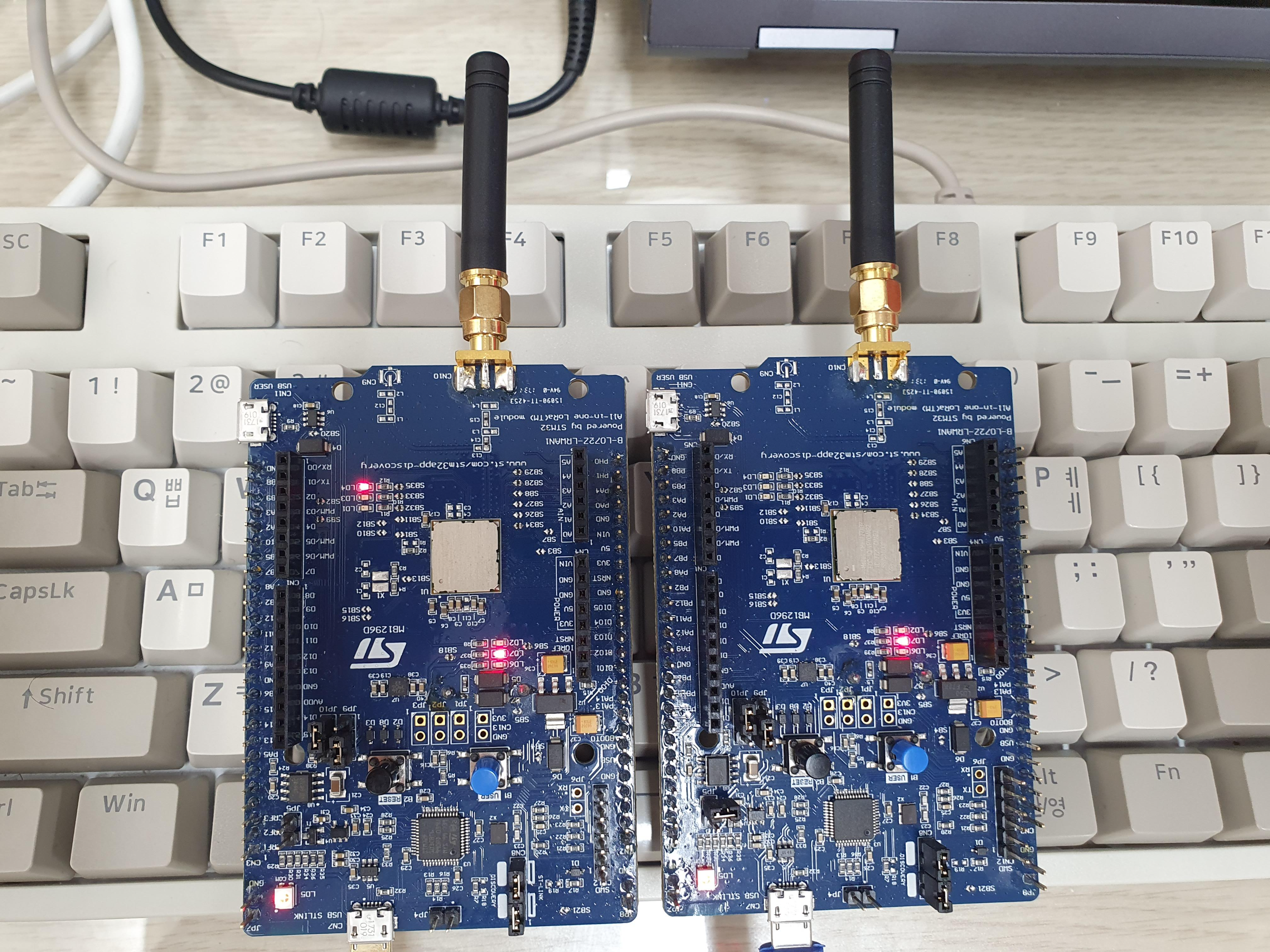

중앙의 뚜껑있는 놈이 stm32L 과 sx1276 통합 모듈, 왼쪽은 stlink 인듯.

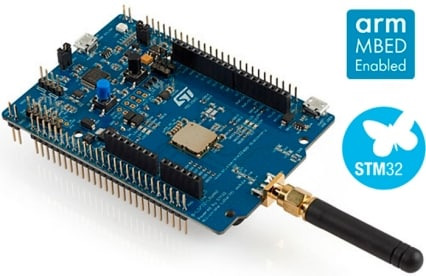

| The B-L072Z-LRWAN1 LoRa®/Sigfox™ Discovery kit is a development tool to learn and develop solutions based on LoRa®, Sigfox™, and FSK/OOK technologies. This Discovery kit features the all-in-one CMWX1ZZABZ-091 open module by Murata. The module is powered by an STM32L072CZ microcontroller and SX1276 transceiver. The transceiver features the LoRa® long-range modem, providing ultra-long-range spread-spectrum communication and high interference immunity, minimizing current consumption. Since CMWX1ZZABZ-091 is an open module, the user has access to all STM32L072CZ peripherals such as ADC, 16-bit timer, LP-UART, I2C, SPI, and USB 2.0 FS (supporting BCD and LPM). |
[링크 : https://www.st.com/en/evaluation-tools/b-l072z-lrwan1.html]
[링크 : https://www.murata.com/en-global/products/connectivitymodule/lpwa/overview/lineup/type-abz-091]
| FSK (Frequency Shift Keying) OOK (On-Off Keying) |
[링크 : https://blog.naver.com/bruno_annie/220777474513]
| [258199.737417] usb 1-2: new full-speed USB device number 31 using xhci_hcd [258199.866439] usb 1-2: New USB device found, idVendor=0483, idProduct=374b, bcdDevice= 1.00 [258199.866457] usb 1-2: New USB device strings: Mfr=1, Product=2, SerialNumber=3 [258199.866464] usb 1-2: Product: STM32 STLink [258199.866470] usb 1-2: Manufacturer: STMicroelectronics [258199.866475] usb 1-2: SerialNumber: 066BFF363637503457160939 [258199.927997] usb-storage 1-2:1.1: USB Mass Storage device detected [258199.928972] scsi host0: usb-storage 1-2:1.1 [258199.930589] cdc_acm 1-2:1.2: ttyACM0: USB ACM device [258200.938237] scsi 0:0:0:0: Direct-Access MBED microcontroller 1.0 PQ: 0 ANSI: 2 [258200.939003] sd 0:0:0:0: Attached scsi generic sg0 type 0 [258200.940836] sd 0:0:0:0: [sda] 456 512-byte logical blocks: (233 kB/228 KiB) [258200.941073] sd 0:0:0:0: [sda] Write Protect is off [258200.941080] sd 0:0:0:0: [sda] Mode Sense: 03 00 00 00 [258200.941299] sd 0:0:0:0: [sda] No Caching mode page found [258200.941312] sd 0:0:0:0: [sda] Assuming drive cache: write through [258200.963802] sd 0:0:0:0: [sda] Attached SCSI removable disk |
[링크 : https://os.mbed.com/platforms/ST-Discovery-LRWAN1/]

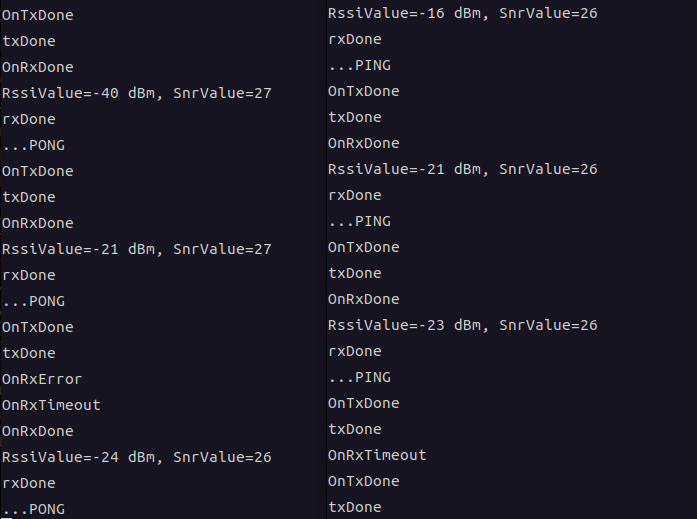

[링크 : https://os.mbed.com/teams/ST/code/DISCO-L072CZ-LRWAN1_LoRa_PingPong/]
