프로그램 사용/freecad

gemini + freecad

구차니 2025. 9. 1. 10:20

mcp를 받아서 설치하는데 zip으로 받아서

freecad_mcp_main 으로 풀리는 디렉토리를 통채로 Mod로 옮겨준다

$ cp freecad_mcp_main ~/.Freecad/Mod/freecad_mcp

[링크 : https://github.com/bonninr/freecad_mcp]



gemini 설정도 수정해주고

~/.gemini$ cat settings.json
{
  "theme": "Atom One",
  "selectedAuthType": "oauth-personal",
  "mcpServers": {
        "freecad": {
            "command": "/usr/bin/python3",
            "args": [
                "/home/user/.FreeCAD/Mod/freecad_mcp/src/freecad_bridge.py"
            ]
        }
    }
}



freecad를 재시작하거나 처음 시작하면 workbench에 FreeCAD MCP 라는게 생겨난다.

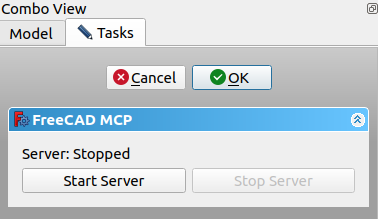

메뉴에서 FreeCAD MCP - Show FreeCAD MCP Panel 누르면 Tasks에 창이 열리는데 Start Server 눌러준다.



freecad 에서 start RPC server 하면 9876 포트로 생성된다.

$ netstat -tnlp
(Not all processes could be identified, non-owned process info
 will not be shown, you would have to be root to see it all.)
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address           Foreign Address         State       PID/Program name
tcp        0      0 127.0.0.1:9876          0.0.0.0:*               LISTEN      3295252/freecad



FastMCP 모듈이 없으면 일단 설치해주고

$ pip3 install FastMCP

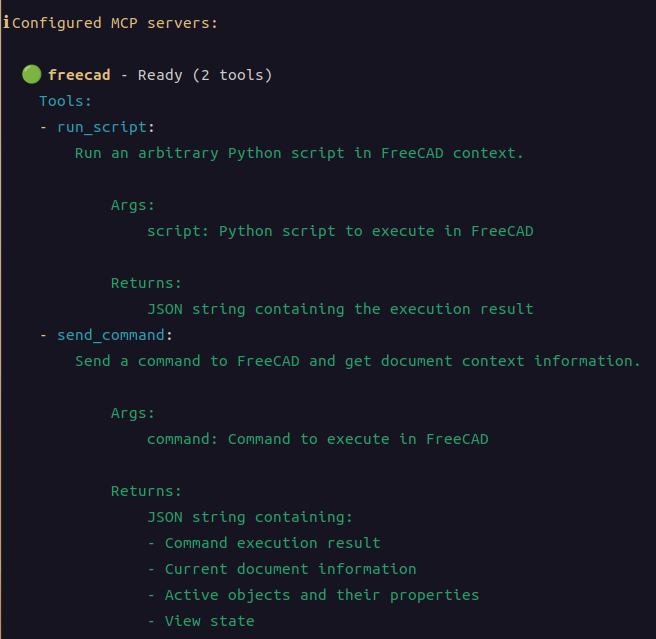

gemini를 실행하고 ctrl-t를 눌러 Ready라고 뜨면 끝

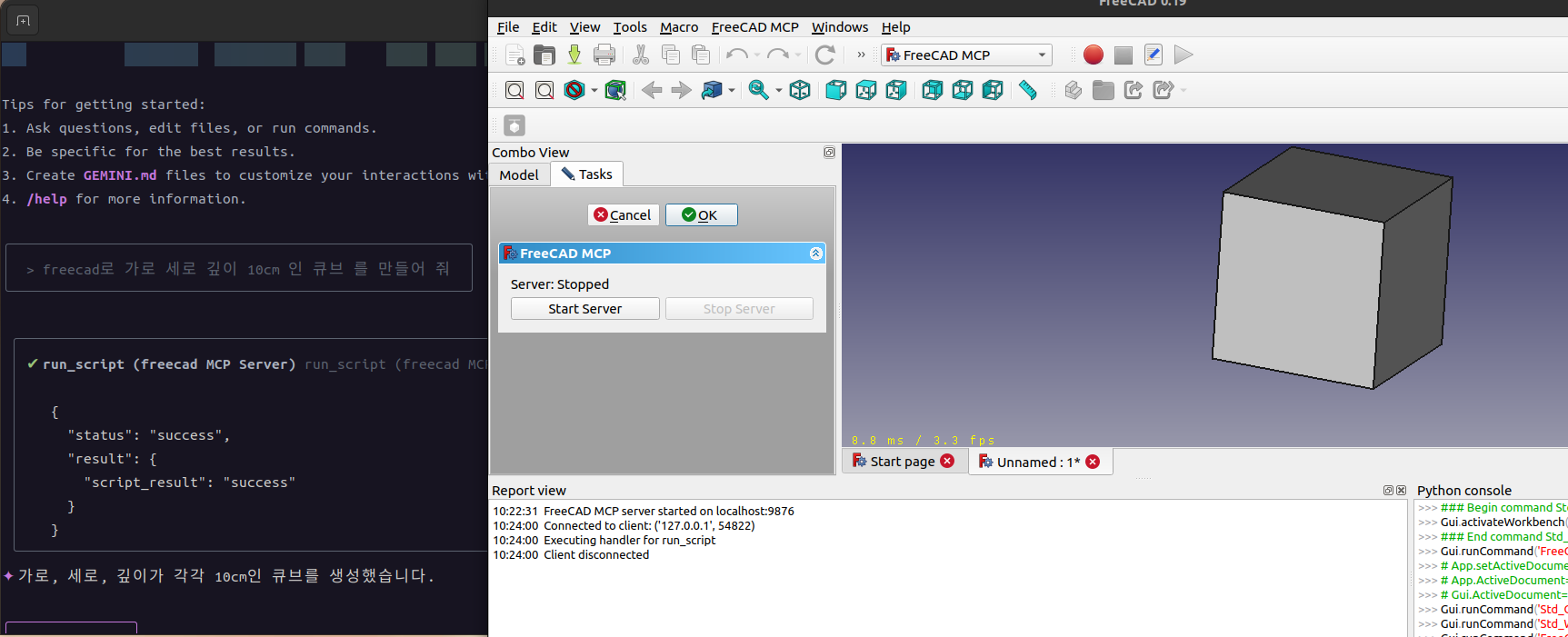

생성 성공!

그런데  claude 용으로는 MCP 인데.. 같이 연결 못하나?
